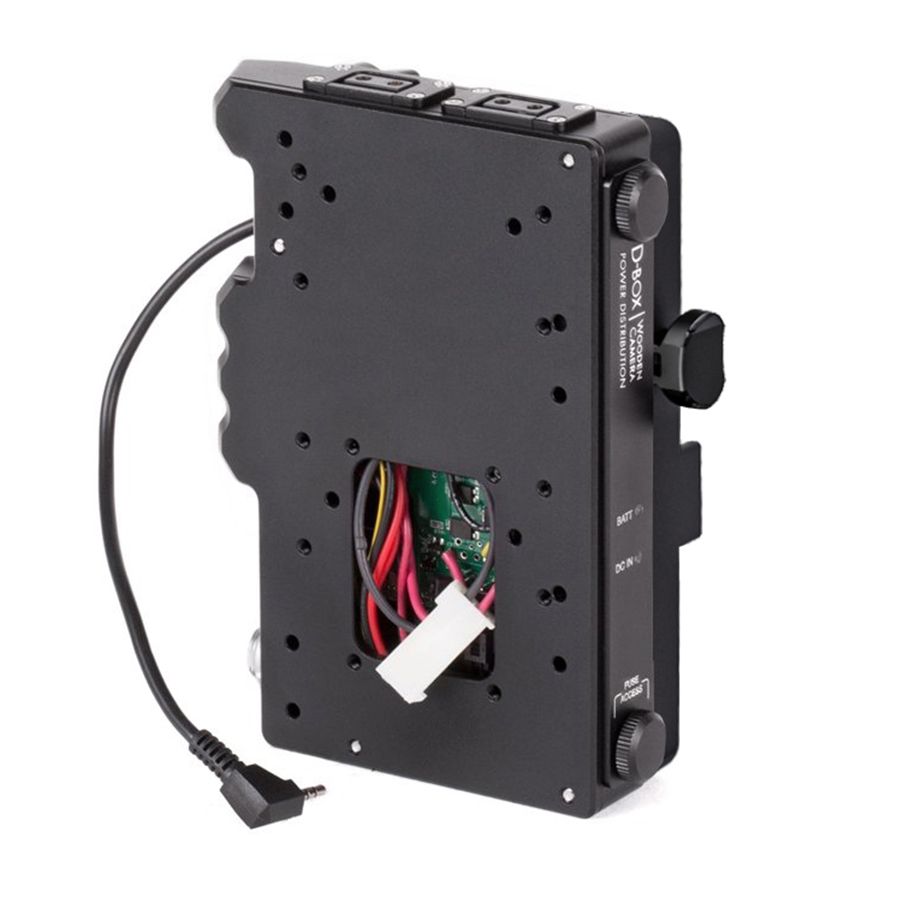

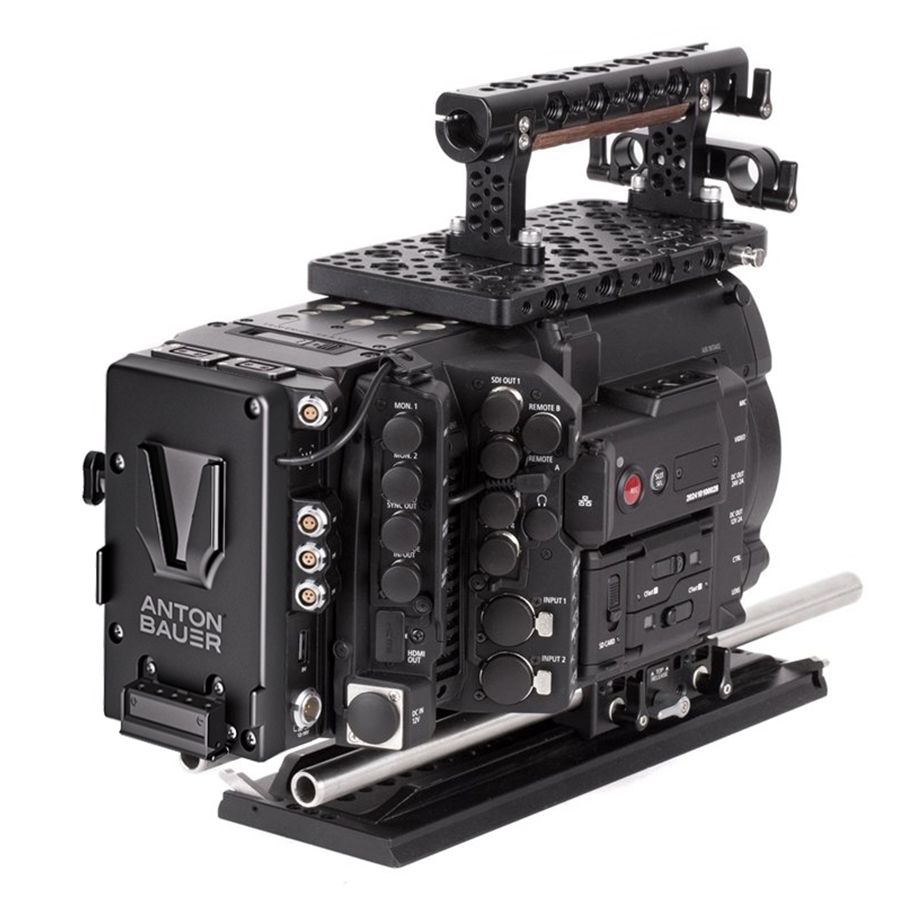

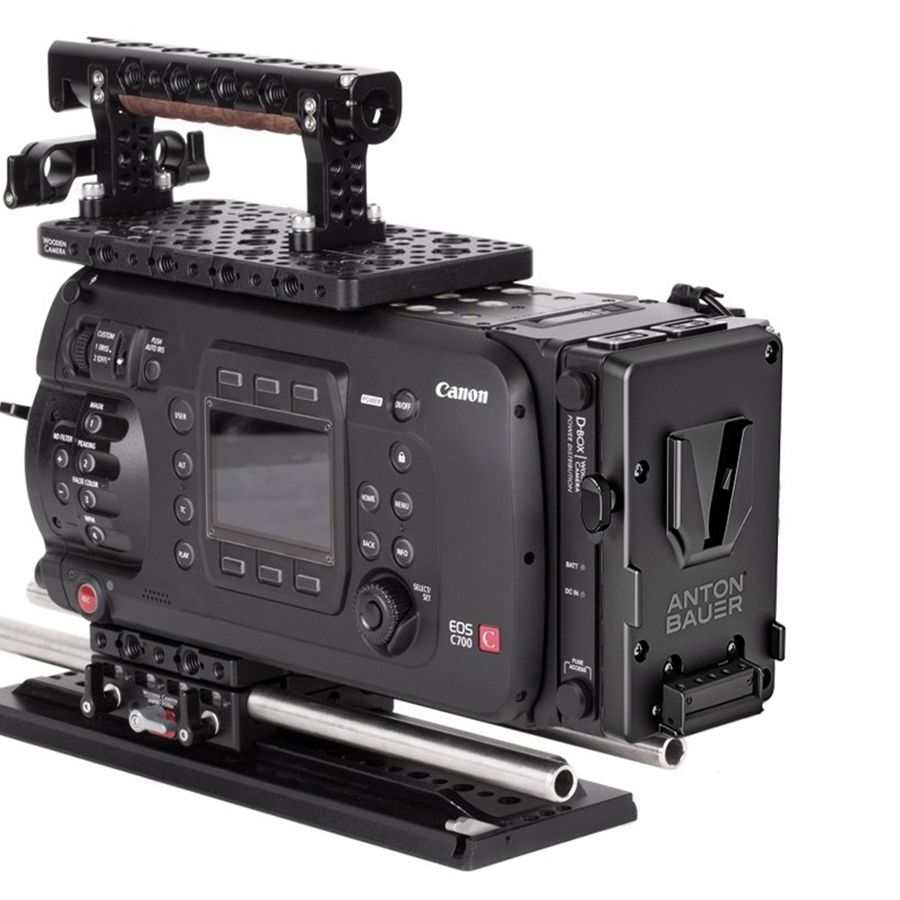

D-Box (Canon C700, V-Mount) adds power distribution, standardized remote start/stop, and hot swap capability to the Canon C700. The D-Box attaches directly to the back of the camera body using a special Molex connector eliminating external cabling. It also interfaces with the rear LANC port which is how the D-Box controls the camera's run/stop.

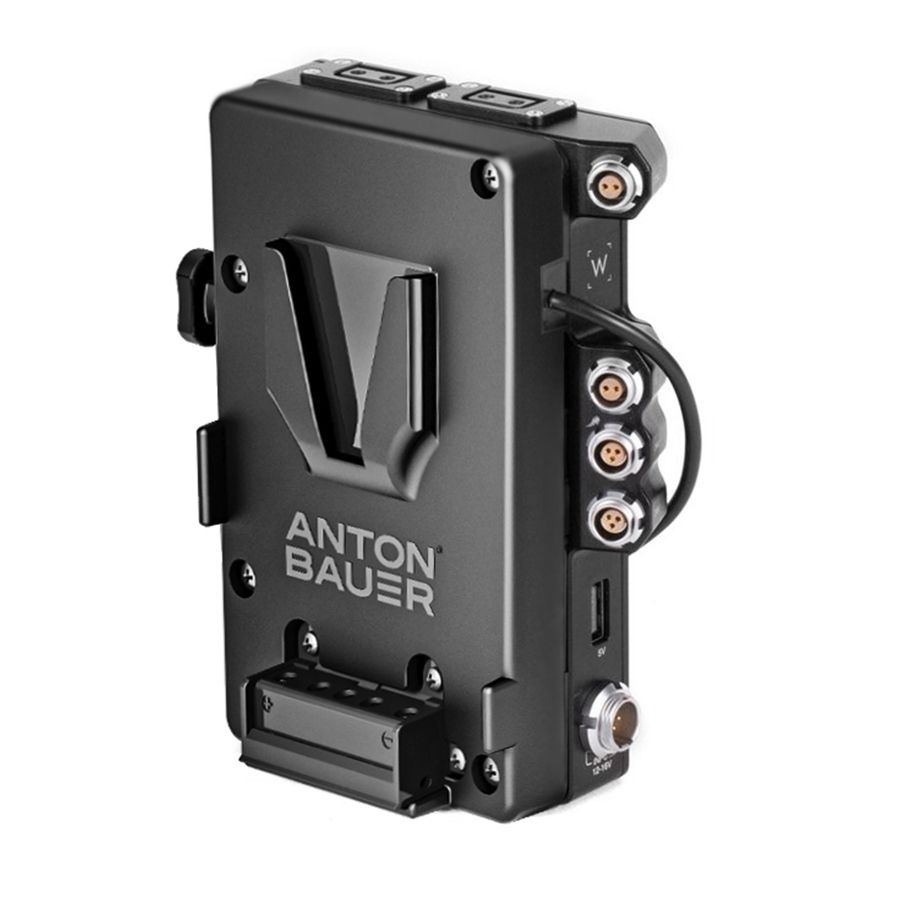

Connectors on the D-Box are contoured in line with the Canon C700 body, streamlining port connections and cable management. The module also provides two 3pin Fischer ports, allowing start/stop with any ARRI standard trigger device.

The D-Box is equipped with a RED 6pin LEMO compatible DC Input allowing an AC power supply or external power plate to be connected to power the camera and accessories during a battery change. When both battery and DC input are utilized, the D-Box defaults to the DC input, leaving the battery fully charged.

D-Box Connections:

1. P-Tap – 12V Unregulated

2. USB – 5V Regulated

3. 2 pin LEMO compatible connector – 12V Unregulated

– ARRI standard wiring

4. 2 pin LEMO compatible connector – 12V Unregulated

– ARRI standard wiring

5. 3 pin Fischer – 24V Regulated
– Regulator built in to convert battery voltage to 24V
– Maximum 2A continuous (3A surge) shared between the two 3pin Fischers
– ARRI standard start/stop capabilities

6. 3 pin Fischer – 24V Regulated
– Regulator built in to convert battery voltage to 24V
– Maximum 2A continuous (3A surge) shared between the two 3pin Fischers
– ARRI standard start/stop capabilities

7. DC Input – 12-16V
– RED 6pin LEMO compatible DC Input XLR
– Priority is given to DC Input to preserve battery charge when both sources connected For an adjustable mount system, use the Universal Mounting Plate for rail mounted cameras – MATRIX Cheese Plate



Technical Specifications
Camera Brand: Canon
Camera Model: C700
Compatibility: Specialized
Mount Type: V-Mount
