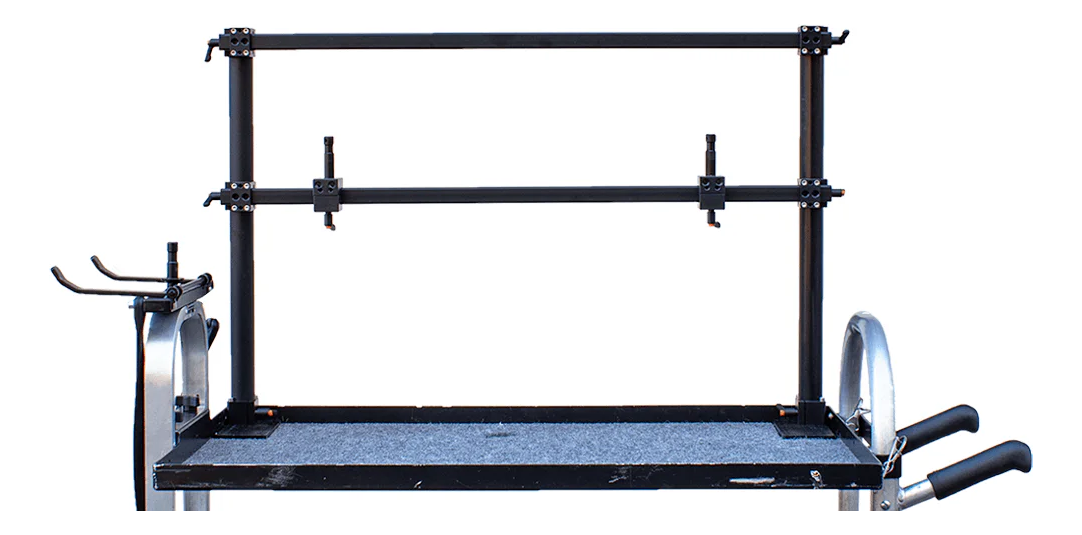

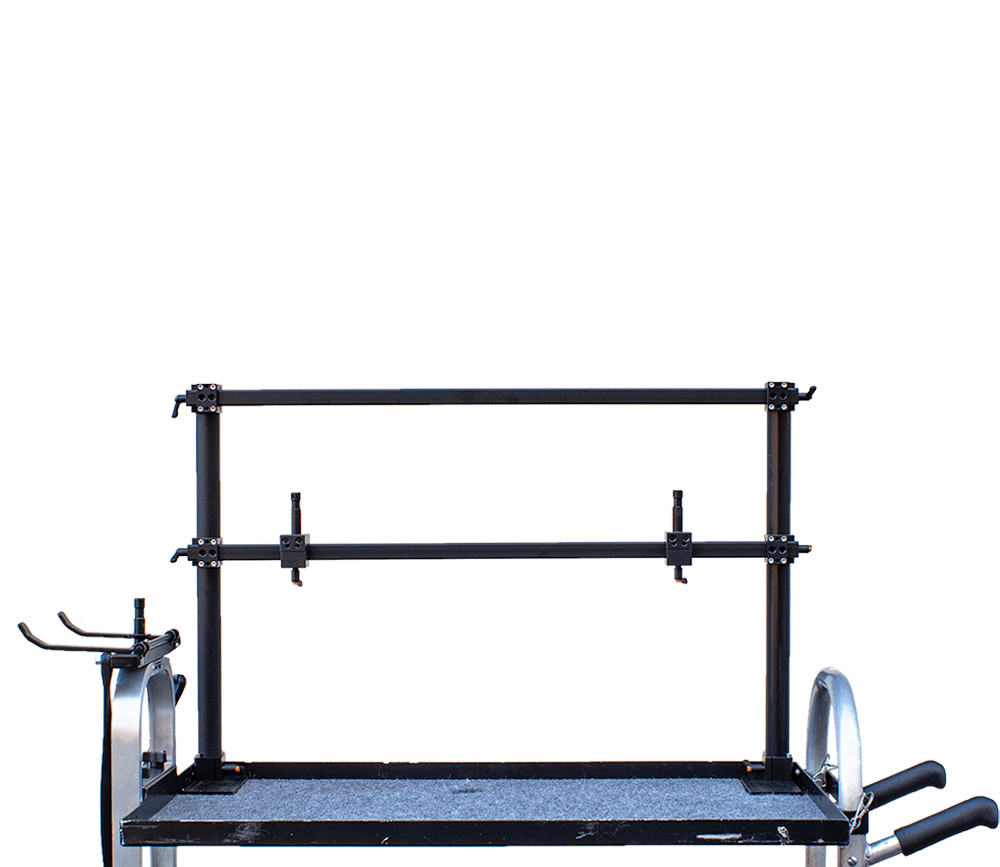

The Whaley Rail II is a collaborative design between Ben Whaley (667 DIT) & Upgrade Innovations. The frame system integrates with the Backstage Magliner cart to provide a solid, lightweight, adaptable & removable mounting frame to hold multiple production monitors and other accessories.

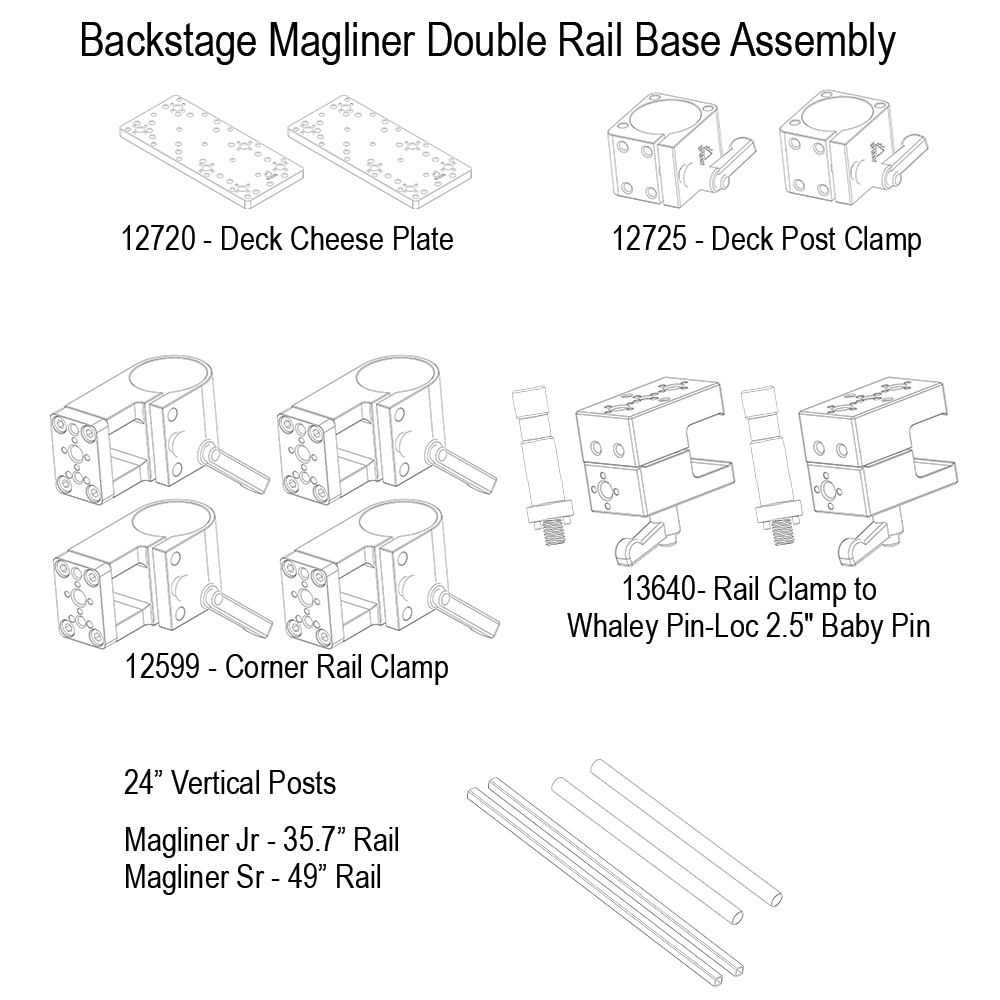

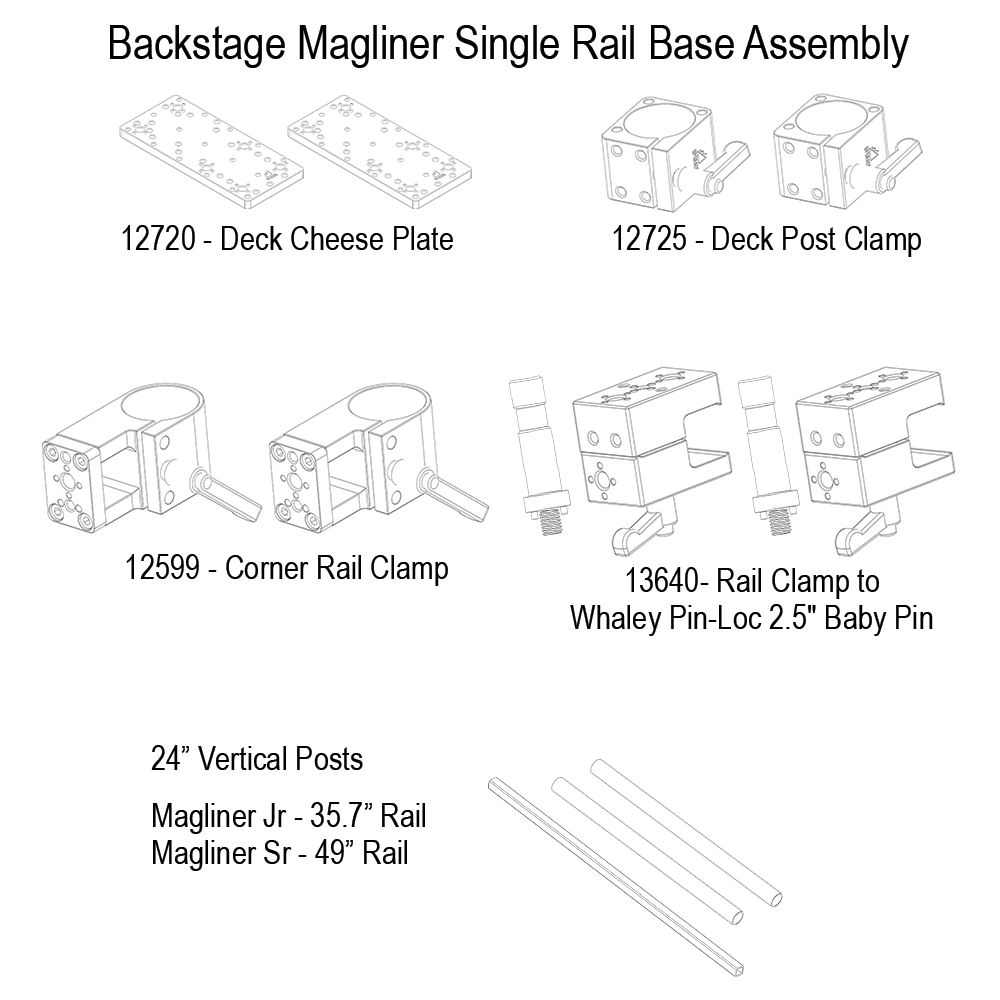

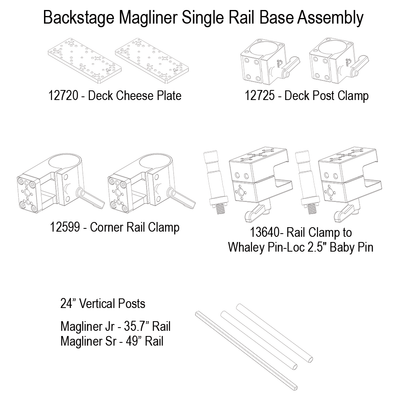

Build the Whaley Rail frame system to the Backstage Magliner, by installing deck cheese plates onto the cart deck. For further information on the assembly process, check out the Whaley Rail II – Backstage Magliner Assembly Instructions.

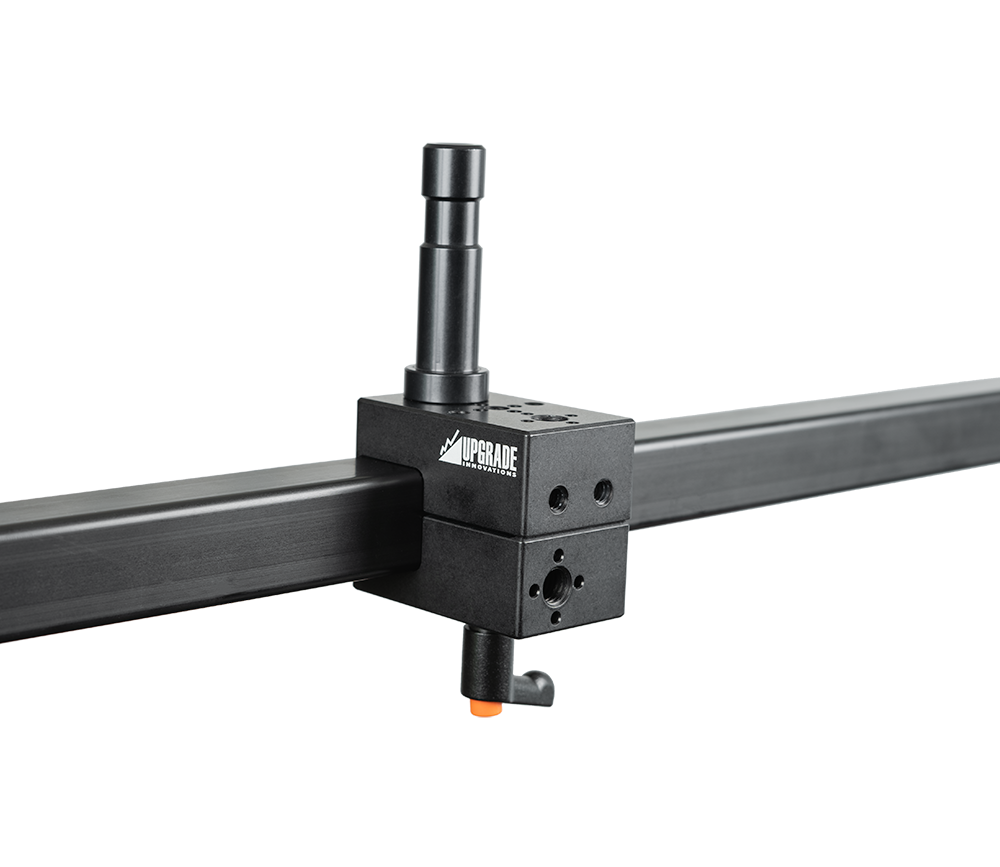

NEW – Whaley Rail frame systems now include our innovative Whaley 3/8 Pin-Loc Baby Pin, a non-twist baby pin designed for the Whaley Rail system. Whaley Pin-Loc is using the ARRI standard pin-loc spacing, with a longer 3/8″ male thread to provide added anchor strength.

The Whaley Rail II system is designed to integrate with our popular Ball-Lock Monitor Mounts and Quick Release VESA Plates. The Ball-Lock system is a positive-lock system for rock solid monitor support when static and dynamic forces are at play. Check out the MMS09 VESA Mount, MMS11-MC VESA Mount and the Quick Release VESA Plate.

Weight:

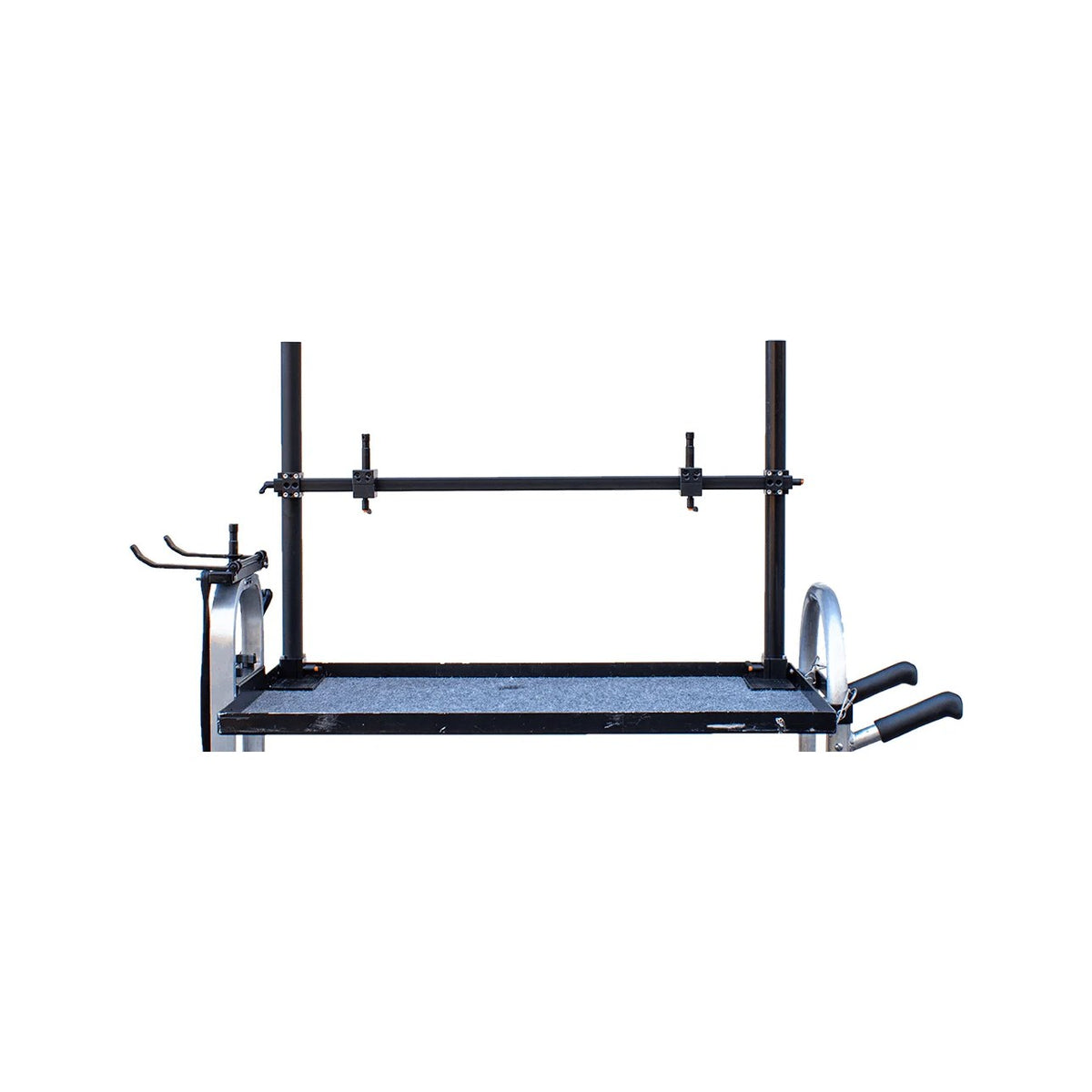

Backstage Magliner Jr Single Rail – 3.55kg/7.83lbs
Backstage Magliner Jr Double Rail – 4.53kg/9.99lbs

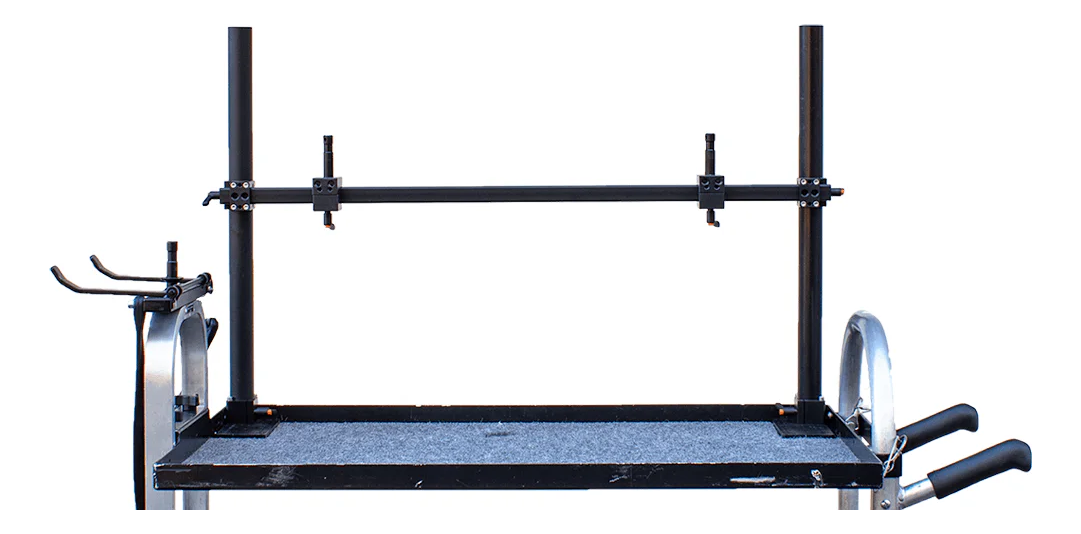

Backstage Magliner Sr Single Rail – 3.78kg/8.33lbs
Backstage Magliner Sr Double Rail – 4.98kg/10.98lbs

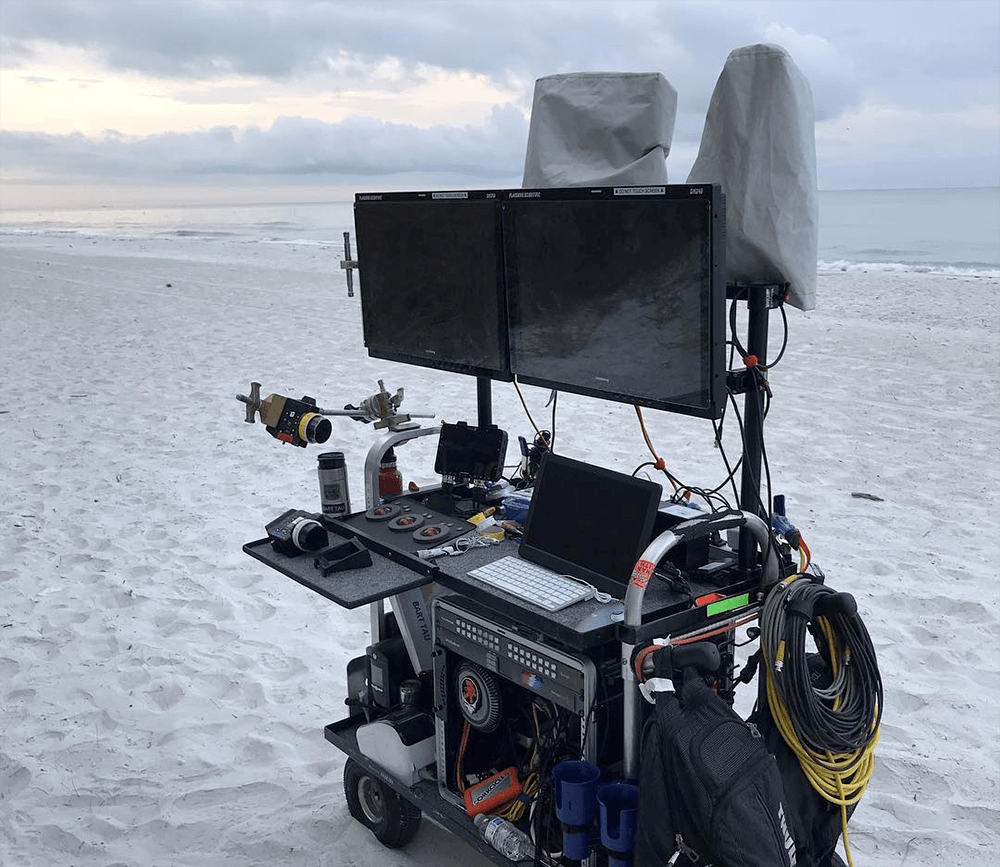

Build your workstation the way you’ve always wanted.

Consider adding our Mobile/Cart VESA Spigot Ball-Lock Monitor Mounts

Single Hinge MMS09 VESA Monitor Mount to 5/8″ Spigot – Ball-Loc

The MMS09 Ball-Loc VESA Monitor Mount supports broadcast quality monitors up to 77 lb/35kg, designed specifically for mobile cart/truck applications.

Twin Hinge MMS11-MC VESA Monitor Mount to 5/8″ Spigot – Twin Ball-Loc

The MMS11-MC Twin Ball-Loc VESA Monitor Mount supports broadcast quality monitors up to 77 lb/35kg, designed specifically for mobile cart/truck applications. The two-point adjustment design, allows for unlimited viewing positions, making it a preferred mounting option.

Baby Pin Pan Lock Clamp

Baby pin mounting is common on set; however, these mounting systems can suffer on mobile applications where spigot tie down knobs inevitably loosen from mobile forces. The Baby Pin Pan Lock Clamp limits the mount from panning on the baby pin and will keep monitors in the desired orientation.

Consider adding our Rudy Arm – 15mm Mounting System

Make use of our Rudy Arm for holding scopes, GUI monitors, Iris handsets and other smaller accessories. Take advantage of the Arri 3/8 Pin-Loc patterns on the Whaley Rail by solid mounting our Rudy Arm with the Arri 3/8 15mm mounting spuds. Our innovative and trusted Ball-Loc Pivot Clamp will ensure your accessories are held in place.

The Rudy Arm system is interchangeable so you can use this arm in conjunction with other Rudy Arm components and 15mm accessories. Build possibilities are truly endless with the entire arm being a 15mm mounting surface (always check load rating when re-configuring parts).
