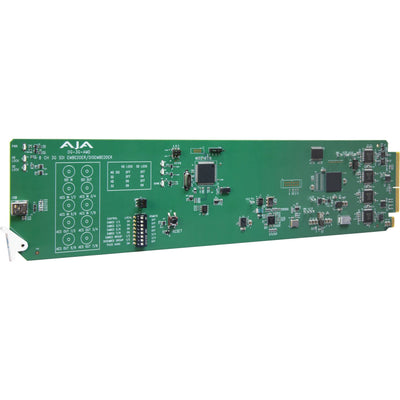

The OG-3G-AMD is a state of the art, openGear compatible, 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p60. Simple user controls allow channel enabling and mapping. A 10x BNC rear openGear connector module is included.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows, macOS and Linux offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Features

• Video Formats: 3G-SDI
• 3G-SDI Embedder / Disembedder in one board
• Input: 1x 3G-SDI BNC
• Outputs: 1x 3G-SDI BNC
• 4x AES BNC (2 channels per input)
• Supports HDR pass-through
• Local and Remote modes
• Incoming embedded audio passed, removed, or overridden
• Configure via openGear DashBoard, or DIP switch
• Power: 5.0 watts
• Hot swappable
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Connectivity
The OG-3G-AMD provides a 3G-SDI input and 3G-SDI output with four AES BNC connectors in each direction. OG-3G-AMD automatically detects and configures to the input video standard. AES inputs are sample rate converted (SRC) to 48kHz synchronous to the video input. Audio disembedding is always functional providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either embed input AES audio or pass 3G-SDI input audio. Simple user controls using DashBoard software allows channel enabling and mapping.

Connectivity

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Connectivity

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Video Formats: 1x 3 Gb SDI (level A or B) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 270 Mb SDI (SD) 625i; (SD) 525i; RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital: 1x 3G-SDI BNC, SMPTE-259/292/424 Single Link SD/HD/2K; Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
Video Output Digital: 1x 3G-SDI BNC, SMPTE-259/292/424 Single Link SD/HD/2K; Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
Audio Input Digital: 4x BNC, AES3id
Audio Output Digital: 4x BNC, AES3id
Audio Data Formats: AES3 2003; SMPTE ST 337
Digital Audio Converters: 24-bit
Embedded Audio: SDI embedded audio, 24-bit, 16-channel*; SMPTE ST 272 (SD): 20-bit, 48 KHz synchronous; SMPTE ST 299 (3G/HD): 24-bit, 48 KHz synchronous; Incoming embedded audio can be passed, removed, or overridden
Embed Path Audio Latency: 1500 usec (SRC ON); 400 usec (SRC OFF)
Disembed Path Audio Latency: 210 usec
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux; External DIP switch
Size (w x d x h): openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 5.0 watts max per card
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
