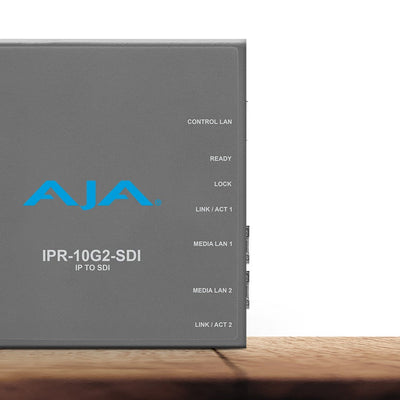

The IPR-10G2-SDI Mini-Converter is designed to bridge SMPTE ST 2110 networks to SDI, with support up to HD 60p.

IPR-10G2-SDI receives SMPTE ST 2110 audio and video over 10 GigE, and then de-encapsulates the data to output baseband SDI video. Associated audio from the SMPTE ST 2110 stream is likewise extracted, synchronized, and embedded into the SDI output. Simultaneously, analog stereo audio is available via the dual RCA outputs.

2x 10 GigE SFP+ cages are provided, allowing “hitless switching”* redundancy protection (ST 2022-7) for critical distribution and monitoring applications.

IPR-10G2-SDI includes dual 3G-SDI mirrored outputs with embedded 8-channel audio output and stereo audio output.

The analog/tri-level reference input allows the baseband output of IPR-10G2-SDI to be locked to the timing of the baseband environment at destination. Supports seamless integration into existing baseband environments such as master control, trucks or edit suites.

Features
IPR-10G2-SDI extracts a SMPTE ST 2110 essence from an incoming IP stream and presents it for monitoring on, or routing to, HDMI devices. Providing two SFP+ cages for redundancy protection via "hitless switching", IPR-10G2-SDI is rugged, quiet and fanless. AJA Mini-Converter design is ideal for placement in a wide range of display and device scenarios, from studios to field.

Key features: • SMPTE ST 2110 audio, video receiver

• Rugged, quiet, fanless design
• 2x 10 GigE SFP+ cages for media LAN (providing support for "hitless switching") with status light
• 1x 1 GigE RJ-45 socket for control LAN with status light
• 3G-SDI receiver with dual (mirrored) full-size BNC outputs supporting up to HD 60p, 4:2:2, 10-bit, YCbCr
• Full 10-bit pixel processing pipeline
• Embedded SDI audio output (up to 8-channels)
• 2x RCA analog audio output (simultaneous with SDI audio)
• Reference In connector to enable locking sync of baseband output for local environment
• System Modes to enable quick setup for lowest latency / highest protection, etc.
• Web browser accessible setup and control interface, via built-in web server
• 1x mini-USB port providing an alternate method of initial network configuration with AJA eMini-Setup software
• NMOS and Ember+ support
• USB keyboard control for quick and easy preset recalls
• Customizable control with AJA REST API
• Five year warranty

Monitor ST 2110 Video and Audio from anywhere on the Network.
The IPR-10G2-SDI is a SMPTE ST 2110 to SDI Mini-Converter suited for point-of-use applications including source monitoring and 3G-SDI output to compatible devices. With two 3G-SDI outputs with mirrored source video, you can drive a display and ingest destination simultaneously.

With 3G/1.5G-SDI routers often at capacity while facilities await their transition to IP, there is a huge benefit in being able to send video sources from a feed, camera, router or edit bay via IP and provide SDI monitoring at the destination while feeding your video and audio further into a 3G-SDI chain.

The AJA IPR-10G2-SDI receives SMPTE ST 2110 IP video and audio, then formats the data for output over 3G-SDI.

The audio associated with the video stream is extracted, synchronized, and then embedded into the SDI interface as well as output on an analog RCA interface.

Workflow
IPR-10G2-SDI provides two SDI outputs from SMPTE ST 2110 video and audio over IP compatible devices. Combine your IPR-10G2-SDI Receiver with other AJA IP Receivers and Transmitters, or even take it a step further with AJA KONA IP or Io IP to instantly create a real-world ST 2110 workflow for video over IP production and monitoring.

User Control
IPR-10G2-SDI provides two key methods for control. The Control LAN Ethernet port enables full setup and control of the Mini-Converter from web browsers on any platform and REST clients. The mini-USB connector facilitates quick and simple initial network configuration, and firmware updates with AJA eMini Setup Software. • 1x RJ-45 (IEC 60603-7) for 10/100/1000 Base-T Ethernet (IEEE 802.3-2012)

• HTTP/1.1 (RFCs 7230, 7231, 7232, 7233, 7234, 7235)
• Browser and REST clients supported
• 1x USB 2.0 Mini-B (IEC 62680-1) connector
• Browser-based or AJA eMini-Setup of network parameters
• NMOS transmit (Discovery, Registration and Control) • According to standards IS-04 v1.3 & IS-05 v1.1

• LLDP (Link Layer Discovery Protocol)
• AJA REST API (Control Only) • Discovery is supported via SSDP, allowing AJA REST API to then be used for Control
• Discovery is also supported via MDNS, allowing AJA REST API to then be used for Control

• Ember+ (no Discovery, Control only) v1.6.2

Tech Specs:
Video Formats: (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94; (HD) 1280x720p 50, 59.94, 60; (SD) 625i 50; (SD) 525i 59.94
Video Quality: Up to 2K 60p, 4:2:2, 8-bit, YCbCr uncompressed; 4:2:2, 10-bit, YCbCr uncompressed
Discovery, Registration and Control: NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1; Ember+ control (no discovery, control only); AJA REST API control (discovery via SSDP or MDNS); LLDP (Link Layer Discovery Protocol); Supported over dedicated management Ethernet port and in-band over media ports
Media Transport Interfaces: SMPTE ST 2110 (-10, -20, -21, -30) 2x SFP+ Cages - SFPs not included; Recommended 10 GigE SFP+ modules: Arista Networks SFP-10G-SR Compatible 10GBASE-SR; Fiberstore SFP-10GSR-85 10G SFP+ 850nm; Finisar FTLX1471D3BCL (for single mode 1310nm); Mellanox MFM1T02A-SR 850nm 10G
Video Input IP: SMPTE ST 2110 Single channel video input; SMPTE ST 2022-7 dual stream input for hitless switching; Rx support for Narrow/Wide, Gapped/Linear Modes
Audio Input IP: SMPTE ST 2110 Up to 16-channels audio, 24-bit per channel, 48 kHz synchronous; 1 ms or 125 µs packet interval
Video Output Digital: 2x 3G SDI BNC (single source, mirrored output) Frame syncing to facility clock; Concealment of errors due to packet loss
Audio Output Digital: Up to 16-channel, SDI embedded audio, 24-bit per channel, 48 kHz synchronous
Audio Output Analog: 2x RCA analog audio Levels at -10 dBu (nominal); Can only select audio channels 1-8
Reference: 1x BNC Analog/tri-level reference input; Allows baseband output of IPR-10G2-SDI to be locked to the facility baseband clock
IP Clock: PTP support compliant with PTP PTPv2, PTPv3 / IEEE 1588-2008; SMPTE ST 2059-1 compliant
User Interface: 1x RJ-45 for 10/100/1000 Base-T Ethernet Web and REST clients supported for remote network setup and configuration; 1x USB 2.0 Mini-B connector AJA eMini-Setup supported for network setup and configuration via local desktop computer; Web and REST configuration is also supported in-band over media ports
Size (w x d x h): 5.07" x 0.94" x 5.06" (128.8 x 23.9 x 128.4 mm)
Weight: 0.6 lb (0.3 kg)
Power: 5-20 VDC Regulated, 13 Watts, universal power supply included
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
