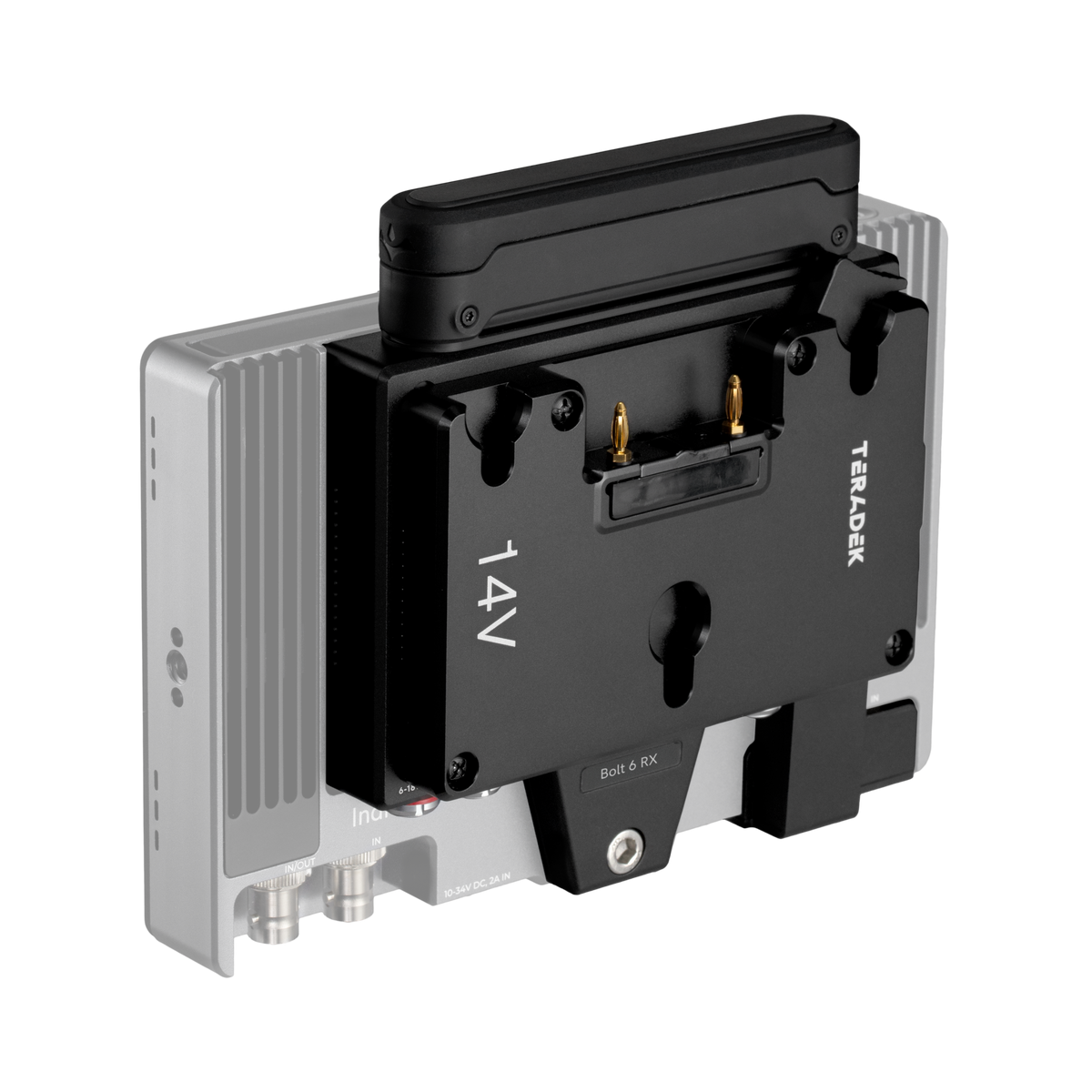

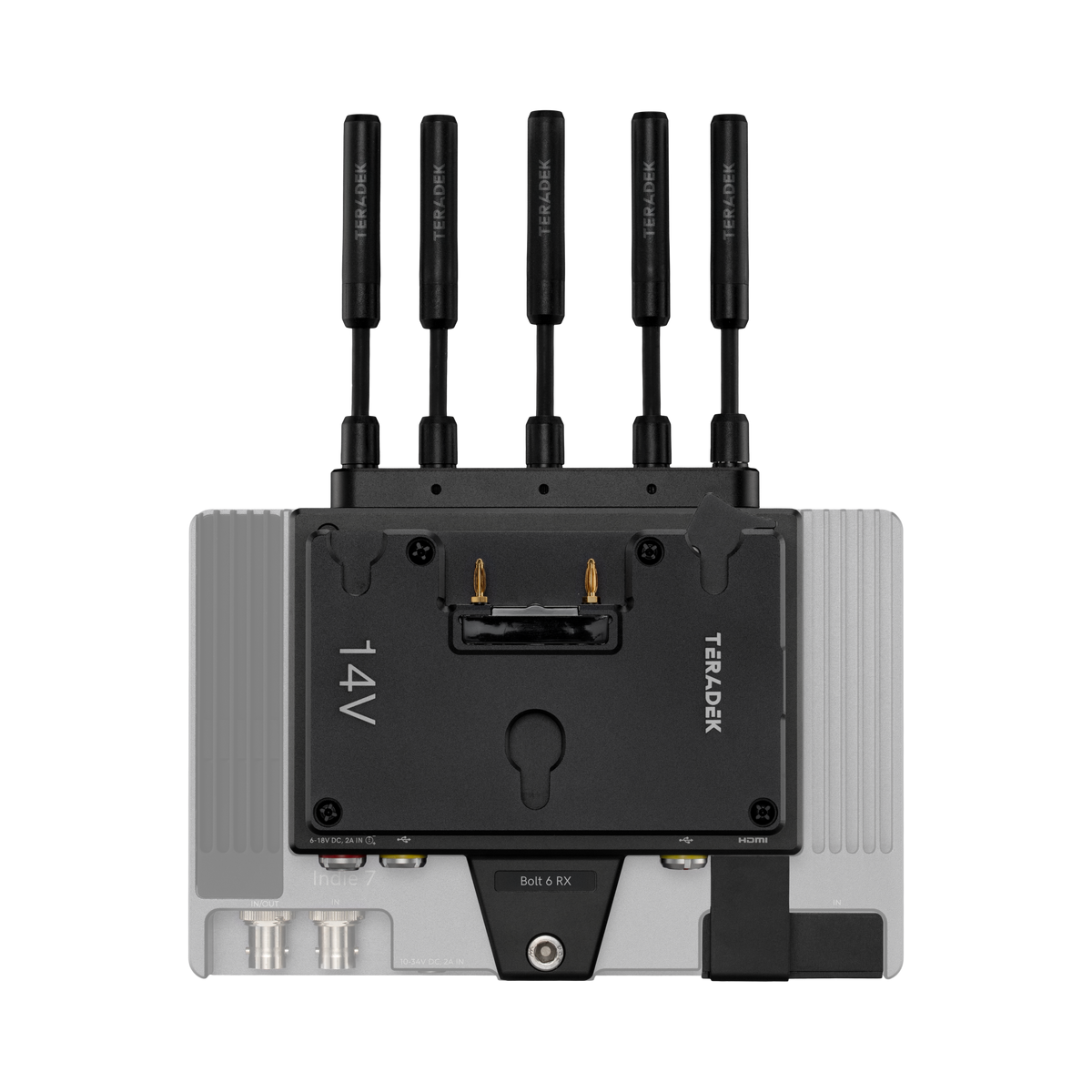

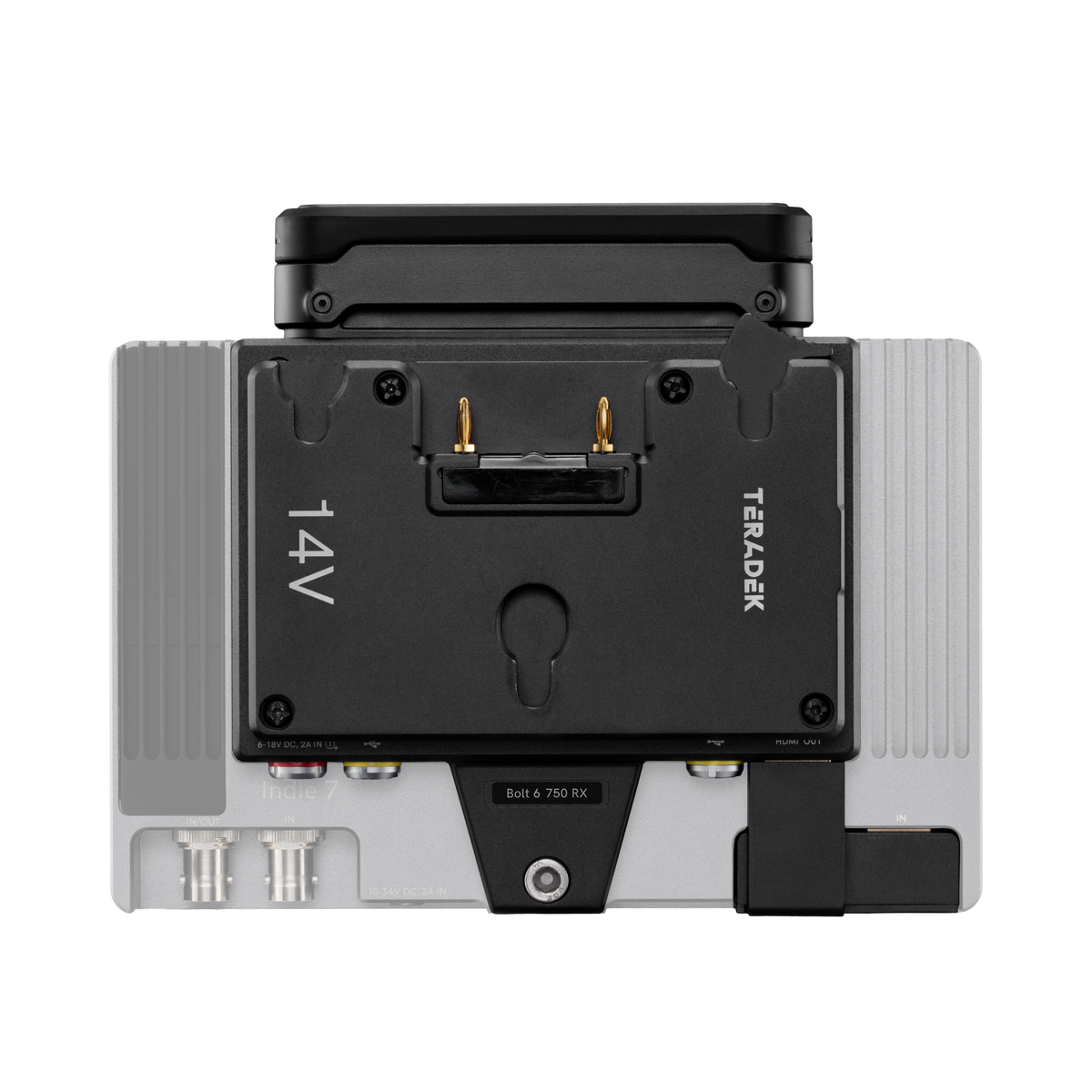

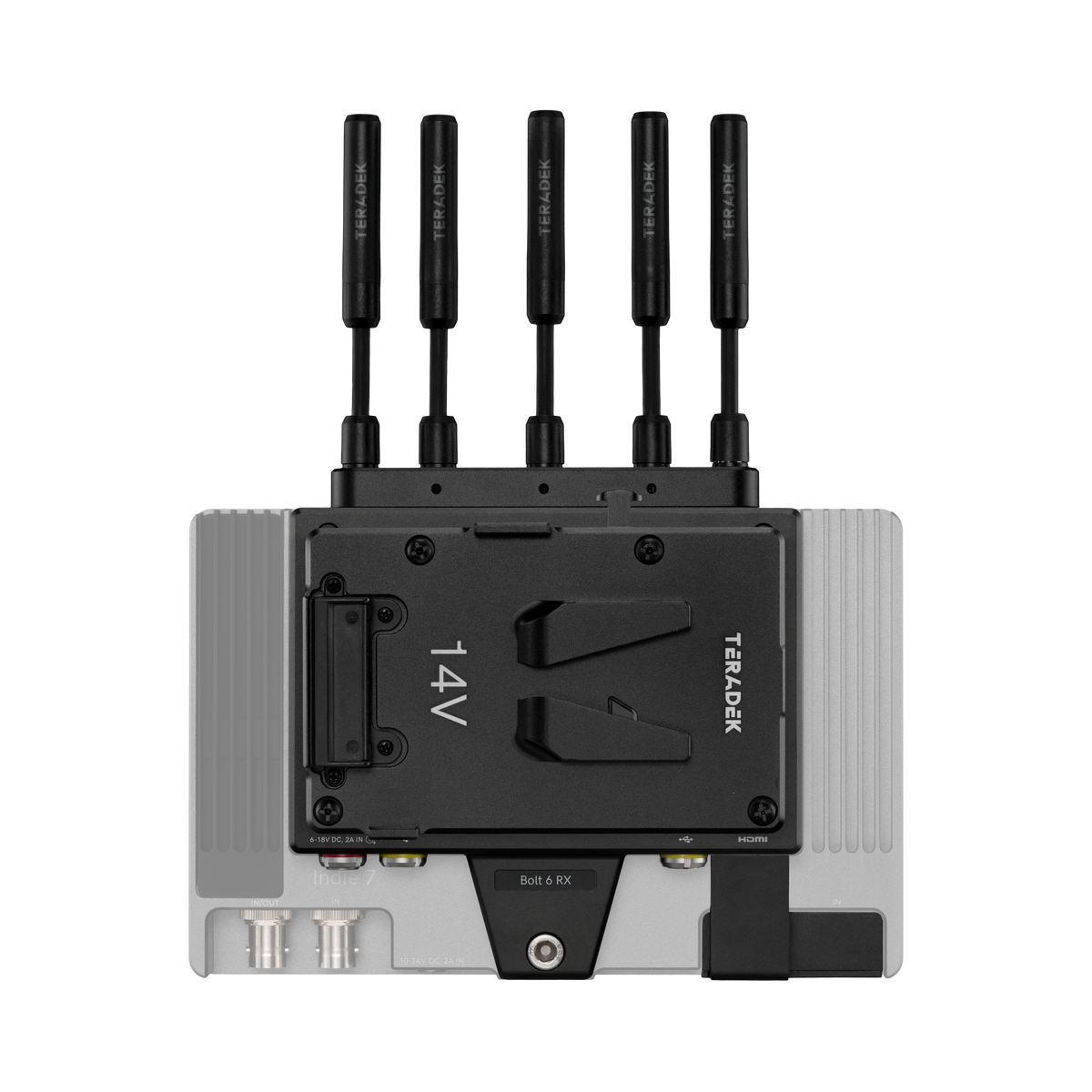

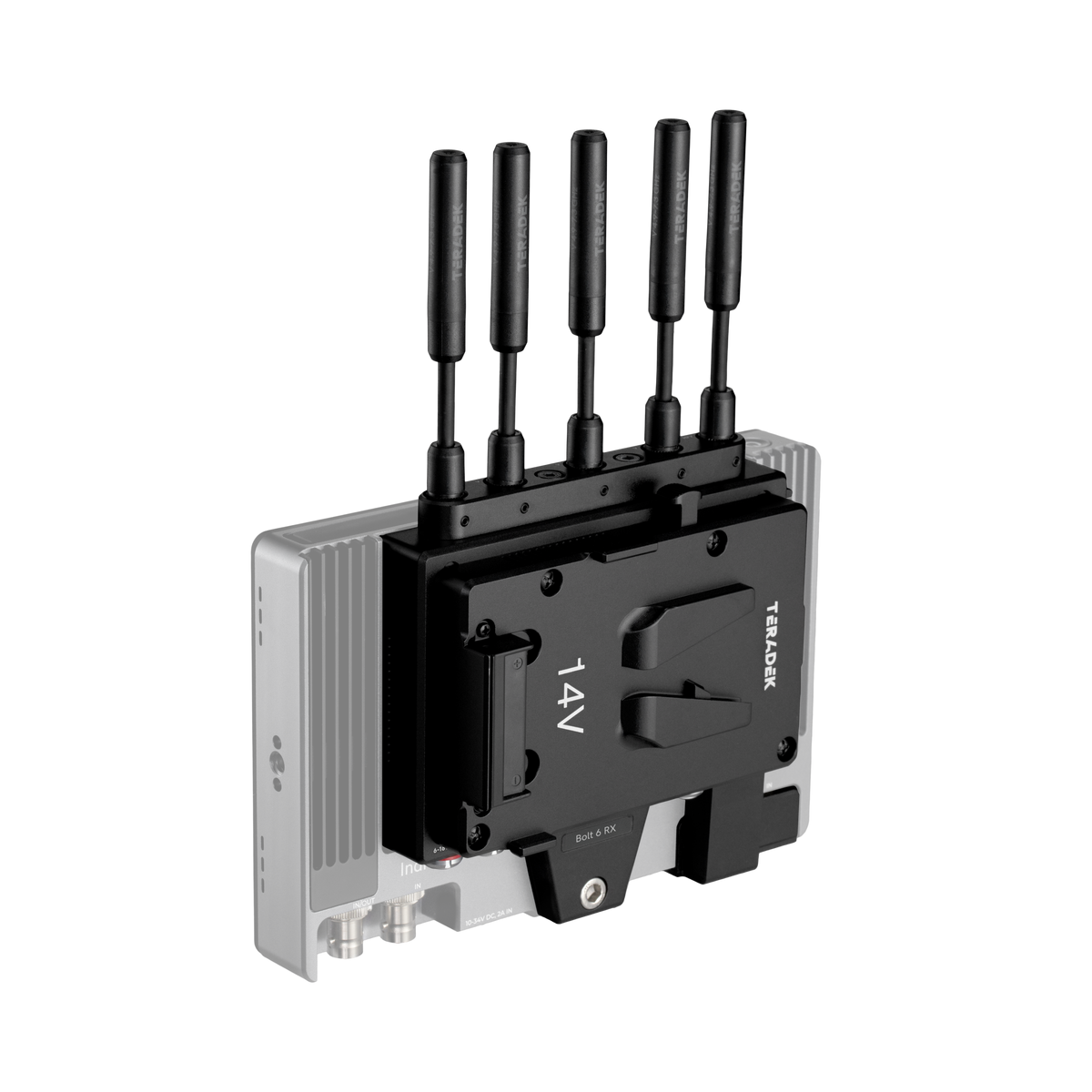

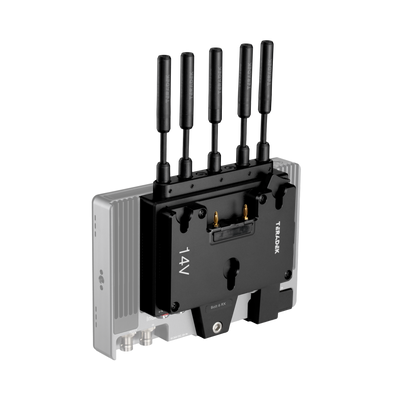

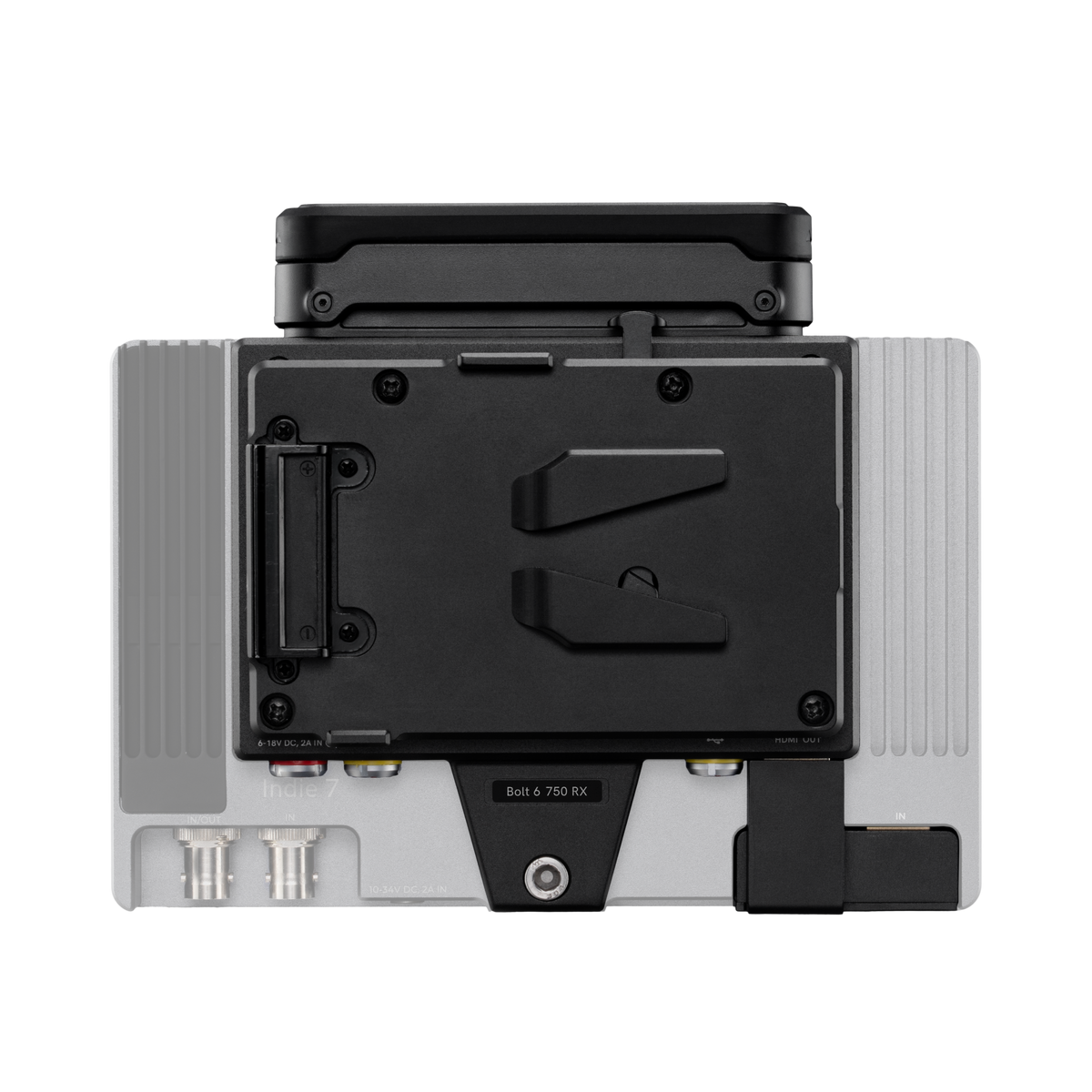

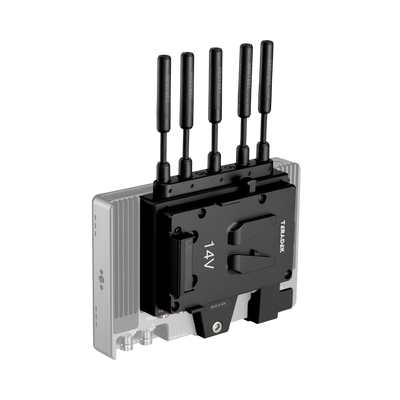

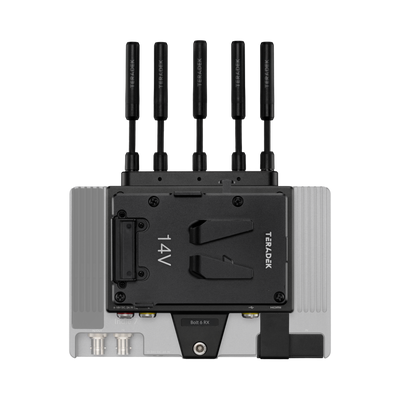

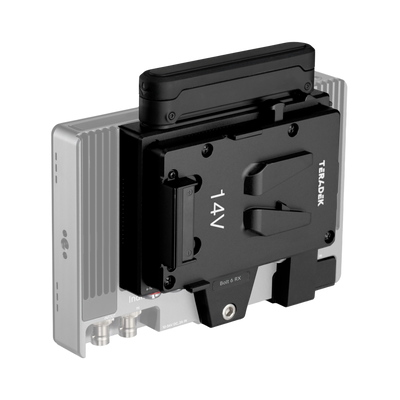

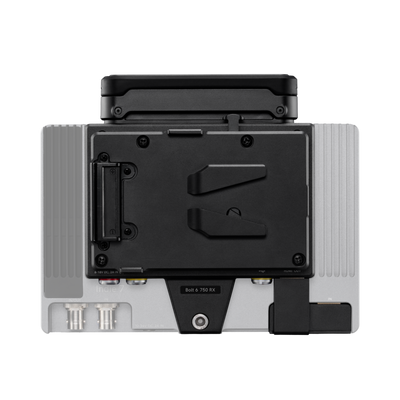

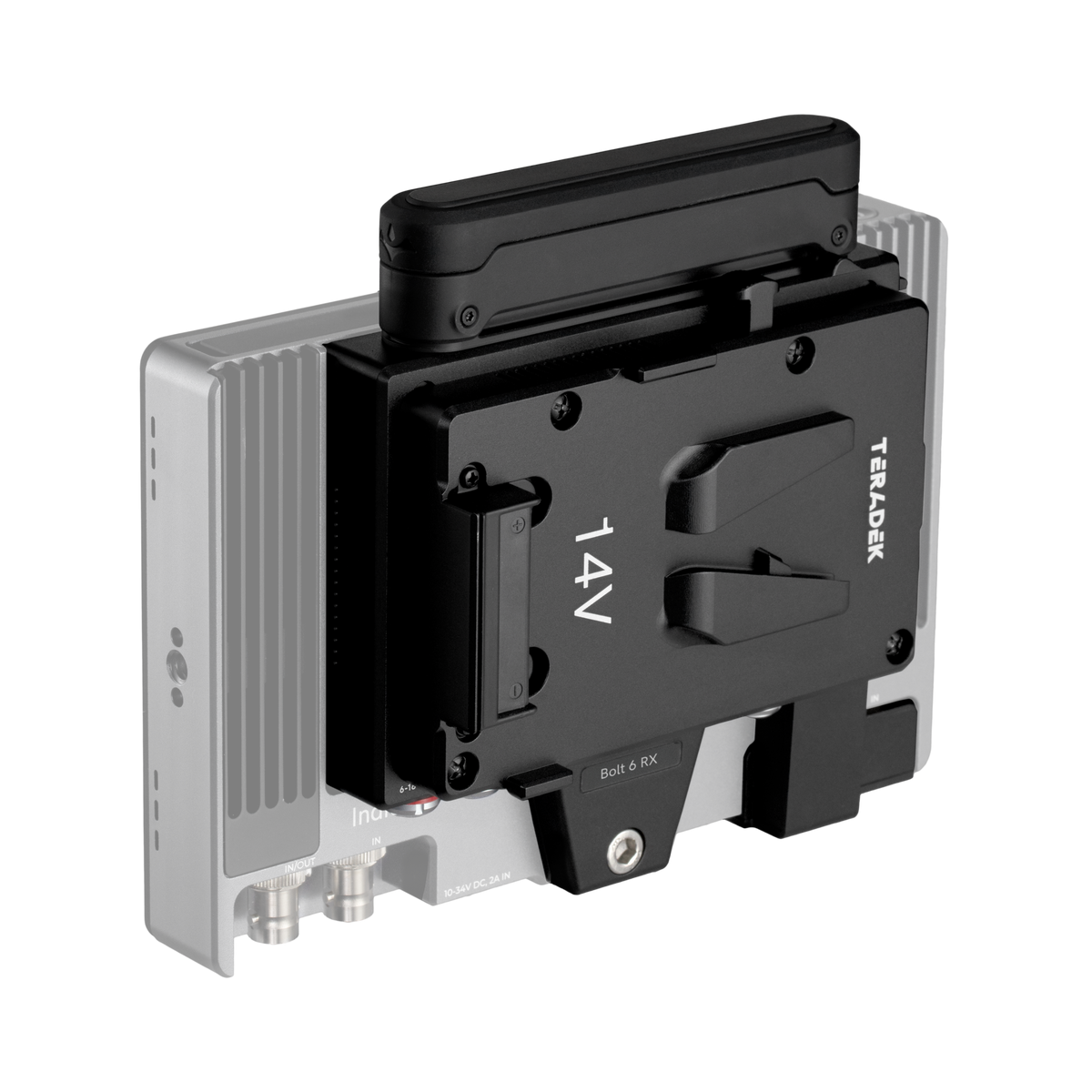

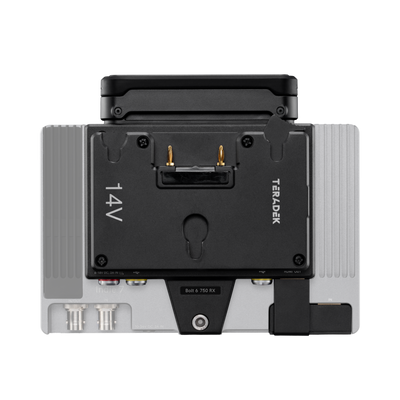

Teradek Bolt 6 Monitor Module Receiver
External · 1500 · Gold Mount
SKU 10-2299-G7
Available to order — allow extra processing and shipping time
- Supports New 6 GHz Frequency Band
- Receive HD Video from up to 750' LoS
- V-Mount Battery Plate
- For SmallHD Cine 7/Indie 7/702 Touch
- Receive up to 4K30 Video, Zero Delay
- Output Video up to 4K30 via HDMI
- Compatible with Any Bolt 4K Transmitter
- AES-256 Encryption, 5 x Antennas
- Bluetooth Mobile App, Spectrum Analyzer
The Teradek Bolt 6 RX 750 Monitor Module for Cine 7 and 702 Touch (V-Mount) is a real-time wireless video receiver that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. This Receiver Monitor Module integrates directly with the SmallHD Smart 7 Monitor Series. Receive color-accurate, 4K HDR videos in under 0.001 seconds.
The module can also simultaneously transmit to up to six receivers. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 system also supports the transmission of timecode and start/stop triggers from the camera.
The receiver module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
Features
- Supports the new freely available 6 GHz wireless frequency band
- Cross-compatible with all Bolt 4K and 4K LT series 5 GHz transmitters
- Mounts on the back of a SmallHD Cine 7, Indie 7, or 702 Touch monitor
- Wirelessly receive up to 4K30 video and output up to 4K30 via HDMI 2.0 port
- V-mount battery plate included
- Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
- Smaller and lighter chassis design than other Bolt receivers
- The receiver features five antennas
- AES-256 encryption and RSA 1024 key pairing support
- Wireless Android/iOS app via Bluetooth features a spectrum analyzer and remote configuration
| Antenna Ports | 5 x RP-SMA Female |
| Video | 1 x HDMI Type A (HDMI 1.4b) Output |
| Embedded Audio | HDMI: 2-Channel |
| Audio | None |
| Power I/O | 1 x LEMO 2-Pin (18 VDC) Input |
| Other I/O | 2 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
Format Support
| Video Format | HDMI/Wireless UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Timecode Support | Yes |
Power
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x V-Mount |
| Power Consumption | 6 W |
Environmental
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
General
| Material of Construction | Aluminum, Plastic |
| Dimensions | 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | 10.3 oz / 292 g |
