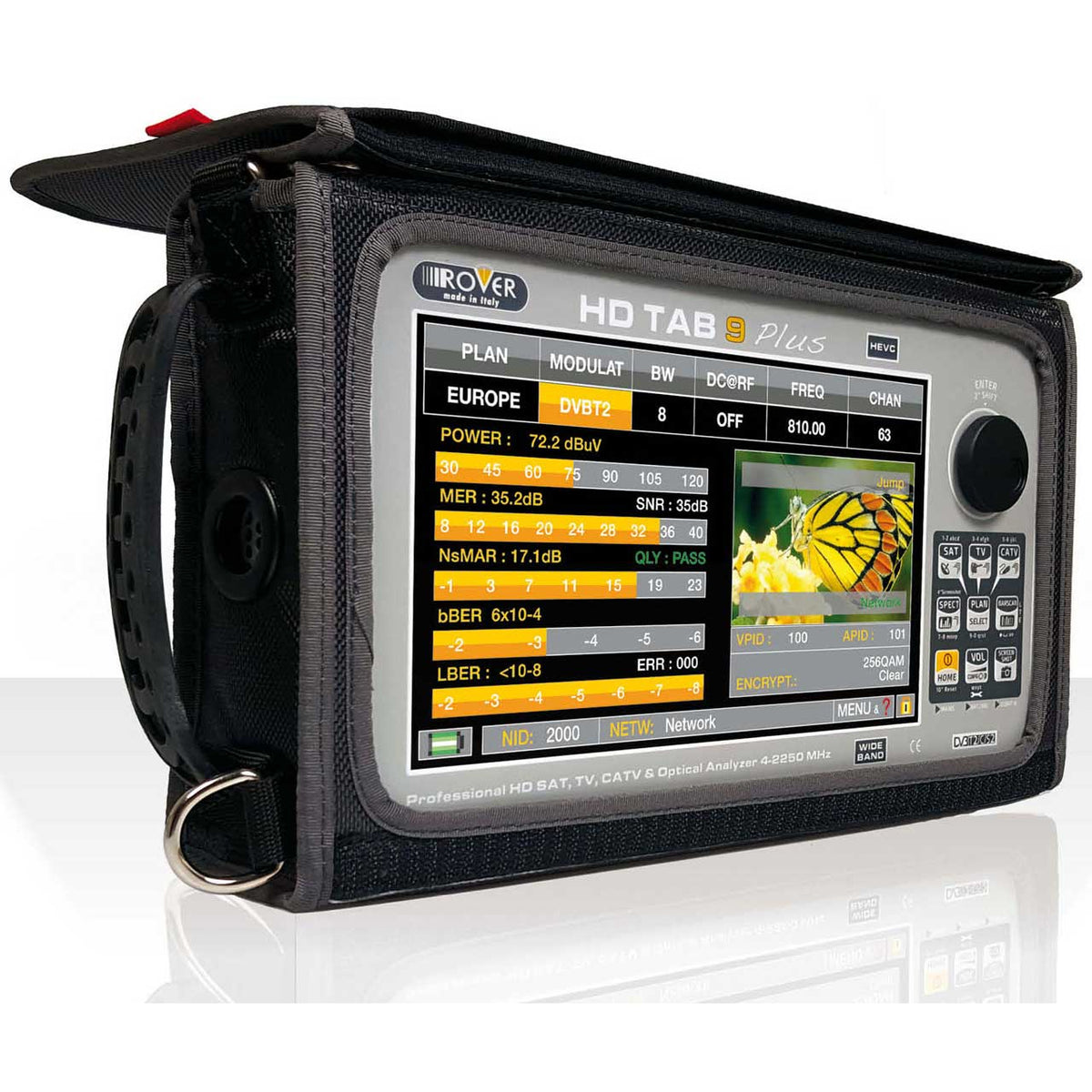

Leader HD TAB 9 PLUS is an ATSC for USA standard signal level meter with spectrum analyzer. The HD TAB 9PLUS is a professional and accurate touch screen analyzer that is automatic, fast and easy to use. Exclusive patented ROVER AUTODISCOVERY system: automatically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum mode.

Features:

• ETR 101-290 T.S. Analyzer
• HELP function: automatically identifies all the signals with digital modulation SAT, TV and CATV
• Automatic Assistant: Signal Quality analysis, Channel Scan memorization
• Barscan TV & CATV function from 10 to 100 channels on one screen
• Buzzer & Noise Margin real time graph for digital signals microinterruptions
• Reflectometric measurements APP
• PRODRIVE TEST: REMOTE MONITORING and LOGGING: TS, measurements, spectrum, thumbnails
• Optical Input signals
• SATELITE: SAT SCR, DiSEqC, SCR & dCSS, Motorized antenna, Dual LNB, SAT FINDER, SAT EXPERT
• Custom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local Keyboard
• Loggers: TV, SAT & combined with stop & go function
• SAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite
• Free SMART PC interface program and FW upgrades

Specifications:

• Measurements & Spectrum ANALYSIS
• Frequency Range: TV, CATV & Radio: 4-1250 MHz (TAB 9 PLUS); SAT: 950-2250 MHz (2610 with Sat extension opt.)
• Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectable
• Power range Meas.: TV 28 to 130 dBµV, SAT 30 to 130 dBµV
• Digital Meas: Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIER
• Analog Meas & Picture: Analog level, V/A ratio
• Measurement Resolution: 0.1 dB
• Level Measurement Accuracy: 1 dB typ. (2 dB max.)
• Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectable
• Constellation: for TV/CATV and SAT signals
• Spectrum: Real time, Max Hold and spectrum memorization with real time compare function
• Net-id on board: Net-id, NID, TSID, LCN, SAT Orbit Position
• Echoes, Pre-echoes, Micro-echoes: Representation in real Time
• Quality: Digital Auto quality Test: PASS-MARGINAL-FAIL
• TS: TR 101-290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tables
• IPTV: measurements and picture decoding

  Optical Measurements
• FC-ST-SC interchangeable input connectors
• Automatic loss calculation
• Wavelengths (nm): 1310, 1490, 1550
• Range: -25 to 10 dBm
• Resolution: 0.1 dB
• Accuracy: ±0.5 dB
• Optical to RF conversion

  Comm. Ports And Outputs
• RF Input : 75 ohm (interchangeable "F")
• LAN: RJ45 10/100 base Ethernet
• USB 2.0: Type B (PC Interface)
• USB 2.0: Type A (USB drive)
• Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screen
• Audio: AAC supplied, DOLBY (opt.)
• Asynchronous Serial Interface (ASI): ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connector
• Audio / Video: Composite A/V input, HDMI output
• Common Interface: PCMCIA slot for single/multi-service CAM modules

  General
• 9" TFT TOUCH Display: 16:9 high resolution and high brightness
• Power Supply: Built in LiPo battery with up to 6 hours duration & Battery Test function
• DC Voltage at RF input: 5 - 12 - 18 - 24 V, DiSEqC, SCR, dCSS
• PC Interface: USB
• Front-Panel: Alpha numeric keypad
• Power Save: TFT backlight timer, brightness adj
• PC Management: SMART software
• Weight: 5.73Lbs (2.6kg) with batteries
• Dimensions (HzWxD): 11.41 x 6.69 x 2.16" (29 x 17 x 5.5cm)
• Housing: Aluminum and Steel and padded bag

Item Includes:

• Elite bag
• Universal side pocket for accessories
• Shoulder Strap
• Mast attachment safety belt
• USB 2.0 Cable for PC connection)
• Audio Video Cable 3 x RCA Male - Jack 3.5 mm Male, 1.8 Mt.
• Audio Video Cable 3 x RCA Female - Jack 3.5 mm Male, 1.8 Mt.
• 12 VDC - 3A battery charge Power Supply
• Vehicle charge adapter
• User GUIDE (CD)
• Quick reference guide
• F Female - F Female Connector
• BNC Female - F Female Connector
• IEC Female - F Female Connector
• Quick F Male - F Female Connector
• Plastic Pen for Touch-Screen displa
