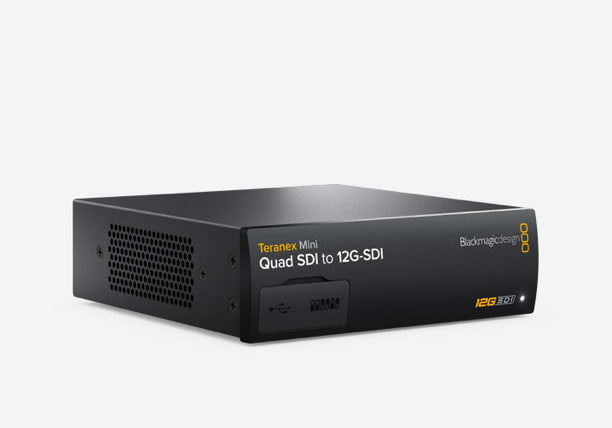

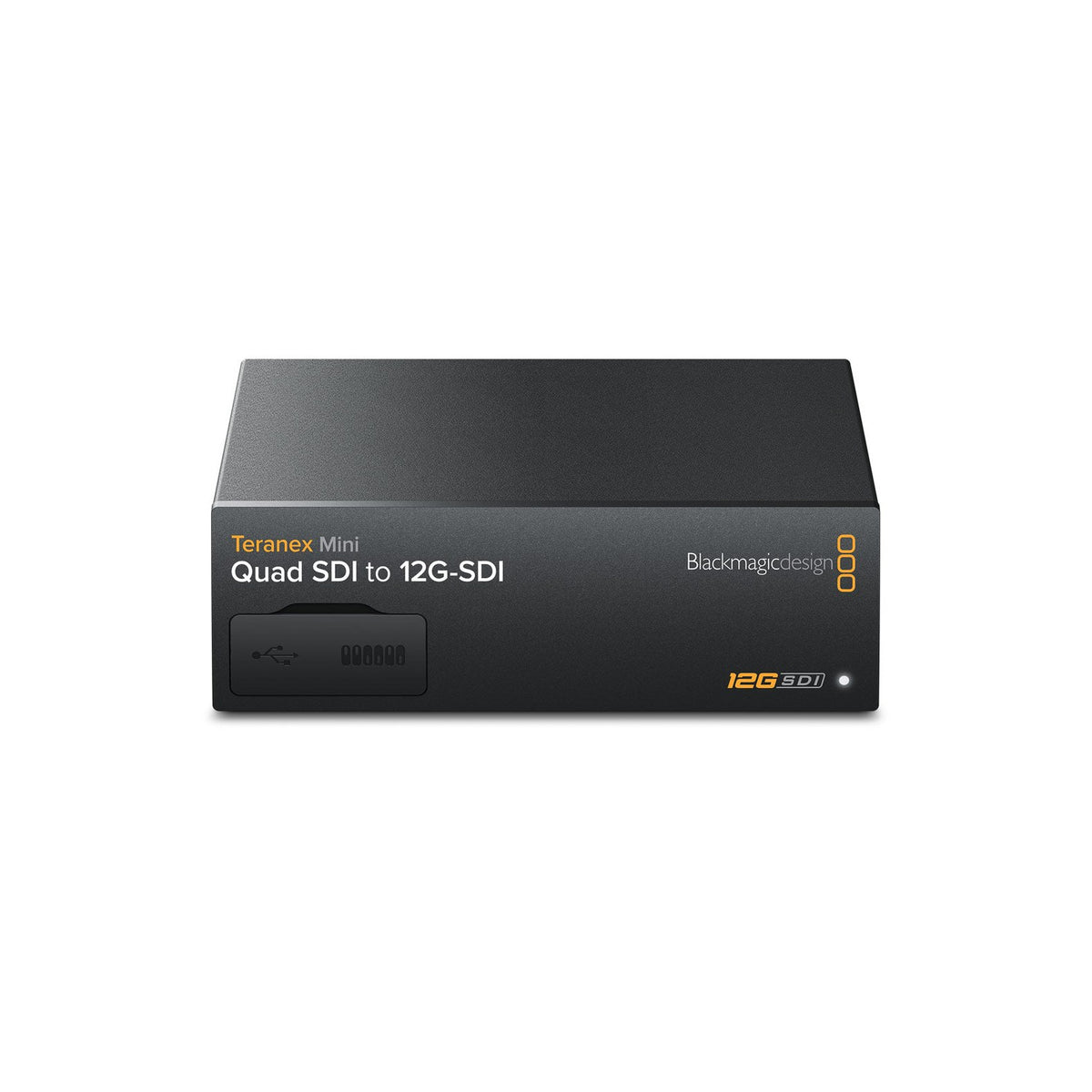

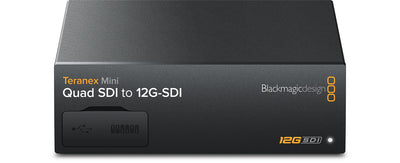

Blackmagic Design Teranex Mini - Quad SDI to 12G-SDI
SKU BMD-CONVNTRM/DA/QDSDI
Available to order — allow extra processing and shipping time
Special order: non-cancelable, non-returnable
Teranex Mini - Quad SDI to 12G-SDI
Convert Quad Link SDI to 12G-SDI so you can connect Quad Link Ultra HD equipment to the latest 12G-SDI Ultra HD equipment. Allows equipment that uses four BNC cables to be connected using a single 12G-SDI BNC cable for connecting to the latest routers, switchers, projectors and more! Supports both Level A and Level B 3G-SDI equipment.
Connections:
-
SDI Video Input
- 4 x 12G-SDI SD/HD/2K/4K auto switching
-
SDI Video Output
- 1 x 12G-SDI output
-
Multi Rate Support
- Automatic switching between SD/HD/2K and 4K
-
Updates and Configuration
- USB or Ethernet
-
Re-Clocking
- Yes
Standards:
-
SD Format Support
- 525/29.97 NTSC, 625/25 PAL
- HD Format Support
-
- 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
-
2K Format Support
- 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
-
Ultra HD Format Support
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
-
4K Format Support
- 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
-
SDI Compliance
- SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082
-
SDI Video Rates
- SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.
-
SDI Video Sampling
- 4:2:2 and 4:4:4
-
SDI Audio Sampling
- Television standard sample rate of 48 kHz and 24-bit.
-
SDI Color Space
- YUV & RGB
Software
-
Software Control
- Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
-
Internal Software Upgrade
- Via included updater application
Settings Control
-
Basic Settings Control
- Mini Switches, USB and Ethernet via free software utility.
-
Optional Front Panel Control
- Front mounted Smart Panel with LCD, rotary knob and six settings buttons.buttons.
Power Requirements
-
Power Supply
- 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
-
Power Over Ethernet
- Can be powered via 48V DC using PoE+ (power over ethernet).
-
Power Consumption
- 14 Watts
-
Operational Voltage Range
- 90 - 240V AC
Environmental Specifications
-
Operating Temperature
- 0°to 40°C (32° to 104°F)
-
Storage Temperature
- -20°to 60°C (-4° to 140°F)
-
Relative Humidity
- 0% to 90% non-condensing
What's Included:
- Teranex Mini - Quad SDI to 12G-SDI
- Software SD Card
Warranty
- 3 year Limited Manufacturer's Warranty.
Standards:
· SD Format Support
o 525/29.97 NTSC, 625/25 PAL
· HD Format Support
o 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
· 2K Format Support
o 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25.
· Ultra HD Format Support
o 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60,
· 4K Format Support
o 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.
· SDI Compliance
o SMPTE 259M, 292M, 296M, 372M, 425M, ST-2081 & ST-2082
· SDI Video Rates
o SDI video connections are switchable between standard definition, high definitionlevel A and level B 3G-SDI, 6G-SDI and 12G-SDI.
· SDI Video Sampling
o 4:2:2 and 4:4:4
· SDI Audio Sampling
o Television standard sample rate of 48 kHz and 24-bit.
· SDI Color Space
o YUV & RGB
