Blackmagic Design ATEM Micro Panel

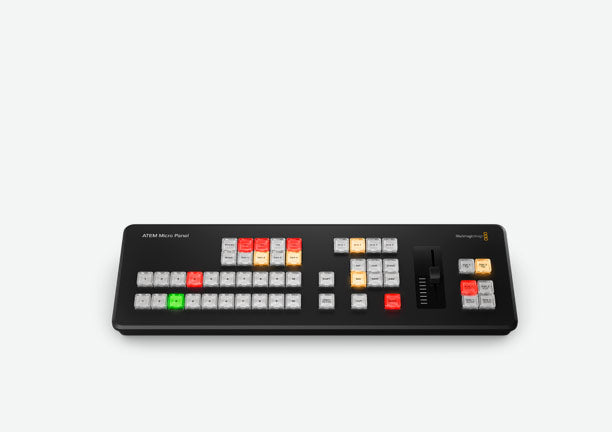

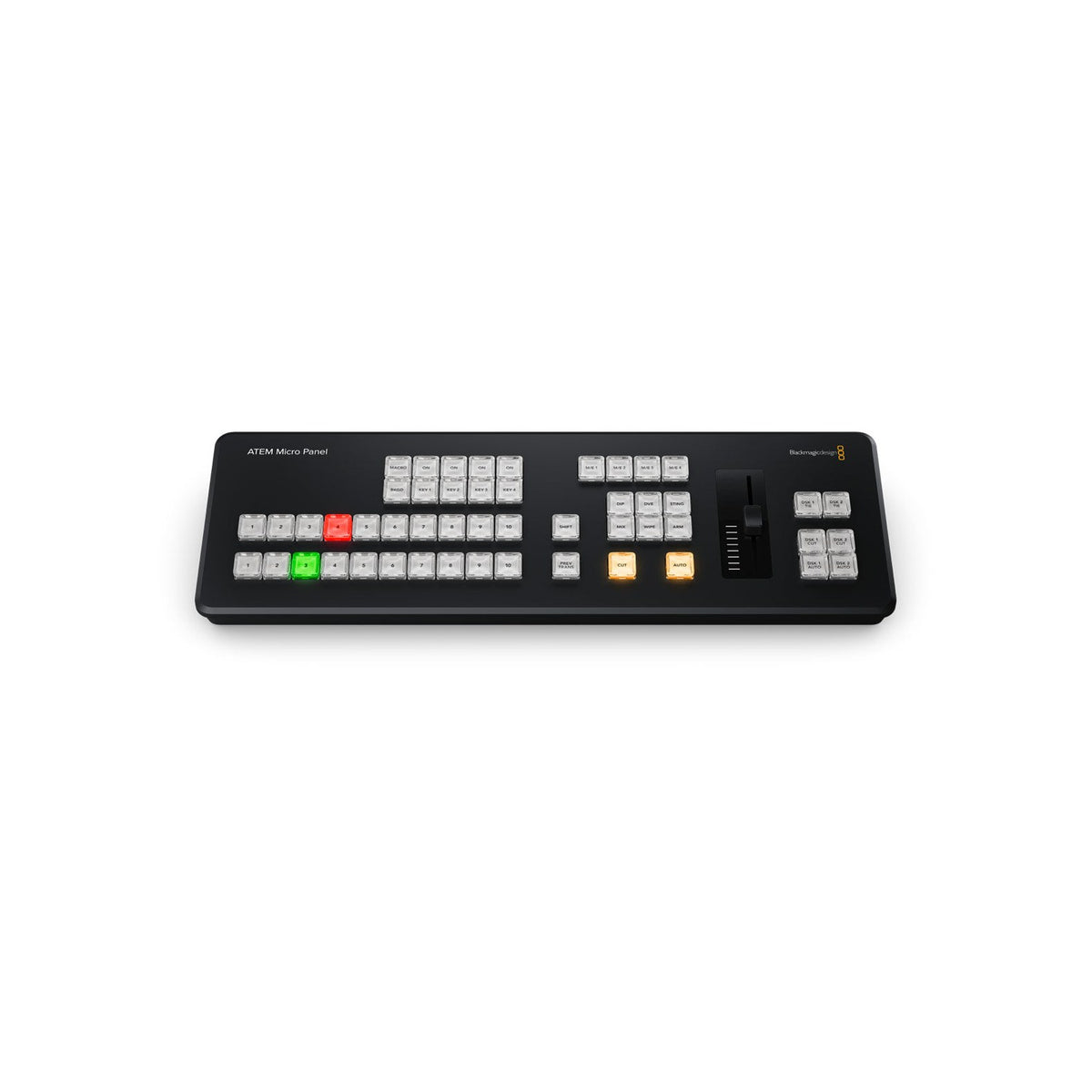

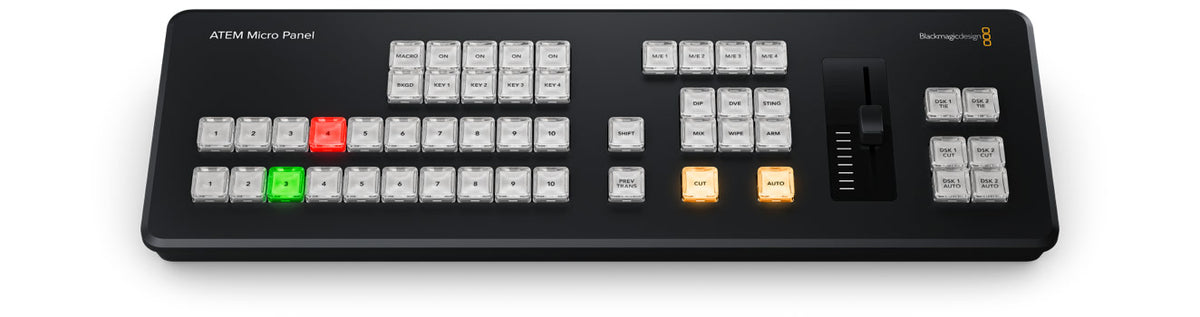

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!

Connections

Computer Interface

USB Type‑C.

Bluetooth

Bluetooth 5.1 LE

Product Specifics

Number of Mix Effects Rows

1

Direct Cross Points

10

Shifted Cross Points

20

Crosspoint Button Type

Tri-Color LED

Preview Transition

1

Switching Type Buttons

CUT and AUTO

Transition Type Buttons

DIP, DVE, STINGER, MIX, WIPE.

M/E Select Buttons

4

Upstream Key Buttons

4 with ON/OFF

Downstream Key Buttons

2 with ON/OFF

Transition Slider

1

Software

Software Applications

ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.

Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.

Windows 10 and 11.

Power Requirements

Power Supply

Internal battery with power switch.

USB-C port for external power supply and battery charging.

Power Usage

3 W max.

Physical Specifications

Environmental Specifications

Operating Temperature

5° to 40° C (41° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

ATEM Micro Panel

Welcome wallet with QR code for software download

Warranty

12 Month Limited Manufacturer's Warranty.
