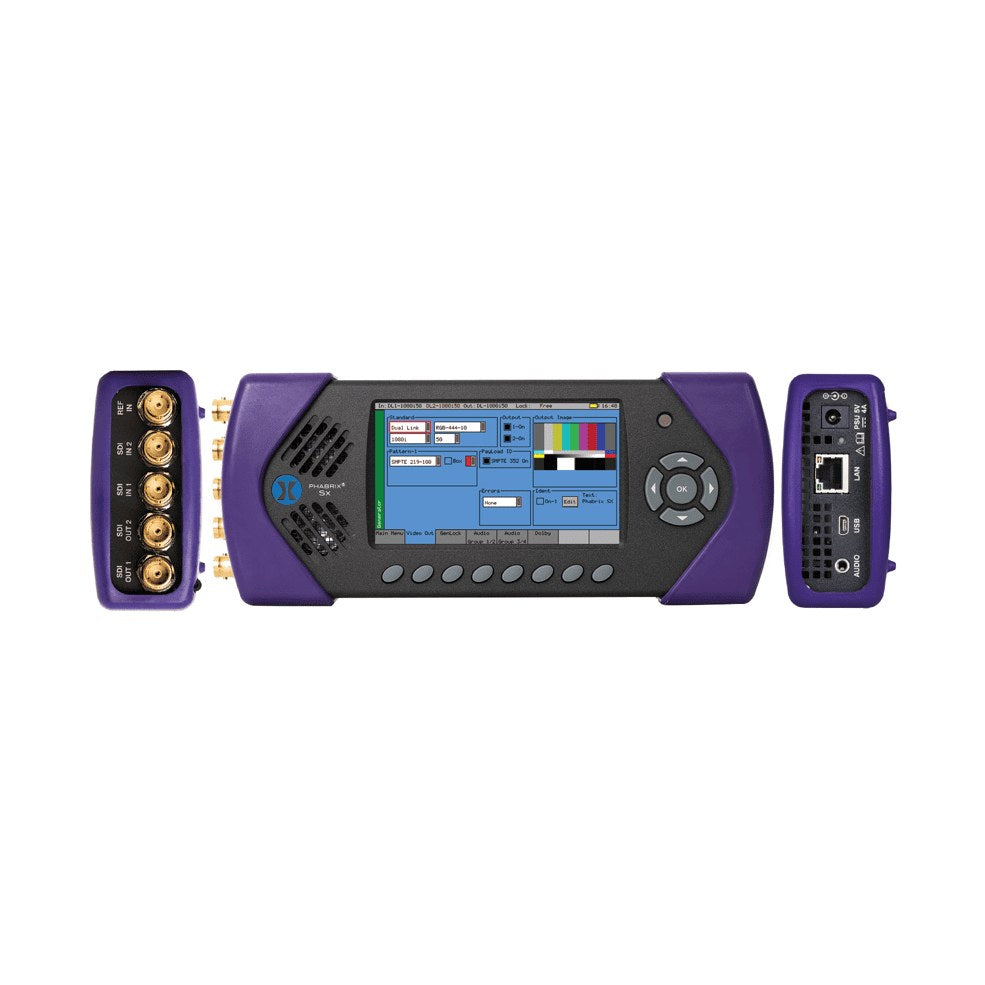

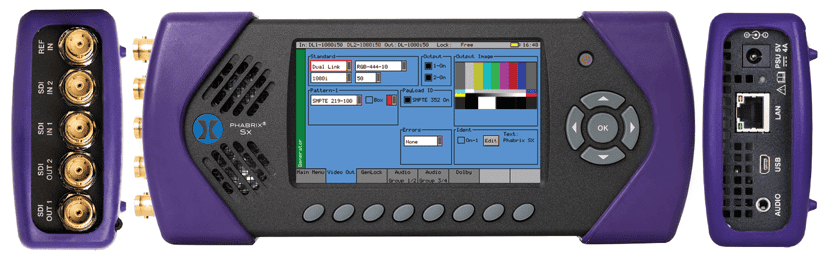

The PHABRIX SxD is a handheld dual-link 3G/HD/SD-SDI generator, analyzer and monitor designed for video technology manufacturing and production applications. It provides two SDI inputs and two SDI outputs and supports advanced video standards up to a combined 3Gbit/s across the two SDI links, including 422/444, YUV/RGB, 10/12-bit and SMPTE 428-9 D-Cinema/SMPTE ST 2048-2 formats (PHSXOF advanced-formats license included). The core toolset includes a multi-format waveform, vectorscope, video display, data view and VANC/ANC inspector with over 350 formats supported, 16-channel audio metering with Dolby E/Digital/Digital Plus bitstream generation and analysis, AV delay generation and analysis, and TCP/IP remote control, in a lightweight rugged aluminium case with integral screen and rechargeable lithium battery.
