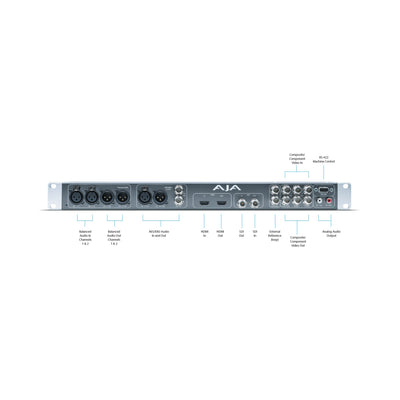

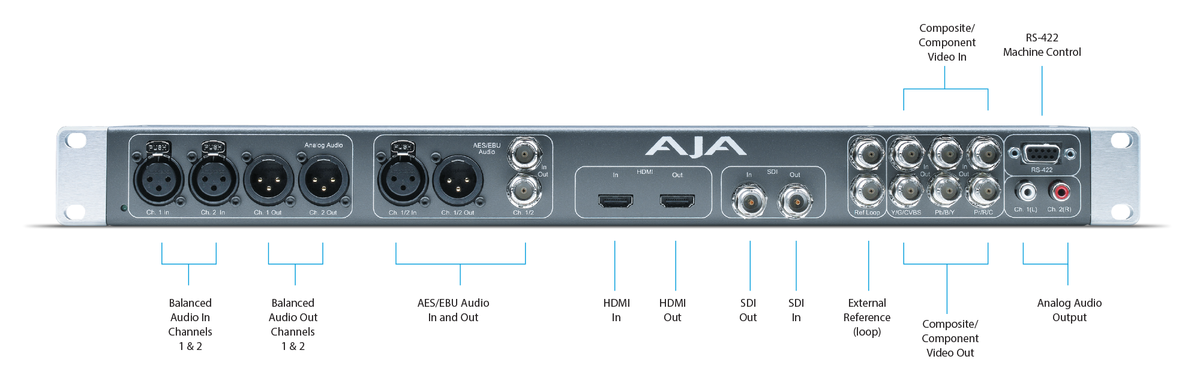

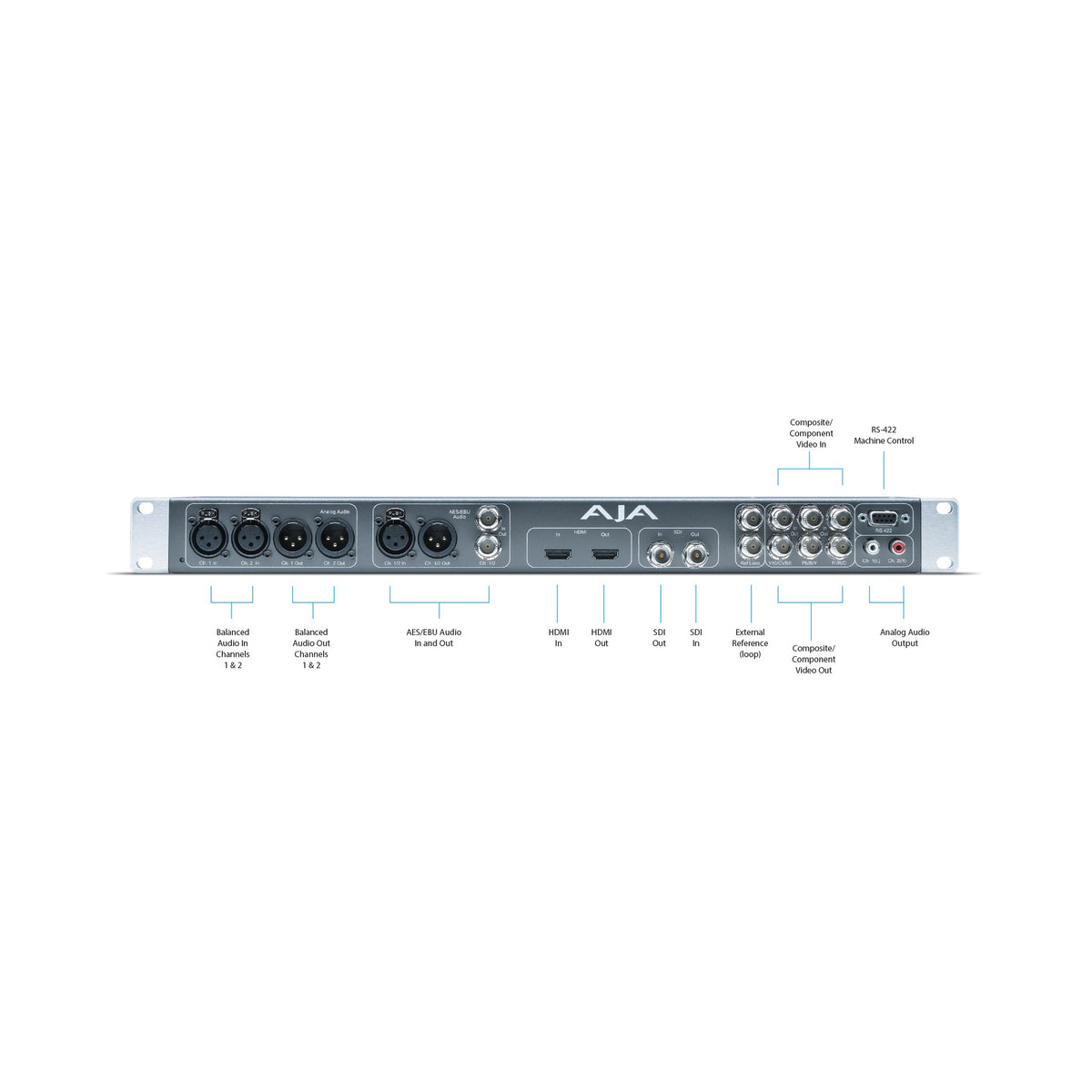

Tech Specs:
Video Formats: (2K) 2048x1080p 23.98, 24, 25; (2K) 2048x1080PsF 23.98, 24; (HD) 1080i 50, 59.94, 60; (HD) 1080PsF 23.98, 24; (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 720p 50, 59.94, 60; (SD) 625i 50; (SD) 525i 59.94
Software Dependent Formats: 720p 23.98; 525i 23.98
Video Input Digital: 3G-SDI, SMPTE 425 YCbCr 4:2:2 10-bit; 1.5G-SDI, SMPTE 292M Single Link HD-SDI YCbCr 4:2:2 10-bit; 270 Mbps SDI, SMPTE 259M-C YCbCr 4:2:2 10-bit, 8-bit; HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps; SD, HD, 1080p 50/60 (1x mini-HDMI)
Video Output Digital: 3G-SDI, SMPTE 425 YCbCr 4:2:2 10-bit; 1.5G-SDI, SMPTE 292M Single Link HD-SDI YCbCr 4:2:2 10-bit; 270 Mbps SDI, SMPTE 259M-C YCbCr 4:2:2 10-bit, 8-bit; HDMI v1.3 30-bits/pixel, RGB or YUV, 2.25 Gbps; SD, HD, 1080p 50/60 (1x mini-HDMI)
Video Input Analog: Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter); NTSC, NTSCJ, PAL; Component (3x BNC); HD: YPbPr, RGB; SD: YPbPr, RGB (component mode); SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB; 12-bit A/D, 8x oversampling; +/- .2 dB to 5.0 MHz Y Frequency Response; +/- .2 dB to 1 MHz C Frequency Response; .5% 2T pulse response; <1% Diff Phase; <1% Diff Gain; <1 ns Y/C delay inequity
Video Output Analog: Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter); NTSC, NTSCJ, PAL; Component (3x BNC); HD: YPbPr, RGB; SD: YPbPr, RGB (component mode); SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB; 12-bit D/A, 8x oversampling; +/- .2 dB to 5.0 MHz Y frequency response; +/- .2 dB to 1 MHz C frequency response; .5% 2T pulse response; <1% Diff Phase; <1% Diff Gain; <1 ns Y/C delay inequity
Audio Input Digital: 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous; 8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous; 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)
Audio Input Analog: 2-channel, 16 and 24-bit A/D analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box); +24 dBu full scale digital; +/- 0.2 dB 20 Hz to 20 kHz frequency response
Audio Output Digital: 8-channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous; 8-channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous; 2-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 1x XLR on breakout cable or optional KLHi-Box)
Audio Output Analog: 2-channel, 16 and 24-bit D/A analog audio, 48 kHz sample rate, balanced (via 2x XLR on DB-25 breakout cable or optional KLHi-Box); +24 dBu full scale digital (0 dBFS); +/- 0.2 dB 20 Hz to 20 kHz frequency response; 2-channel unbalanced output (via 2x RCA jacks on optional KLHi-Box)
Up-Conversion: Hardware 10-bit; Anamorphic: fullscreen; Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars; Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars; Zoom Letterbox: results in image zoomed to fill fullscreen; Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change
Down-Conversion: Hardware 10-bit; Anamorphic: fullscreen; Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved; Crop: image is cropped to fit new screen size
Cross-Conversion: Hardware 10-bit; 1080i to 720p; 720p to 1080i; 720p to 1080PsF
SD to SD Aspect Ratio Conversion: Letterbox: This transforms SD anamorphic material to a letterboxed image; H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame; SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center; V Crop: Will transform SD letterbox material to an anamorphic image
Reference Input: Analog Color Black (1V) or Composite Sync (2 or 4V); Looping; 75 ohm on optional KLHi-Box, terminated on supplied breakout cable
Electrical Interface: 4-lane PCIe 1.0
Machine Control: RS-422, Sony 9-pin protocol (via DB-25 breakout cable or optional KLHi-Box); 9-pin D-connector pinout is as follows:
Size (w x d x h): 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)
Weight: 0.7 lb (0.4 kg)
Power: 13W typical, 15W maximum
Envrionment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
