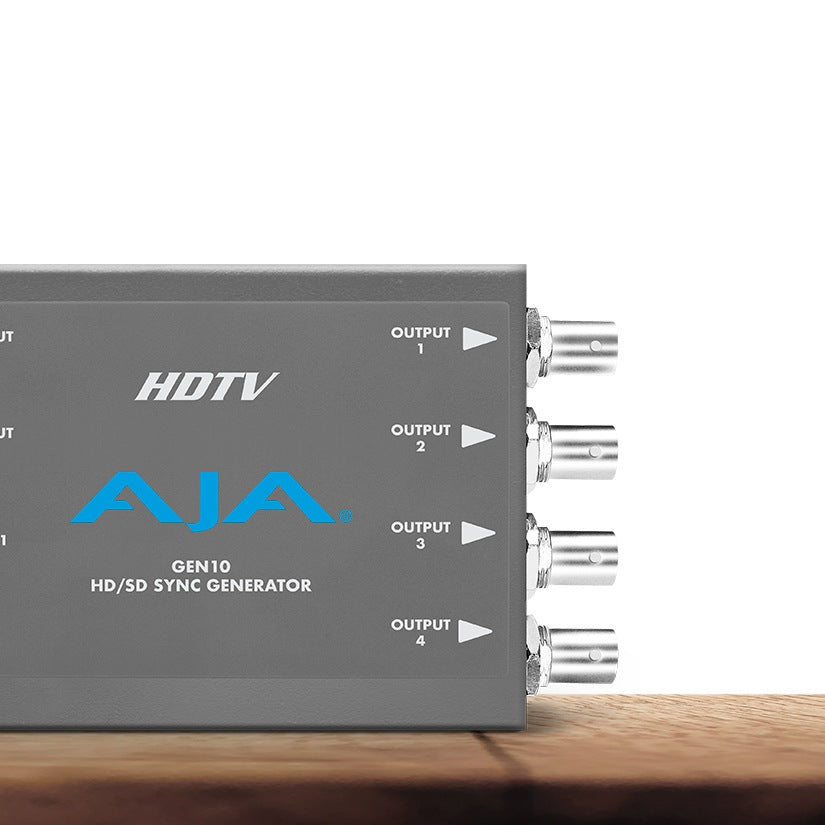

The GEN10 is a cost effective and flexible SD/HD/AES sync generator. The GEN10 features 7 outputs including 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between SILENCE and TONE. All outputs are in sync with each-other and are sourced from an accurate master time base.

Features

• HD Tri-level sync generation
• SD Color Black or Color Bars
• Two groups of independently switchable outputs allows simultaneous HD and SD sync generation
• AES-11 output switchable between silence and tone
• Multiple outputs can synchronize entire systems without requiring a Sync DA
• 5-18VDC Power
• External dip switch configuration

Tech Specs:
Formats: • 1080i 50, 59.94, 60 • 1080PsF 23.98, 24, 25, 29.97, 30 • 1080p 23.98, 24, 25, 29.97, 30 • 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • 625i, 525i
HD Sync: • Tri-level
SD Sync: • Color Black, 75% Color Bars
AES: • AES-11, 48 kHz, silent or 1 KHz tone (-20 or -18 dBFS)
Accuracy: • 3 ppm
User Controls: • External dipswitch
Size (w x d x h): • 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)
Power: • +5-18VDC, 2 watts, power supply required, included with purchase
Environment: • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet)
