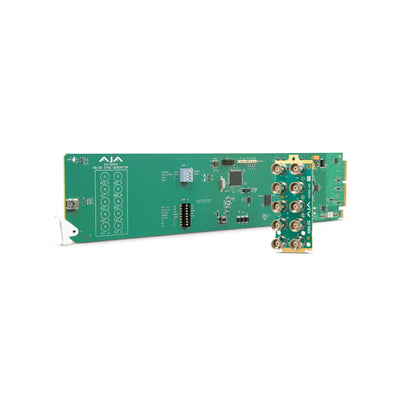

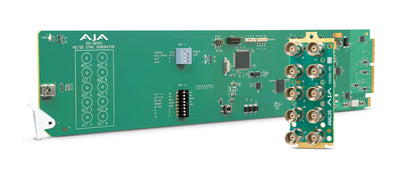

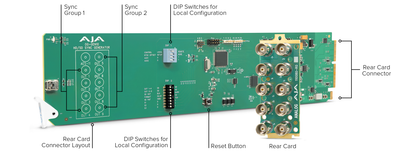

The OG-GEN10 is a cost effective and flexible SD/HD/AES-11 sync generator. The OG-GEN10 features 10 total outputs comprised of 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between Silence and Tone. All outputs are in sync with each other and are sourced from an accurate master time base.

Features

• HD Tri-level sync generation
• SD Color Black or Color Bars
• 9x synchronized reference outputs • Group 1 (1-4)
• Group 2 (5-9)

• Two groups of independently switchable outputs allow simultaneous HD and SD sync generation
• AES-11 output switchable between silence and tone
• Multiple outputs can synchronize entire systems without requiring a Sync DA
• External dip switch configuration
• Remote control via the Ross DashBoard software
• Optional Redundant power via the openGear frame
• Hot swappable
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Power: 6.75 watts max per card
• Five-year warranty

openGear Frame Reference Workflow
This workflow depicts the OG-GEN10 at the heart of multifaceted workflows, supplying both HD video sync and AES-11 digital audio sync to several professional devices, including the OG-FR-X openGear frame itself.

Download Workflow

Tech Specs:
Formats: • 1080i 50, 59.94, 60 • 1080PsF 23.98, 24, 25, 29.97, 30 • 1080p 23.98, 24, 25, 29.97, 30 • 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 • 625i, 525i
HD Sync: • Tri-level
SD Sync: • Color Black, 75% Color Bars
AES: • AES-11, 48 kHz, silent or 1 KHz tone (-20 or -18 dBFS)
Output: • 9x BNC, Analog SD/HD Sync • 1x BNC, AES-11
Accuracy: • 3 ppm
User Interface: • openGear DashBoard network control software via Windows, macOS, or Linux • Local/Remote Control • External dipswitch
Size (w x d x h): • openGear standard form factor, front slot and rear card • Two slots required for each card
Weight: • 0.5 lb (0.3 kg)
Power: • openGear frame compatible, 6.75 watts max per card
Environment: • Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F) • Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F) • Operating Relative Humidity: 10-90% noncondensing • Operating Altitude: <3,000 meters (<10,000 feet)
