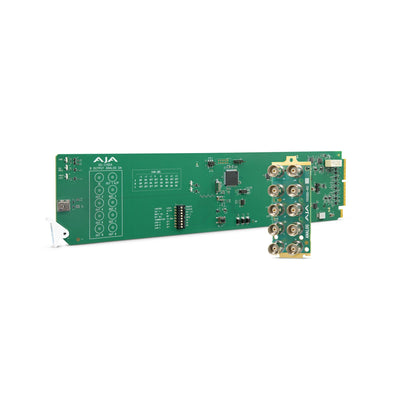

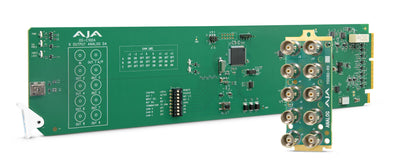

The OG-C10DA is an openGear 1x9 analog distribution amplifier with support for NTSC and PAL, offering the ability to distribute multiple copies of the incoming signal or extend composite video content with gain adjustment to compensate for long cable runs.

The OG-C10DA can also be used to distribute tri-level sync in an HD facility when a sync signal is fed externally into the Video Input.

Features

• 1x9 analog distribution amplifier, (1x loop out option)
• Supports analog NTSC, PAL, blackburst, or tri-level sync
• Supports AES3-id (digital unbalanced audio) and LTC
• Selectable input - external BNC, frame input Ref 1 or frame input Ref 2
• Supports pass-through of SDI metadata, including HDR
• Monitor and control via Ross DashBoard software
• DIP switches for local control (Loop, Ref In, Termination, and Gain)
• Input Present LED
• Power: 6.75 watts max per card
• Hot-swappable
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

HD Reference Distribution Workflow
Combining the OG-C10DA and the AJA GEN10 Mini-Converter makes a powerful combination to distribute references throughout your facility. This workflow diagram shows how easy it is to keep your facility in sync.

Download Workflow

HD Reference Distribution Workflow

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Formats: NTSC; PAL; Bi-level Reference; Tri-level Reference; AES3-id; LTC
Inputs: 1x BNC, Analog, Differential; 2x openGear Frame Reference Inputs
Video Output Digital: 1x BNC, Analog, Loop-out Active/Passive; 8x BNC, Analog
Termination: 75 Ohms or nonterminated
Video Bandwidth: 0 – 6 MHz +/- 0.1dB
Gain: -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, +/- 0.3dB
Diff Gain: 0.15%, not load dependent
Diff Phase: 0.1 degree, not load dependent
H/V Tilt: < 0.1%
Response Variation: < 0.1dB 1 to 9 loads
Coupling: DC
Max Common Mode Signal: 8Vp-p
Return Loss: > 15dB to 6 MHz all inputs and outputs
Output Isolation: >40dB
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux; Local/Remote Control; Loop-out Control; Input Selection; Termination; Gain
Size: openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 6.75 watts max per card
Environment: Safe Operating Temperature Range: 0C to 40C (32F to 104F); Safe Storage Temperature Range (power OFF): -40C to 60C (-40F to 140F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000m (<10,000ft)
