• Supports New 6 GHz Frequency Band
• Receive Video from up to 5000'
• HDMI and 3G-SDI Outputs, Zero Delay
• Gold Mount Battery Plate
• Receive up to 4K30 Video, 10-Bit 4:2:2
• Also Compatible with Bolt 4K 5G Devices
• AES-256 Encryption, 5 Antennas
• Bluetooth Mobile App, Spectrum Analyzer

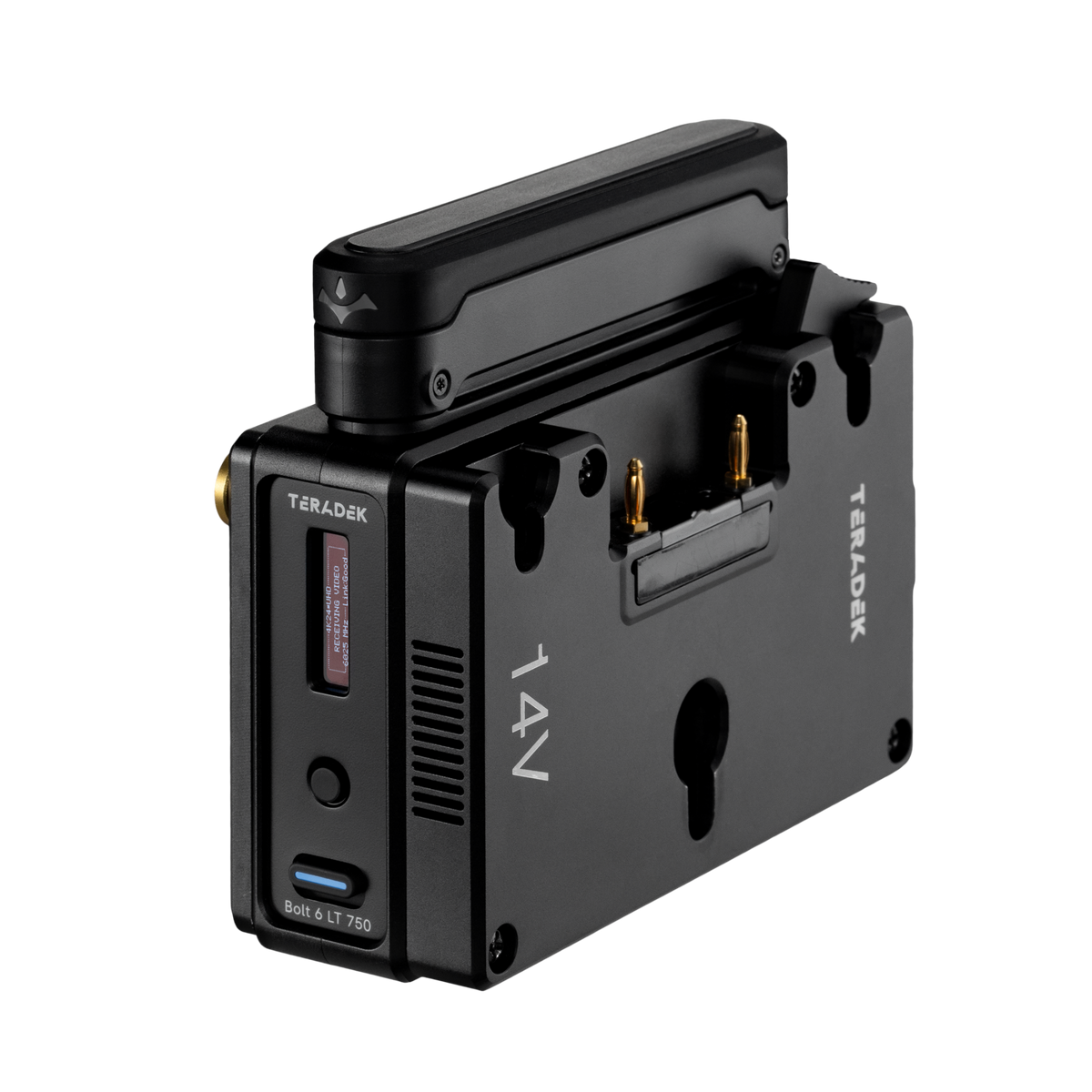

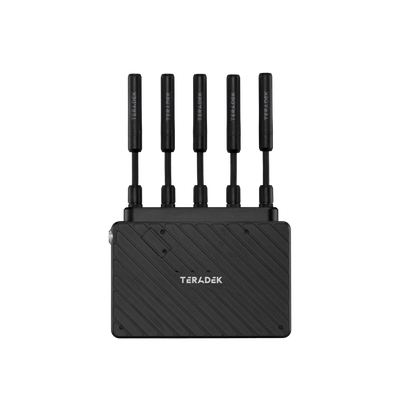

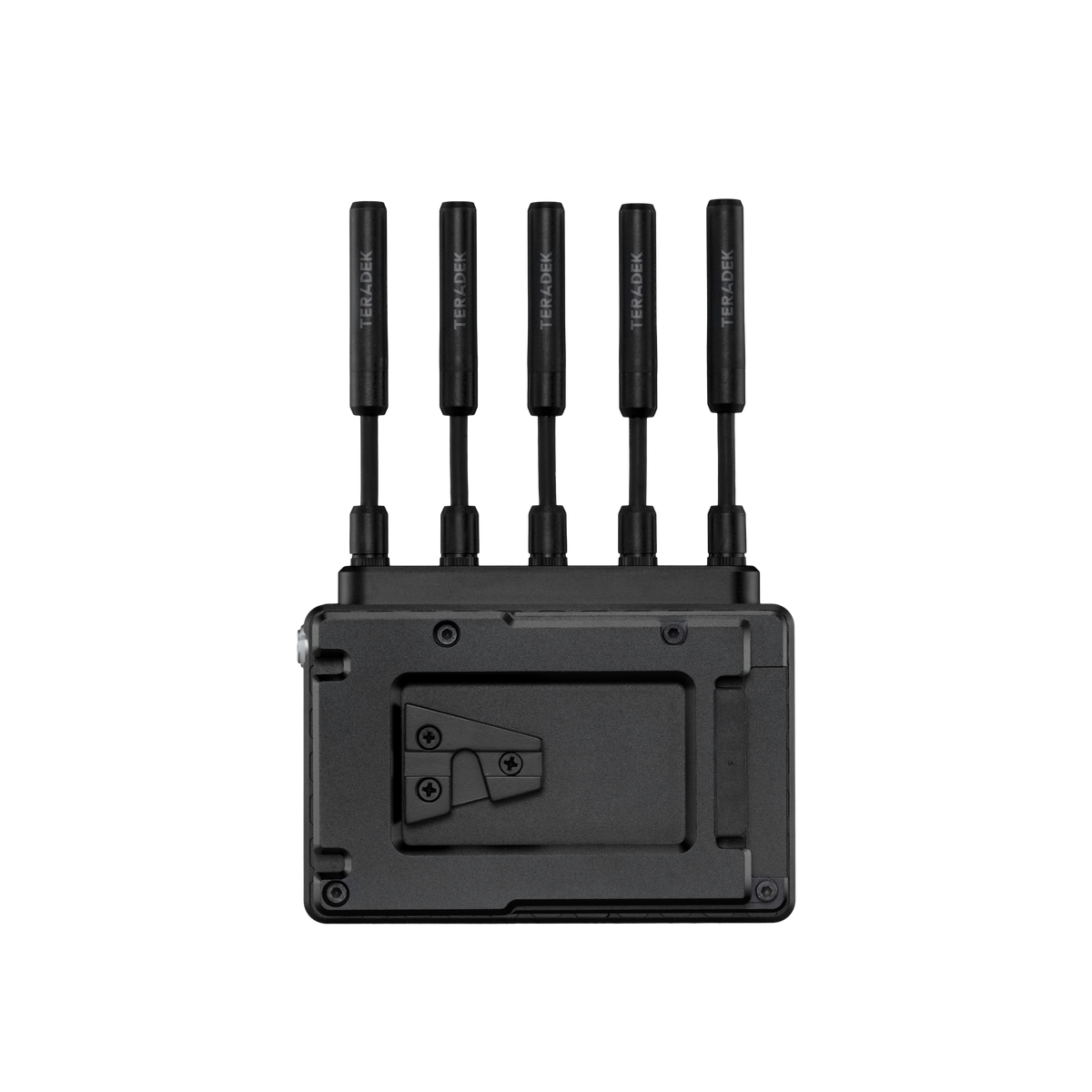

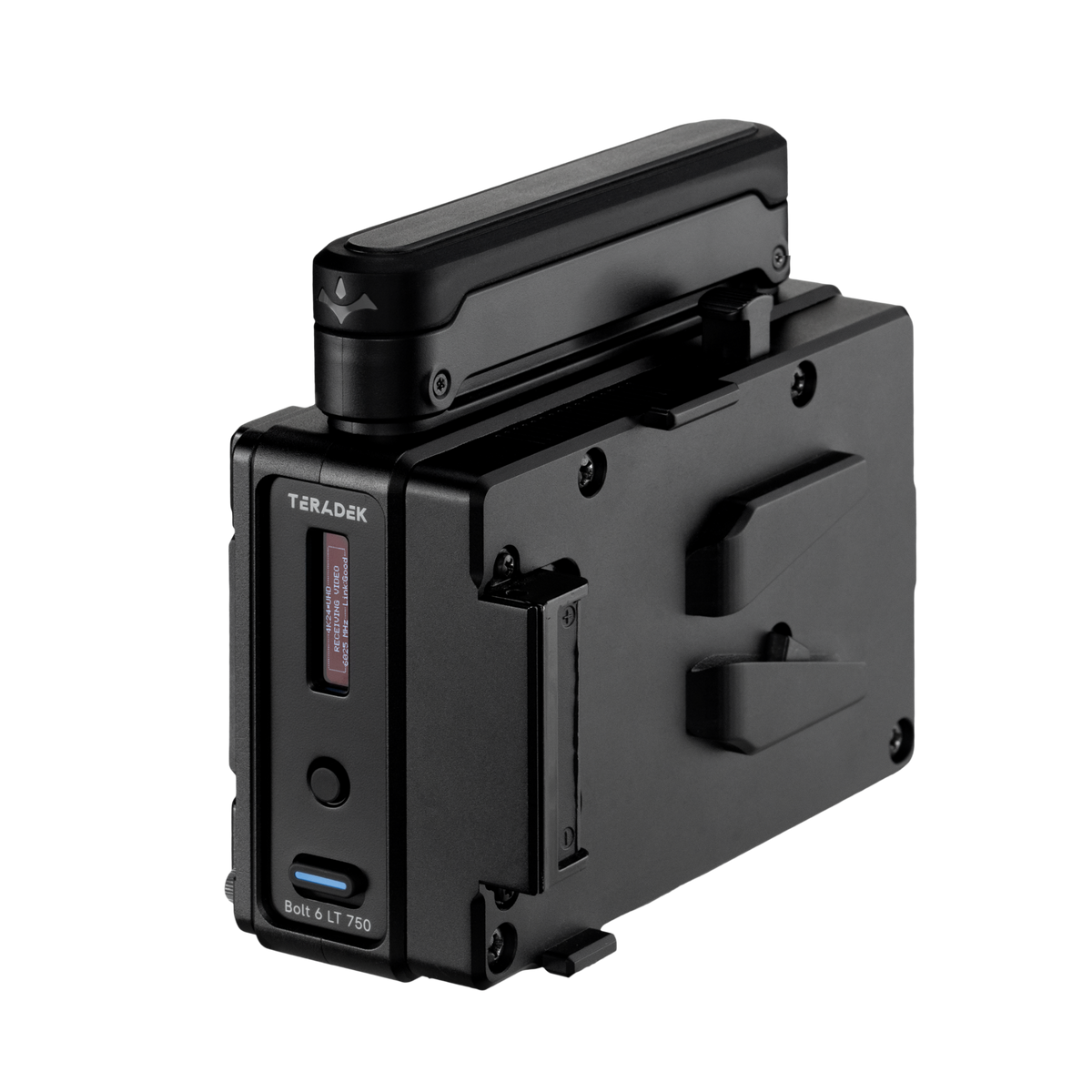

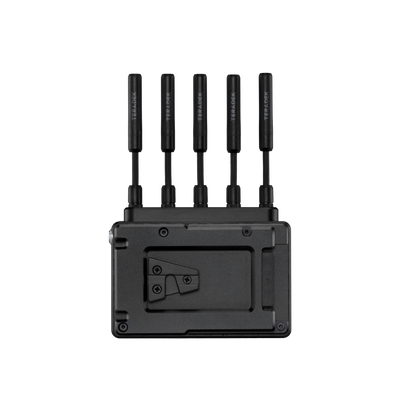

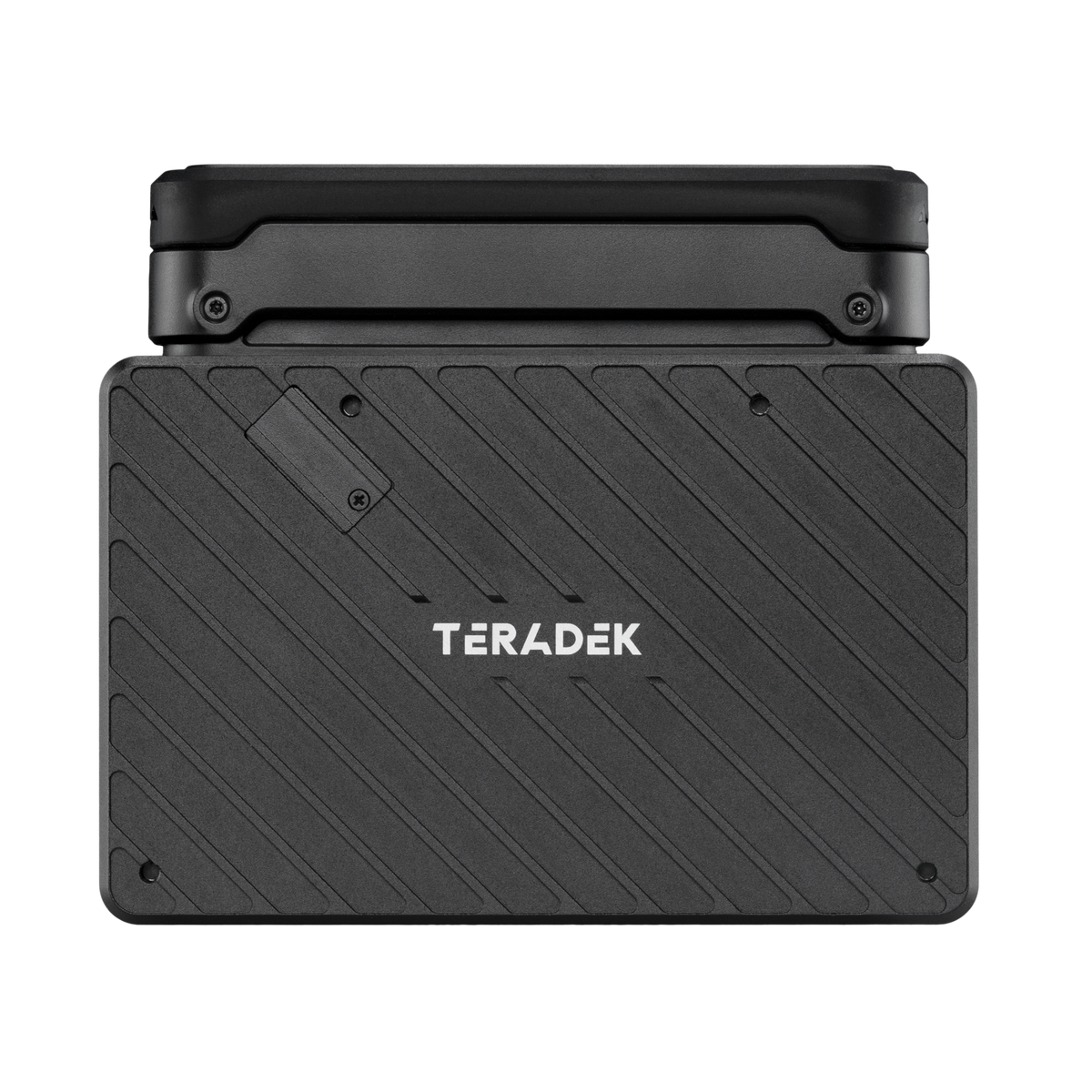

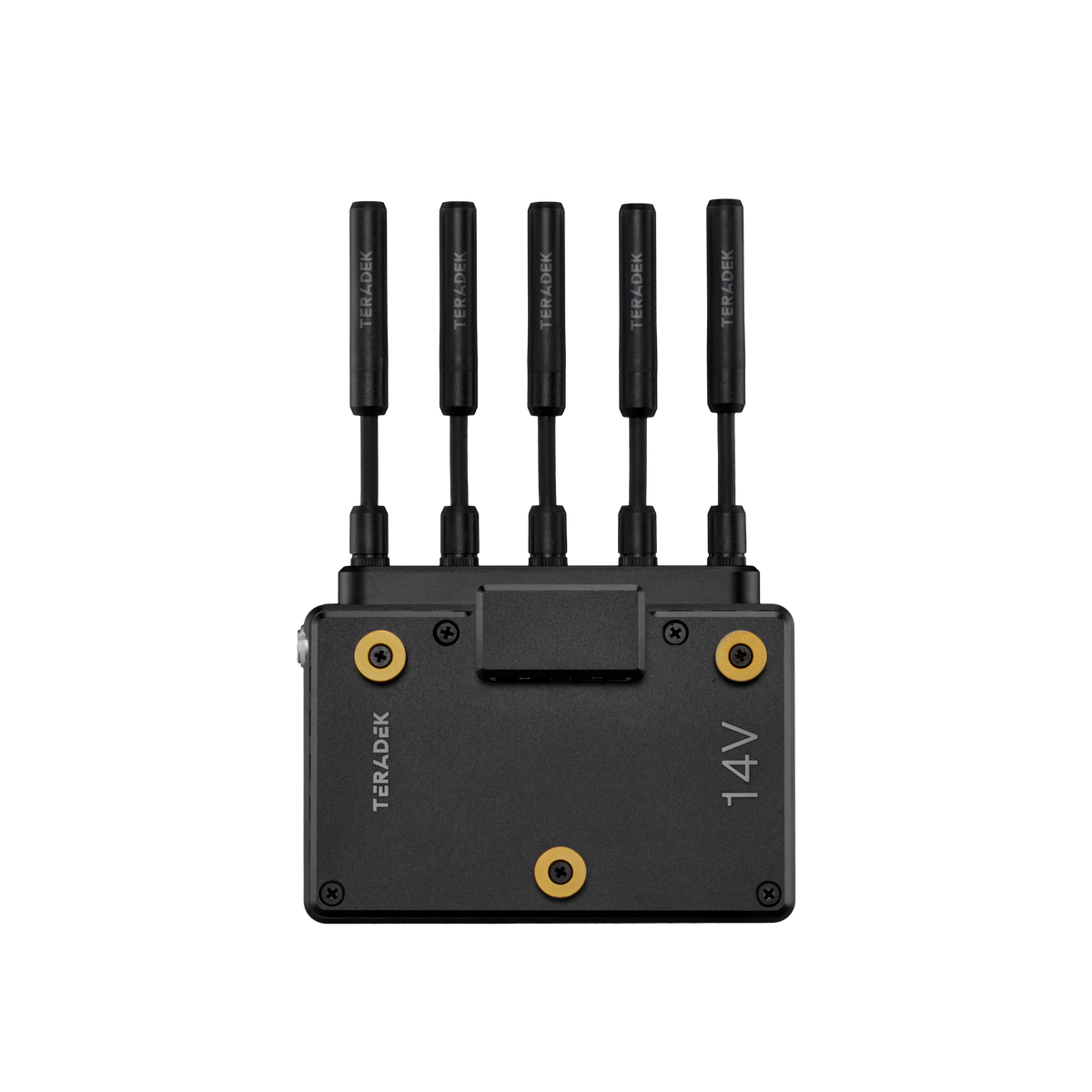

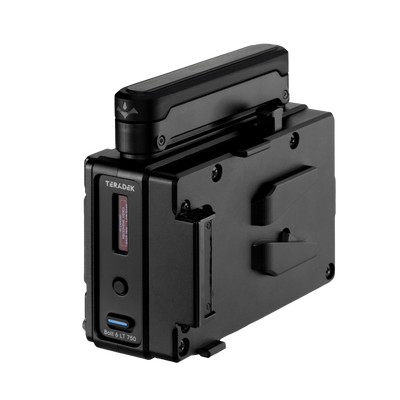

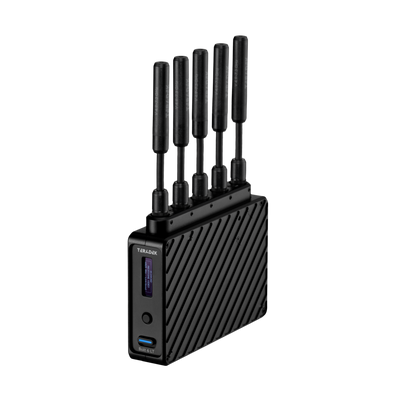

The Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Receiver (Gold Mount) is a real-time wireless video receiver that supports 4K video with Teradek’s patented Zero-Delay technology, now with less interference using the newly opened 6GHz wireless frequency. Bolt 6 LT can receive color-accurate, True-HDR videos in under 0.001 seconds.

The receiver supports transmissions of up to 4K30 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers. Other features include HDMI/SDI signal cross-conversion; HDR workflows that support HDR-10, PQ, and HLG standards; LUT control on outputs; and extended metadata, timecode, and start/stop trigger transmission over wireless. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.

Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports the desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and 3/8"-16 mounting threads to mount your receiver on a variety of monitors or rigs.

Features

• Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
• Cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum
• Wirelessly receive up to UHD 4K30 video and output 1080p via 3G-SDI and UHD 4K30 via HDMI
• Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
• SDI Eye Pattern Tool to check SDI cable integrity
• Improved "long-range" mode
• HDR workflow support with HDR-10, PQ, and HLG standards
• Smaller and lighter chassis design than other Bolt receivers

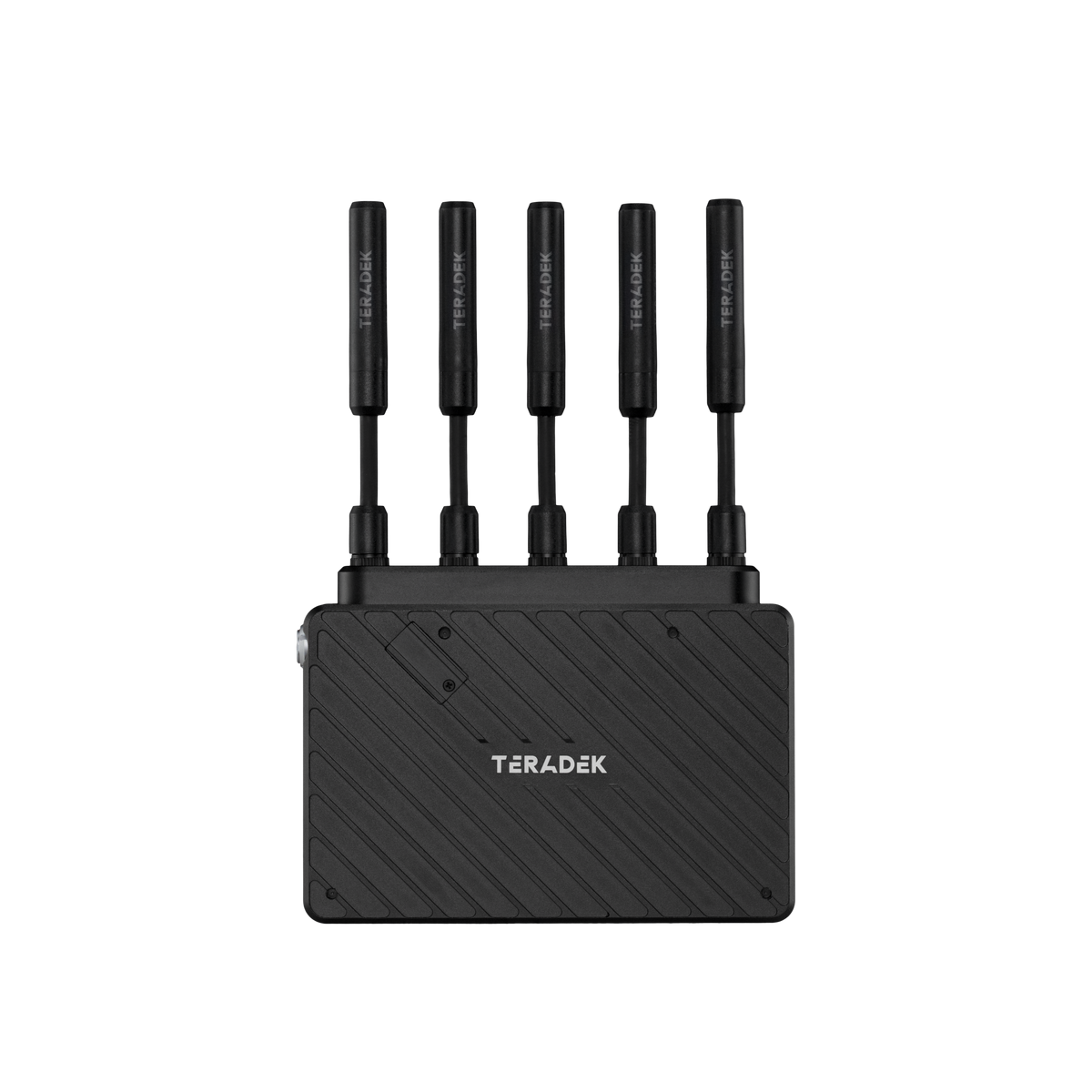

• The receiver features long-range flexible H antennas
• Transmit/receive metadata, timecode, and stop/start triggers over wireless connection
• AES-256 encryption support
• The transmitter can simultaneously send signals to up to six Bolt 6 or 4K series receivers
• Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration

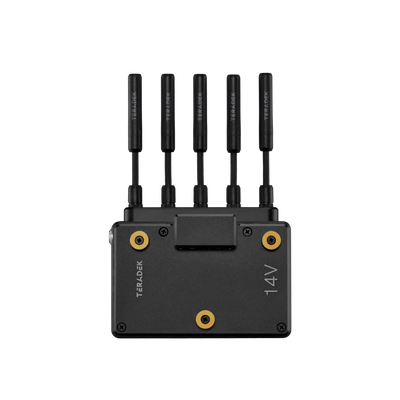

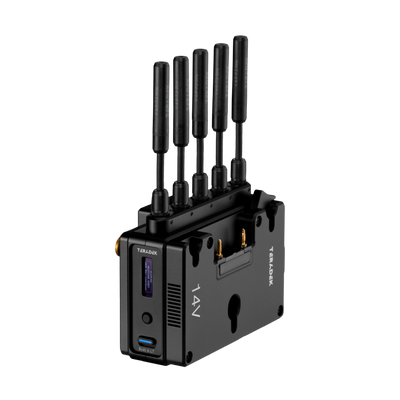

• Power via the 2-pin DC input or the included Gold mount battery plate
