Part No. FUS-SSD-8X4-E4S

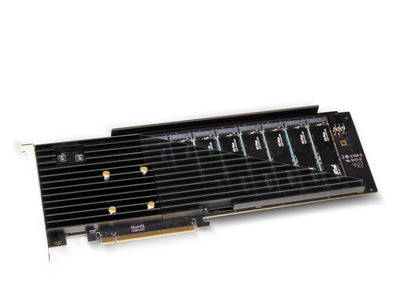

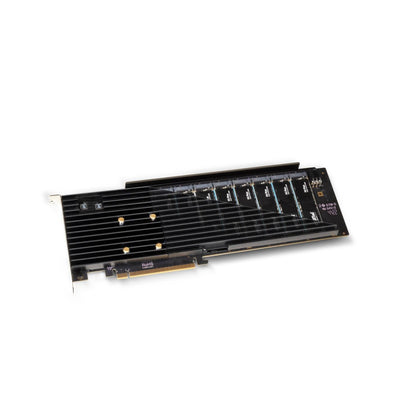

Sonnet M.2 8x4 Silent Gen4 PCIe Card

Eight M.2 NVMe SSD Slots on a PCIe 4.0 x16 Card
Add Your Own M.2 SSDs

Add Up to 64TB of SSD Storage In One Card Slot!

Ultra-fast Gen4 SSD Data Transfers –Speed or capacity? Not too long ago, you had to make a choice between the two. The problem is, for many professional workflows, both are critical. Everyone knows M.2 NVMe PCIe SSDs offer great performance, but limited capacity. Hard drives offer great capacity, but very slow speeds by comparison. What if you could create increased SSD capacity? We make it possible — the Sonnet M.2 8x4 Silent Gen4 PCIe® Card enables you to mount up to eight NVMe SSDs into a single x16 PCIe card slot and combine their capabilities for ultra-performance. This card can transform your workflow.

Superior Storage Performance

Install the M.2 8x4 Silent Gen4 PCIe card with your SSDs into your computer’s x16 PCIe 4.0 or PCIe 3.0 slot to achieve superior storage performance with four SSDs configured as RAID 0.

(SSDs sold separately. Performance will vary based on the type and number of SSDs used, the host computer’s CPU speed, and PCIe card slot architecture.)


(SSDs sold separately)

Sonnet Max-Performance Design – Sonnet Advantages

• 48-lane PCIe 4.0 Switch – x16 slot bandwidth is available to all x4-connected SSDs, facilitating maximum speed with any combination of M.2 SSDs used.
• Self-contained – This Sonnet card doesn’t require a specific motherboard to operate or specific SSDs to support RAID features – no PCIe bifurcation required.
• Universal Compatibility – Compatible with Mac, Windows, and Linux computers with an x16 PCIe slot.
• Broad M.2 NVMe SSD Support – Works with a wide variety of M.2 NVMe Gen4 and Gen3 SSDs.

Adobe After Effects User?

Pro SSD Storage Performance – Are you an Adobe® After Effects user? Imagine being able to perform 4Kp60 work in 32-bit linear, or even 4Kp24 with high channel count EXRs (or effects in 8K) where your computer’s onboard storage couldn’t keep up! Sonnet M.2 8x4 Silent Gen4 PCIe Card makes it possible.

Not Quiet…Silent –
Sonnet Silent Cooling Thwarts Thermal Throttling

Sonnet designed the M.2 8x4 Silent Gen4 PCIe Card with an effective passive cooling solution – instead of relying on fans that can get loud, Sonnet silent cooling effectively presents thermal throttling, enabling SSDS to maintain sustained peak performance without a peep.

Thunderbolt Port?

Connect Eight SSDs Through One Cable – Got a Thunderbolt connection, but no PCIe card slot? Sonnet M.2 8x4 Silent Gen4 PCIe Card is ideal for use in our Echo I Desktop PCIe Expansion System. The combo effectively enables you to add up to eight SSDs to any Mac (M series or Intel), Windows, or Linux computer with Thunderbolt ports.

Simple and S.M.A.R.T.

Easy System Integration – Integrating a Sonnet M.2 8x4 Silent Gen4 PCIe Card into your system is easy — NVMe compliance ensures the necessary drivers are installed automatically. The M.2 8x4 uses your computer’s operating system’s built-in drive formatting utilities to format the SSDs. SSD health monitoring is supported through S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) data reporting, too.

Key Features

• Eight SSD Slots – Add Up to 64TB Ultra-fast Storage (SSDs Sold Separately)
• High-performance PCIe Interface – PCI Express 4.0 x16 Host Bus Interface Plus x48 PCIe 4.0 Switch; x16 Slot Bandwidth Is Available to All x4-connected SSDs
• Superior Performance – Achieve Sustained SSD RAID 0 Speeds Up to 30,000 MB/s*
• RAID 0, 1, and 10 Support
• macOS Boot Support
• No Thermal Throttling
• Thunderbolt Expansion Systems Compatible
• NVMe Compliant
• Supports S.M.A.R.T. Operation
• Mac, Windows, and Linux Compatible
• 2-year Product Warranty
• Free Lifetime Customer Technical Support
• Designed in the USA
• Performance will vary based on the type and number of SSDs used, the host computer's CPU speed, and PCIe card slot architecture.

Product Marketing and Technical Info
Visit: Official Product Page

Pre-sales Questions?
Contact: sales@sonnettech.com

WARNING: California’s Proposition 65

Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
