Part No. G10E-2X-E3.
Note: TWIN10G formerly known as Presto.

10 Gigabit Cabled Networking

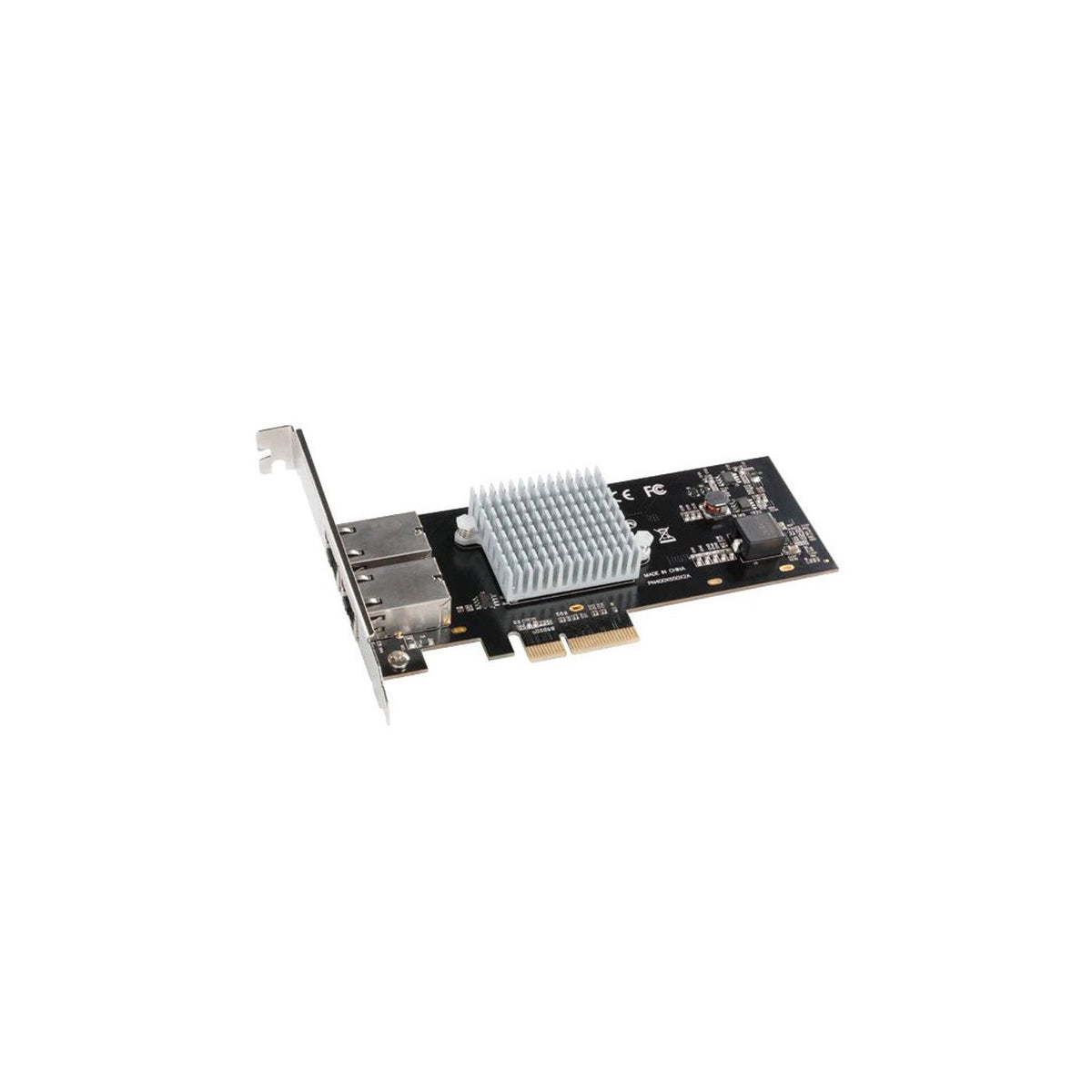

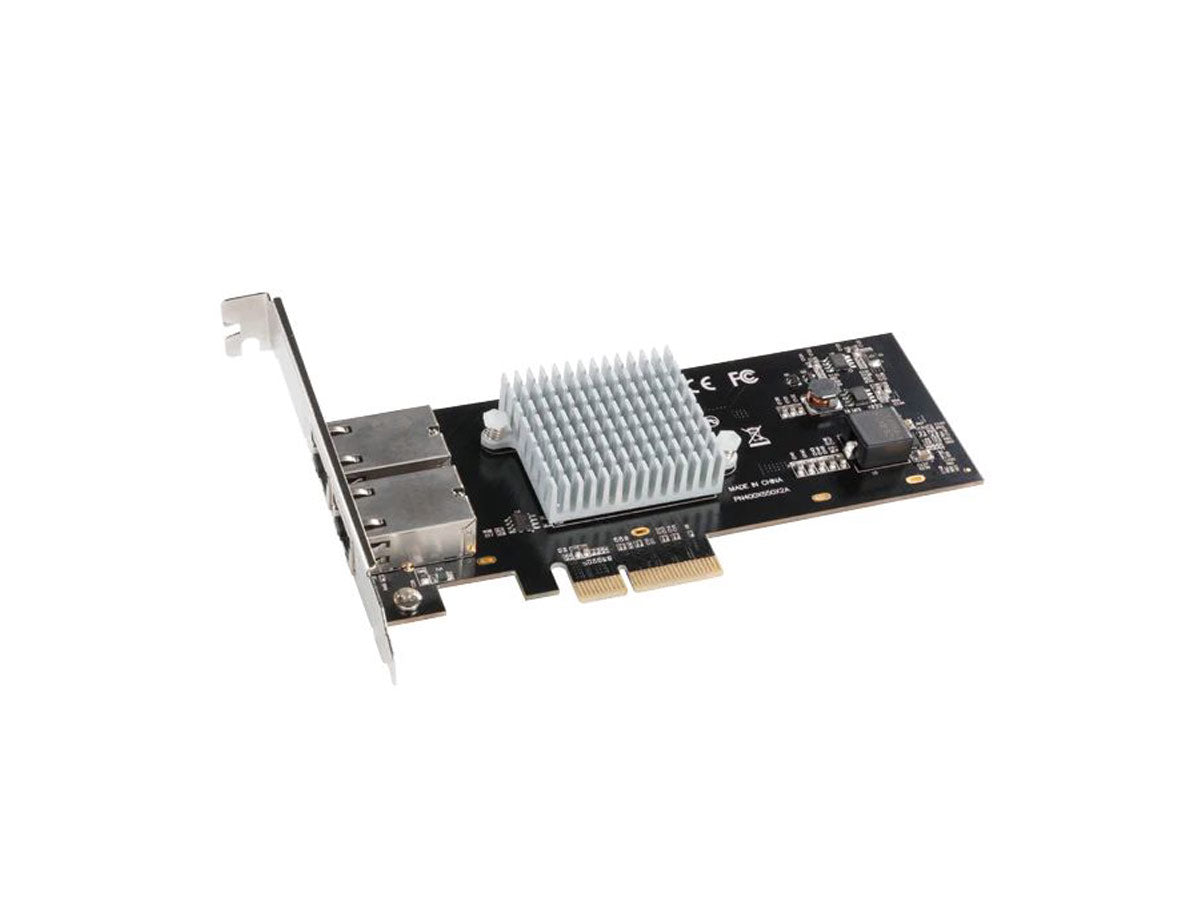

Twin10G 10GBASE-T PCIe Card

Dual-port 10GBASE-T 10 Gigabit Ethernet Card for Mac, Windows and Linux Computers, and Thunderbolt Expansion Systems with PCIe Slots

Ultra-fast 10 Gb/s Network Connection

With creative pros’ increasing demand for greater data transfer speeds and more bandwidth over shared networks, it’s no wonder that 10 Gigabit Ethernet (10GbE) use has skyrocketed — this high-speed cabled networking standard offers ten times the performance of Gigabit Ethernet, the common wired network connection included with most computers today. To get your computer up to speed, you’ll have to adapt — Twin10G™ 10GBASE-T PCIe Card is a powerfully simple and cost-effective way to add dual-port 10GbE connectivity via two copper RJ45 ports to your Mac Pro^® tower (2008-2023), Windows^® PC and Linux^® desktop or server, or Thunderbolt™ Expansion System.

Simple Set-up. High-performance Computing.

Twin10G 10GBASE-T PCIe Card enables you to connect your computer to high-speed infrastructure and storage without stepping down in speed. Setup is simple — after installing the low-profile card into an available x4 or larger PCIe slot in your computer, just download and install a driver, connect to the switch or device’s 10GbE ports via inexpensive Cat-6 or Cat-6A copper cabling (sold separately) at distances up to 55 or 100 meters, respectively, and then configure the card through the macOS^® Network control panel or Windows Device Manager. This Sonnet solution is perfect for high-performance computing where low latency, high bandwidth, and low CPU overhead are required.

Its increased throughput performance and low host-CPU utilization are achieved through functions such as flow control support, 64-bit address support for systems using more than 4GB of physical memory; and stateless offloads such as TCP, UDP and IPv4 checksum offloading, enabling your computer to perform better while large files transfers or high I/O operations take place. With its dual ports, this Sonnet Ethernet PCIe card supports transparent failover to keep your computer connected in case a single cable is disconnected or one of the ports fails, and it also supports link aggregation (teaming) for increased throughput!

Optimized for Thunderbolt

Got a Thunderbolt connection, but no PCIe slot? This PCIe card is ideal for use in one of Sonnet's Thunderbolt Expansion Systems — the combo enables you to add ultra-fast 10GbE network connections to any supported computer with a Thunderbolt port.

Key Features

• Adds 10GbE Connectivity to Mac, Windows, Linux, and Thunderbolt Expansion Systems – Powerfully simple way to add high-performance 10GbE connectivity to your computer or Thunderbolt Expansion System with PCIe slots.
• Optimized for Thunderbolt –Ideal for use in Sonnet Thunderbolt Expansion Systems.
• Cost Effective – Connects to 10GbE infrastructure via inexpensive Cat-6 or Cat-6A cables at distances up to 55 or 100 meters, respectively.
• Simple Setup – Low-profile x4 PCIe card installs into an available slot, and after a simple driver installation, configures through macOS Network control panel or Windows Device Manager.
• Supports Transparent Failover – Keeps your computer connected in case a single cable is disconnected or one of the ports fails.
• Supports Link Aggregation (Teaming) –Increases throughput beyond what a single connection can sustain.
• Compatibility – Compatible with Mac, Windows, and Linux computers and Thunderbolt Expansion Systems with PCIe slots. See official product page Tech Specs for complete product specifications and computer, OS, and support compatibility details.
• Compliance –RoHS 3 (Directive 2015/863); IEC62368-1 and IEC62368-2 Safety.
• Package Contents –Twin10G 10GBASE-T PCIe Card; full-height and half-height mounting brackets; and documentation.
• Warranty –2-year product warranty.
• Customer Support –Free lifetime customer technical support.
• The Sonnet Advantage – Designed and engineered in the USA. Since 1986.
• NOTE: Twin10G 10GBASE-T PCIe Card requires one or two Cat 6 or Cat 6a cables (sold separately) to connect to switch or device.
