Part No. BRD-UPGRTB5-DV

Unlock Thunderbolt 5 Performance

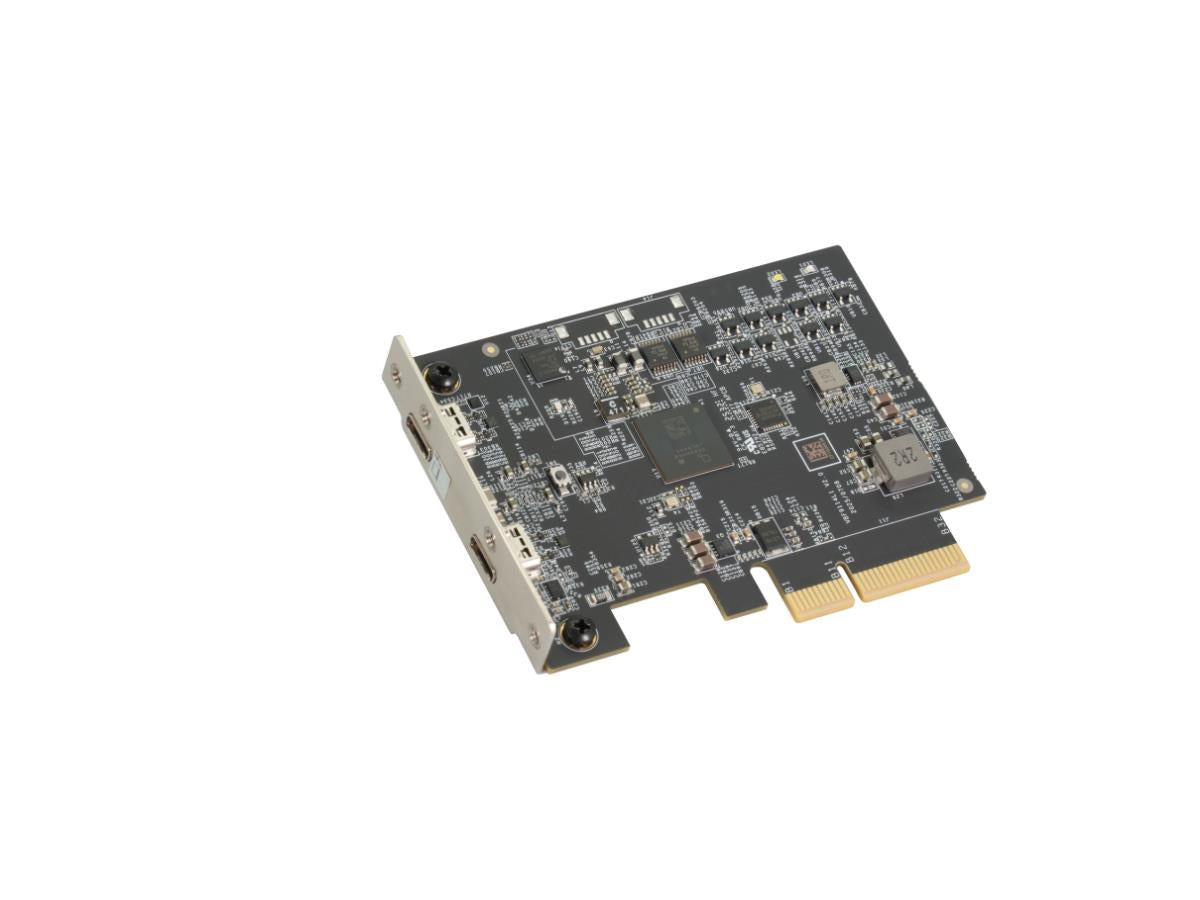

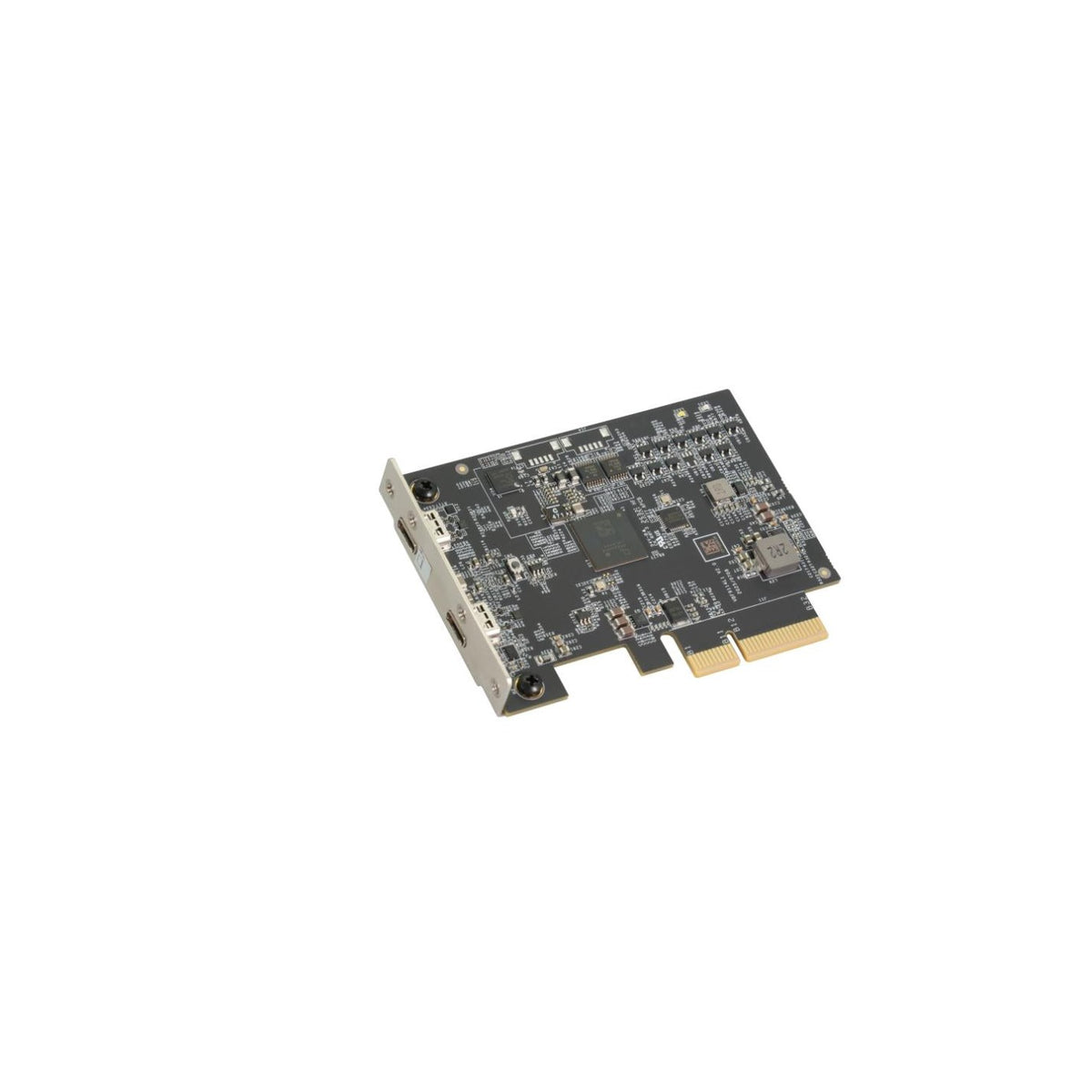

Thunderbolt 5 Upgrade Card

for Echo II DV Desktop and Rackmount Thunderbolt Expansion Systems and Echo II DV Module (with Thunderbolt 3 Interface Cards)

Take the Leap to 80 Gbps Thunderbolt 5 Connectivity

Sonnet designed Echo™ II DV Thunderbolt Expansion Systems and Echo II DV Module with a simple path to Thunderbolt™ 5. Replace the original Thunderbolt 3 interface card with the Sonnet Thunderbolt 5 upgrade card to instantly unlock higher performance and support for the latest Thunderbolt 5 computers.

Bigger Bandwidth, Superior Performance

When connected to two computer Thunderbolt 5 ports, your Thunderbolt 5-upgraded Sonnet system gains up to 133% (6800 MB/s) more PCIe bandwidth per slot compared to its original interfaces. With significantly more bandwidth available, high-performance PCIe cards — such as 4K and 8K video I/O cards (supporting multiple channels and high frame rates), multiport 10Gb and 25Gb Ethernet adapters, and NVMe SSD cards — will perform even better than before.

More Than Just the Fastest External Interface Available

Sonnet ultra-high speed Thunderbolt 5 interface upgrade cards provide the extra PCIe bandwidth needed to support most cards at maximum performance. One of two ports is reserved for connecting your computer, while the second port can connect Thunderbolt or USB peripheral devices.

Power Peripherals
15 watts is provided to bus-powered USB or Thudnerbolt devices requiring extra power through the secondary Thunderbolt port.

Supports Connecting One 5K Display Using Spare Bandwidth
Maximize the utilization of one computer Thunderbolt port, connecting a 5K display while retaining full PCIe bandwidth.

Secure Connections for High Performance: Thunderbolt Cable and ThunderLok Included

Sonnet includes a Thunderbolt cable engineered to deliver Thunderbolt 5’s full bandwidth and power delivery performance. The cable is fully compatible with Thunderbolt 5, 4, and 3, and USB4 computers. A Sonnet ThunderLok Thunderbolt connector lock is also included to prevent accidental cable disconnections from the Thunderbolt 5 upgrade card.

ThunderLok Advantage
Sonnet Thunderbolt 5 upgrade cards’ Thunderbolt ports are equipped with threaded mounting holes to securely attach a Sonnet ThunderLok connector lock, preventing Thunderbolt cables from accidentally disconnecting.

Key Features & Specifications

• Compatibility –Echo II DV Desktop and Rackmount Thunderbolt Expansion Systems and Echo II DV Module (with a Thunderbolt 3 interface card).
• Easy Upgrade to 80 Gbps Thunderbolt 5 – Replaces existing Thunderbolt interface card.
• More Than Doubles PCIe Bandwidth – Your upgraded system will provide up to 133% more bandwidth (6800 MB/s) for each installed PCIe card.
• Two Thunderbolt 5 Ports  – One Thunderbolt port connects to computer; second port supports daisy-chaining additional Thunderbolt peripheral devices, or connection of a USB device, or connecting two 6K displays or one 8K display (depending on your computer).
• Connect Four Additional Thunderbolt Devices – The secondary port supports Thunderbolt 5, 4, and 3 peripherals; you can even connect additional self-powered Thunderbolt devices in a daisy chain.
• Supports 80 Gbps, 40 Gbps, 20 Gbps, and 10 Gbps USB Peripherals – Connect an ultra-fast USB device to the second Thunderbolt port using the proper cable or adapter.

• Power Peripherals – 15 watts is provided to bus-powered devices requiring extra power through the secondary Thunderbolt port.
• Supports Connecting One 8K Display – Maximize the utilization of one computer Thunderbolt port, connecting the highest resolution display supported by your computer.
• Package Contents – Thunderbolt 5 interface card, 0.8-meter Thunderbolt 5 cable, and ThunderLok-A connector lock.
• Warranty – 2-year product warranty.
• Customer Support – Lifetime technical support.
• The Sonnet Advantage – Innovating technology since 1986.

Note:Computers and accessories featured in photos are not included with the product. Product specifications are subject to change without notice.
