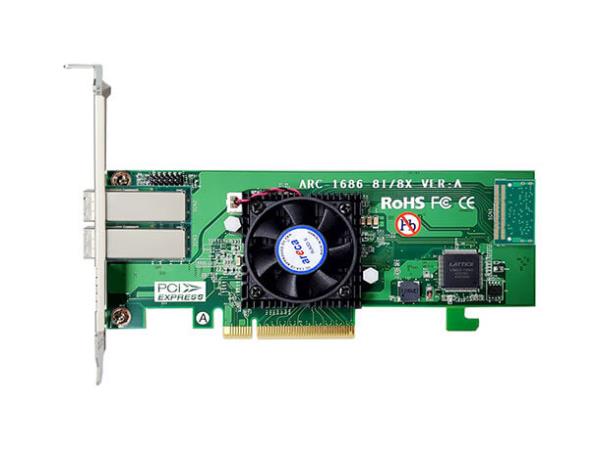

Areca Tri-Mode Cacheless Hardware RAID PCIe 4.0

Vendor:

Areca Tri-Mode Cacheless Hardware RAID PCIe 4.0

$870.00

SKU 1686-8X

Available to order — allow extra processing and shipping time

Special order: non-cancelable, non-returnable

Full manufacturer warranties on everything we sell
Questions? Talk to a specialist — Mon–Fri 8:30–5 ET

Areca ARC-1686-8X 8 Ports PCIe Gen 4.0 Cost-Effective RAID Adapters

The new generation ARC-1686-8I/8X family offers advanced technology for increased performance and improved enterprise data protection. They were designed with 1.6 GHz dual core ROC processor and PCIe 4.0 interface for the most performance-hungry database and IT applications. Based on the ARM A15 PCIe 4.0 x8 to SAS/SATA/PCIe RAID on Chip (ROC) controller, the ARC-1686-8I/8X cost-effective tri-mode RAID adapters can offer both PCIe Gen 4.0 host and 12Gb/s SAS/SATA/PCIe (NVMe) tri-mode storage interfaces.

  • Tri-mode interface at each drive port - 12Gb/s SAS/SATA/ Gen 4.0 PCIe (NVMe)
  • x8 PCIe Gen 4.0 host interface
  • Hardware secure boot ready
  • SFF-9402 compliant connector pin-out
  • RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD
