Part No. ECHO-DK11H-T4

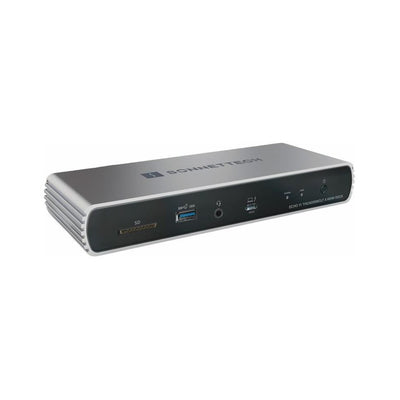

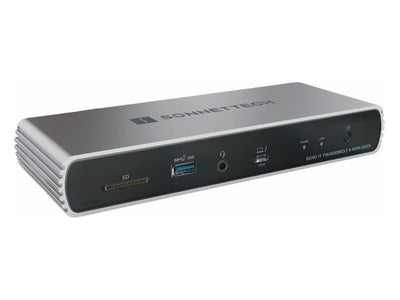

Echo 11 Thunderbolt 4 HDMI Dock

Universal Thunderbolt 4 Docking Station with Three Thunderbolt 4 Ports, One HDMI Port, 2.5Gb Ethernet, and 8K Display Support

Sonnet’s Echo™ 11 Thunderbolt 4 HDMI Dock – the connections you expect from a Thunderbolt™ dock plus the HDMI port and ultra-fast 2.5 Gigabit Ethernet support you need. With this versatile and universal docking station, a single cable connects your computer to your digital world. Compatible with Apple® M series Macs; Thunderbolt™ 3 Intel® Macs; Thunderbolt 3/4 and USB4 Windows computers; Thunderbolt 4 and USB4 Chromebook; and M series iPad Pro.

Plug In Your Peripherals and Power Your Computer with One Cable

Connect your Thunderbolt devices, monitor(s), USB peripherals, and Ethernet cable to the dock and then link them all to your computer with a single Thunderbolt cable. Got a laptop computer? The Echo 11 Thunderbolt 4 HDMI Dock will even power it with up to 100W of charging power. When it is time to leave, just unplug the Thunderbolt cable, grab your computer, and go.

Integrated HDMI Display Support – No HDMI Adapter Required

Echo 11 Thunderbolt 4 HDMI Dock was named in part after its most requested feature: a built-in HDMI port, enabling you to plug in an HDMI display directly to the dock.

Faster Ethernet Transfers Across Existing Cabling – 250% the Speed of Gigabit Ethernet

Featuring 2.5 Gigabit Ethernet, the Echo 11 Thunderbolt 4 HDMI Dock supports 2.5 Gb/s link speed over common Cat 5e (or better) cabling when used with a compatible Ethernet switch or NAS with 2.5Gb Ethernet support, saving you the cost of another adapter. You can get great performance gains — 250 percent the speed of Gigabit Ethernet  — without rewiring! In case you’re connecting to a switch without 2.5Gb Ethernet support, the Sonnet dock also supports 1 Gb/s and 100 Mb/s link speeds.

Dual Downstream Thunderbolt Ports – Versatile Connectivity for Work and Play

The Echo 11 Thunderbolt 4 HDMI Dock features three Thunderbolt 4 ports; one for connection/power to your computer, plus two for directly connecting Thunderbolt peripheral devices. The Thunderbolt peripheral ports also support USB4 and USB 3 peripherals, and even provide 15W power each to support the most demanding bus-powered Thunderbolt and USB peripherals.Ideal for Mac and Windows computers, especially laptops with only one or two Thunderbolt ports because you can connect and charge on the same port.

Powerful 10Gbps USB Ports for Bus-powered Devices

The Echo 11 Thunderbolt 4 HDMI Dock features four USB 3.2 Gen 2 (10Gbps) Type A ports — one on the front, three on the back — to support super-fast USB NVMe SSDs at up to full speed. And unlike some other docks, the Echo 11 doesn’t skimp on power either — each port provides up to 7.5W, ensuring bus-powered devices will operate without fail.

Thunderbolt Certified for Mac, Windows, and iPad Pro

The Echo 11 Thunderbolt 4 HDMI Dock is certified for use with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 4 Windows computers; Thunderbolt 3 Windows computers with an Intel 8th Gen (2018) or newer CPU; and M series iPad Pro.

Display Options – Thunderbolt Port Connections: Connect up to One 8K or Two 6K Monitors

Depending on your computer’s video capability and whether you’ve connected a monitor to the built-in HDMI port, the Echo dock’s Thunderbolt ports can support one (always 4K, 5K or 6K, up to 8K) monitor, or up to two 6K monitors. You can plug in Thunderbolt 3 or USB-C monitors directly, or, you may connect other display types (HDMI, DisplayPort, etc.) by using a Thunderbolt-compatible adapter (sold separately).

Charge Your Notebook Without Its Power Adapter – 100W Charging Power Delivery

Connected to your portable computer with the included Thunderbolt 4 cable, the Echo 11 Thunderbolt 4 HDMI Dock provides up to 100W of power (Power Delivery), meaning it can power and charge your computer while connected, even when not in use, allowing you to leave your computer’s power adapter packed away.

Peripheral Power – Handy Charging Port

The Echo 11 Thunderbolt 4 Dock front panel USB 3.2 Gen2 Type A port offers charging support for your iPhone, iPad, or other device that charges via USB, even when your computer is off or sleeping.

Media Reader – Fast UHS-II SD 4.0 Card Reader

The included SD card slot is compatible with SD™, SDHC™, and SDXC™ memory cards, and supports 320 MB/s read speeds with UHS-II SDXC cards to quickly offload images and video. microSD cards are also supported when used with adapters commonly included with the cards.

Key Features

• The Right Amount of Ports – Thunderbolt 4 Dock with Standard Ports + HDMI Support
• Three Thunderbolt 4 Ports (One Computer/100W Charging Port for Host Computer and Two Thunderbolt 4 Peripheral Ports)
• Four Powerful 10Gbps USB 3.2 Type A Charging Ports (Each Port Provides Up to 7.5W of Power to Charge Bus-powered Devices)
• HDMI Port (Supports 60Hz HDMI Display)
• RJ45 Gigabit Ethernet Port
• UHS-II SD Card Slot
• Display Support for 1080p, 1440p, 4K, 5K, 6K, and 8K Displays @ Up to 240Hz (See Displays Compatibility PDF)
• Charge Your Laptop – Provides Up to 100W Power Delivery
• Includes 0.7-meter Thunderbolt 4 Cable
• 2-year Product Warranty
• Free Lifetime Customer Technical Support
• Designed in the USA

Computer Compatibility

• Compatible with Apple M series Macs; Thunderbolt 3 Intel Macs; Thunderbolt 3/4 and USB4 Windows computers; Thunderbolt 4 and USB4 Chromebook; and M series iPad Pro. For Complete Computer and OS Compatibility Details, See This Product’s Tech Specs page.

Displays Compatibility

• For Computers and Displays Compatibility Information, See Displays Compatibility PDF.

Product Marketing and Technical Info
Visit: Official Product Page

Pre-sales Questions?
Contact: sales@sonnettech.com

WARNING: California’s Proposition 65

Product specifications and information subject to change without notice. Computer hardware and accessories featured in photos that are not included with product are shown for illustration purposes; items sold separately.
