PRODUCT HIGHLIGHTS

• Reversible Top Plate design
• 50+ mounting holes loaded with anti-twist mounting options
• NATO rails strategically placed throughout
• Completely modular design to be adapt to user need
• Ultra lightweight system

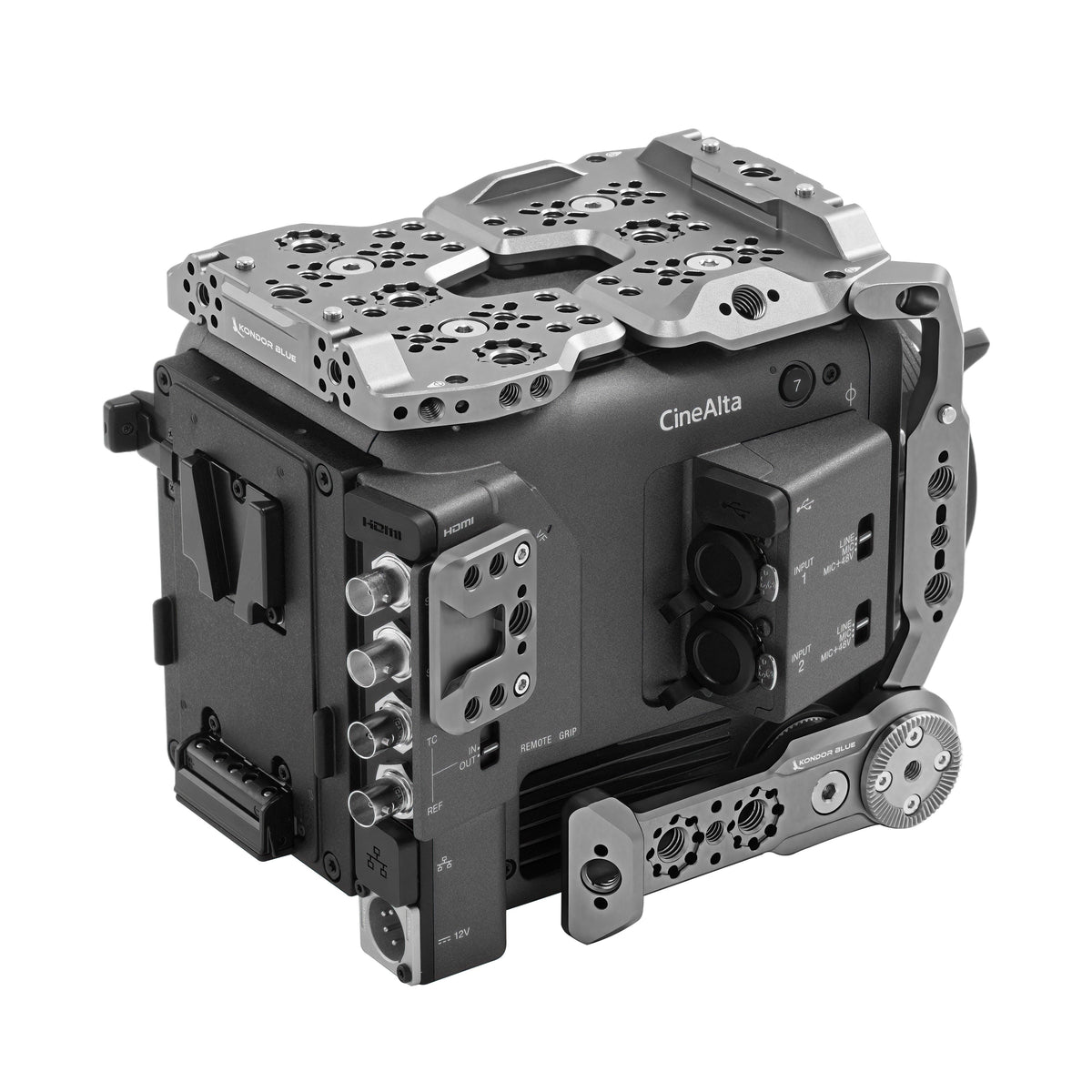

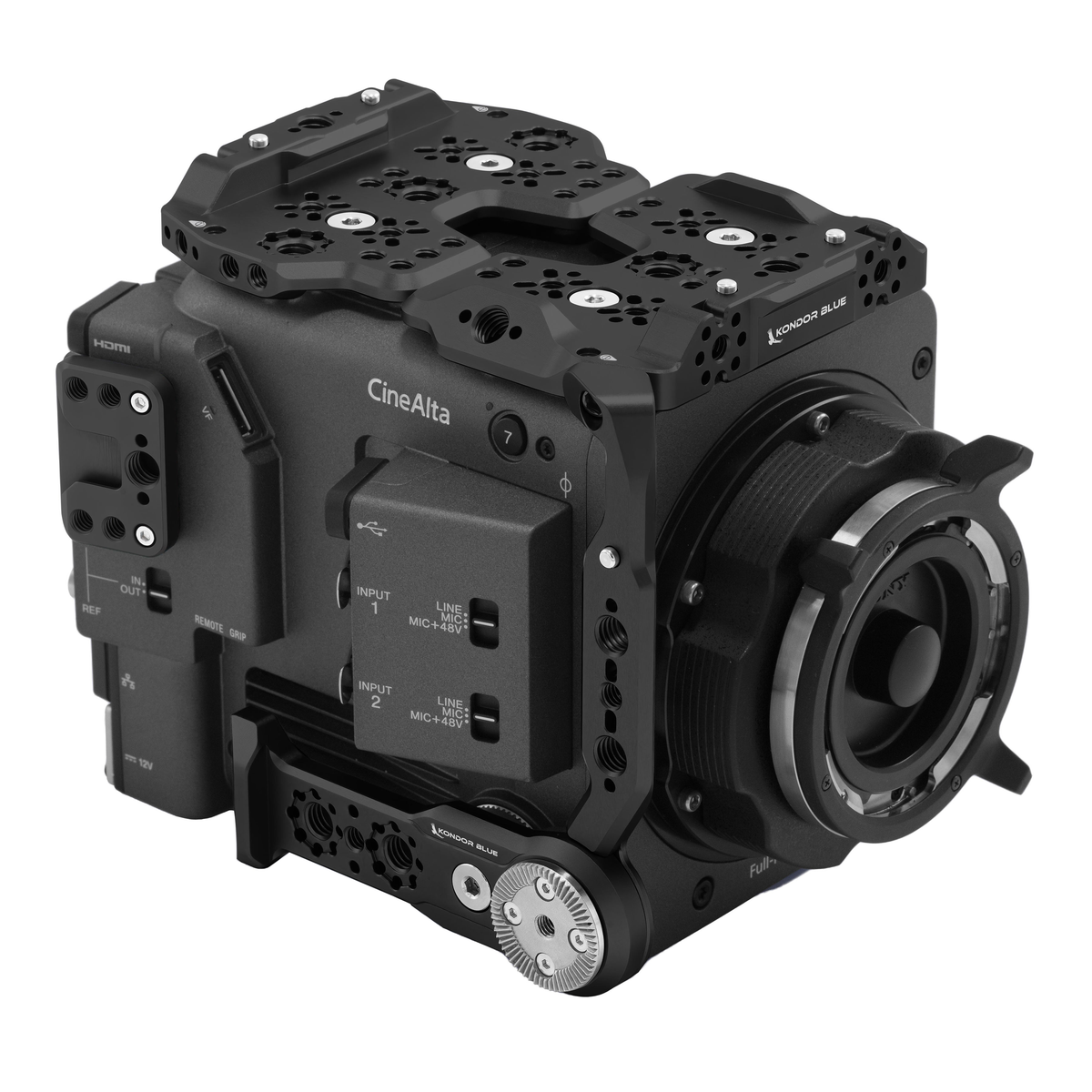

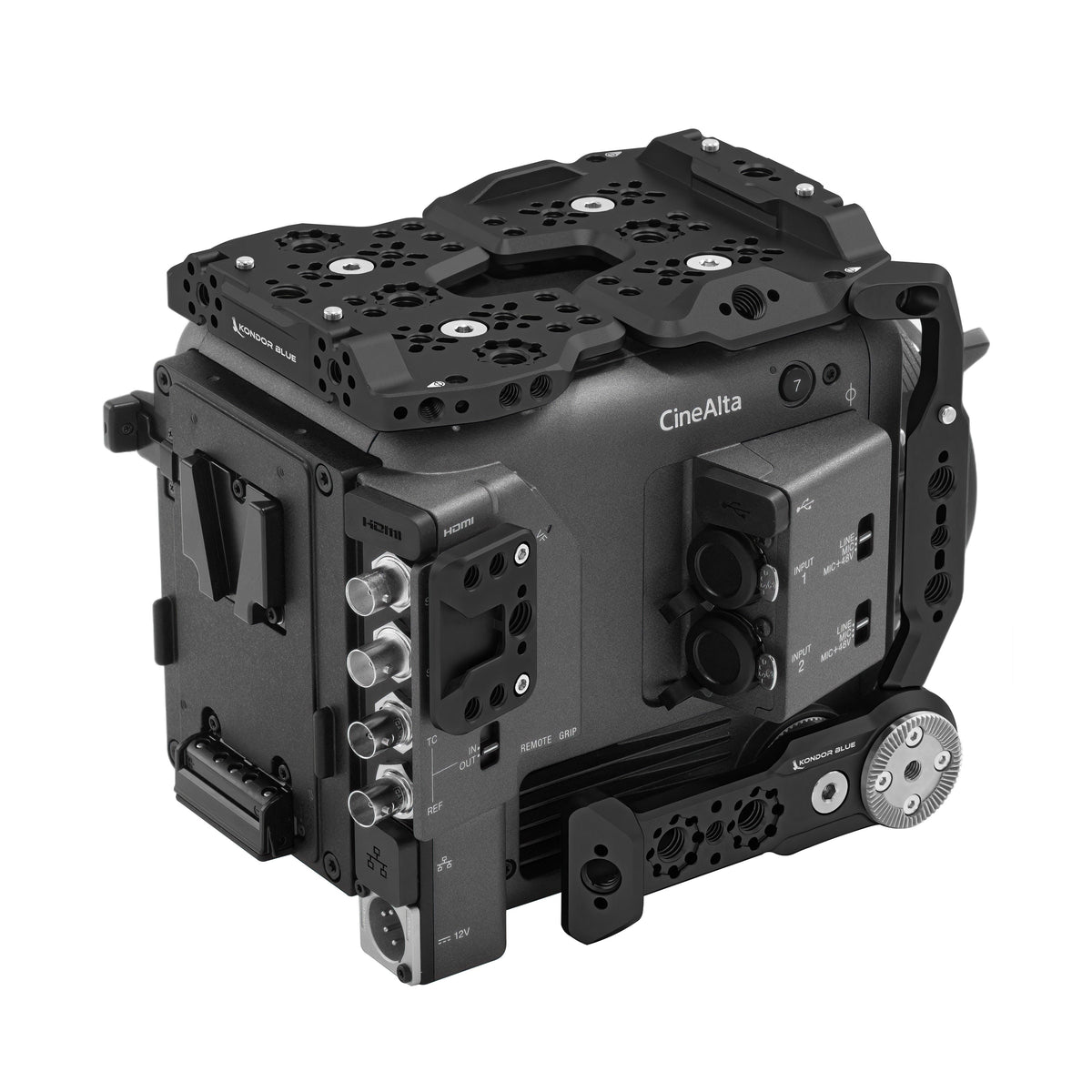

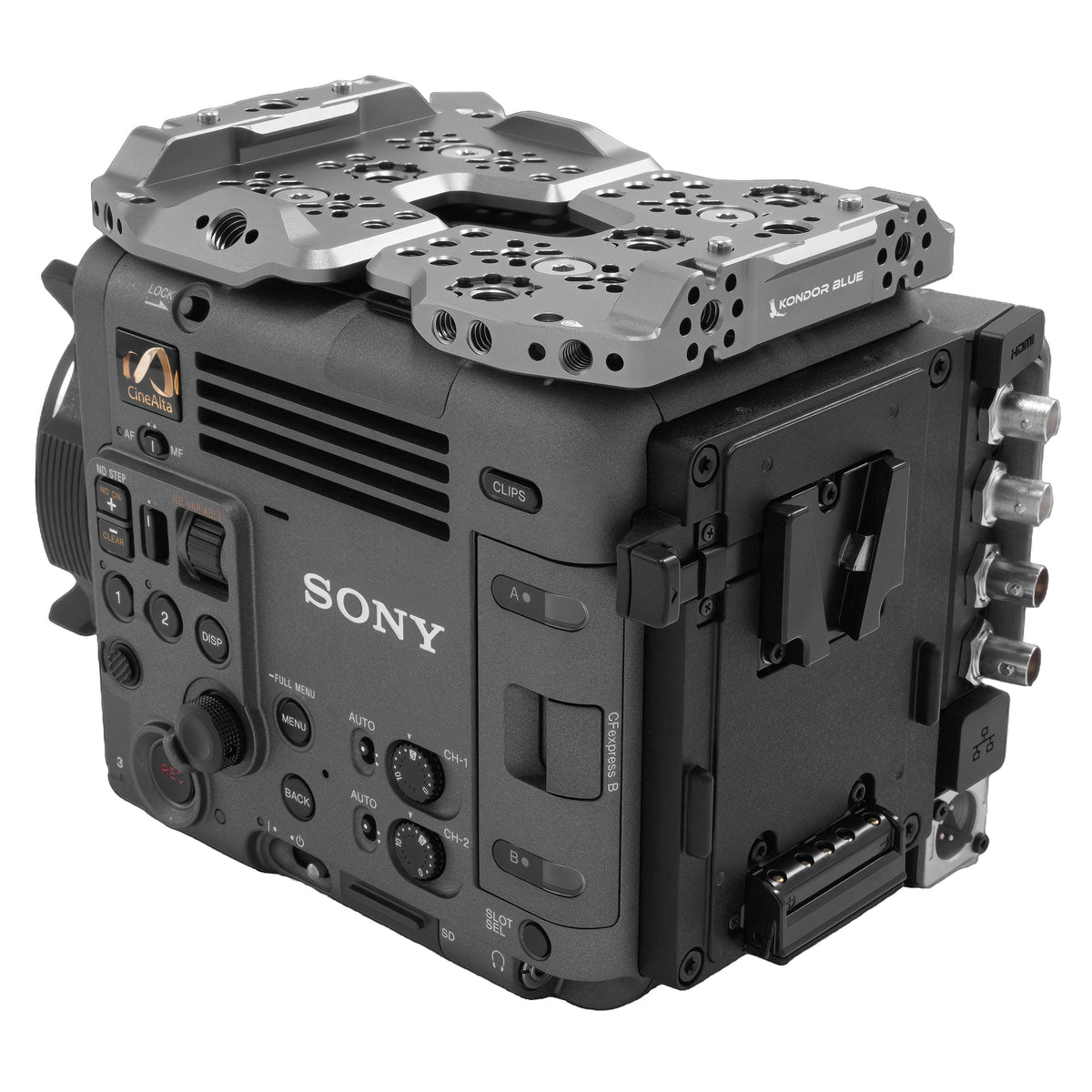

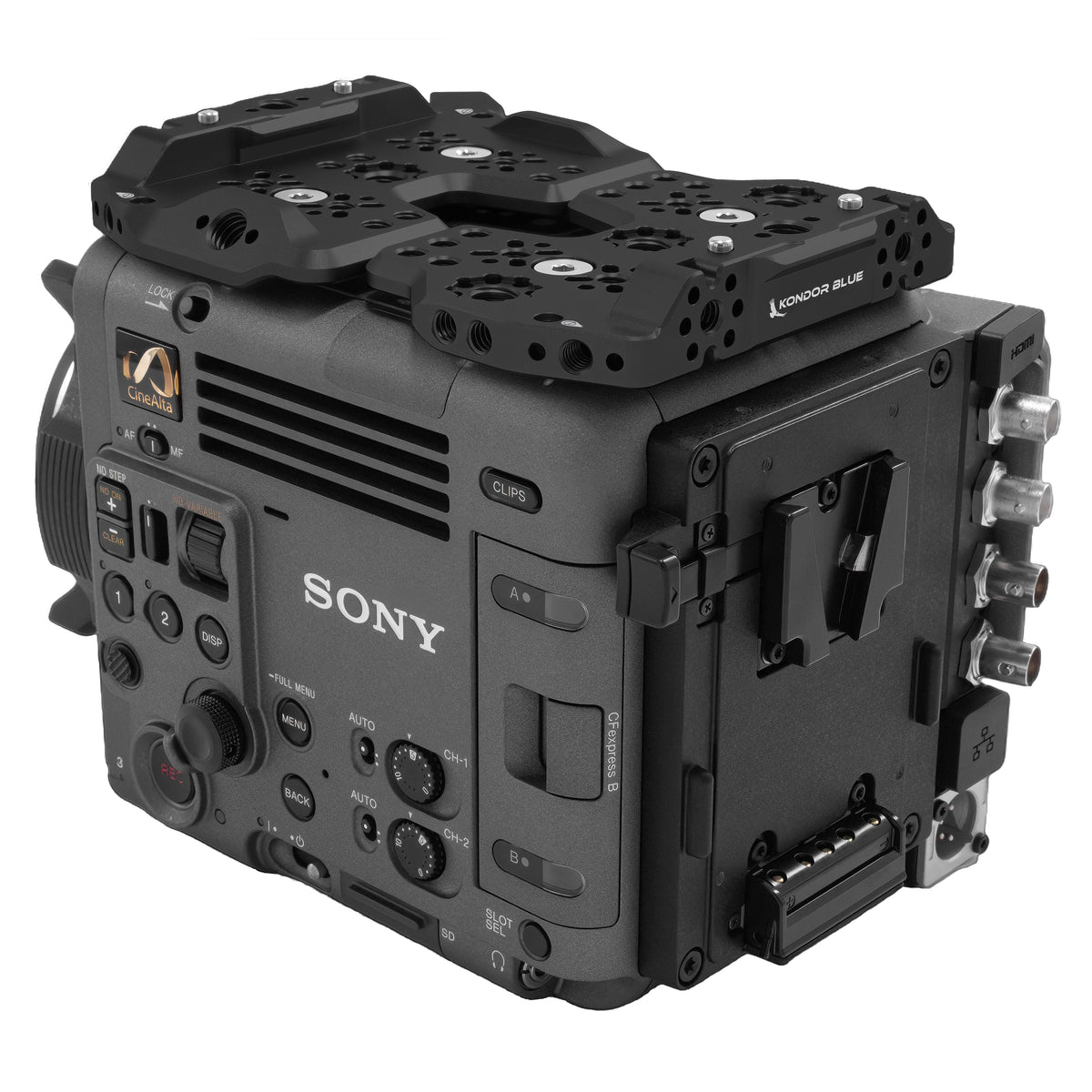

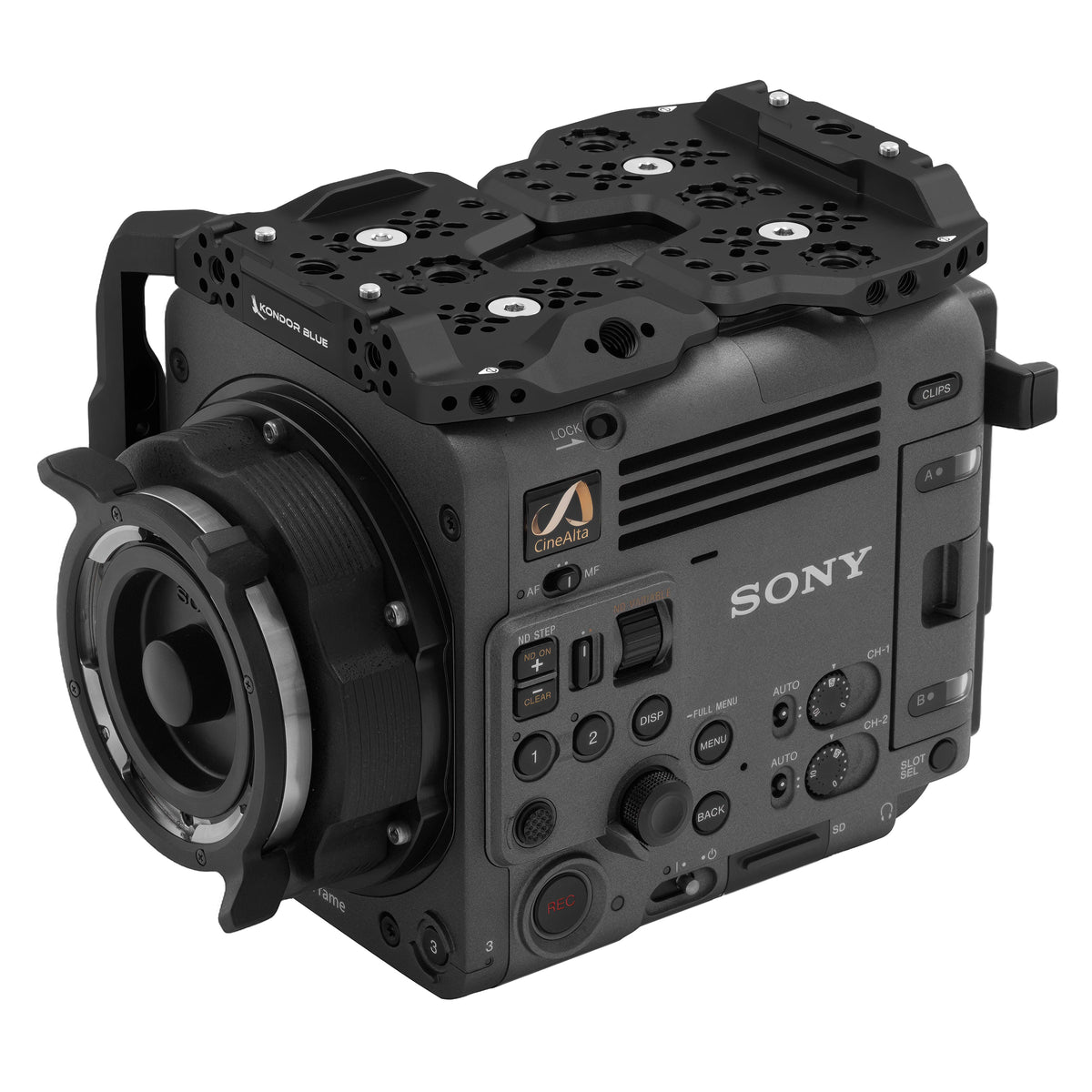

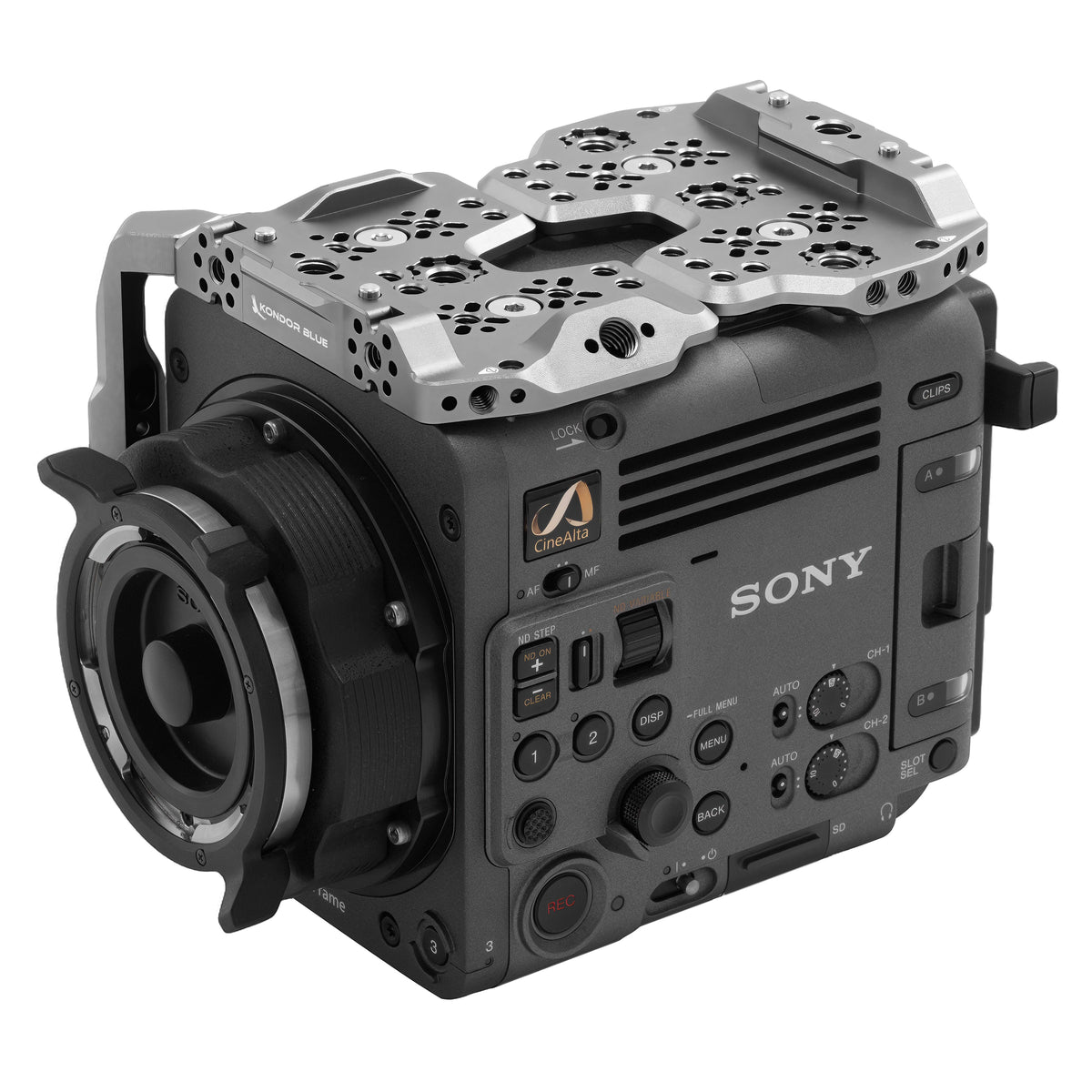

The Sony Burano sits in a unique position in the market. As such, we wanted to match and even expand upon its versatility by creating an equally dynamic modular cage system. The KONDOR BLUE Sony Burano Cage kit comes with two styles of Top Plate that each offer versatile mounting options. The Half Top Plate is split front to back so users can pick which plate they want in front, only use one plate at either location, or order multiples of the same plate. Both Half Top Plate designs are also compatible with the original Burano top handle. Each plate mounts firmly to the camera top with two captive ⅜”-16 stainless steel bolts and four additional locating pin keep the plate firmly in place.

Both Half Top Plates also feature ARRI-style anti-twist mounts on the front spaced 60mm apart for attaching 15mm rails for battery plates or focus motors. Rods can be attached using either our M12 Anti-Twist Rod Mounts or the ARRI Pin Rod Mount. The sensor plane marker can also be relocated to either side of whichever plate is mounted to the front end of the camera.

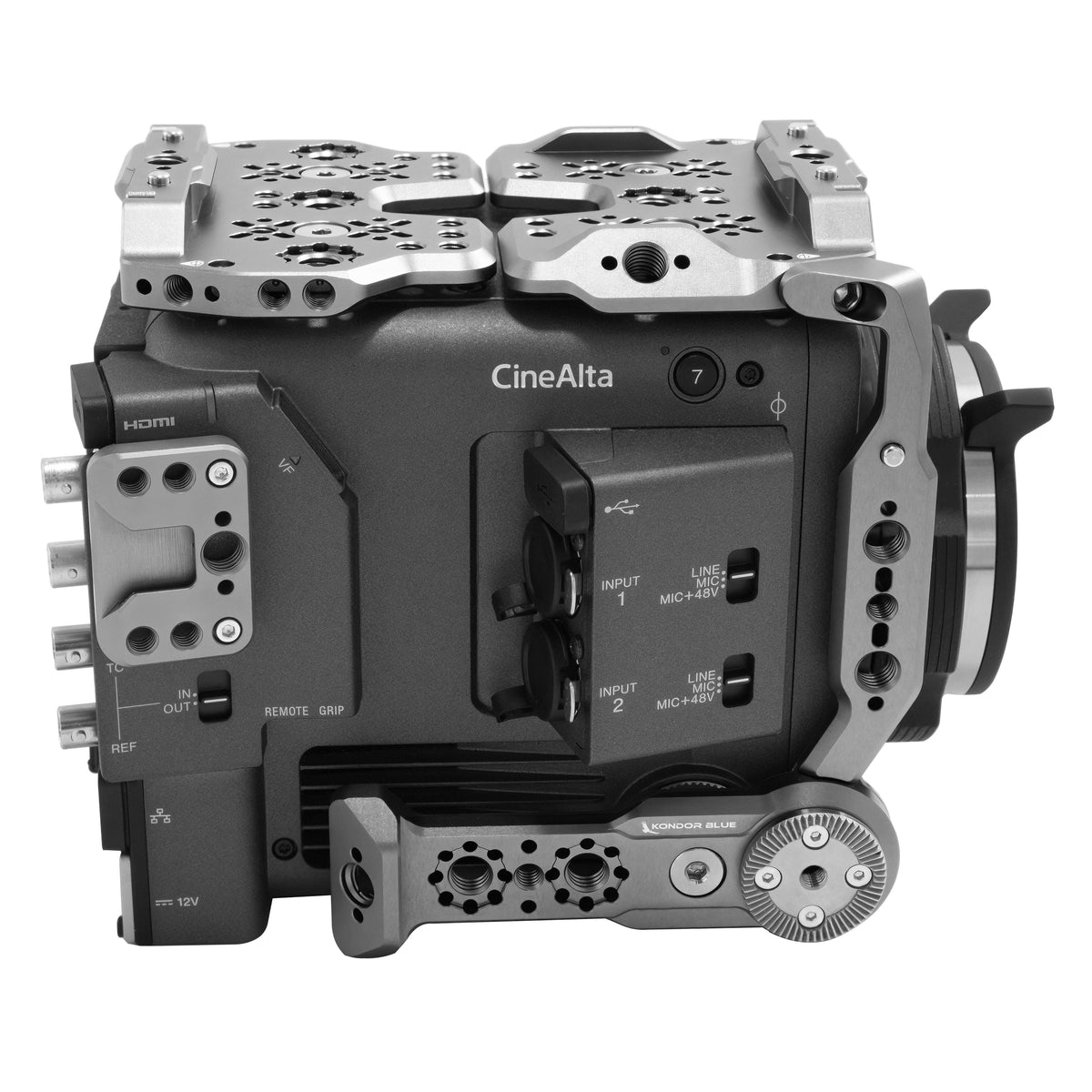

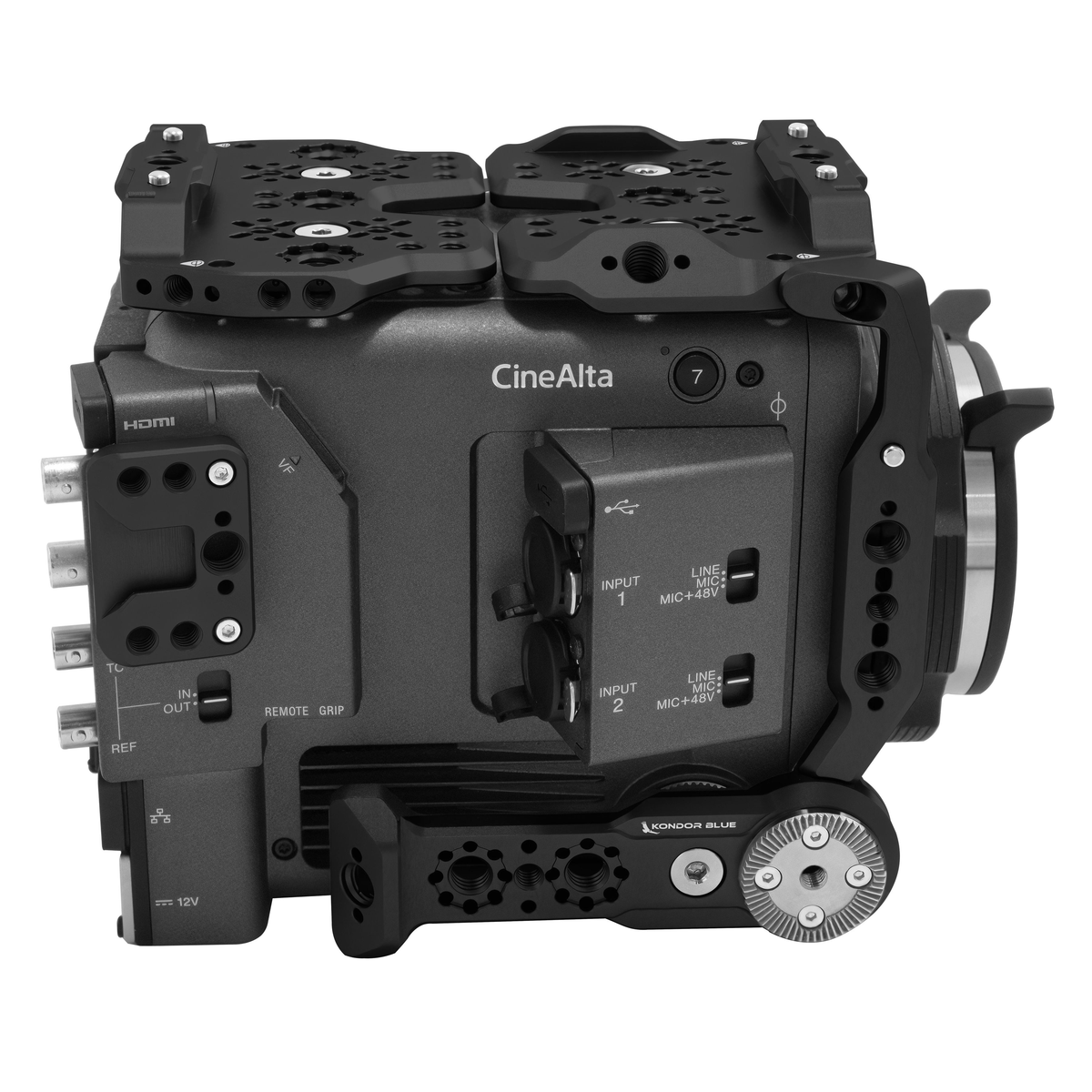

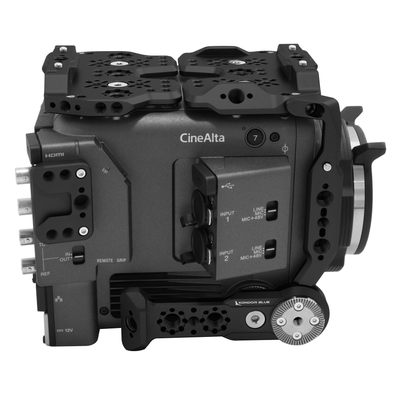

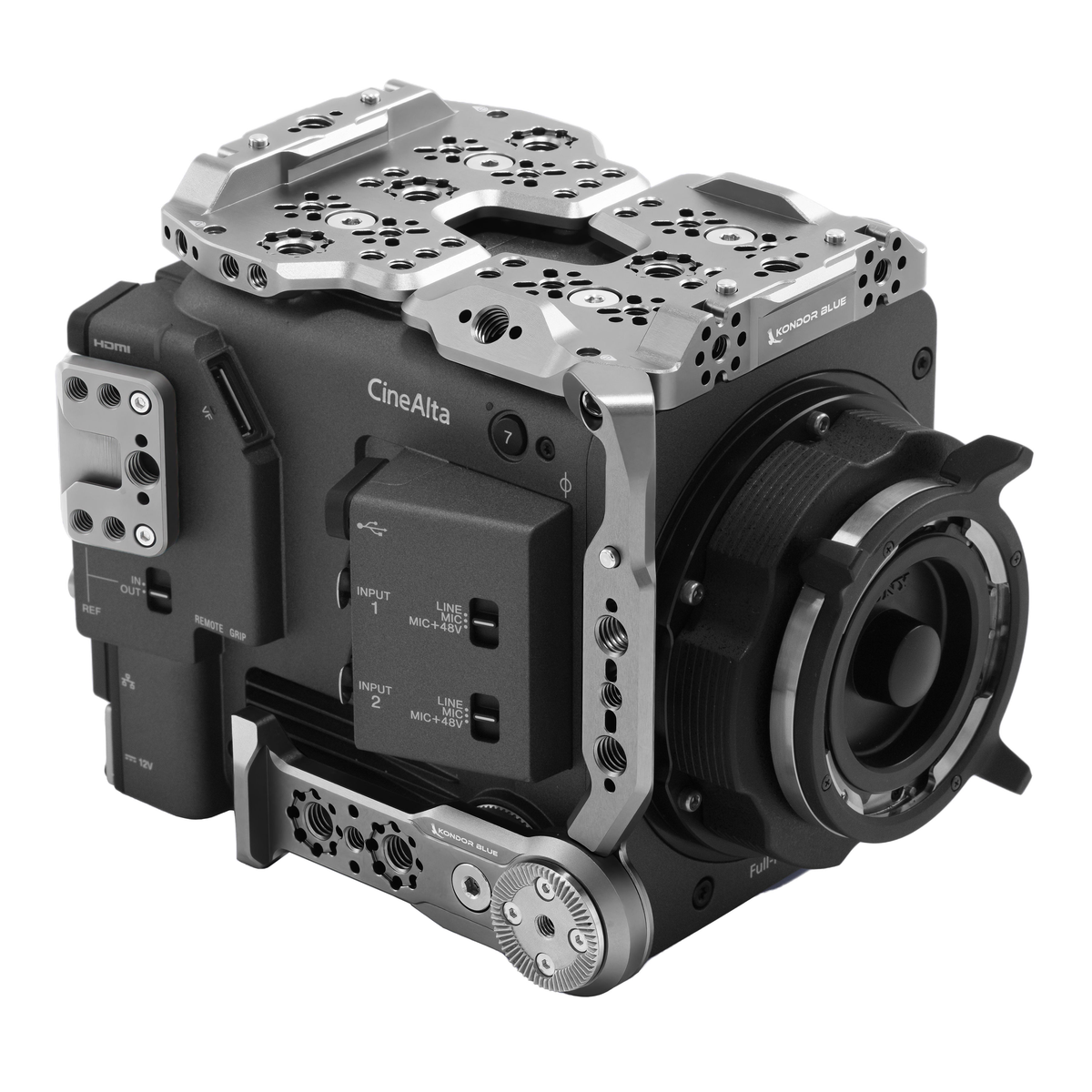

The cage keeps the left side of camera fully open for operator use. On the right side of the Burano sits the Side NATO Rail which includes a range of mounts as well as a NATO rail with a spring-loaded safety pin. The Side NATO Rail neatly converges into a 60-tooth ARRI-style rosette. The Side Rosette Plate relocates the Burano’s native rosette forward 25mm/1” placing extension arms and grips in a more favorable position. The plate is loaded with useful mounts for Mini Locks, Mondo Ties, or other rigging accessories.

To finish off the system, the Side Ports Plate mounts via two captive M3 bolts on the back, right side of the camera. This tiny plate has a cold shoe and five additional mounting options. This plate is a great location for wireless mic receivers, wireless transmitters, etc.

Tech Specs

• 464g/16.5 oz total
• Half Top NATO Plate: 147g/5.2 oz total
• Half Top Plate: 133g/4.7 oz total
• NATO Side Rail: 47g/1.7 oz total
• Side Rosette Plate: 118g/4.2 oz total
• Side Ports Plate: 19g/0.7 oz total
• 132mm W x 160mm T x 172.5mm D
• 144mm between NATO Rails center-to-center
