PRODUCT HIGHLIGHTS:

• Kit includes
  • 5" Monitor Cage Rail
  • Core Bracket
  • Pro V Mount Battery Plate
  • 8" PPSH 15mm Rod
  • 2x Rod to Rosette Adapter
  • 2x Pro Pivot Rosette Grips
  • 2" Monitor Cage Rail
  • Baby Pin ⅝” Spigot Receiver to NATO Clamp Adapter
• Lightweight, compact footprint
• NATO connection to monitor for quick release
• Dual 15mm rod clamp to prevent monitor sag
• Built-in 3mm and 4mm hex tools
• Multiple accessory mounts
  • Cold Shoe
  • 4x anti-twist mounts
  • 4x ¼”-20’s


PRODUCT DESCRIPTION:

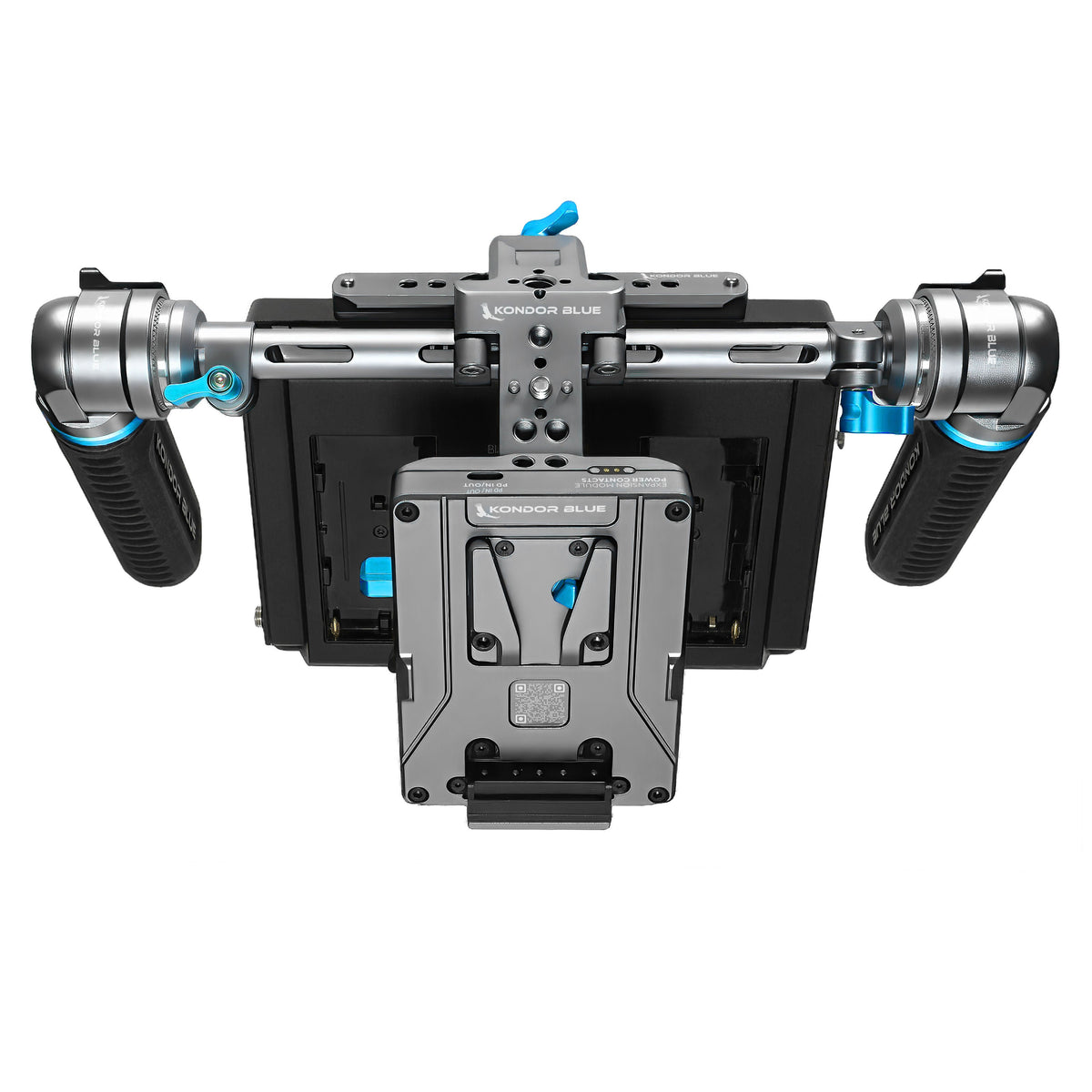

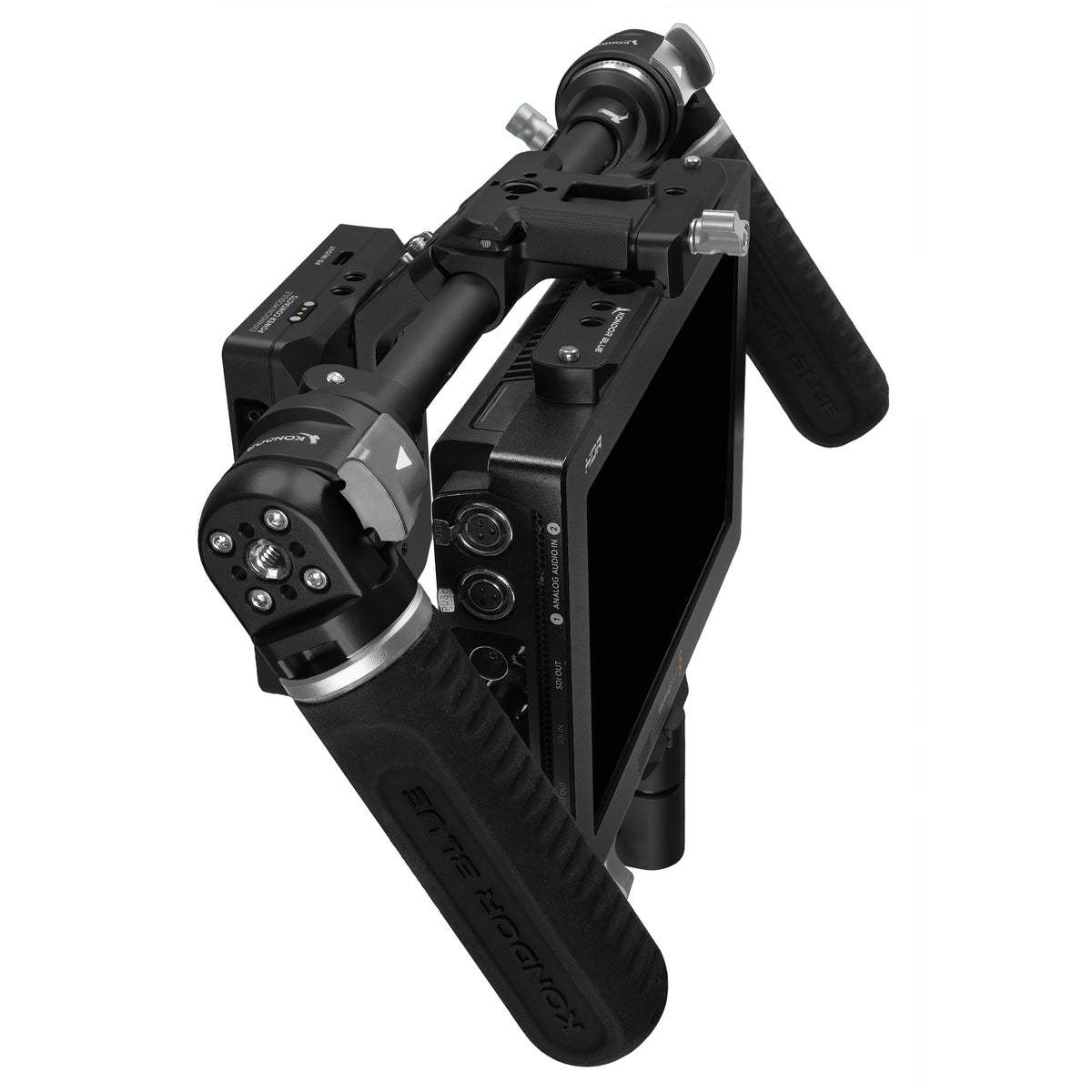

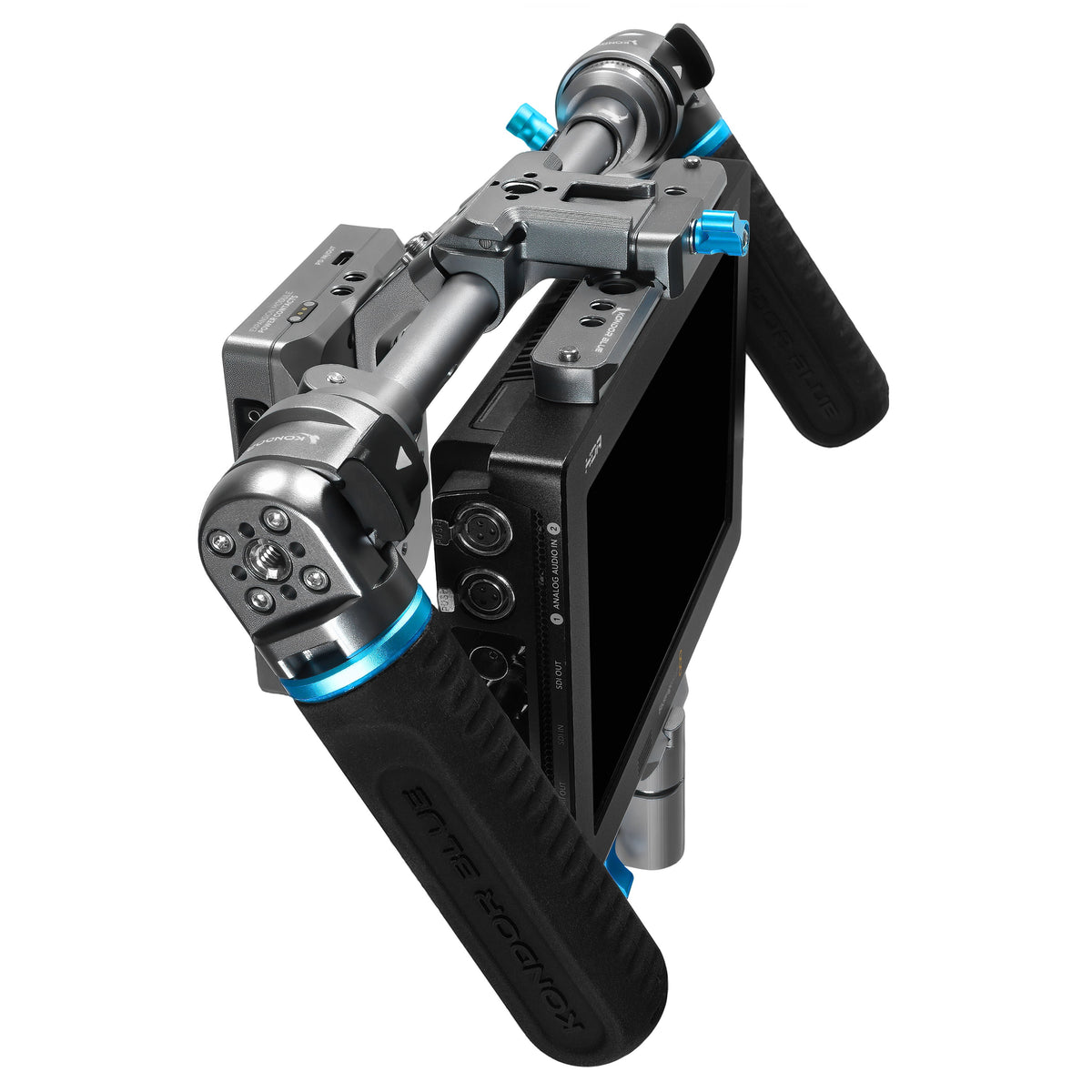

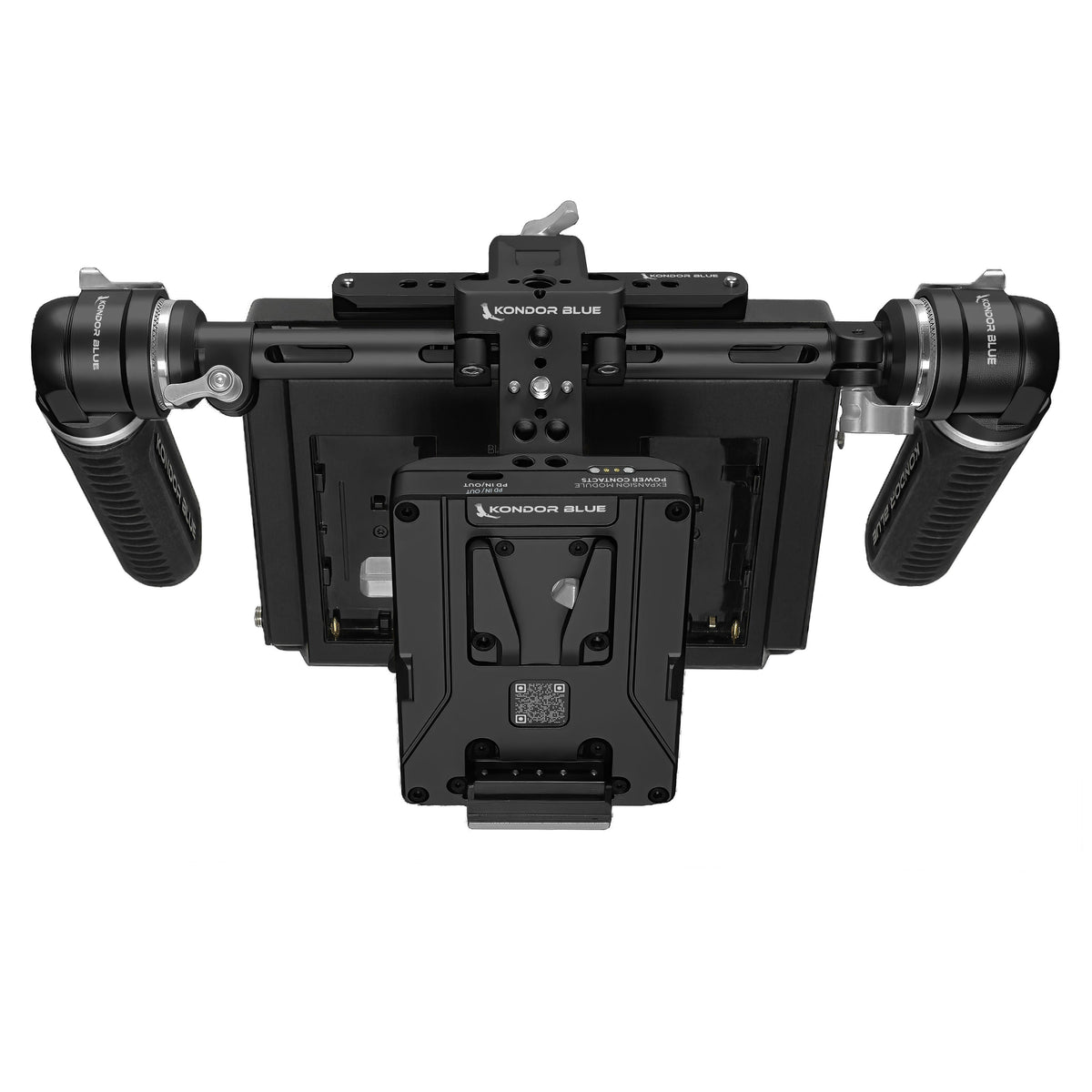

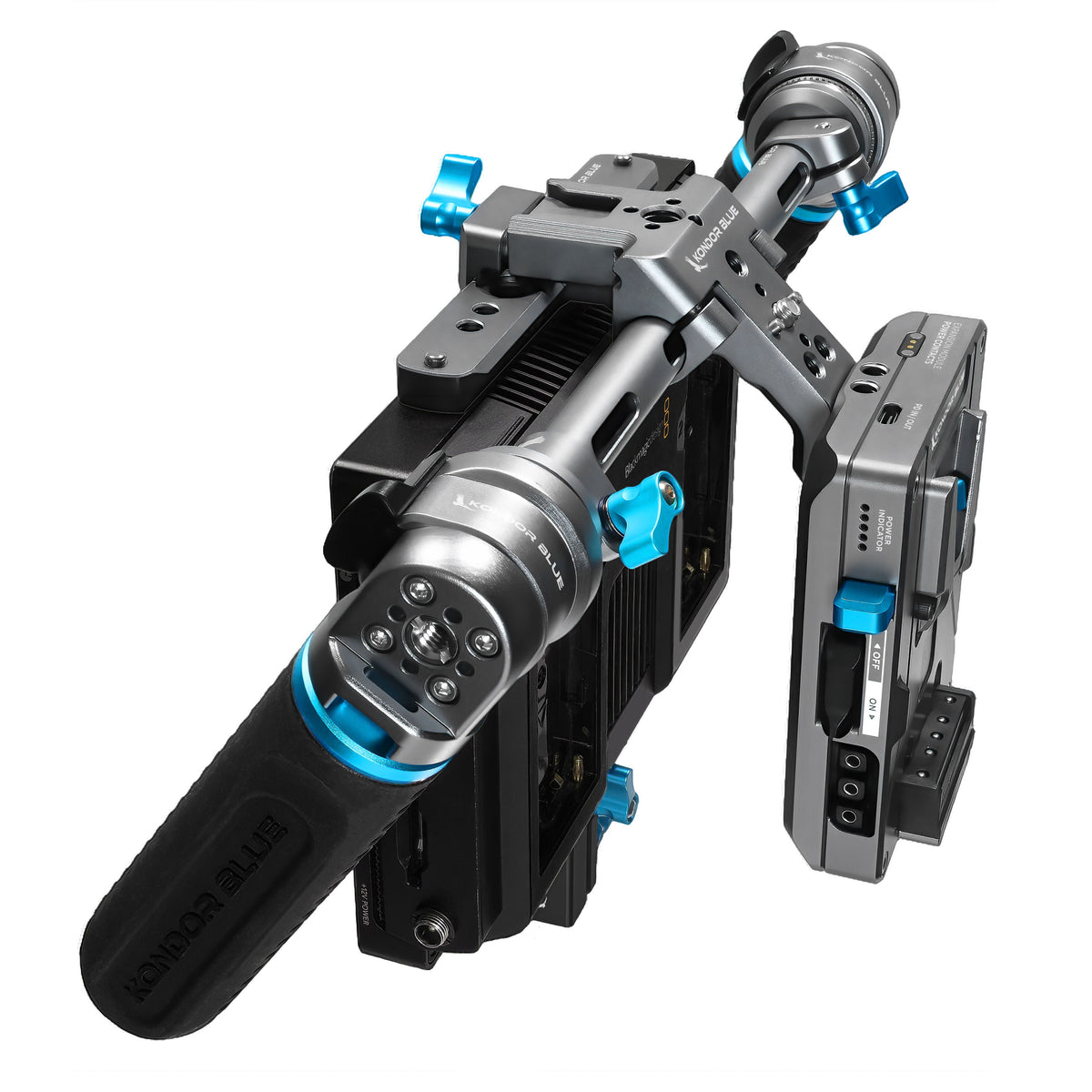

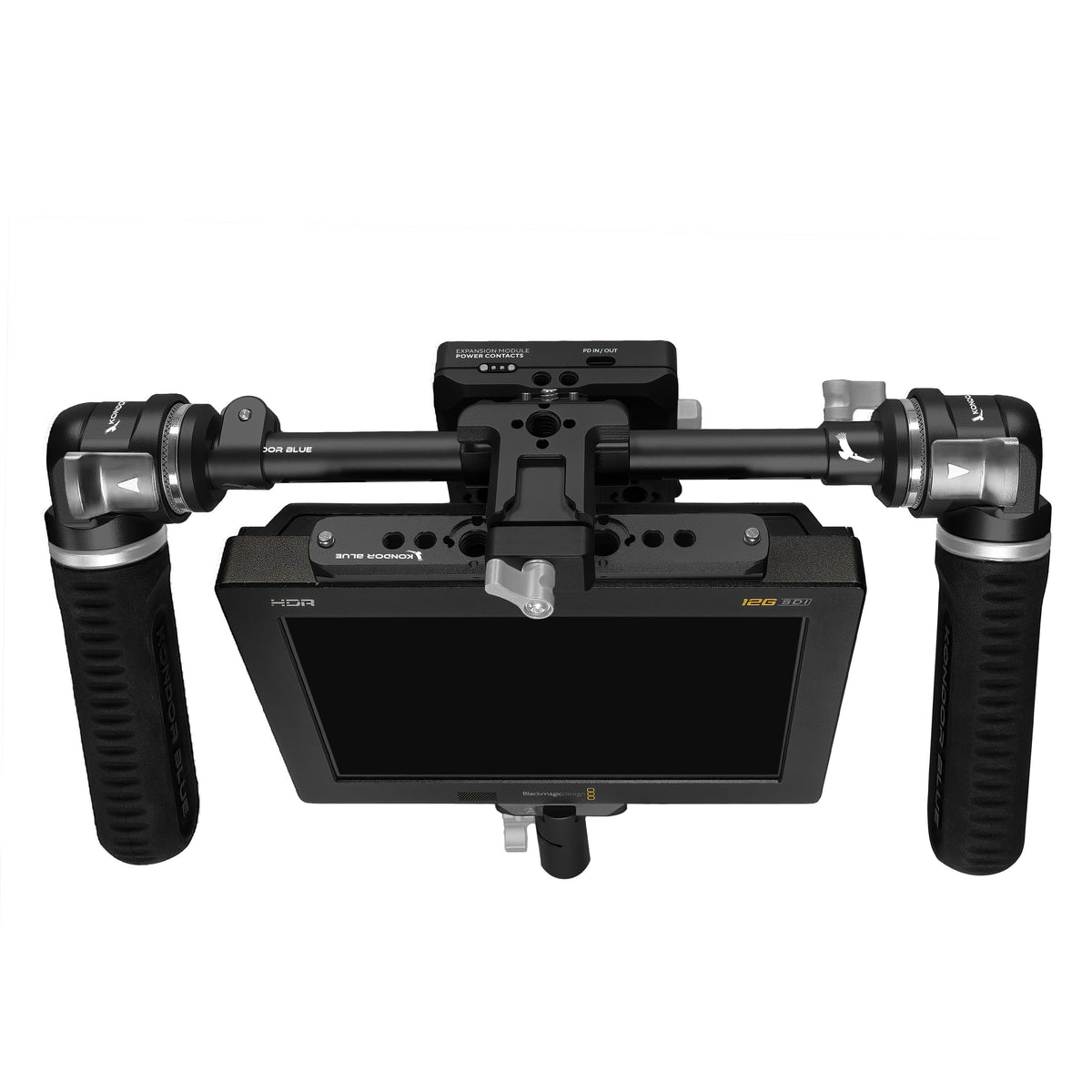

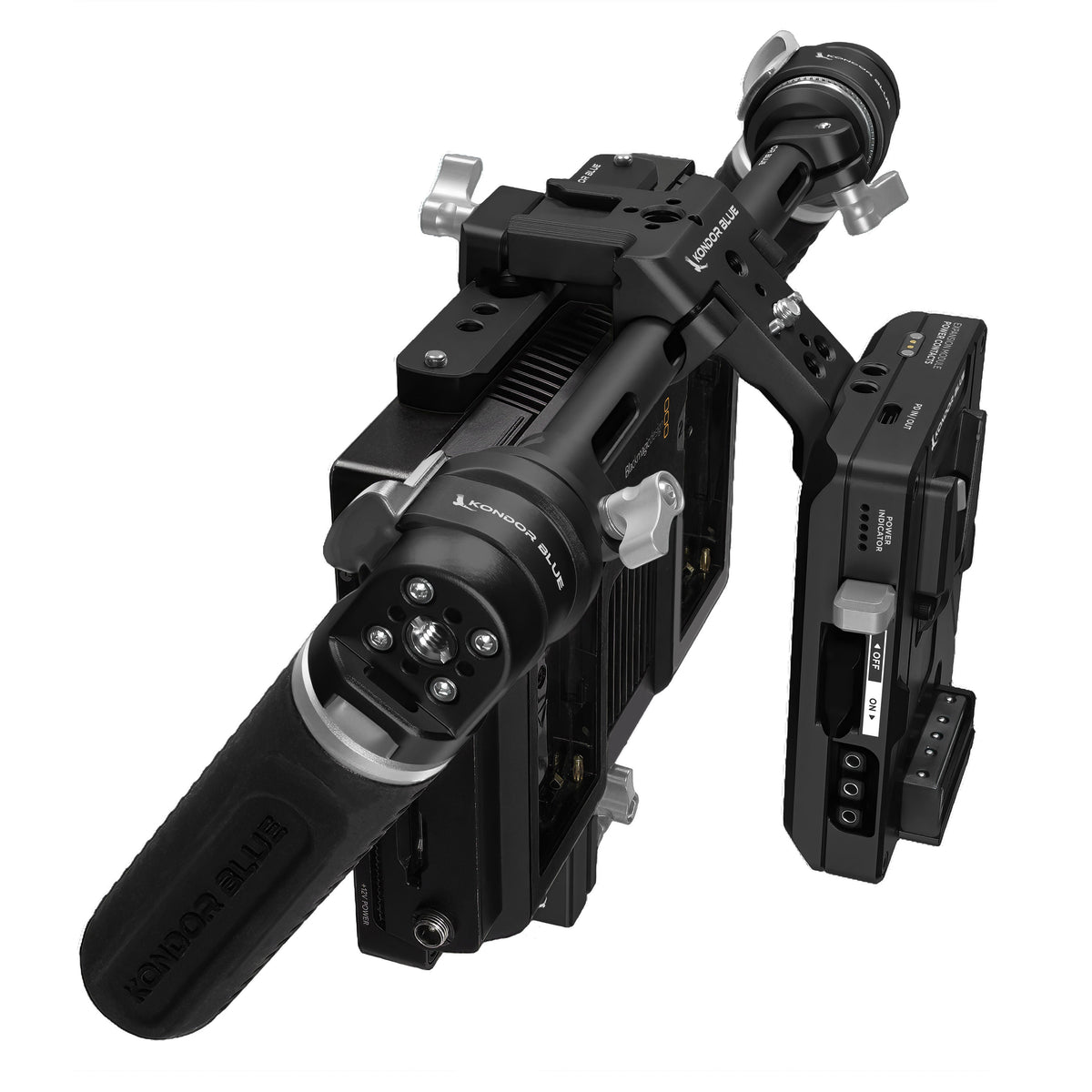

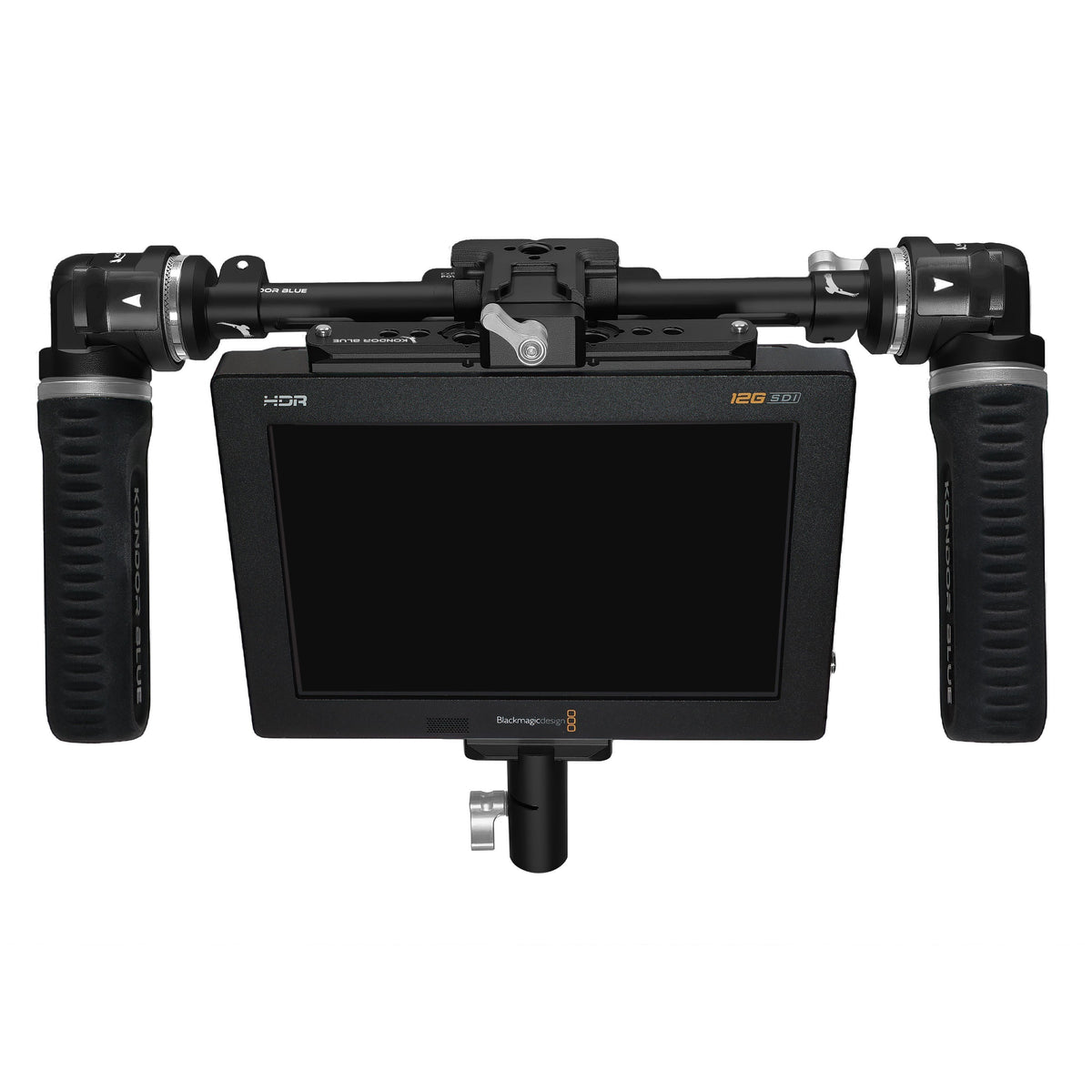

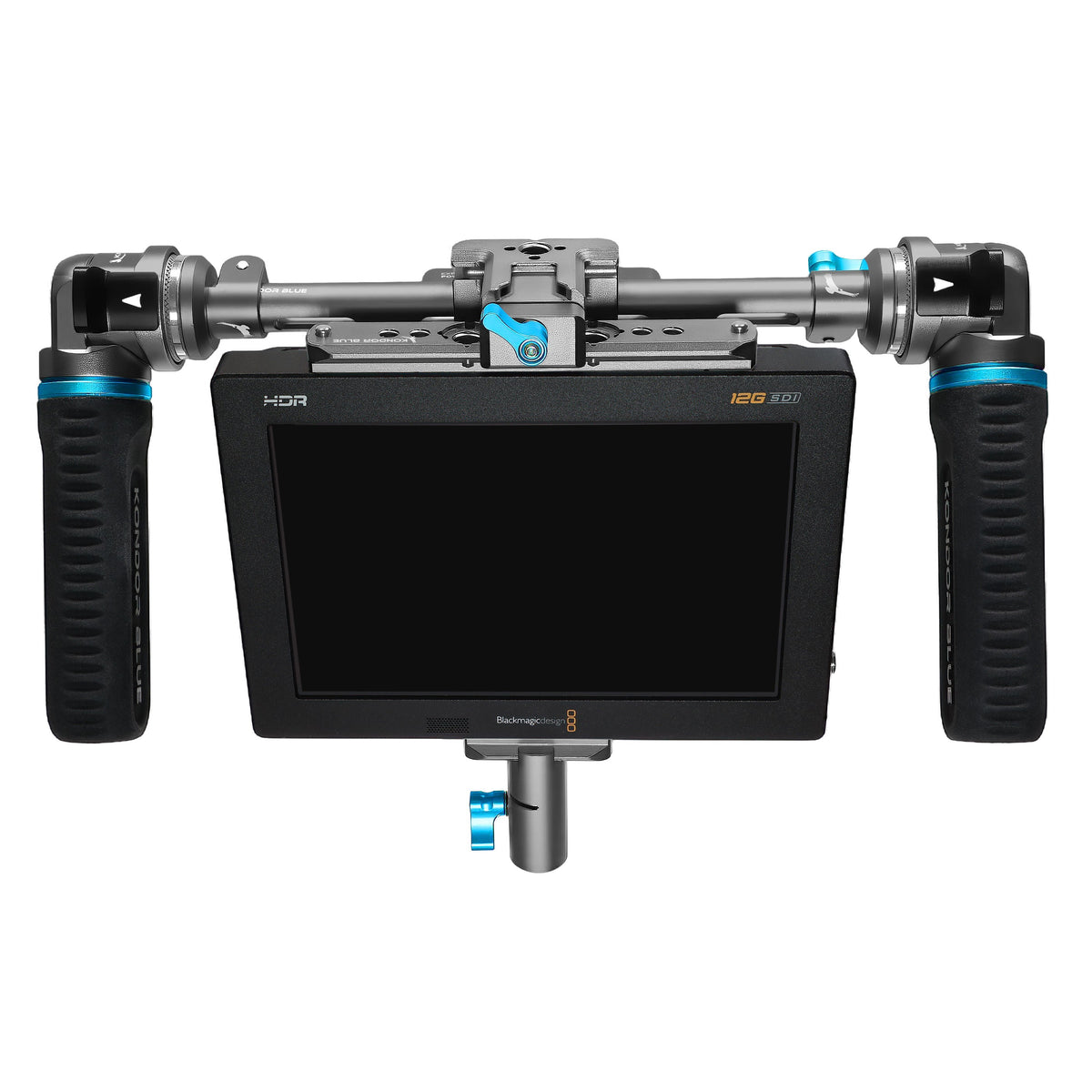

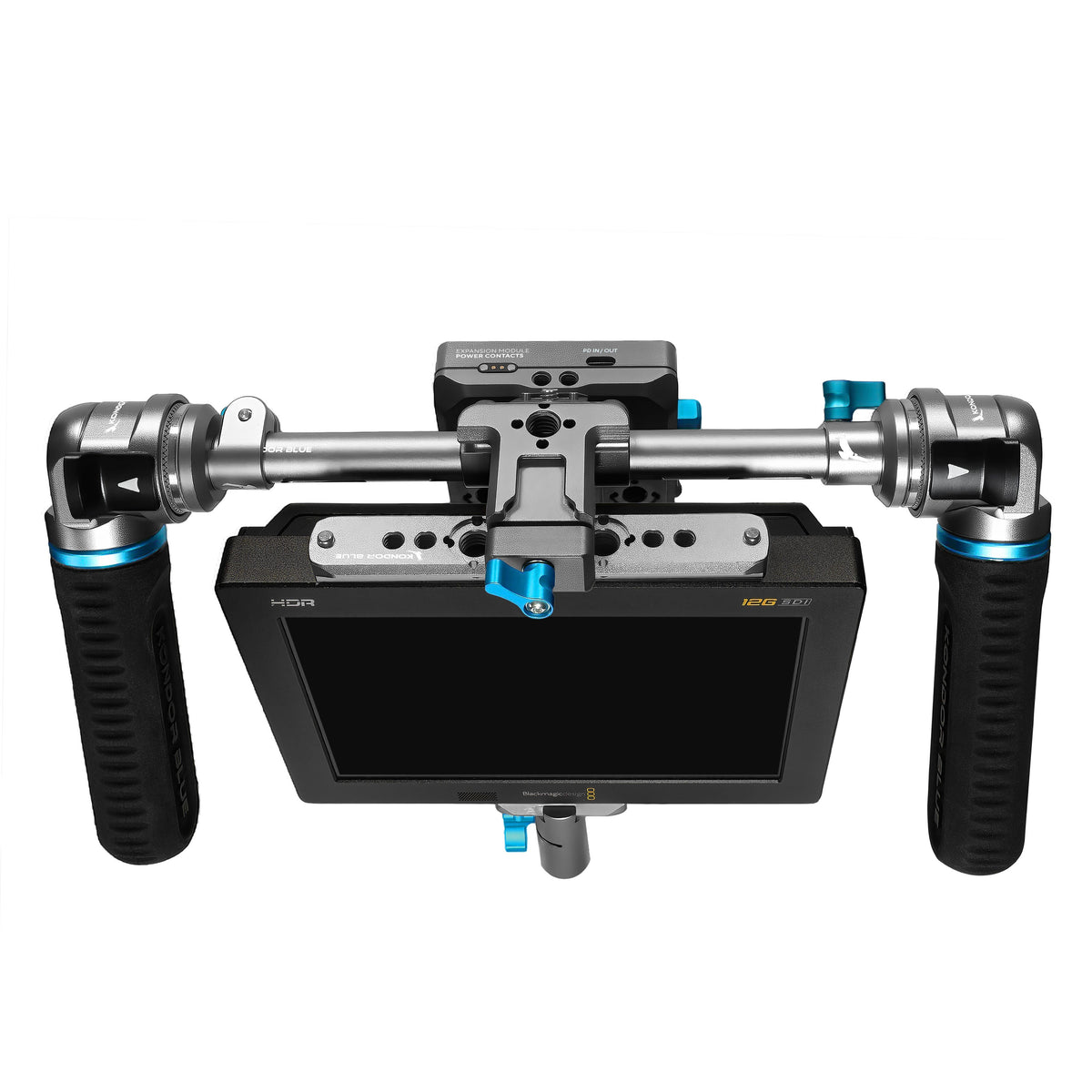

The Director’s Monitor Pro Kit MkII builds upon the foundation of the KONDOR BLUE Director’s Monitor Indie kit. The 5” Monitor Cage Rail can be mounted to the top or bottom of your monitor. Then the Core Bracket can be attached via the NATO clamp. Branching out from the Core Bracket is our 8” PPSH 15mm rod capped with a pair of KONDOR BLUE Pro Pivot Rosette Grips for quick adjustment of grip angles. The 15mm rod mount on the Core Bracket features a unique dual clamping mechanism to prevent the monitor from slipping under its own weight.

The KONDOR BLUE Pro V Mount Battery Plate serves as the center of power distribution for the kit and securely mounts to the Core Bracket. The 2” Monitor Cage Rail can mount on the ARRI mount adjacent to the cold shoe on the Core Bracket or on the bottom of your monitor. This is then used to quickly mount on and off to the Baby Pin ⅝” Spigot to NATO Clamp Adapter designed to be mounted to a light or C-stand.

Additional mounting points can be found throughout the rig. The cold shoe on the Core Bracket is a great spot for a wireless receiver, and the ¼”-20 threads on the bottom of the hand grips are ideal for ¼” Loop Screws for Straps, and of course mounting points throughout for Mondo Ties Cable management.

The modular design of the Pro Kit MkII allows for a variety of setups and accessorizing. We can’t wait to see how it will be used on sets all over the world.

TECH SPECS:

• Director’s Monitor Bracket: 100g/3.5 oz
• V Mount Battery Plate: 285g/10.0 oz
• 5” Monitor Cage Rail: 51g/1.8 oz
• 2" Monitor Cage Rail: 25g/.9oz
• 8” PPSH 15mm Rod: 37g/1.3 oz
• 2x Rod to Rosette Adapter: 100g/3.5 oz
• 2x Pro Pivot Rosette Grips: 458g/16.0 oz
• Nato to Spigot Clamp: 45g/1.6 oz
• Total Kit Weight: 1,128g/39.8 oz
