PRODUCT HIGHLIGHTS

• Camera mounting plate isolated with rubber dampers to help minimize vibration

• M3 hole pattern on gussets compatible with Chroziel zoom module*

• Integrated gusset window allows SD card access on Sony FR7 without removing bracket

• Compatible with Sony FR7 and Sony BRC-AM7 cameras

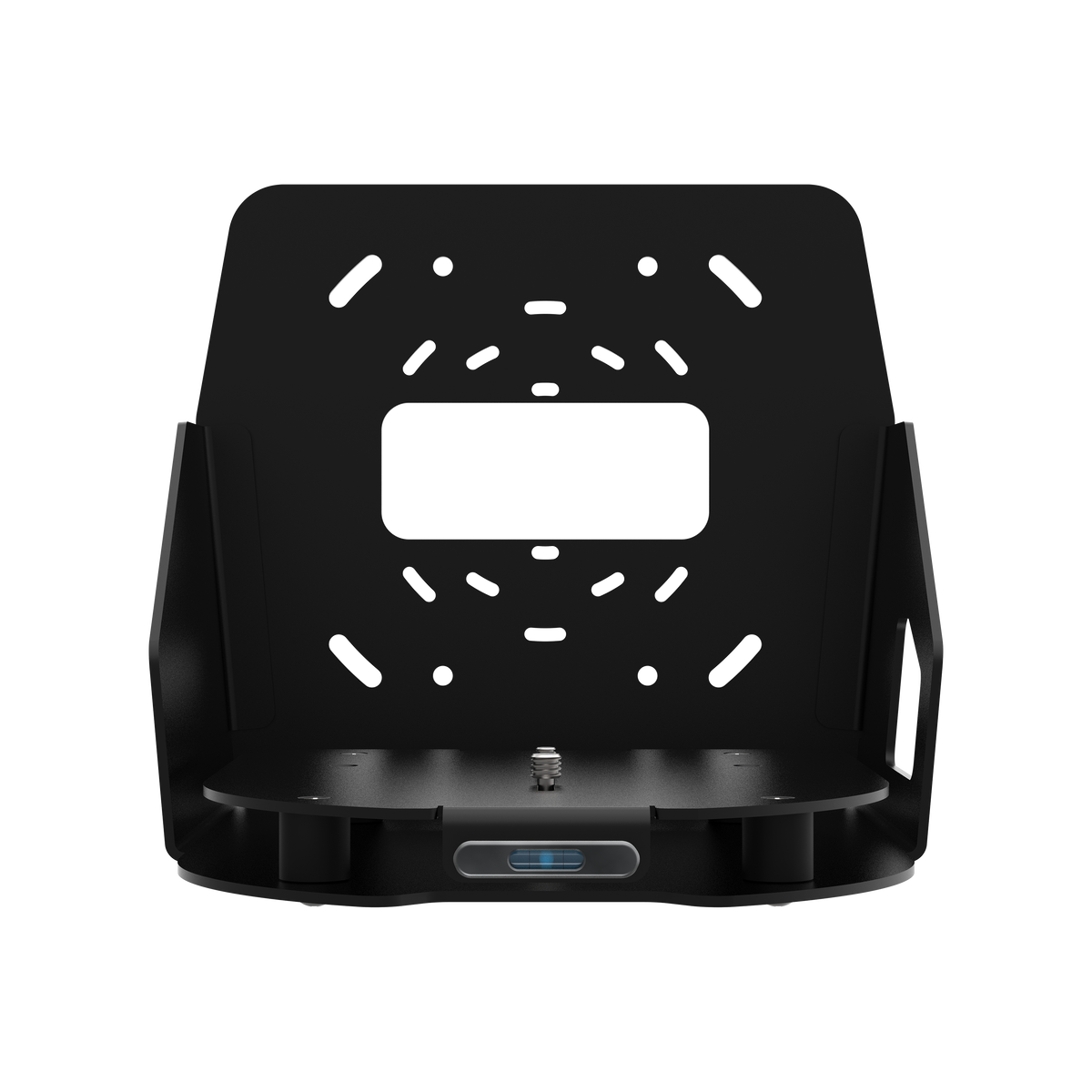

• Multiple mounting provisions support a range of U.S. and European junction boxes

• Adjustable bubble level mounts to either tab on the camera plate

• Horizon leveling achieved by rotating bracket within mounting slots

• Constructed from 6061-T6 aluminum with durable matte black powder coat finish

• Wall mounting hardware included

PRODUCT DESCRIPTION

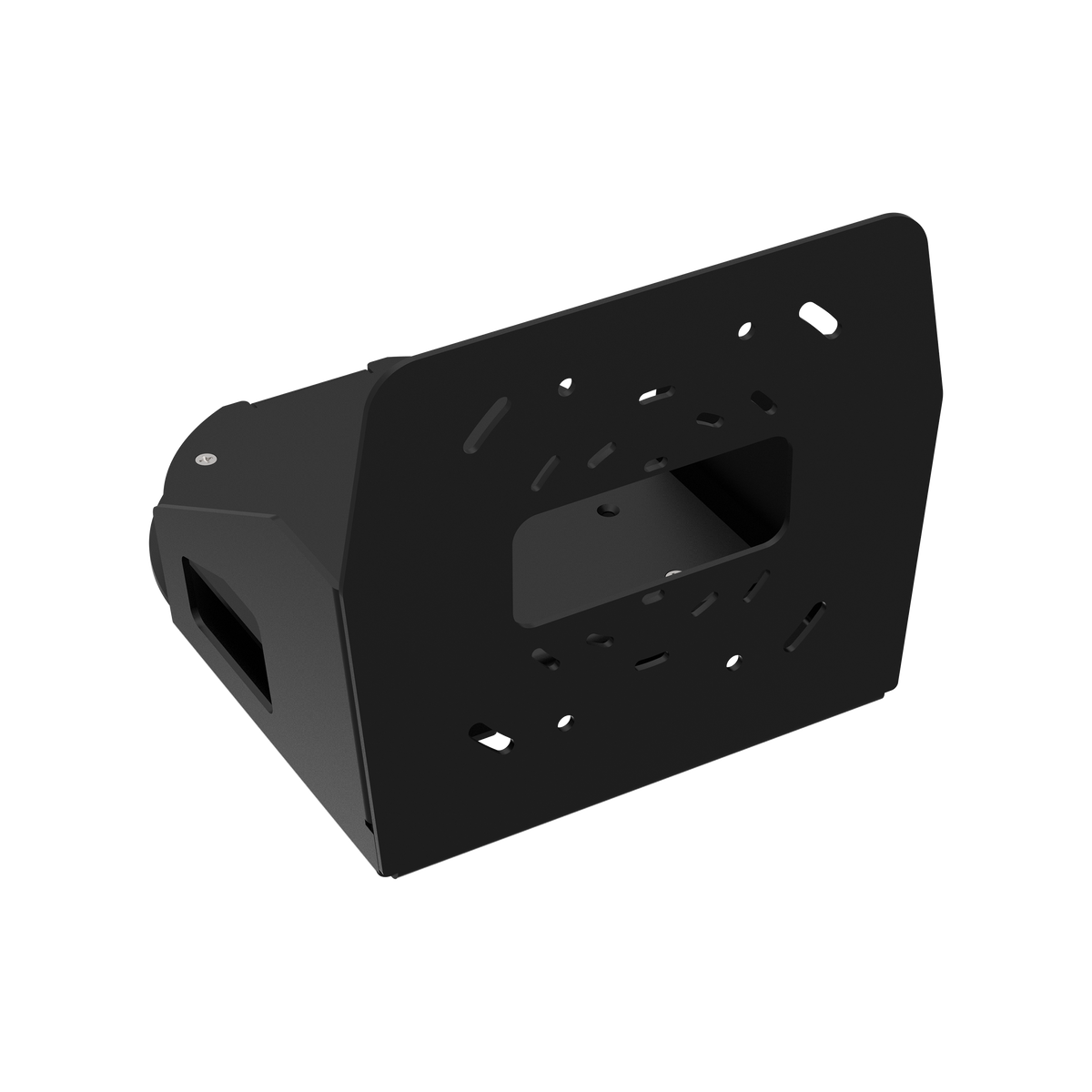

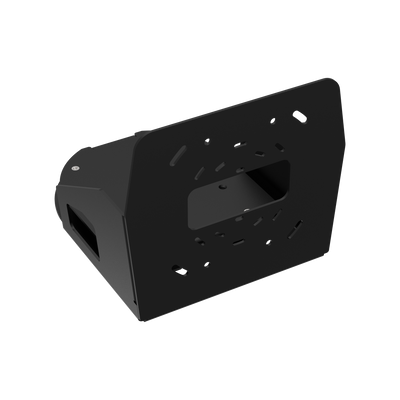

This precision-engineered mounting bracket is designed specifically for the Sony FR7 and Sony BRC-AM7, offering a secure and flexible installation solution for professional environments. Multiple mounting provisions allow compatibility with a variety of U.S. and European junction boxes, making it ideal for permanent installations and custom builds.

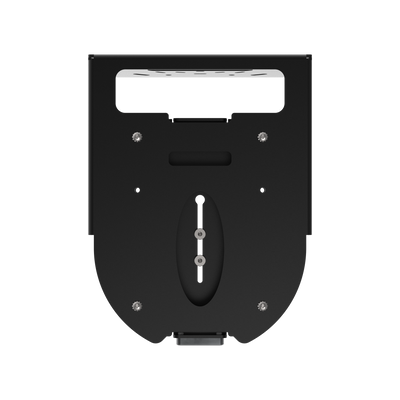

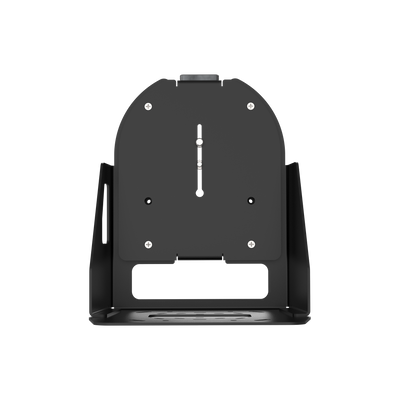

The camera mounting plate is supported by rubber isolators to help dampen vibration and improve image stability. An integrated bubble level can be mounted on either tab of the plate depending on configuration, and horizon leveling is achieved by rotating the bracket within its slotted mounts. Pitch adjustment is handled directly through the camera’s tilt axis.

CNC-machined from 6061-T6 aluminum and finished in matte black powder coat, the bracket is built for long-term durability. Gussets feature an M3 hole pattern compatible with the Chroziel zoom module, and a dedicated window provides convenient access to SD cards on the Sony FR7 without removing the bracket.

The bracket has been designed to easily mount in four mounting configurations:

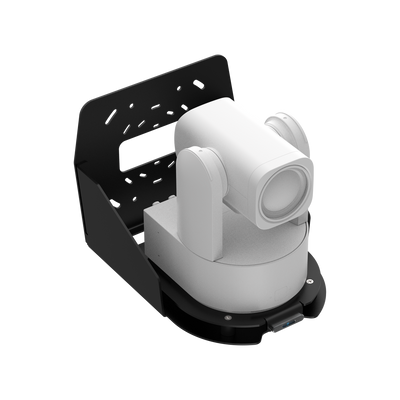

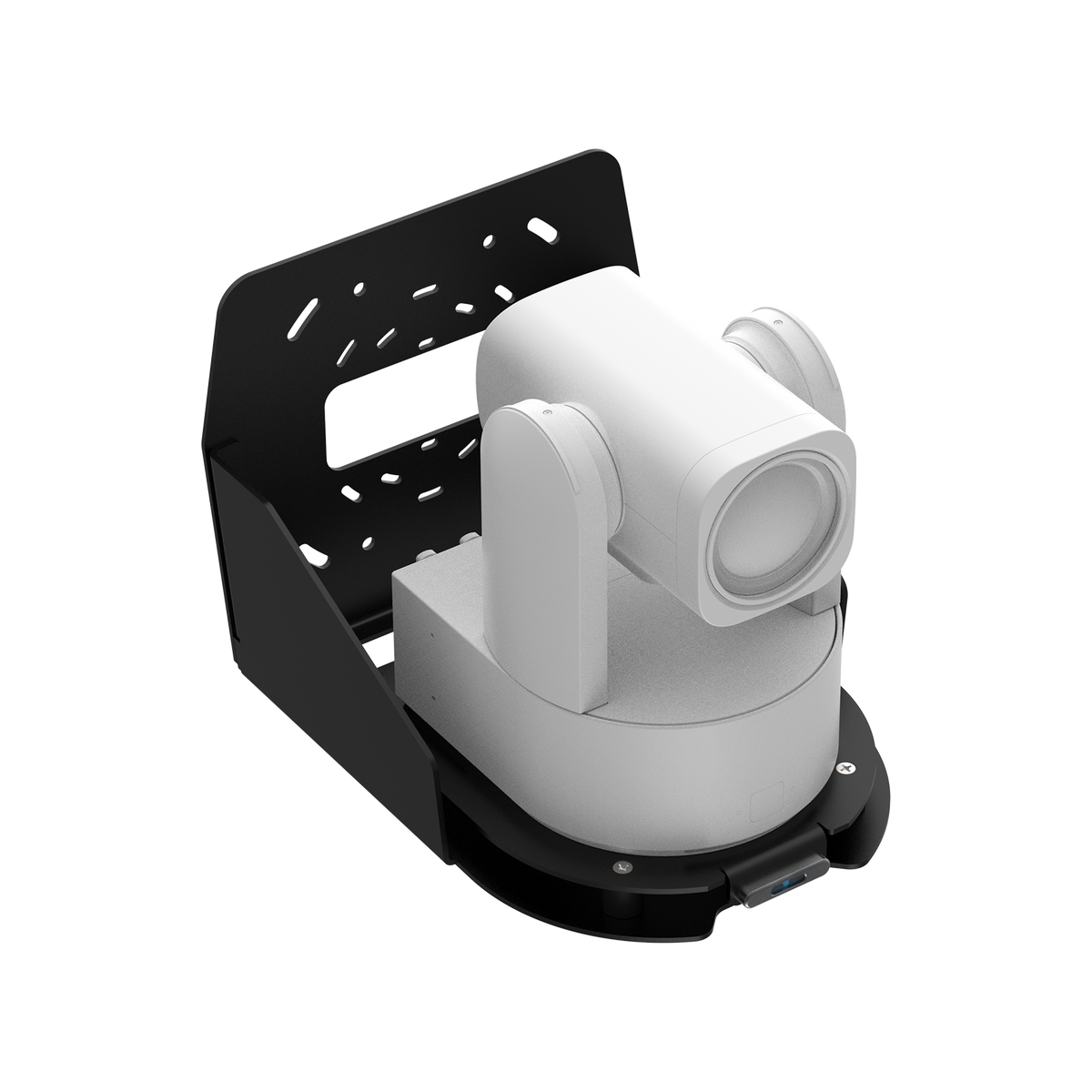

• Inside Standard Mounting

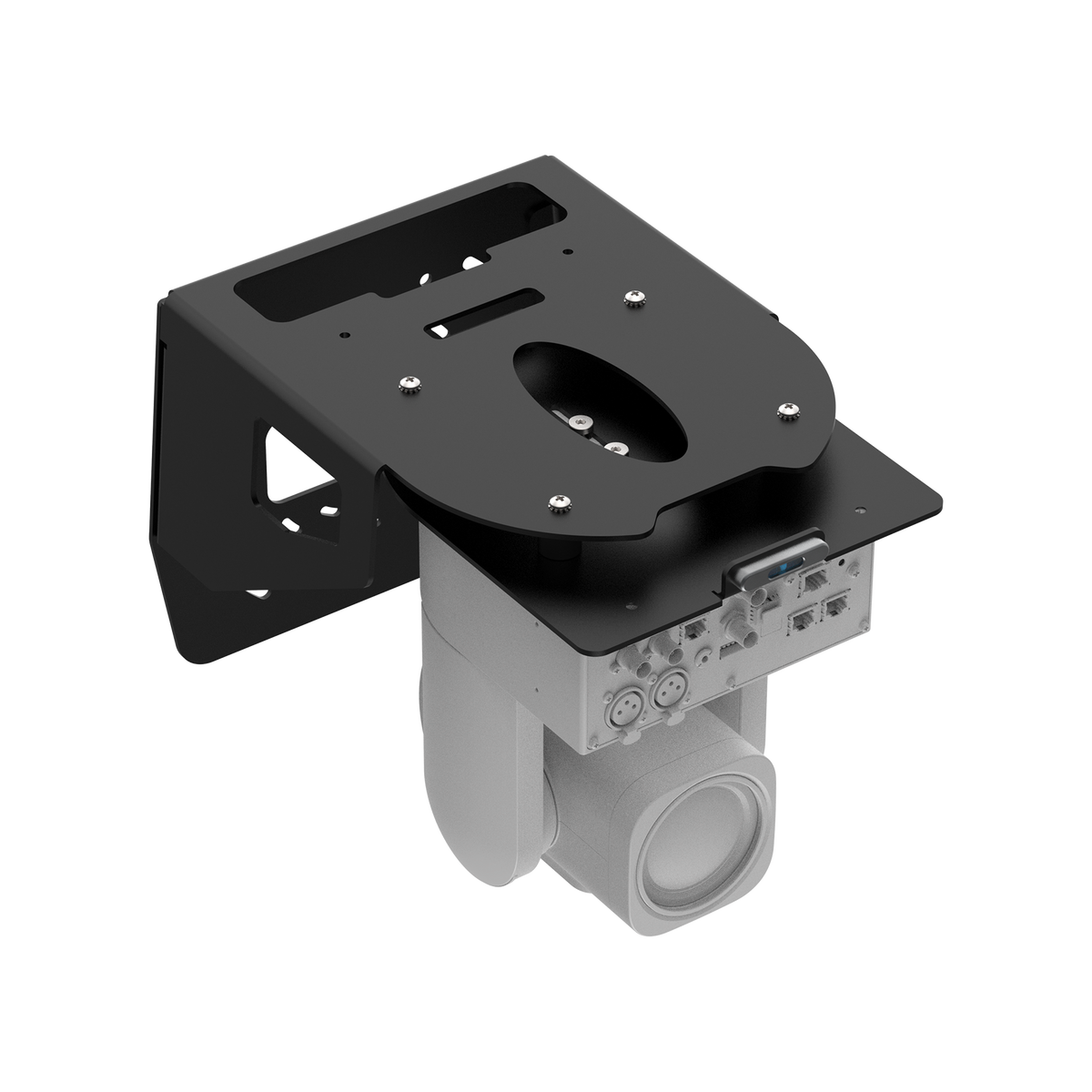

• Inside Inverted Mounting

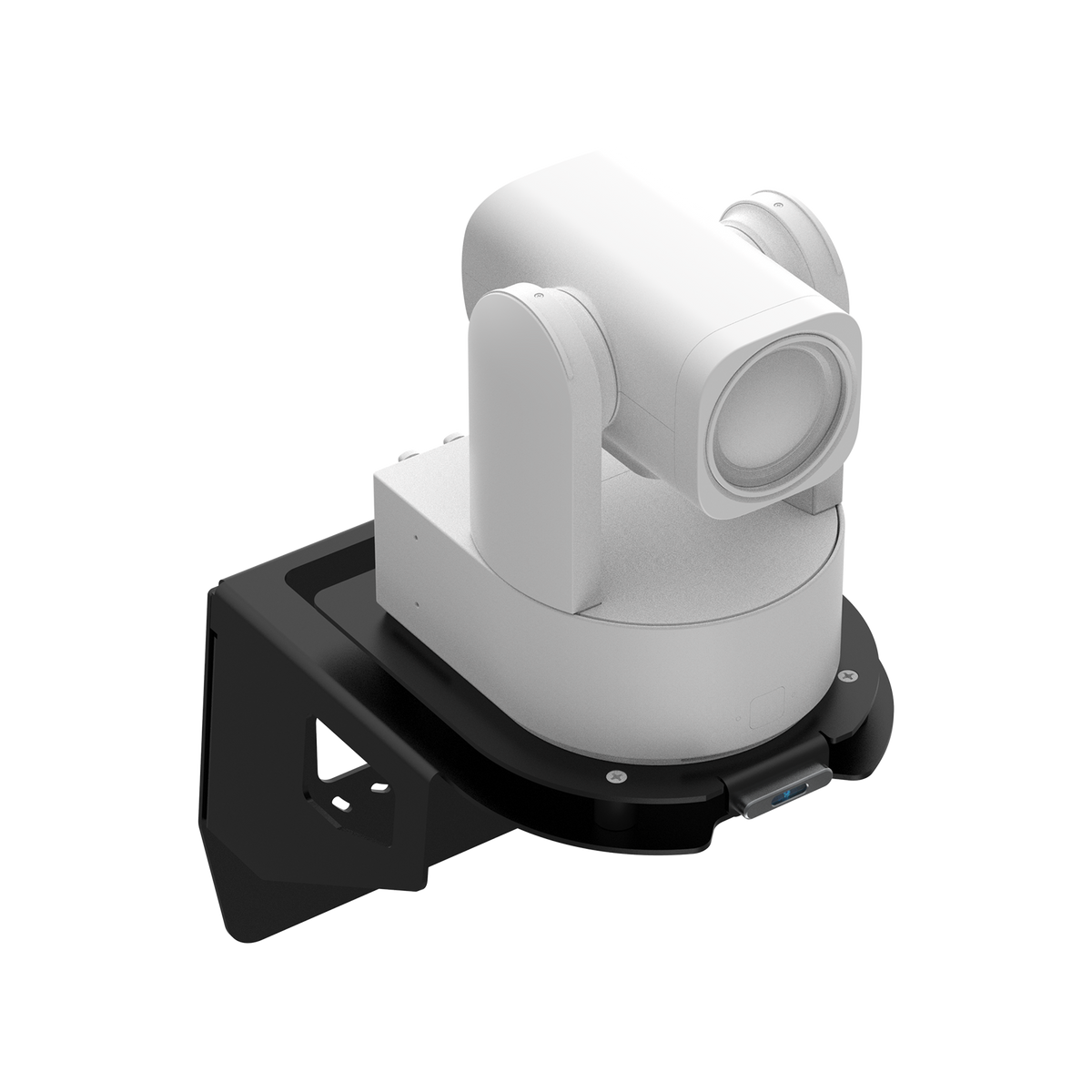

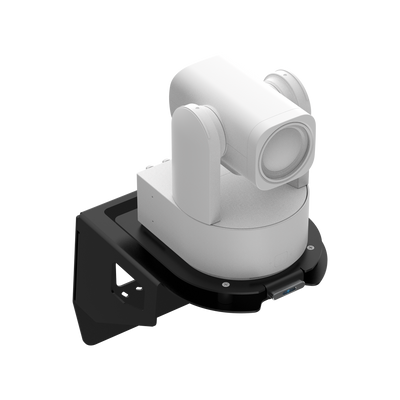

• Outside Standard Mounting

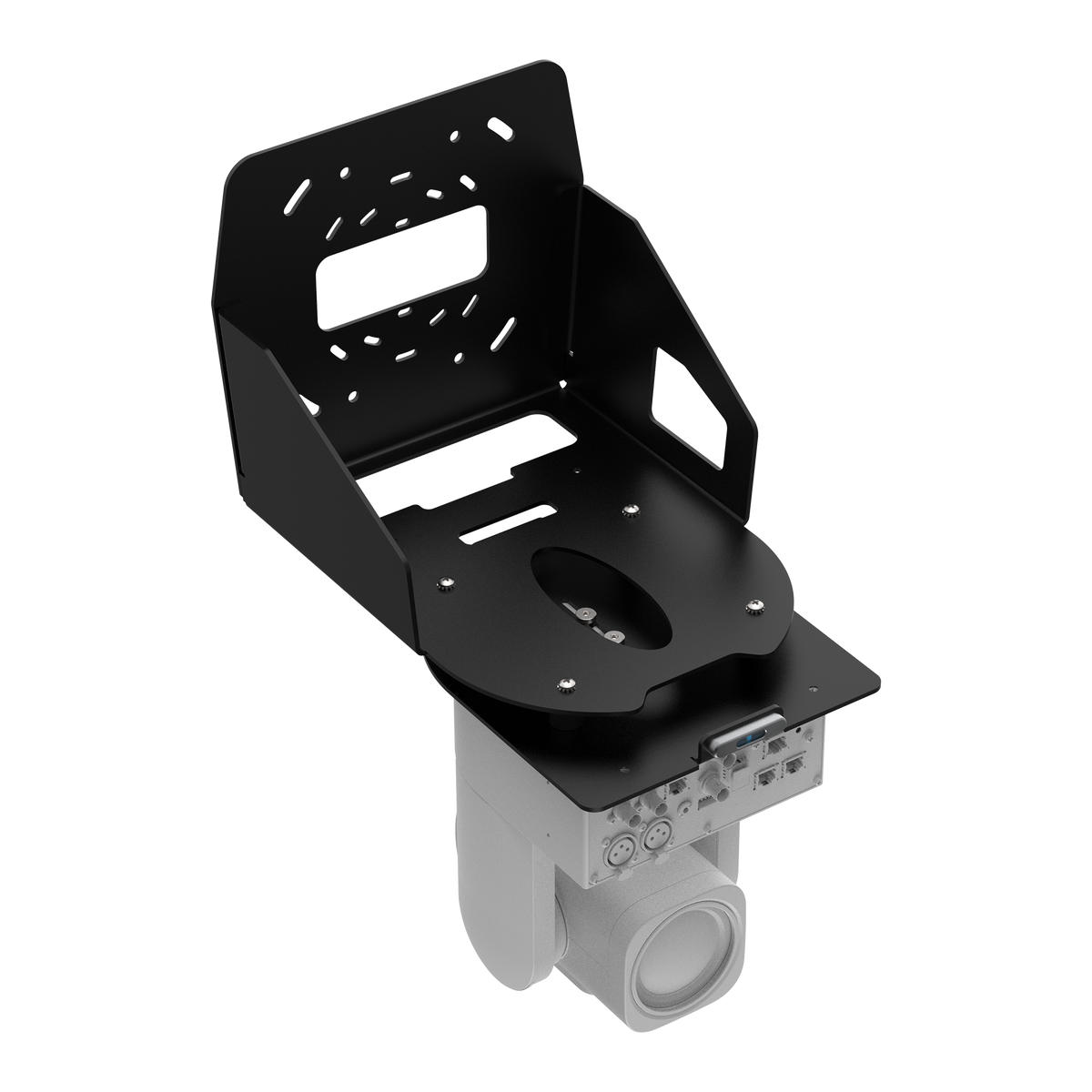

• Outside Inverted Mounting

*Requires M3 nuts

TECH SPECS
9.5 lb
10” W x 9”T x 12”D
