The SmallHD ULTRA 10 4K Portable Production Monitor brings large-screen, ultra-bright monitoring to demanding production environments. Featuring a vivid 10" 1920 × 1200 touchscreen QD-LCD with an impressive 2000 cd/m² brightness, it delivers clear, accurate viewing in virtually any indoor or outdoor lighting condition.

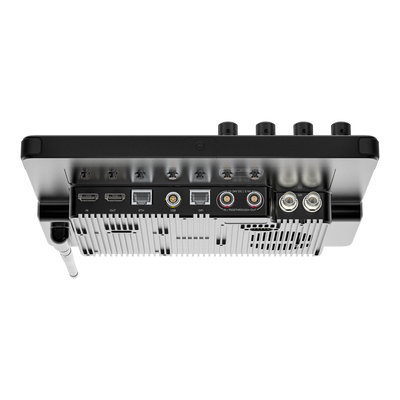

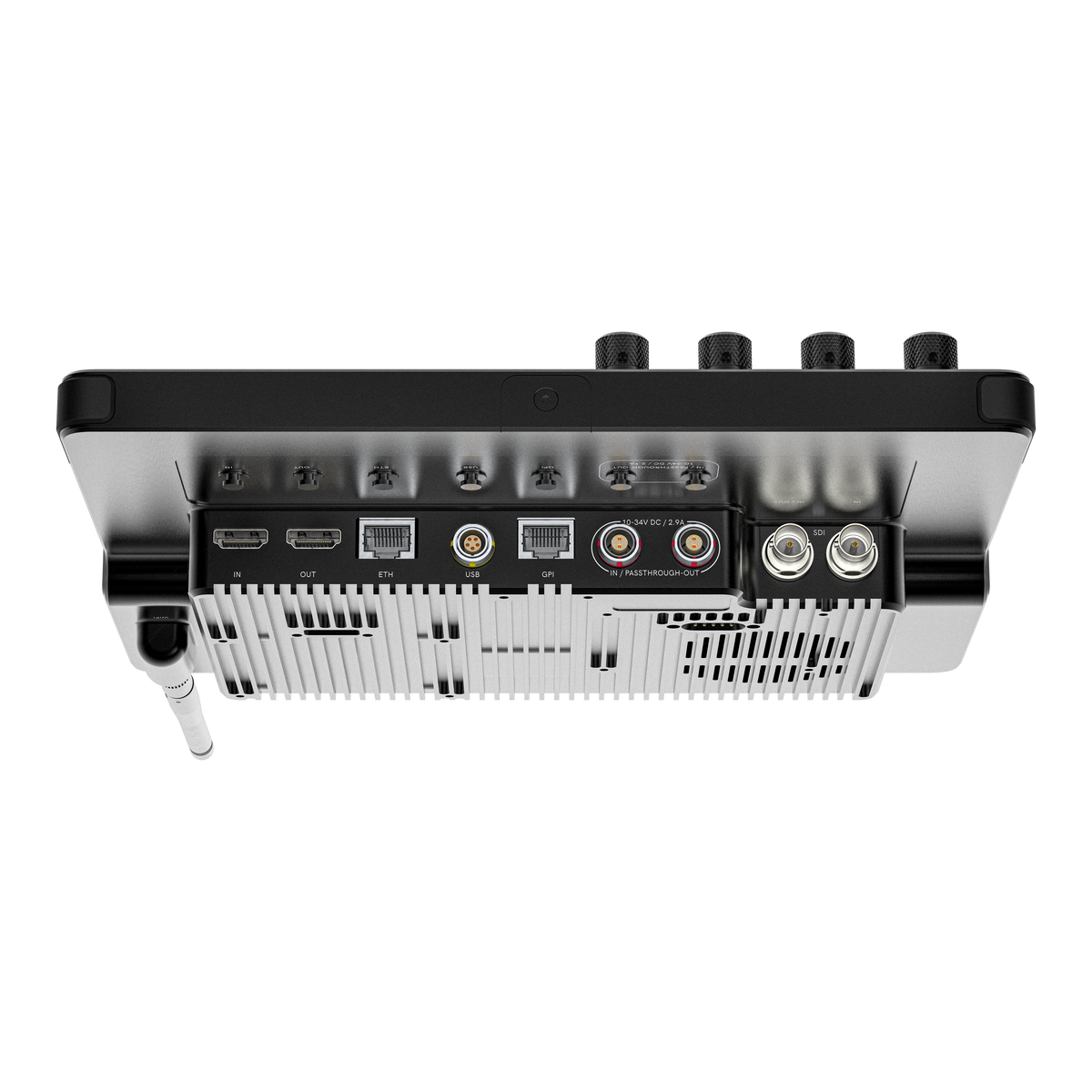

Built for professional workflows, the ULTRA 10 supports HDMI 2.0 and 6G-SDI inputs/outputs with up to 4K30 resolution, along with wireless Teradek Bolt compatibility for flexible on-set monitoring. Integrated 5-pin USB and Ethernet ports enable direct camera control for ARRI, Sony, and RED cinema cameras, making the ULTRA 10 a powerful, all-in-one monitoring and control solution for modern productions.

QD-LED Edge-Lit LCD Panel

The Ultra 10 features an edge-lit QD-LED panel stack that diffuses and focuses the light through a quantum-dot film, ensuring high brightness, excellent image fidelity, color accuracy, and color uniformity.

It's perfect for focus pullers, pursuit vehicles, director's cages, DITs, multicamera studios, and anyone who desires maximum flexibility from their monitor.

All-Weather Design

Built into a rugged, shock-resistant aluminum chassis designed to withstand production rigors, the Ultra 10 is designated with an IP54 rating, protecting the display against harmful dust and water spray from all directions.

All components and ports are fully sealed, it is impact resistant, and it can operate in extreme temperatures.

PageOS

PageOS is an advanced, page-based software toolset with an intuitive UI/UX that gives you full control over color, exposure, camera, LUTs, and more.

Built-In Wireless Support

The monitor features built-in wireless receiver technology compatible with optional Teradek Bolt 6 transmitters.

A Wi-Fi antenna provides solid connectivity with Bolt 6 or Bolt 4K transmitters using 5 or 6 GHz frequency bands.

Multifunction Controls

Simultaneously view and adjust crucial camera-control functions and PageOS tools with a camera-control interface anchored to every page. Four customizable encoder knobs let you change PageOS tools and settings on the fly with capacitive-touch, long-push, short-push, and rotary functionality.

Assign workflow shortcuts to the custom-function buttons for software tools, switch inputs, adjust display brightness, and more.

Lens Control Overlays

With Teradek RT integration, view critical lens data on your monitor.

Quickly create, edit, and delete visual marks on the focus scale, set on-screen limits, and even pinch-zoom the scale.

Multiview

View two camera feeds and use multiple tools pages all on screen at the same time, side by side (future update).

Power Options

Power is delivered to the ULTRA 10 via 2-pin LEMO ports or a separately available Gold mount or V-mount micro battery plate.

It also features a 2-pin LEMO-type output to power additional accessories, such as an optional wireless receiver.
