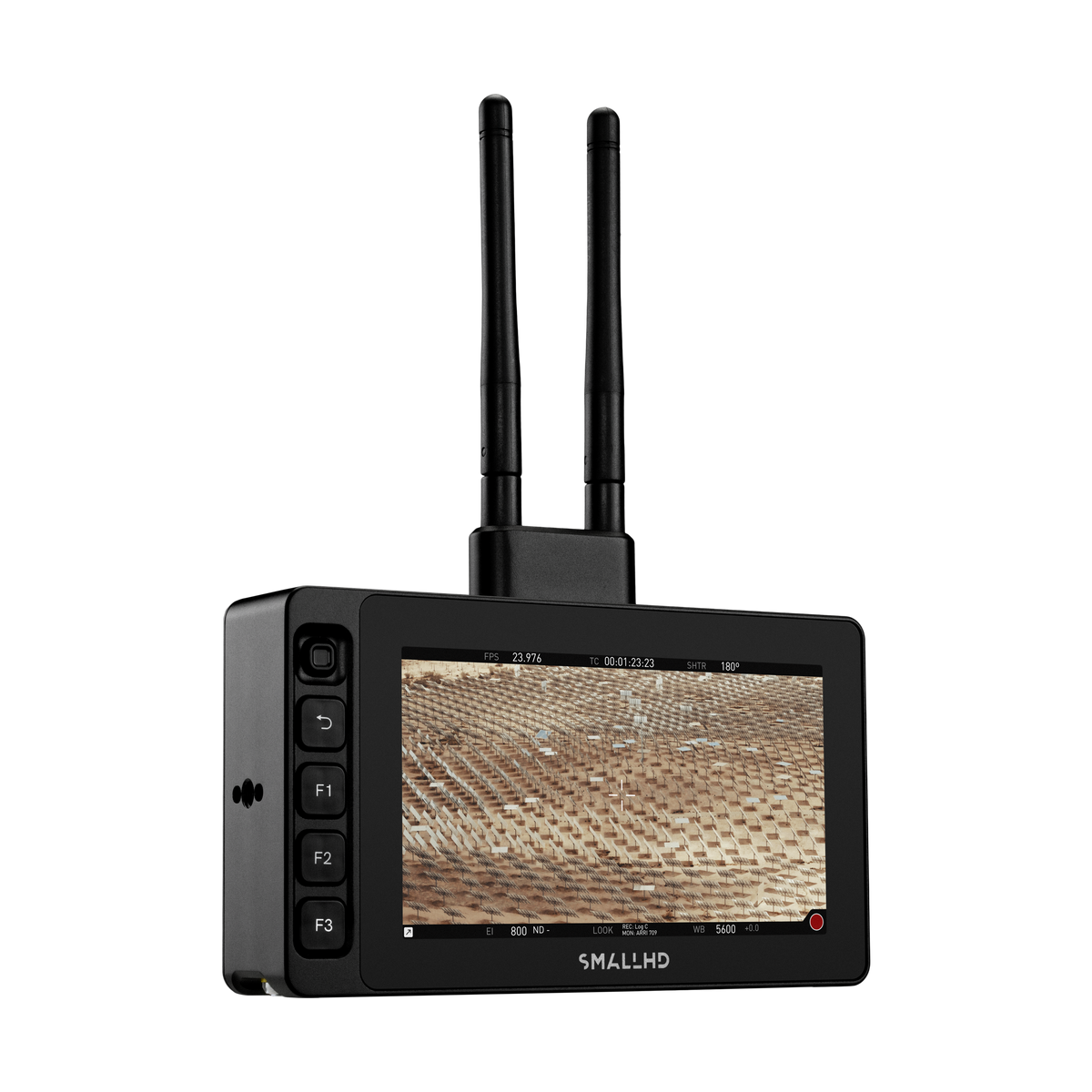

Add an ultra-bright monitor with wireless control to your production rig with the SmallHD ULTRA 5 Bolt 6 TX 750 Monitor. The unit includes an ULTRA 5 bright 5" on-camera monitor and a Bolt 6 TX monitor module from Teradek. The monitor features a 3000 bright cd/m² display, a 1920 x 1080 touchscreen LCD, HDMI and 3G-SDI inputs/outputs, camera control options, and 10-bit 4:2:2 Rec. 709 color processing.

The monitor module installs onto the back of the monitor and provides wireless image transmission up to 750', as well as wireless camera control using an optional receiver module on the other end. The module can transmit via the 6 GHz wireless band to up to six Teradek Bolt 6 series receivers, as well as to 5 GHz receivers such as the Teradek Bolt 4K series.

SmallHD ULTRA 5 Bright Touchscreen Monitor

Add an ultra-bright monitor to your production rig with the SmallHD ULTRA 5 Bright Touchscreen Monitor, which features a 3000 bright cd/m² display for viewing in just about any indoor or outdoor environment. The 5" 1920 x 1080 touchscreen LCD provides a sharp image and 10-bit 4:2:2 Rec. 709 color processing, ideal for focus pulling and image analysis on set and in the field.

The ULTRA 5 features HDMI and 3G-SDI inputs and outputs, and it also features physical buttons for use in conditions that might require gloves. It can also be used to control your camera, and it features a 5-pin USB port for optional RED camera control, and it also has an Ethernet port for optional ARRI and Sony VENICE camera control. All the functionality of the monitor is available via PageOS 5, which provides advanced functionality with a simple and efficient graphical user interface.

Features

• Daylight-viewable, 5" touchscreen on-camera monitor with 3000 cd/m² brightness
• Slim, lightweight design with 10-bit 4:2:2 DCI-P3 color, touchscreen LCD panel
• HDMI and 3G-SDI inputs and outputs
• Buttons around the monitor allow you to use the monitor in any conditions
• The PageOS 5 toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), advanced Teradek RT overlays, and more
• Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
• Power using a 2-pin power input
• Optional RED camera control via the micro-USB port
• Optional ARRI/Sony VENICE camera control via the Ethernet port
• Durable aluminum chassis

Display Tools

• Pixel zoom: 2x and 4x with pinch-zoom
• Aspect ratios: Preset and customizable
• DSLR scale: Canon 5D Mk II and Canon 7D
• Custom scale: Underscan only
• Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
• Image flip: Auto and manual
• Image rotation: Auto and manual
• Cross conversion: HDMI to SDI, SDI to HDMI
• Color focus assist: Adjustable style and intensity
• Peaking: Adjustable intensity
• False color: Spectrum, ARRI-style, and customizable
• Zebra: Dual, customizable
• Waveform: Luma and RGB, customizable with region-of-interest highlighting
• Vectorscope
• RGB parade, customizable
• Histogram: Luma and RGB
• Image capture, with dedicated button and image gallery
• Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
• LUT import: Via SD card or USB storage device
• Image overlay: Opacity slider and blink setting
• Image capture
• Audio meters: Up to eight channels

Teradek Bolt 6 Monitor Module 750 TX for Smart 7 Monitors

Wirelessly transmit up to 4K video and wirelessly control your cinema camera from a touchscreen monitor from up to 750' away with the Bolt 6 Monitor Module 750 TX from Teradek. The transmitter module mounts onto the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor and can wirelessly transmit up to 4K video to any Bolt 4K receiver. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

You can wirelessly control on supported cameras by connecting to an optional Bolt 4K RX monitor module on a similar monitor with installed camera control software. The I/O signal connection between the two units allow you to control the camera wirelessly right from the screen of the RX module monitor, or locally from the TX module monitor, with zero delay.

The monitor inputs up to 4K30 video from the camera for a high-resolution preview, and can also output the video to the transmitter using its HDMI block connection with 10-bit 4:2:2 HDR support. It can simultaneously transmit to up to six receivers, and it features improved metadata, range, and compatibility over previous Bolt 4K transmitters. Built-in AES-256 encryption and RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum.

It can be powered using the 2-pin DC power input or with a separately available battery plate. It runs on PageOS 5, the same software running on the monitors, for compatibility with the SmallHD monitors. The camera control option requires a specific camera control license to be purchased separately.

Key Features

• Transmits video on the newly available 6 GHz wireless frequency band
• Transmit to up to six Bolt 4K or Bolt 6 series receivers
• Cross-compatible with all Bolt 4K and 4K LT series receivers and the Bolt 4K RX monitor module
• Mounts on the back of a SmallHD Cine 7, Indie 7, 702 Touch monitor
• Compatible with ARRI cameras with separate license and will also be available for the RED KOMODO and Sony VENICE with future license availability
• The camera control option requires a specific camera control license to be purchased separately
• Wirelessly transmit up to 4K30 video
• Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
• Can coexist with Wi-Fi and 5 GHz cordless phones
