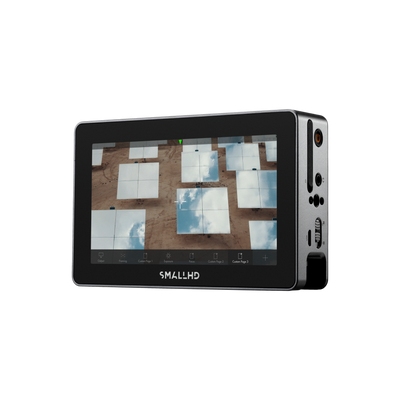

The compact and lightweight INDIE 5 Touchscreen On-Camera Monitor from SmallHD provides professional monitoring in a sharp 5" LCD with 1920 x 1080 resolution, 10-bit 4:2:2 Rec. 709 color processing, 1000 cd/m² brightness, 1000:1 contrast ratio, touchscreen-only control, and updated SmallHD PageOS 5 firmware. It features HDMI and 3G-SDI inputs and outputs.

The INDIE 5 features a handy touchscreen lock slider, so you don't have to worry about accidentally touching the screen when it's in use. Using the intuitive SmallHD PageOS 5, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. It also features a settings dashboard, preconfigured pages and tabs, templates, exposure assist, overlays, function buttons, and numerous improvements. You can also utilize optional RED camera control via the monitor's micro-USB port.

The monitor is powered using the DC barrel input with a DC adapter, and its durable aluminum chassis protects the monitor in any production environment.

Features

• Daylight-viewable, 5" touchscreen on-camera monitor with 1000 cd/m² brightness
• Slim, lightweight design with 10-bit, touchscreen-only LCD panel
• HDMI and 3G-SDI inputs and outputs
• The included PageOS 5 Toolset with EL Zone Exposure Assist, best-in-class waveform, false color, Look-Around Camera Control (sold separately), Advanced Teradek RT Overlays, and more
• The PageOS 5 UI offers quick and repeatable setups and full control over all parameters and display tools
• Four 1/4"-20 mounting threads on the left, right, bottom, and back of the monitor
• SmallHD PageOS 5 has all the features of OS 4 to organize and save customized function and settings pages as well as a settings dashboard, page tabs, false color overlays, improved function buttons, pixel zoom, focus assist, peaking, and more
• Power using a DC barrel input
• Optional RED camera control via the micro-USB port
• Durable aluminum chassis

Display Tools

• Pixel zoom: 2x and 4x with pinch-zoom
• Aspect ratios: Preset and customizable
• DSLR scale: Canon 5D Mk II and Canon 7D
• Custom scale: Underscan only
• Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
• Image flip: Auto and manual
• Image rotation: Auto and manual
• Cross conversion: HDMI to SDI, SDI to HDMI
• Color focus assist: Adjustable style and intensity
• Peaking: Adjustable intensity
• False color: Spectrum, ARRI-style, and customizable
• Zebra: Dual, customizable
• Waveform: Luma and RGB, customizable with region-of-interest highlighting
• Vectorscope
• RGB parade, customizable
• Histogram: Luma and RGB
• Image capture, with dedicated button and image gallery
• Custom LUTs: Load as looks on pages or as system-wide calibration via the settings menu
• LUT import: Via SD card or USB storage device
• Image overlay: Opacity slider and blink setting
• Image capture
• Audio meters: Up to eight channels
