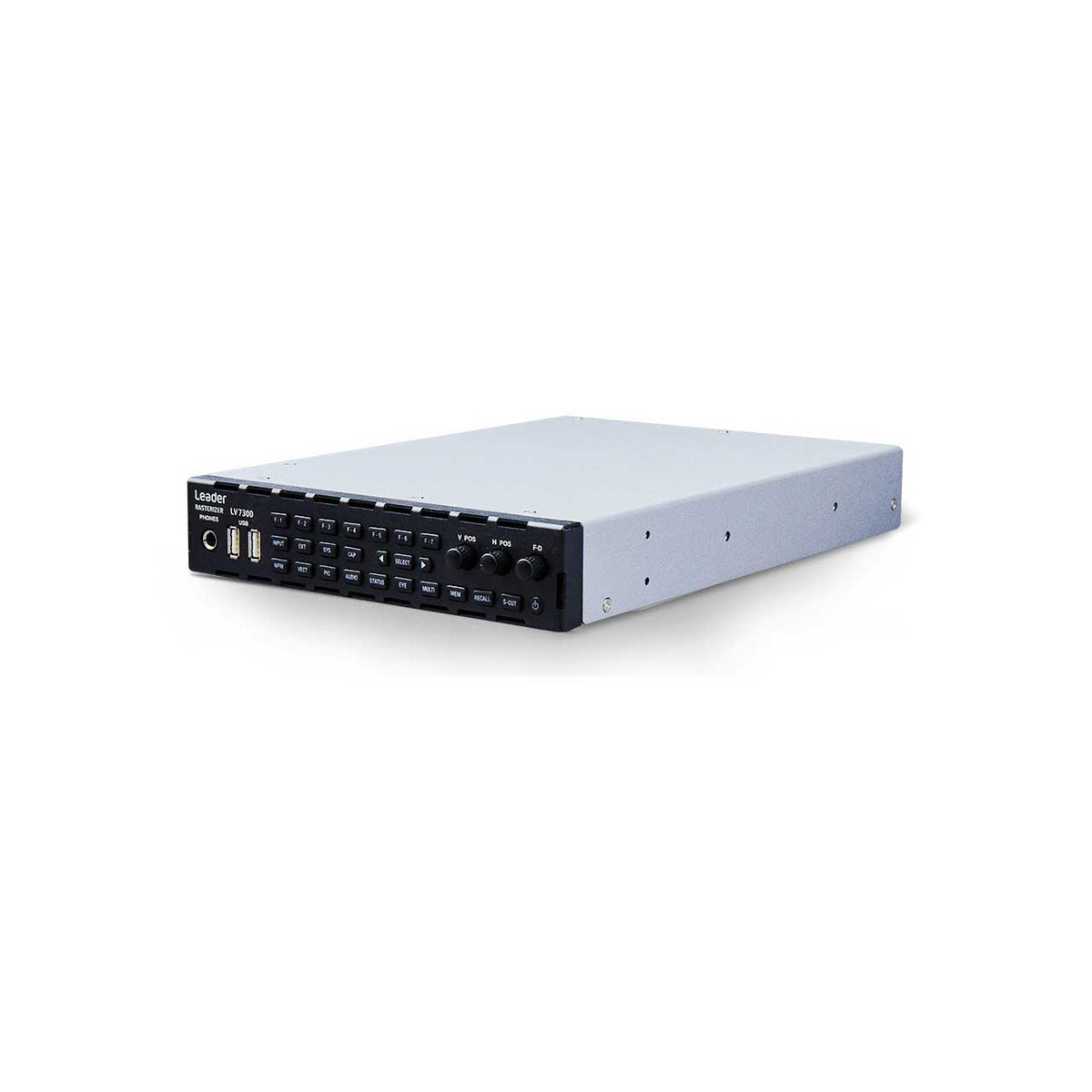

The Leader LV7300 is a space-saving, compact waveform monitor specialized for SD-SDI video signals. The LV7300 is a 1U half rack size rasterizer sold seperately. It is compact but supports eye pattern measurement up to 12 G-SDI.

The Leader LV7300-SER20 adds various analysis displays like Lissajous display, surround display, mute, clip error detection, and more to the LV7300-SER01 or LV7300-SER02.

For audio signals, SDI signals can be displayed on a level meter. Audio format is compatible with L-PCM.You can simultaneously display 8 channels from one SDI signal and 4 channels from 2 SDI signals. The embedded audio playback system complies with SMPTE ST 299, 272.

Features:

• Supports various signal inputs
• Various SDI signals up to 12 G-SDI can be observed/monitored.
• Audio signals can correspond to SDI embedded voice.
• Excellent operability
• With the front panel equipped with key buttons and knobs that follow the operability of conventional models, operation with a
• USB mouse is also possible. In addition, the LV5300/LV5350 adopt a 7-inch full HD panel with a touch panel function, and the LV7300 can be operated and set intuitively by touch operation by connecting an external LCD adopted touch panel with a USB cable
• SDI input format
• SD-SDI, HD-SDI, 3G-SDI, 12G-SDI Single Link is supported

Specifications:

• External Synchronize Input Terminal
• Input Terminal: BNC terminal
• Number of Input Terminals: 1 line, 2 terminals
• Input Impedance: 15kΩ Passive loop through
• Input Return Loss: 30dB or more (50kHz - 30MHz, 75Ω termination)
• Maximum Input Voltage: ±5V (DC + peak AC)
• Input Signal: Ternary synchronization signal or NTSC/PAL black burst signal; 10 Field ID correspondence
• Function: SDI reference signal input for video signal waveform display and phase difference display

  Headphone Output Terminal
• Output Terminal: Standard jack 1 terminal (stereo)
• Output Signal: On the screen of the displayed audio signal, arbitrary 2 ch (Downmixed Lt, Rt is also acceptable)

  SDI Output Terminal
• Function: Output screen for SDI monitor
• Output Terminal: BNC terminal
• Number of Output Terminals: 1
• Output Signal: Output liquid crystal display screen is output with HD, 3G-A, 3G-B-DL. 1920x1080 60, 59.94, 50 I/P, YCBCR 4:2:2 (10 bits)

  TMDS Output Terminal
• Function: The displayed screen is output for HDMI monitor.
• Output Terminal: HDMI terminal
• Number of Output Terminals: 1
• Signal Format: Single Link T.M.D.S
• DDC Function: Not supported
• HOT PLUG Detection Function: Not supported
• Output Signal: Output liquid crystal display screen is output. 1920x1080 60 P, 59.94 P, 50 P

  Control Terminal - USB
• Terminal Shape: Standard A USB 2.0
• Number of Terminals: 2
• Compatible device USB memory, USB mouse, touch panel type monitor

  For Ethernet Terminal Control
• Approved Standard: IEEE802.3
• Supported Protocols:TELNET, FTP, SNMP, HTTP, SNTP
• Input/Output Terminals: RJ-45
• Function: Remote operation with an external PC or remote controller, File transfer, get status information
• Types: 10Base-T, 100Base-TX, 1000Base-T

  Remote Terminal
• Terminal Shape: D-Sub 15 pins (female)
• Number of Terminals: 1
• Control Signal: LV- TTL level (LOW active)
• Function Preset: Recall, input signal switching, alarm output, tally
• Alarm Output: When a format alarm, various errors, fan abnormality, or internal temperature occurs

  General Specifications
• Operating Temperature Range: 32°F - 104°F (0°C - 40°C)
• Operating Humidity Range: 85% RH or less (with no condensation)
• Performance Guarantee Temperature Range: 50°F - 86°F (10°C - 30°C)
• Usage Environment: Indoors
• Usable Altitude: up to 2,000m
• Overvoltage Category: 1
• Pollution Degree: 2
• Power Supply: Voltage DC 10V - 18V
• Dimensions (HxWxD): 1.7" x 8.3" x 11.8" (43mm x 211mm x 300mm)
