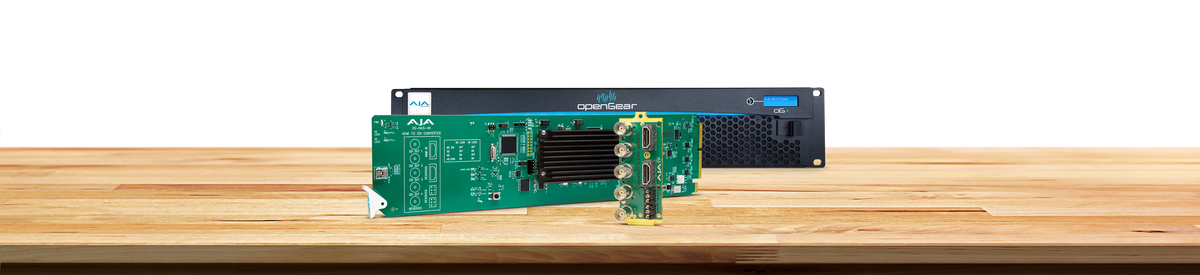

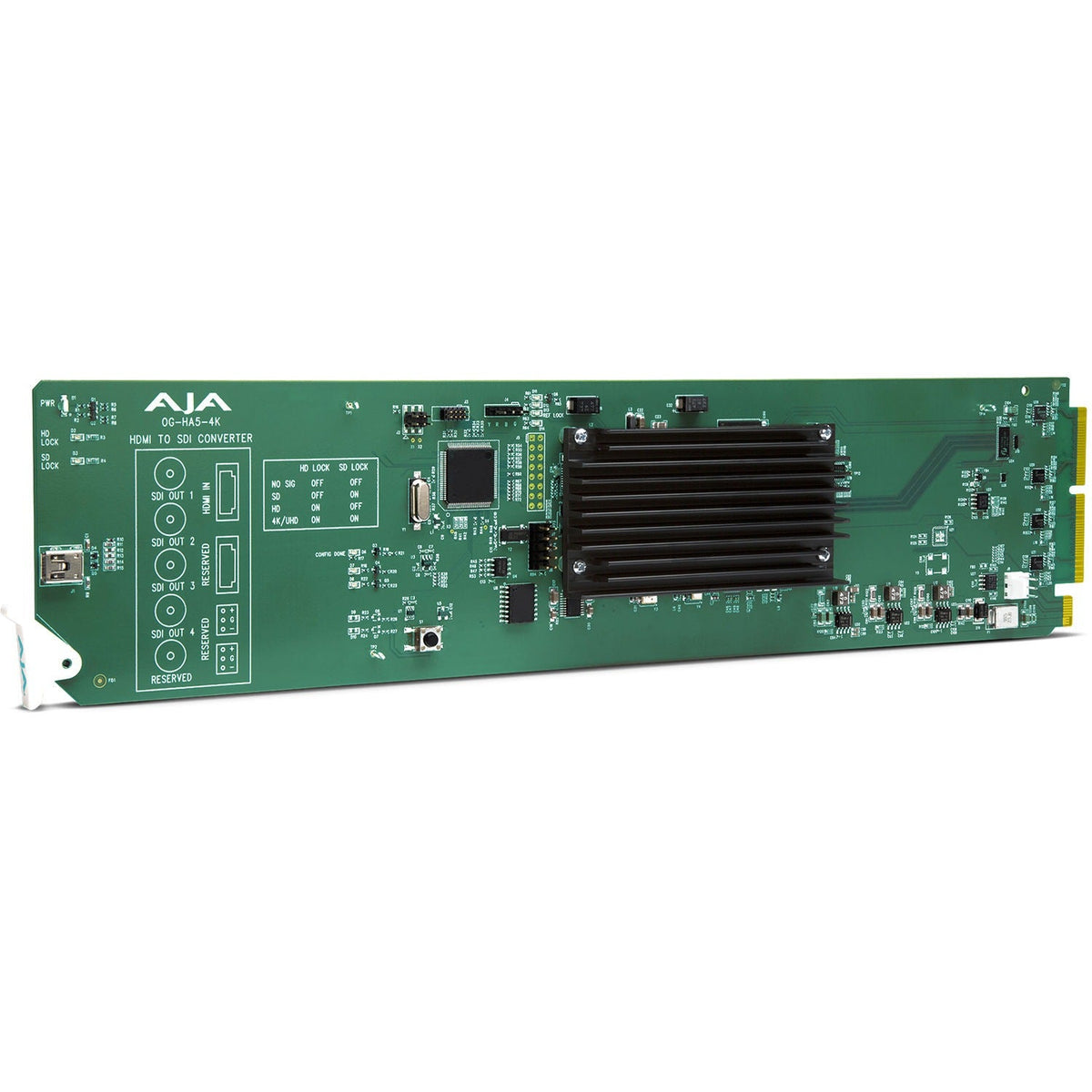

Featuring four 3G-SDI outputs, the openGear compatible OG-HA5-4K enables high quality conversion of HDMI 2.0 video to 4K/UltraHD 3G-SDI for use in professional workflows. OG-HA5-4K is also capable of displaying HDR Infoframe data coming in over HDMI when used with DashBoard software.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features

• openGear compatible card
• Convert HDMI 2.0 to Quad-3G, 4K/UltraHD 60 fps at 4:4:4, 4:2:2, and 4:2:0
• Supports Two Sample Interleave (2SI) and Square Division (Quadrant) output pixel mapping
• EDID Emulation
• Displays HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
• HDR Metadata VPID Pass-through and optional override
• Simple Frame Rate Conversion (FRC)
• Embedded audio support 8-channel 24-bit
• Embedded audio pass-through of AC-3 (Dolby Digital Plus) and E-AC-3 compressed audio, including DD+ Atmos (aka DD+ JOC)
• Remote Ethernet configuration through Ross DashBoard software
• Power: 10 watts
• Hot-swappable
• Rear I/O card included
• Two slots required for each card
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Five year warranty

Connectivity
An increasing number of 4K products utilize an HDMI output connection, which allows a full 4K signal to be passed over a single cable. Many professional 4K workflows use four SDI cables to carry the full resolution image. OG-HA5-4K is an easy-to-use converter that bridges the gap between these two connections for seamless integration.

HDR
HDR (High Dynamic Range) provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

OG-HA5-4K provides support for analyzing HDR infoframe data coming in over HDMI when used with DashBoard software.

Explore more of our HDR Solutions here:

HDR Solutions

4K and UltraHD
OG-HA5-4K supports conversion of full resolution 4K (4096x2160) as well as UltraHD (3840x2160) from HDMI to 3G-SDI at frame rates up to 50/60 fps, providing a great solution for cinematic 4K productions as well as UltraHD projects.

HD Support
Not every job is a 4K job. When you're not working in 4K, OG-HA5-4K can still be a useful tool for converting HD-HDMI to HD-SDI. OG-HA5-4K will automatically sense an incoming HD resolution HDMI signal and convert this to a single 3G-SDI output.

Audio
Up to 2-channels of embedded audio in the incoming HDMI signal are carried through seamlessly into the SDI output, ensuring your audio is always in sync and carried flawlessly along with the SDI signal for use anywhere in your workflow.

Audio

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Tech Specs:
Video Formats: (4K) 4096x2160p; (UltraHD) 3840x2160p; (2K) 2048x1080p; (HD) 1920x1080p; (HD) 1920x1080i; (HD) 1280x720p; (SD) 720x576p; (SD) 720x576i; (SD) 720x480p; (SD) 720x480i
Video Input Digital: 1x HDMI Type A connector, HDMI v2.0b HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b; HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic; YCbCr 4:2:2/4:4:4/4:2:0; RGB 4:4:4, SMPTE or Full level; 24, 30, or 36-bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP); (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; (SD) 720x576p 50; (SD) 720x576i 50; (SD) 720x480p 59.94; (SD) 720x480i 59.94
HDCP Decryption: Not supported. By definition, SDI outputs are unencrypted.
Video Output Digital: 4x 3G-SDI BNC, SMPTE-259/292/424 YCbCr 4:2:2/4:4:4; RGB 4:4:4, SMPTE or Full level; 10-bit; Two Sample Interleave (2SI) or Square Division (Quadrant) pixel mapping; 4x 3 Gb SDI (Level A or B Dual Link) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 4x 1.5 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30; 2x 3 Gb SDI (Level B Dual Stream) (4K) 4096x2160p 23.98, 24, 25, 29.97, 30; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30; 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372 (HD) 1920x1080p 50, 59.94, 60; 1x 3 Gb SDI (Level A or B Dual Link) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p** 50, 59.94, 60; 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 270 Mb SDI (SD) 625i 50; (SD) 525i 59.94
Audio Pass-Through Formats: PCM; Dolby Digital (AC-3); Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Audio Input Digital: HDMI embedded audio, 24-bit, 8-channel
Audio Output Digital: SDI embedded audio, 24-bit, 8-channel
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
Size: openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 10.0 watts max per card
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
