AJA’s OG-HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. OG-HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source.

OG-HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.

OG-HA5-12G-T and OG-HA5-12G-T-ST Fiber SFP equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link, respectively. These models ship with SFPs installed and include all functionality of the OG-HA5-12G, with the added benefit of extending audio and video signals further.

Features

• Convert up to 4K 60p HDMI 2.0 to 12G-SDI with a second mirrored output
• Supports up to 60p input at 4:4:4/4:2:2/4:2:0
• Supports 12-bit workflows
• EDID LFR & HFR Emulation up to UltraHD 60p
• Real time HDMI HDR Infoframe data reporting
• HDR signaling metadata pass-through and optional override
• Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Monitor and control via Ross DashBoard software
• 14 watts max per card
• Five-year warranty

OG-HA5-12G Workflow
UltraHD HDMI 2.0 Source with 2x 12G-SDI Destinations

Download Workflow

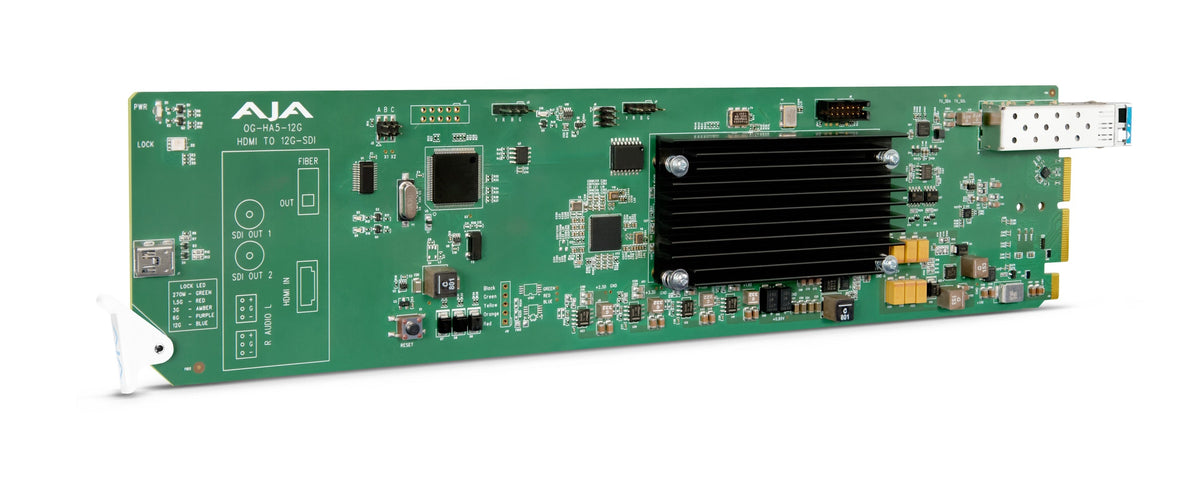

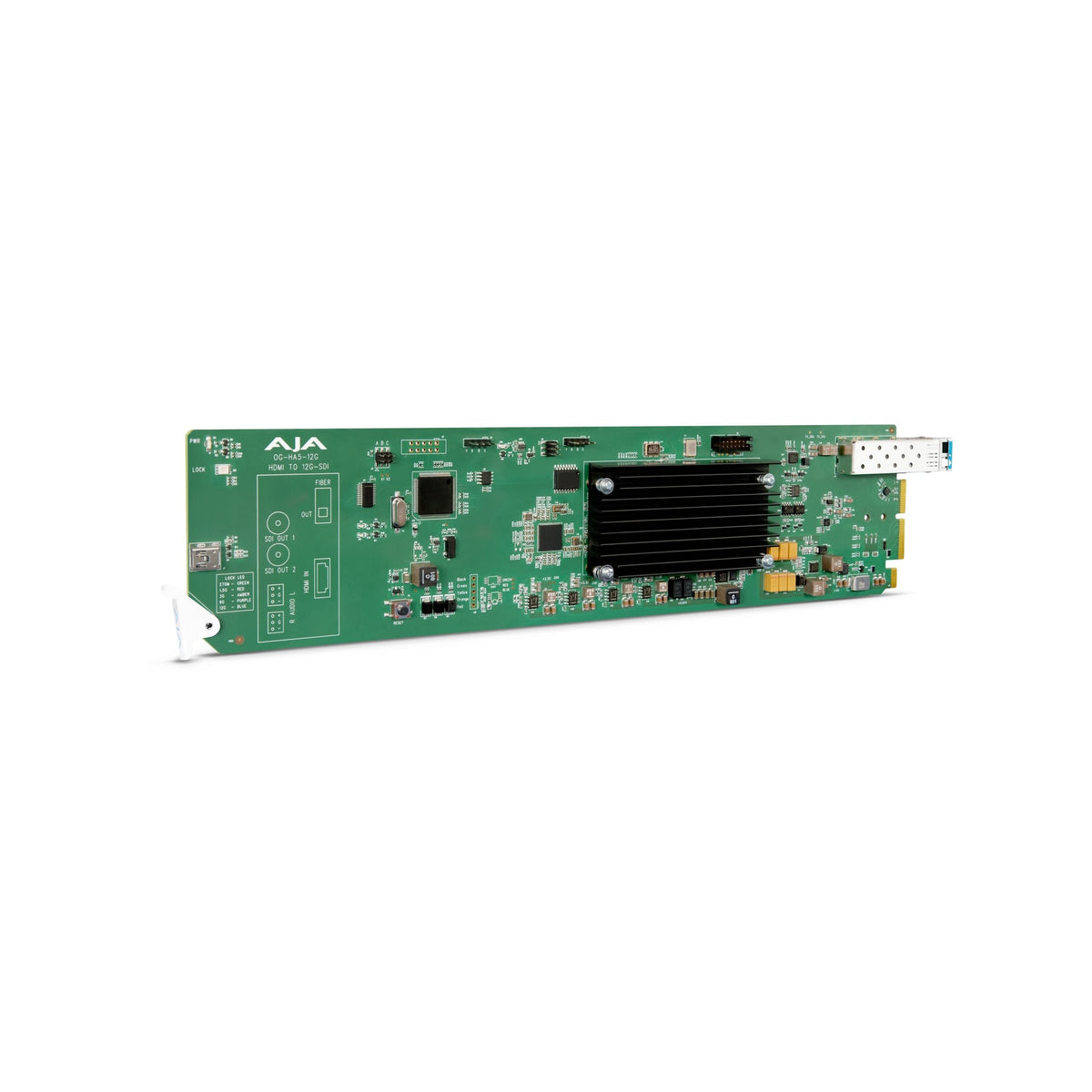

OG-HA5-12G-T
OG-HA5-12G-T Features: • Convert up to 4K 60p HDMI 2.0 to 12G-SDI with a second mirrored output

• Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
• OG-HA5-12G-T ships with FiberLC-1T-12G SFP installed
• Support for up to 60p input at 4:4:4/4:2:2/4:2:0
• Supports 12-bit workflows
• EDID LFR & HFR Emulation up to UltraHD 60p
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
• Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Monitor and control via Ross DashBoard software
• Five year warranty
• Only $1,399 US MSRP*

OG-HA5-12G-T-ST
OG-HA5-12G-T-ST Features: • Convert up to 4K 60p HDMI 2.0 to 12G-SDI with a second mirrored output

• Includes a single channel Fiber 12G ST transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
• OG-HA5-12G-T-ST ships with FiberST-1T-12G SFP installed
• Support for up to 60p input at 4:4:4/4:2:2/4:2:0
• Supports 12-bit workflows
• EDID LFR & HFR Emulation up to UltraHD 60p
• Two Sample Interleave (2SI) 4K/UltraHD source mapping
• Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
• Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Monitor and control via Ross DashBoard software
• Five year warranty
• Only $1,550 US MSRP*

HDR
HDR (High Dynamic Range) provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

OG-HA5-12G provides support for analyzing HDR infoframe data coming in over HDMI.

Explore more of our HDR Solution here:

HDR Solutions

4K and UltraHD
OG-HA5-12G supports conversion of full resolution 4K (4096x2160) as well as UltraHD (3840x2160) from HDMI to 12G-SDI at frame rates up to 50/60 fps, providing a great solution for cinematic 4K productions as well as UltraHD projects.

Full HDMI Support
The equalized input on OG-HA5-12G is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.

12G-SDI Support
The 12G-SDI outputs on OG-HA5-12G allow extremely high quality signal representation for use with large raster and deep color workflows where image quality is critical.

12G-SDI Solutions

Pristine Image Quality
A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green), HD (red) or 4K/UltraHD (orange) for fast and easy signal identification.

Pristine Image Quality

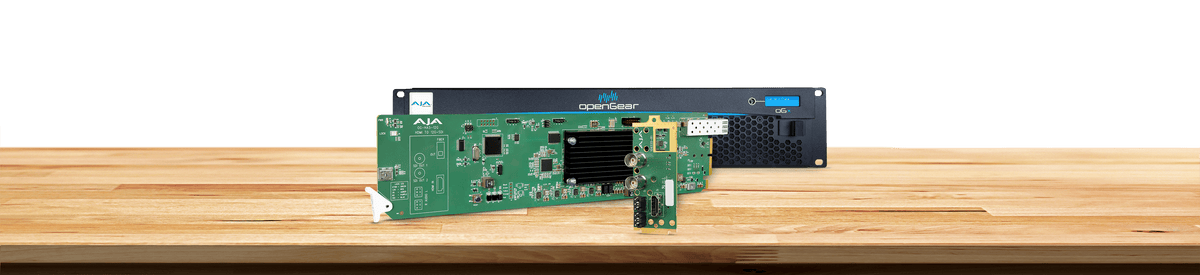

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Pristine Image Quality

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Video Formats: (4K) 4096x2160p; (UltraHD) 3840x2160p; (2K) 2048x1080p; (HD) 1920x1080p; (HD) 1920x1080i; (HD) 1280x720p; (SD) 720x576i; (SD) 720x480i
Video Input Digital: 1x HDMI Type A connector, HDMI v2.0b HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b; HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic; YCbCr 4:2:2/4:4:4/4:2:0; RGB 4:4:4, SMPTE or Full level; 24, 30, or 36-bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP); (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; (SD) 720x576i 50; (SD) 720x480i 59.94
HDCP Decryption: Not supported. By definition, SDI outputs are unencrypted.
Video Output Digital: 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 YCbCr 4:2:2/4:4:4; RGB 4:4:4, SMPTE or Full level; 10-bit, 12-bit*; 1x 12G-SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30,50, 59.94, 60; 1x 6 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30; 1x 3 Gb SDI (Level A or B Dual Link) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p** 50, 59.94, 60; 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 270 Mb SDI (SD) 625i 50; (SD) 525i 59.94
Video Output Digital - Additional for OG-HA5-12G-T Only: 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max); Optical Power: -5 dBm (min), 0.5 dBm (max); Extinction Ratio: 3.5 dB (min)
Video Output Digital - Additional for OG-HA5-12G-T-ST Only: 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max); Optical Power: -5 dBm (min), 2 dBm (max); Extinction Ratio: 3.5 dB (min)
Audio Pass-Through Formats: PCM; Dolby Digital (AC-3); Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Audio Input Digital: HDMI embedded audio, 24-bit, 8-channel
Audio Input Analog: 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal)
Audio Output Digital: SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
Size: openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 14 watts max per card
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
