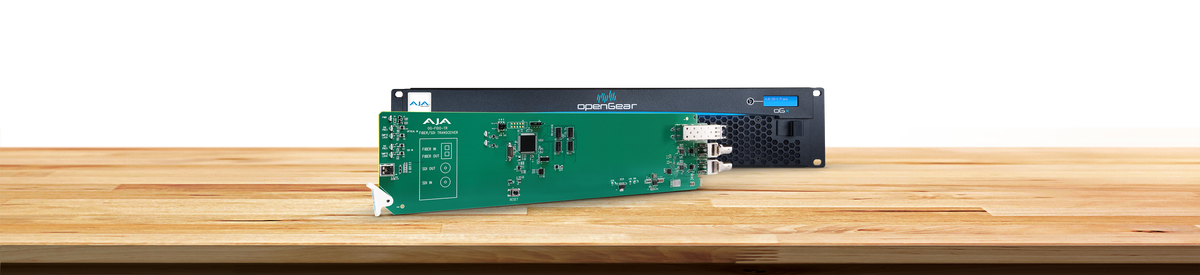

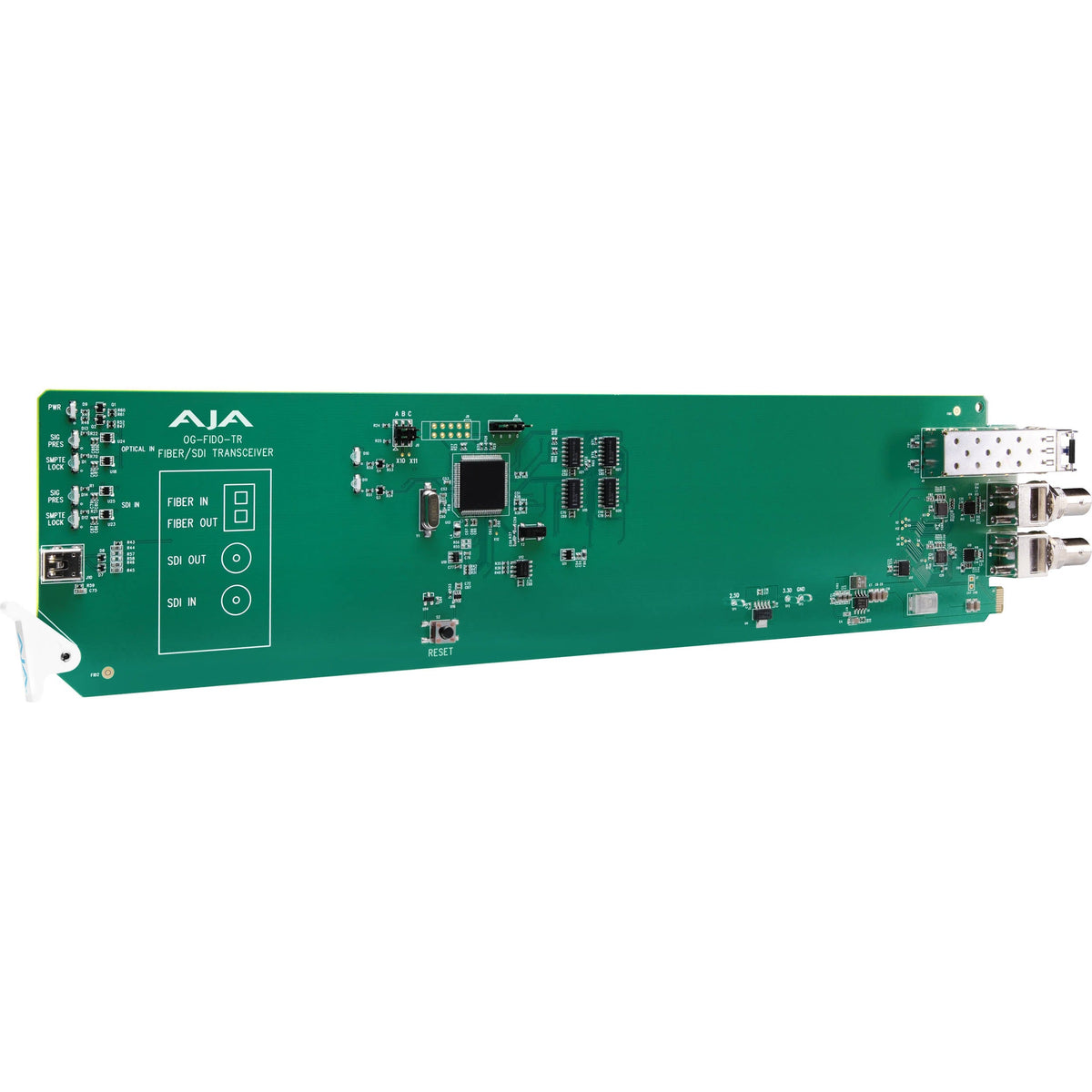

OG-FiDO-TR-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode fiber optic cables - useful for eliminating ground loop problems.

Features

• Video Formats: 150 Mbps - 3 Gbps, format agnostic
• Inputs: 1x3G-SDI BNC; 1x Multi-Mode LC Fiber
• Outputs: 1x 3G-SDI BNC; 1xl Multi-Mode LC Fiber
• Supports pass-through of SDI metadata, including HDR
• Monitor via openGear DashBoard
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
• Nominal Wavelength: 850 nm
• Power: 2.5 watts
• Hot swap capable
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Connectivity
Both Fiber and 3G-SDI inputs are reclocked with best in class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Both signal paths are independent and can be different rates. Supports Multi-Mode fiber cable.

Connectivity

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Connectivity

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Video Formats: 150 Mbps - 3 Gbps, format agnostic
Video Input Digital: 1-channel independent 3G-SDI BNC Input, SMPTE-259/292/424; 1-channel Multi-Mode LC Fiber Input, SMPTE-297; Nominal Wavelength: 850 nm; Optical Sensitivity: 0dBm (Min), -15dBm (Max)
Video Output Digital: 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424; 1-channel Multi-Mode LC Fiber Output, SMPTE-297; Nominal Wavelength: 850 nm; Optical Power: -7dBm (Min), -2dBm (Max); Extinction Ratio: 7.5dB (Typ)
Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select; All other rates are passed through and not reclocked
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
Size: openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 2.5 watts max per card
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
