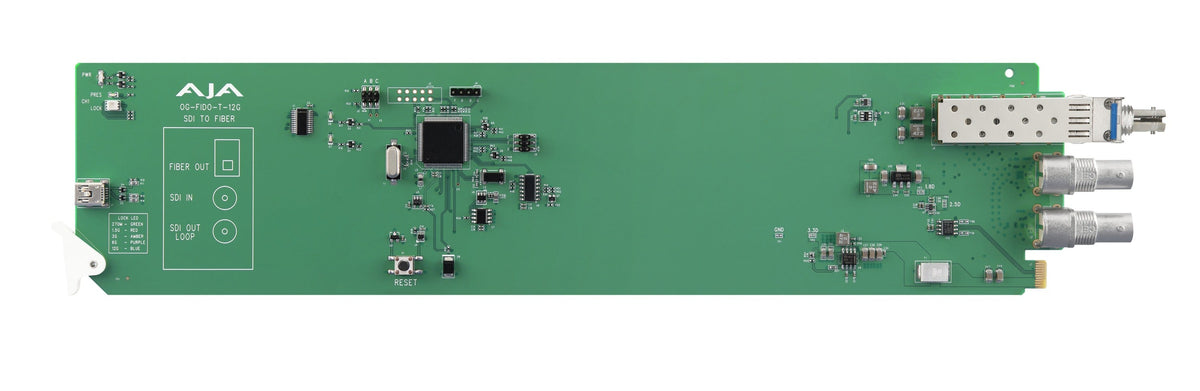

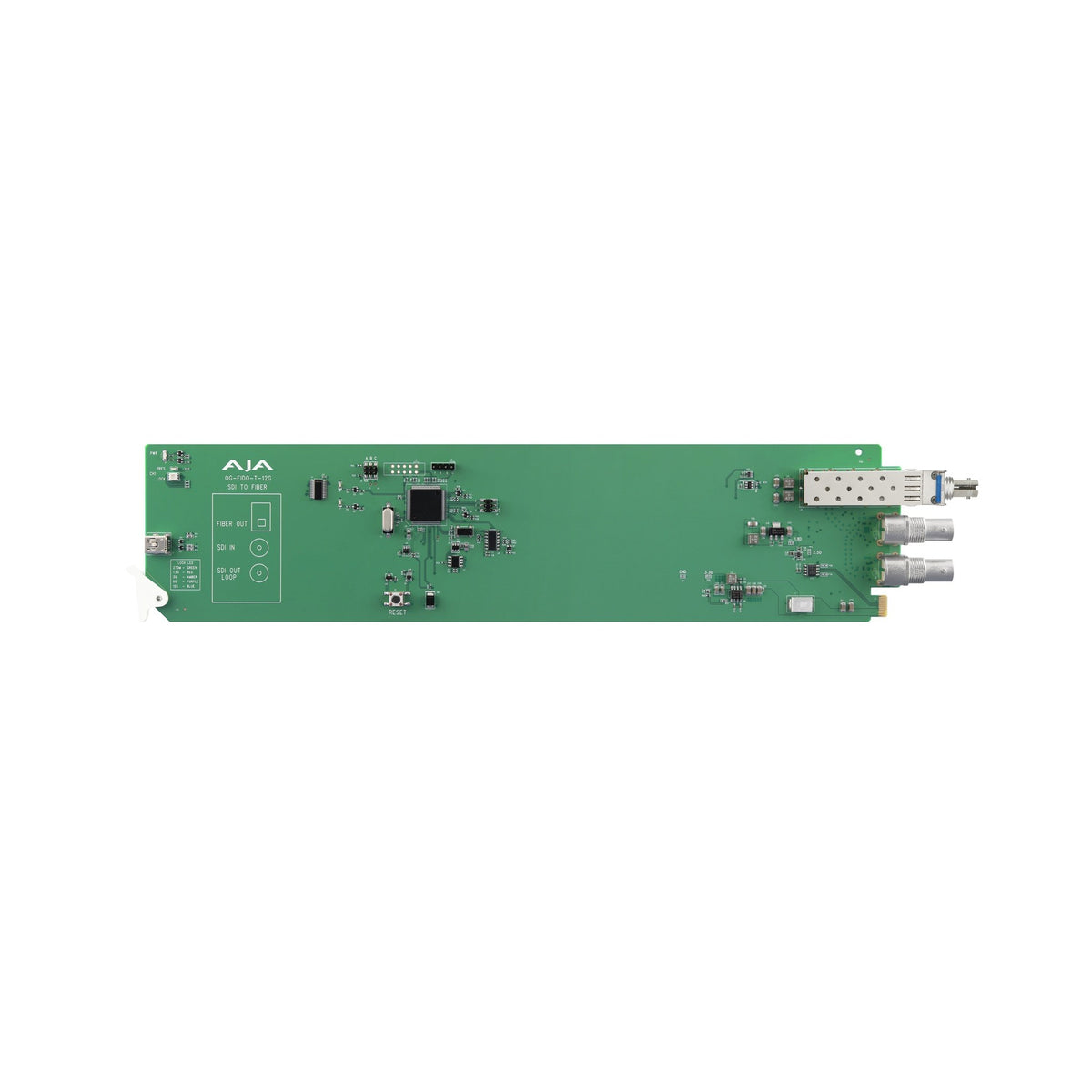

The OG-FiDO-T-12G-ST is a state of the art, openGear compatible 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The 12G-SDI input is reclocked with best in class input jitter tolerance. A reclocked looping 12G-SDI output is also provided. The OG-FiDO-T-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production, and mobile environments.

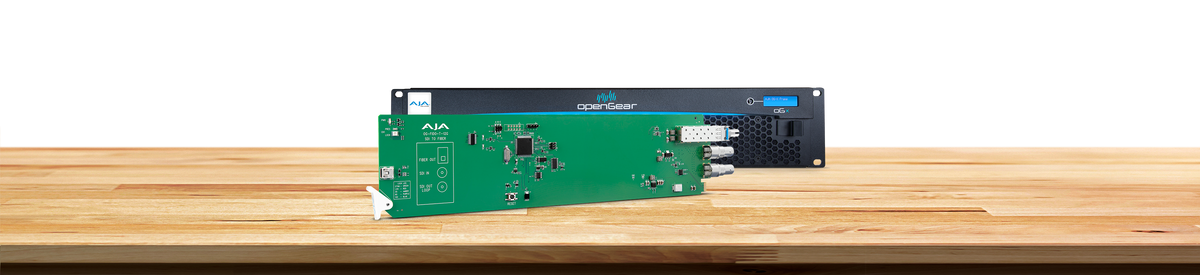

AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS®, and Linux®, offering remote control and monitoring over a PC or local network.

Features

• Video Formats: 270 Mbps - 12 Gbps, format agnostic
• Inputs: 1x 12G-SDI BNC with SDI Loop out
• Outputs: 1x 12G-SDI BNC; 1x Single Mode ST Connector
• Monitor via openGear DashBoard software
• Support for HDR - High Dynamic Range video
• Supports pass-through of SDI metadata, including HDR
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• Nominal Wavelength; Tx: 1310 nm (typ)
• Power: 3 watts Max
• Hot-swappable
• Appropriate Fiber SFP included
• Rear I/O card included
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Example OG-FiDO-T-12G-ST Signal Flow Diagram
This diagram shows six openGear OG-FiDO-T-12G-ST cards being used in an OG-X-FR rack frame, which highlights the high density capability of the openGear platform. The studio sets each contains a total of six 12G-SDI cameras connected to six OG-FiDO-T-12G-ST cards, which provide the 12G-SDI to fiber ST conversion. Fiber runs are then extended up to 10km to an OB production truck with six OG-FiDO-R-12G-ST cards in an OG-X-FR rack frame. The Production Gallery receives six discrete camera feeds as 12G-SDI via the OG-FiDO-R-12G-ST, driving the gallery video monitors with ultra low latency.

Download Workflow

Connectivity
The 12G-SDI input is reclocked with best in class input jitter tolerance. All 12G-SDI input and output support, which includes 6G/3G/HD/SD-SDI. Supports single mode fiber cable.

Connectivity

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Connectivity

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Video Formats: 270 Mbps - 12 Gbps, format agnostic
Video Input Digital: 1-channel 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
Video Output Digital: 1-channel 12G-SDI reclocked, loop out, BNC connector, SMPTE 259/292/424/2081/2082; 1-channel 12G-SDI Single Mode ST Fiber connector, SMPTE 297/259/292/424/2081/2082; Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max); Optical Power: -5 dBm (Min), 2 dBm (Max); Extinction Ratio: 3.5 (Min)
Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select; All other rates are passed through and not reclocked
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
Size: openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 3.0 watts max per card
