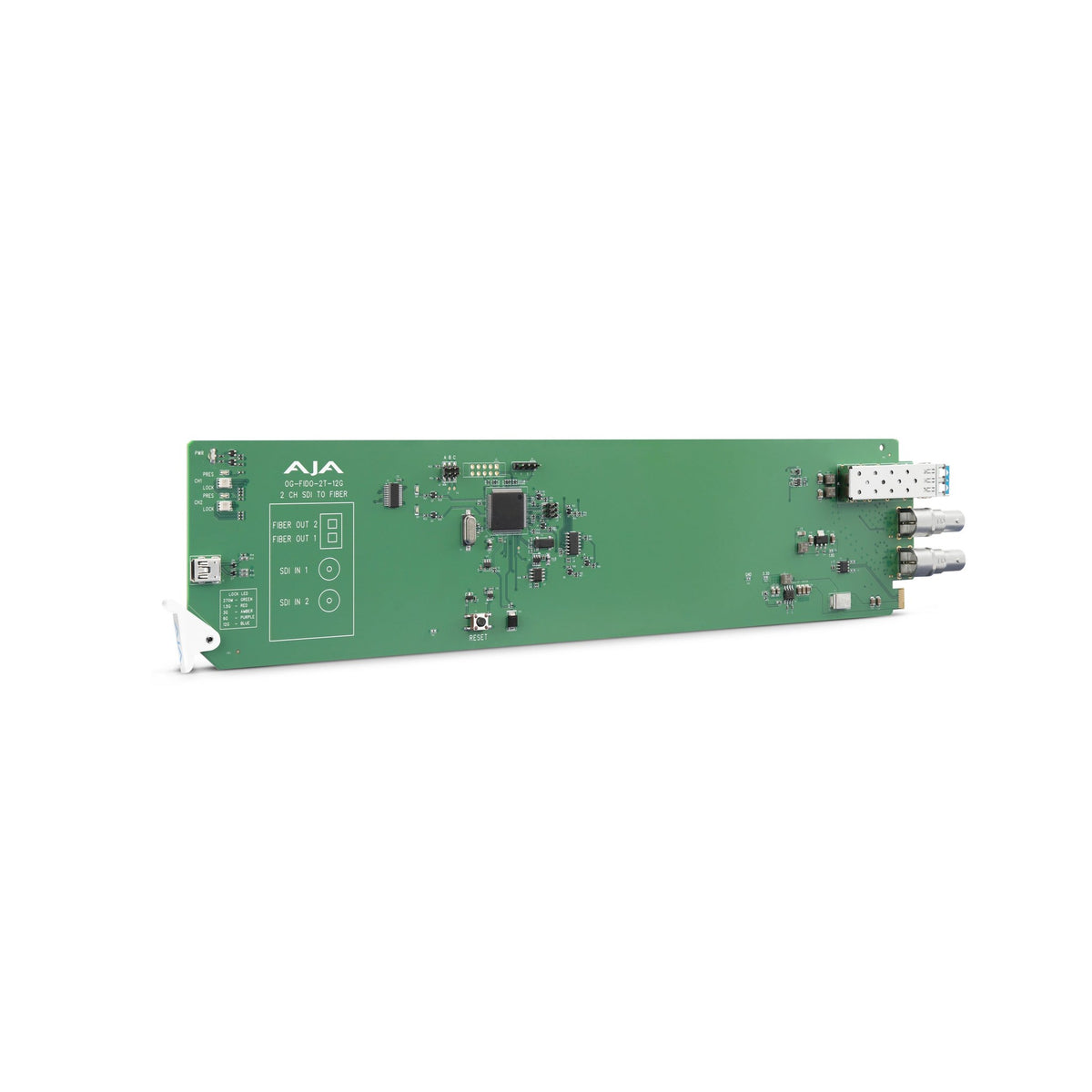

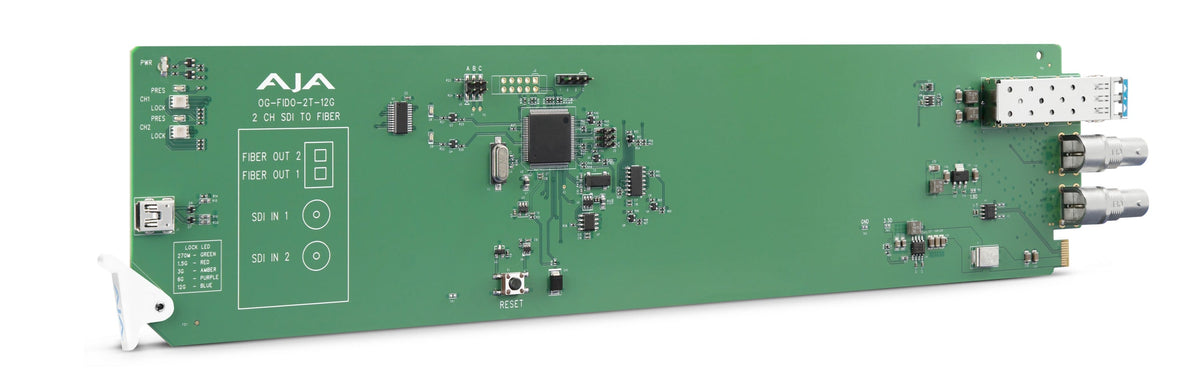

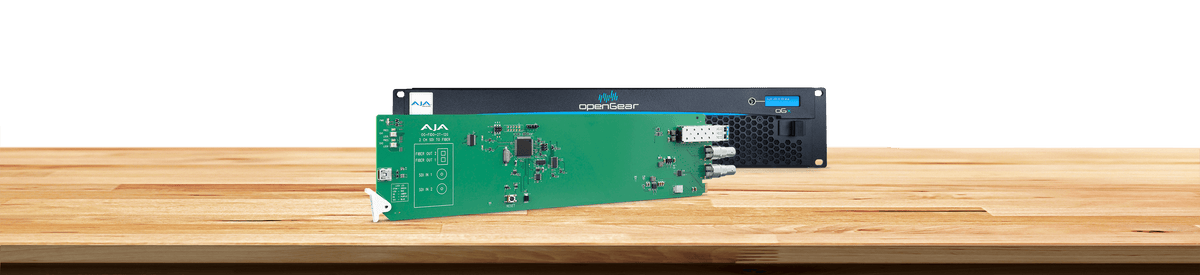

The OG-FiDO-2T-12G is a state of the art, openGear compatible, 2-channel 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two 12G-SDI inputs are completely independent, allowing different 12G-SDI rates to be carried on each channel.

Designed for use in high density openGear’s 2RU frames including AJA’s OG-X-FR frame, DashBoard Software support on Windows®, macOS®, and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring, and control options over a PC or local network.

Features

• Video Formats: 270 Mbps - 12 Gbps, format agnostic
• Inputs: 2x Independent 12G-SDI Inputs, BNC connectors
• Outputs: 2x Independent Single-Mode LC Fiber Connectors
• Monitor via openGear DashBoard software
• Support for HDR - High Dynamic Range video
• Supports pass-through of SDI metadata, including HDR
• Input Present and Input SMPTE Lock LEDs
• Automatic detection and reclocking
• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• Nominal Wavelength; Tx: 1310 nm (typ)
• Power: 3 watts Max
• Hot-swappable
• Appropriate Fiber SFP included
• Rear I/O card included
• Two slots required for each card
• Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Example OG-FiDO-2T-12G Signal Flow Diagram
This diagram shows four OG-FiDO-2T-12G openGear cards being used in an OG-X-FR rack frame, which highlights the high density capability of the openGear platform. The rack is installed at a live concert event stage. There are eight 12G-SDI cameras being used at the live event. In pairs, these cameras are connected to the OG-FiDO-2T-12G converters, providing a 12G-SDI to fiber conversion. The OB truck has another OG-X-FR rack frame with four OG-FiDO-2R-12G openGear cards providing the fiber to 12G-SDI conversion from the fiber pairs received from the stage. These eight 12G-SDI feeds are driving the OB truck production gallery monitors with ultra low latency.

Download Workflow

Connectivity
The 12G-SDI inputs are re-clocked with best-in-class input jitter tolerance. 12G-SDI input support, which includes 6G/3G/HD/SD-SDI. Both signal paths are independent and can be different rates. Supports single mode fiber cable.

Connectivity

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Connectivity

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Video Formats: 270 Mbps - 12 Gbps, format agnostic
Video Input Digital: 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
Video Output Digital: 2-channel independent 12G-SDI Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082; Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max); Optical Power: -5 dBm (Min), 0.5 dBm (Max); Extinction Ratio: 3.5 (Min)
Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select; All other rates are passed through and not reclocked
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
Size: openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 3.0 watts max per card
