Bring HDMI and 3G-SDI devices together for a full range of monitoring and recording solutions in the edit suite, on set or at live events. Convenient USB setup using AJA MiniConfig on Mac or PC for easy remote configuration.

Features

• Convert HDMI up to 1080p 60 to 3G-SDI
• 1x 3G-SDI output
• HD resolutions supported
• EDID Emulation
• Simple Frame Rate Conversion (FRC) from Fractional to Integer rates
• Embedded audio can be selected from the HDMI (8 channel) or Unbalanced Analog audio inputs (2 RCA)
• Configure via USB port and supplied AJA Mini-Config software
• Uses 5-20 VDC power (Universal power supply included)
• Five year warranty

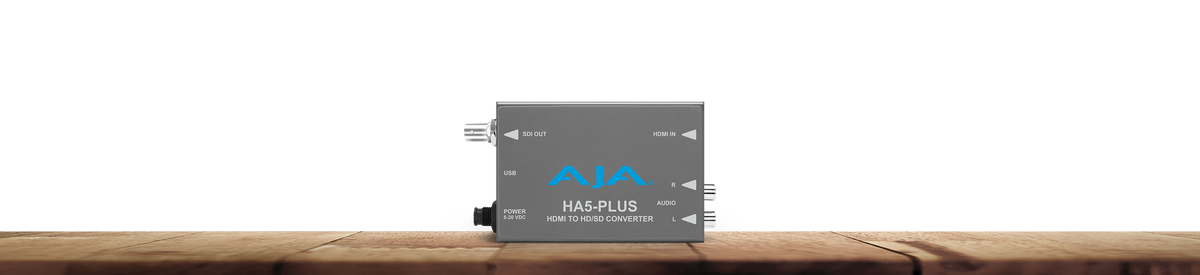

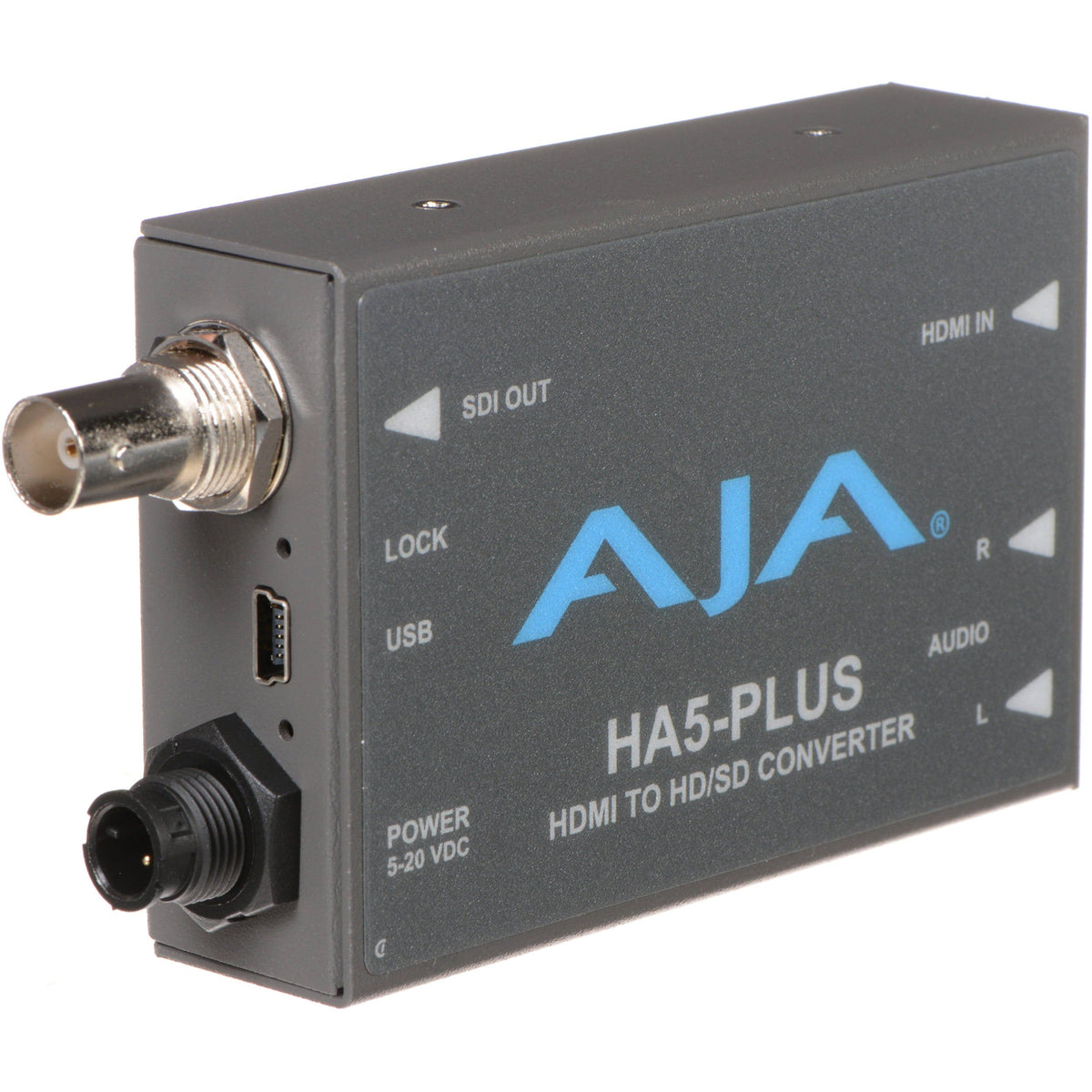

HDMI to 3G-SDI Mini-Converter
HA5-Plus is AJA’s next generation HDMI-to-SDI Mini-Converter. The HDMI input is converted to 3G-SDI output for driving SDI monitoring solutions. Up to eight channels of HDMI audio are passed through to the SDI output as well as the ability to embed two channels of analog audio.

Full HDMI Support
The equalized input on HA5-Plus is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.

Pristine Image Quality
A 3G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green) or HD (red) for fast and easy signal identification.

Analog Audio Input
Using the two RCA analog audio inputs, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.

DSLR support
HA5-Plus accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.

Tech Specs:
Video Formats: (HD) 1920x1080p; (HD) 1920x1080i; (HD) 1280x720p; (SD) 720x576p; (SD) 720x576i; (SD) 720x480p; (SD) 720x480i
Video Input Digital: 1x HDMI Type A connector, HDMI v1.4; YCbCr 4:2:2/4:4:4/4:2:0; 8 or 10-bit (HFR 4:2:2 limited to 10-bit); (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; (SD) 720x576p 50; (SD) 720x576i 25; (SD) 720x480p 59.94; (SD) 720x480i 29.97
Video Output Digital: 1x 3 Gb SDI (Level A or B Dual Link) (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 1.5 Gb SDI (HD) 1920x1080p 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 270 Mb SDI (SD) 625i 50; (SD) 525i 59.94
Audio Input Digital: HDMI embedded audio, 24-bit, 8-channel; 2-Channel RCA style analog audio (-10 dBu nominal)
Audio Output Digital: SDI embedded audio, 24-bit, 8-channel
Size (w x d x h): 4.6” × 2.4” × 1.0” (116.84 × 60.96 × 25.4 mm)
Weight: 0.3 lb (0.2 kg)
Power: Universal power supply included; 100-240V, 50/60 Hz universal input; +5V DC regulated, 7.5 watt capacity
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
