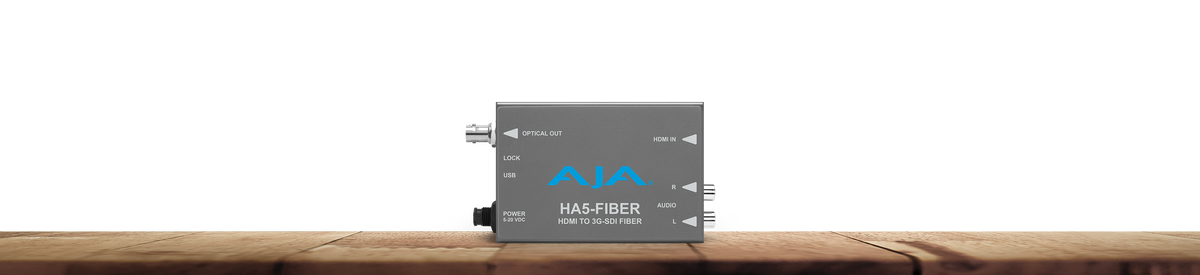

The HA5-Fiber converts a HDMI input to 3G-SDI over single mode 1310 nm fiber optic cable (ST-style fiber connector) for transporting HDMI sources over fiber. The small form factor enables this Mini-Converter to easily fit onto the back of a camera or neatly behind an equipment rack.

Embedded 8-Channel audio is supported in the fiber output allowing a convenient single cable audio/video connection up to 10km. The HA5-Fiber also provides 2-Channel RCA style audio inputs for a stereo audio input when needed.

Features

• HDMI to 3G-SDI over fiber
• EDID Emulation
• Supports single mode 1310 nm fiber optic cable with ST transmitter
• Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
• Full HDMI input support including embedded audio
• Additional 2-Channel RCA style analog audio (-10dBu nominal) input
• No configuration necessary
• 1m HDMI cable included
• Five year warranty

USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

Tech Specs:
Video Formats: (HD) 1920x1080p; (HD) 1920x1080i; (HD) 1280x720p; (SD) 720x576p; (SD) 720x576i; (SD) 720x480p; (SD) 720x480i
Video Input Digital: 1x HDMI Type A connector, HDMI v1.4; YCbCr 4:2:2/4:4:4/4:2:0; 8 or 10-bit (HFR 4:2:2 limited to 10-bit); (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; (SD) 720x576p 50; (SD) 720x576i 25; (SD) 720x480p 59.94; (SD) 720x480i 29.97
Video Output Digital: Single mode optical fiber, ST connector supporting SMPTE-259/292/424 HD/SD-SDI
Audio Input Digital: HDMI embedded audio, 24-bit, 8-channel; 2-channel RCA style analog audio (-10 dBu nominal)
Audio Output Digital: SDI embedded audio, 24-bit, 8-channel
Size (w x d x h): 4.6” × 2.4” × 1.0”(116.84 × 60.96 × 25.4 mm)
Weight: 0.3 lb (0.2 kg)
Power: Universal power supply included; 100-240V, 50/60 Hz universal input; +5V DC regulated, 7.5 watt capacity
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
