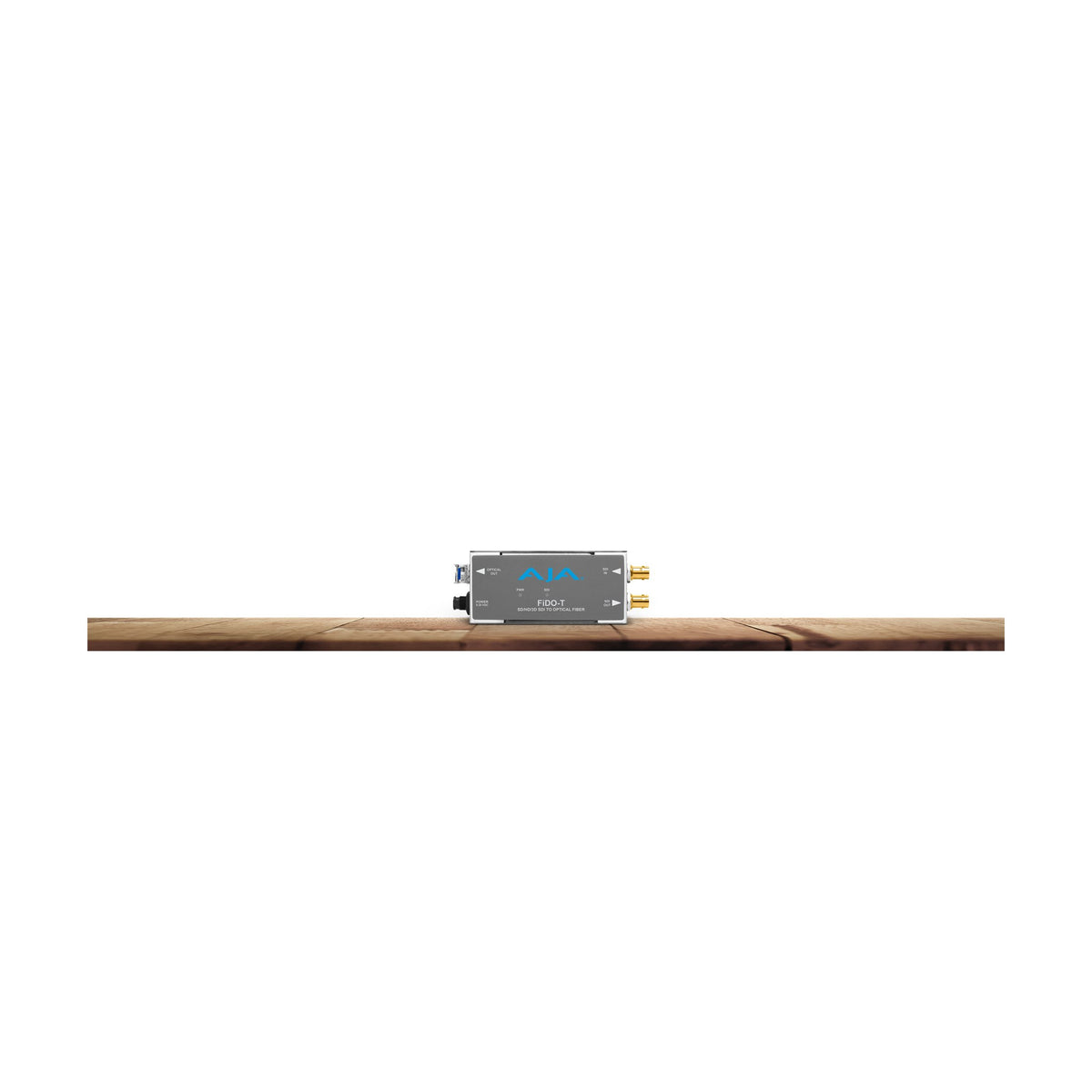

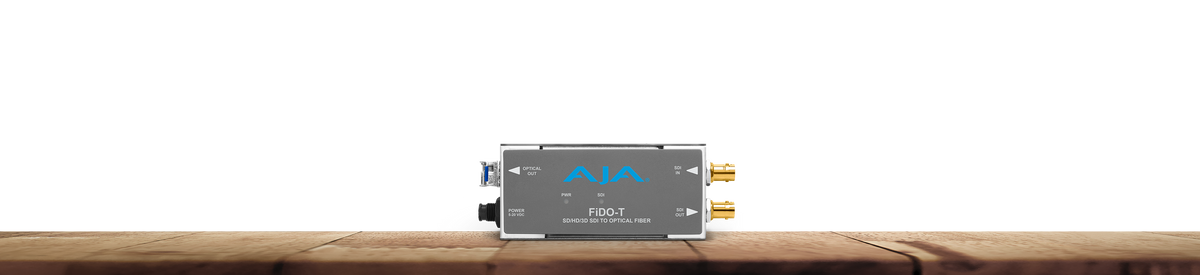

FiDO-T offers unmatched flexibility and cost efficiency for SDI to Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.

FiDO converters use a compact, low profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features:

• 1-Channel 3G-SDI to Single Mode LC Fiber Transmitter
• Simplex connection (LC connector)
• 3G/HD/SD-SDI input
• Looping SDI output
• Supports pass-through of SDI metadata, including HDR
• Uses 5-20VDC power (Universal power supply included)
• Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Tech Specs:
Video Formats: 150 Mbps - 3 Gbps, format agnostic
Video Input Digital: 1-channel independent 3G-SDI BNC Input with SDI Loop out, SMPTE-259/292/424
Video Output Digital: 1-channel independent 3G-SDI BNC Output, SMPTE-259/292/424; 1-channel Single Mode LC Fiber Output, SMPTE-297; Nominal Wavelength: 1310 nm; Optical Power: -5dBm (Min), 0dBm (Max); Extinction Ratio: 7.5dB (Typ)
Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select; All other rates are passed through and not reclocked
Size (w x d x h): 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
Weight: 0.5 lb (0.3 kg)
Power: 2 watts, max; Uses 5-20VDC power, universal power supply included
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
