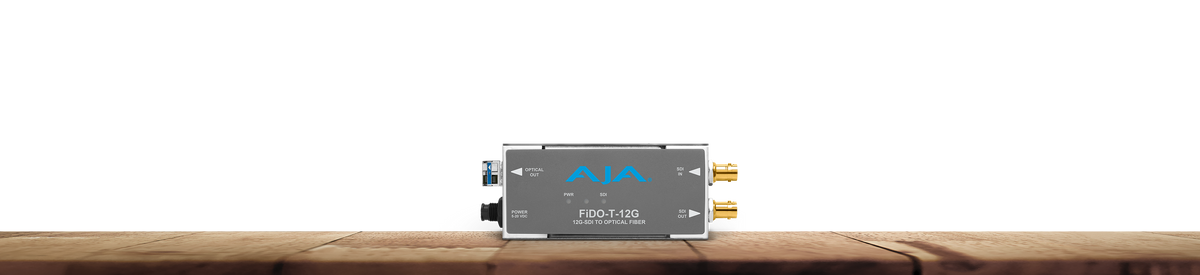

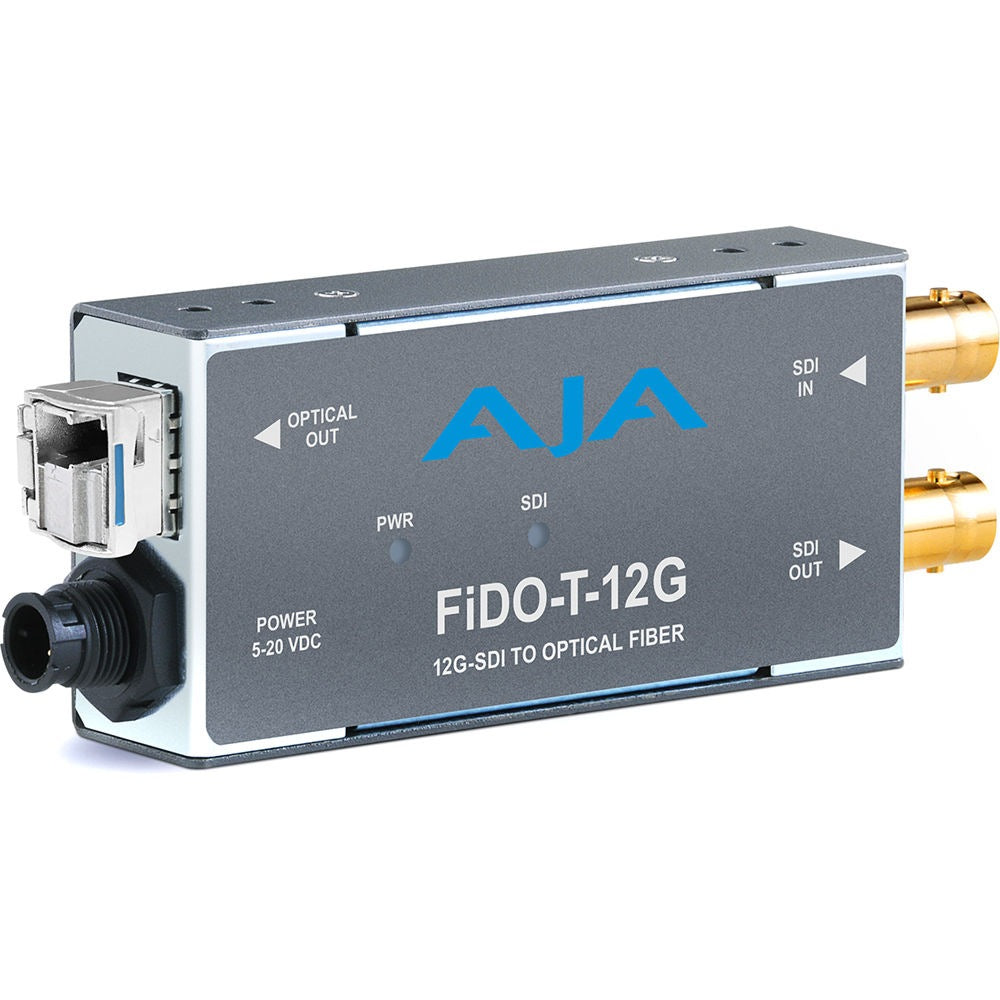

AJA FiDO-T-12G 1-Channel 12G-SDI to Single Mode LC Fiber Transmitter
AJA FiDO-T-12G 1-Channel 12G-SDI to Single Mode LC Fiber Transmitter

Vendor:

AJA FiDO-T-12G 1-Channel 12G-SDI to Single Mode LC Fiber Transmitter

$1,066.00

SKU FiDO-T-12G

Available to order — allow extra processing and shipping time

Full manufacturer warranties on everything we sell
14-day returns on new, unopened items
Questions? Talk to a specialist — Mon–Fri 8:30–5 ET

FiDO-T-12G offers unmatched flexibility and cost efficiency for 12G/6G/3G/HD/SD-SDI to Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features:

  • 1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter
  • Simplex connection (LC connector)
  • 12G-SDI input, which also supports 6G/3G/HD/SD-SDI
  • Reclocked loop through of SDI input
  • Supports pass-through of SDI metadata, including HDR
  • Uses 5-20VDC power (Universal power supply included)
  • Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Tech Specs:
Video Formats: 270 Mbps - 12 Gbps, format agnostic
Video Input Digital: 1-channel 12G-SDI BNC connector, SMPTE 259/292/424/2081/2082
Video Output Digital: 1-channel 12G-SDI reclocked, loop out, BNC connector, SMPTE 259/292/424/2081/2082; 1-channel 12G-SDI Single Mode LC Fiber connector, SMPTE 297/259/292/424/2081/2082; Nominal Wavelength: Tx 1260 nm (Min), 1310 nm (Typ), 1360 nm (Max); Optical Power: -5 dBm (Min), 0.5 dBm (Max); Extinction Ratio: 3.5 (Min)
Reclocking: 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select; All other rates are passed through and not reclocked
Size (w x d x h): 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)
Weight: 0.4 lb (0.2 kg)
Power: 2 watts, max; Uses 5-20VDC power, universal power supply included
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
