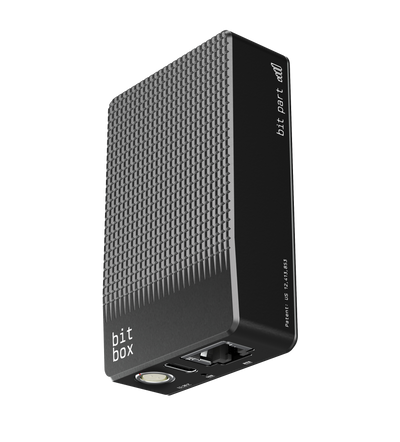

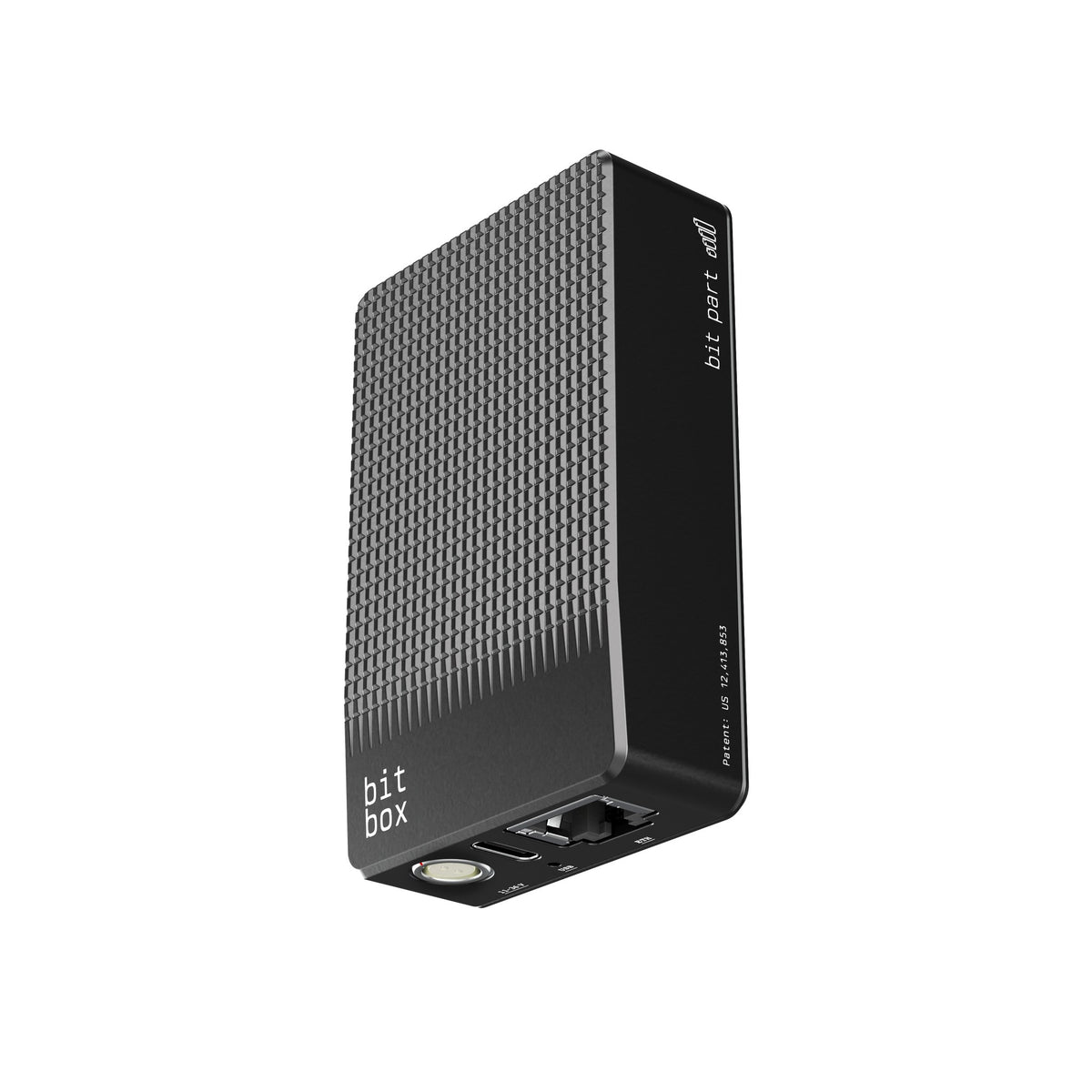

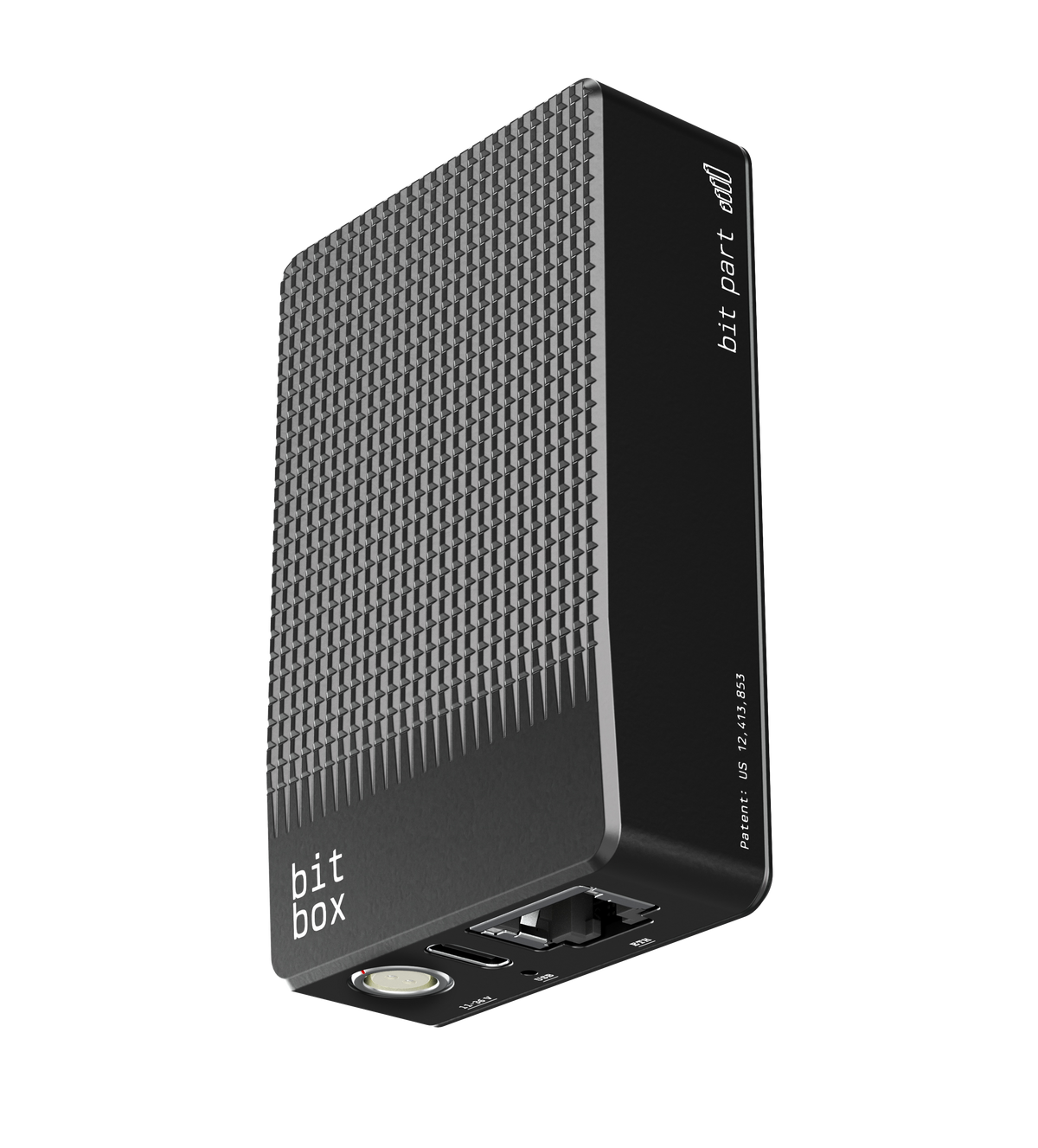

Bit Part bitbox max Deposit
SKU BB.V2.900.PRE
Available to order — allow extra processing and shipping time
Pre-order: ships as soon as it's released. We'll e-mail you when it's on the way.
Special order: non-cancelable, non-returnable
Refundable deposit for a new bitbox max. 4x the power of bitbox.
Retail price will be $1599, this deposit will be applied toward that amount when purchasing.
Deposits are not necessary for purchase, but will guarantee an allocation before general retail sales begin. You will receive instructions on how to purchase your allocated units as soon as they become available.
Custom-designed 1 watt radio
Up to 4x more powerful. Same tiny box. Up to 3.2km of range.
Industrial-grade components
Vastly improved filtering. Hardware filtering lets you take the same device from New York City to Stockholm to Tokyo with ease. Local and regional laws apply.
Certified where it counts
Our flagship bitbox products are the only FCC, ISED, and CE-compliant devices on the market. Certified and ready for use in the most heavily-regulated and RF-managed environments across North America and Europe.
Using 1W power may require license outside of the US and Canada. Device ships configured with region-compliant defaults.
bitbox max specifications
| Weight | 98g |
|---|---|
| Construction | 7075-T6 and 6061-T6 machined aluminum |
| Number of remotes | 8 |
| Range | 3.2km line of sight |
| Radio module | BP.BBR.V2.900 |
| Functions | Base Station or Remote |
| Ports | LEMO 2-pin 1Gbps Ethernet USB-C PD Ethernet Internal Expansion |
| USB-C Ethernet | Yes |
| USB-C PD power in/out | Yes |
| Internal expansion connector | Yes / 1Gbps |
| Internal Ethernet switch | Yes |
Same tiny box
bitbox max is built in the bitbox housing — same 98g, same machined aluminum, same mounting and the same connectors.
Dimensions
81.1 mm x 51.2 mm x 21.8 mm (3.19 x 2.01 x 0.86 inches)
Materials
Black anodized 6061 & 7075 aluminum housing
Sustainable plastic button & switch elements
Mechanical interface
Built-in:
1/4-20 threaded hole with ARRI and SmallHD anti-rotation patterns
15mm grid of ten M4 mounting holes
20mm grid of seven M2.5 mounting holes (compatible with Wooden Camera mini accessory rails)
Human interface
Pairing Button
Power Light
Signal Level Lights
Base Station / Remote Radio Selector Switch with Pairing Light
Connectors
Antenna
Field-replaceable antenna
2-pin Lemo 0b
11-36 volt power input, polarity agnostic
USB-C
5 volt power input or output
USB Ethernet chipset (connect to devices without Ethernet ports)
Radio diagnostics, advanced configuration, and firmware upgrade
Ethernet jack
Gigabit Ethernet
Cameras Bit Part publishes configurations for
| ARRI | Alexa Mini, Alexa Mini LF, Alexa 35, Alexa 265 |
|---|---|
| RED | Komodo, V-Raptor, V-Raptor XL |
| Sony | FX3 / FX3A, FX6, Venice / Venice 2 |
| Vision Research | Phantom Flex 4K |
Good to know
Because transmission is bidirectional, 2 bitbox max are needed for optimum transmit power. bitbox max can talk to other bitbox radios but does so at the standard power levels.
