The successor to the M2R with improved:

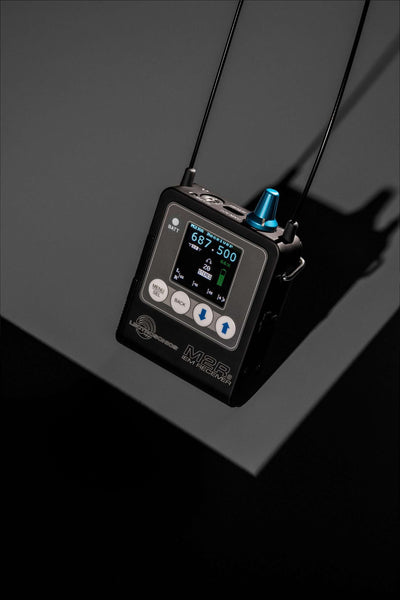

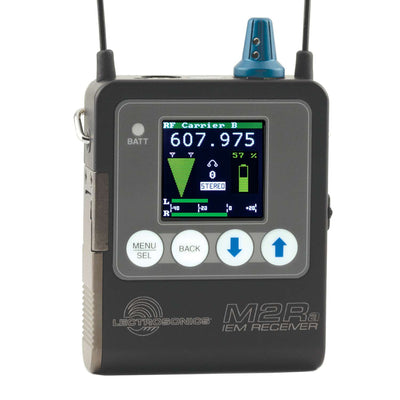

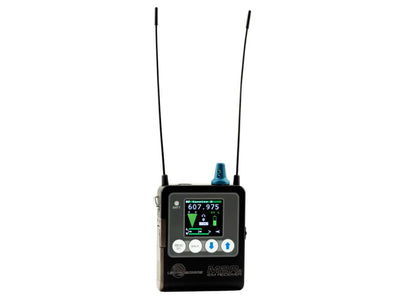

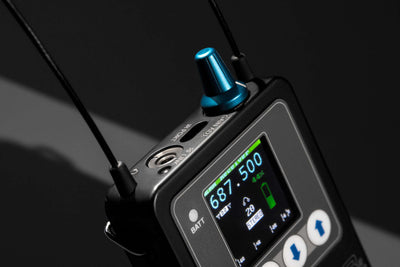

The M2Ra Digital IEM Receiver is an improved compact, rugged body-worn stereo digital receiver providing high quality sound for performers or any professionals needing to monitor detailed audio wirelessly. The M2Ra employs advanced antenna diversity switching during digital packet headers for seamless audio. The receiver uses digital modulation and covers 144 or 155 MHz (depending on version) of spectrum in the UHF band.

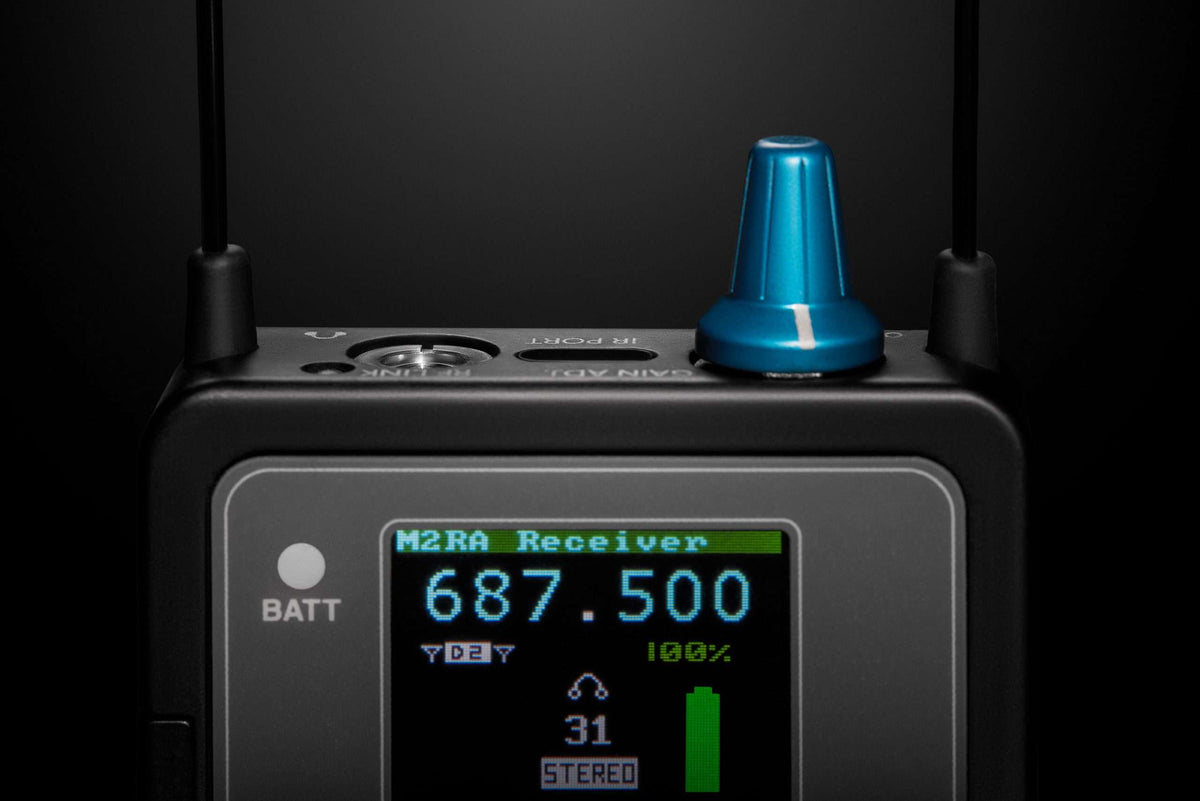

The M2Ra employs 2-way IR sync, so data from the receiver can be exchanged with DCHT and M2T transmitters. With the M2T, the M2Ra is part of the Duet system which can be managed by Wireless Designer™ Software. This way, frequency planning and coordination can be done quickly and confidently with on-site RF information. Housings and panels are made of machined aluminum with hard-anodized finishes with laser etched marking for durability, yet they are lightweight and sleek in order to be light weight. The M2Ra features a user-friendly interface with a high-resolution, backlit, color LCD and membrane switches. The M2Ra runs for 7 hours on two lithium AA batteries.

Accessories

The successor to the M2R with improved: • IP3 performance of +15 dBu for tough RF environments The M2Ra Digital IEM Receiver is an improved compact, rugged body-worn unit providing high quality sound for performers or any professionals needing to monitor detailed audio wirelessly. The M2Ra employs advanced antenna diversity switching during digital packet headers for seamless audio. The receiver uses digital modulation and covers UHF frequencies as seen in the table below. restrictions. Depending on LOCALE selection, the SmartTune and Scan frequency ranges are: NA: 470.100 - 607.950 MHz EU: 470.100 - 614.375 MHz AU: 520.000 - 614.375 MHz JA: 470.150 - 614.375 MHz EU: 537.600 - 691.175 MHz AU: 537.600 - 691.175 MHz JA : 537.600 - 691.175 MHz The headphone jack is fed from a high-quality stereo amplifier with 250 mW available to drive even inefficient headphones or earphones (min. 10 ohms) to sufficient levels for stage performance or other noisy environments. The receiver can select from stereo, mono from left or right channels only, or mono from both channels, giving the unit flexibility in terms of application as an IEM, IFB or camera-hop receiver. An intuitive interface and high resolution, color LCD on the unit provide performing artists and audio professionals alike with a comfortable and confident user experience.

Features

• IP3 performance
• P48 protection on the headphone jack
• Encrypted (256-bit encryption – AES 256-CTR) and non-encrypted operation under one firmware version
• IFB compatibility mode
• Addition of D2 and HDM compatibility modes
• Black anodized finish for low visual profile
• P48 protection on headphone jack

Specifications

• WARNING: Operating Spectrum (dependent on Locale):
• A1B1: AU: 520.000 - 614.375 MHz
• B1C1: AU: 537.600 - 691.175 MHz
• Modulation Type: 8PSK with Forward Error Correction
• Encryption Type: AES-256 in CTR mode
• Latency: (overall system)
• Digital Source: 1.0 ms plus Dante network
• Analog Source: <1.6 ms
• Frequency Response: 10 Hz - 12 KHz, +0, -3dB
• THD+N: 0.15% (1kHz @ -10 dBFS)
• Dynamic Range: >95 dB weighted
• Third Order Intercept: +15 dBu
• Diversity Type: Switched antenna phase, during
• Audio Output: 3.5 mm stereo jack
• Power requirements: 2 x AA batteries (3.0V)
• Battery life: 7 hours; (2) Lithium AA
• Power consumption: 1W
• Height: 3.5 in. / 90 mm. (with knob)
• Width: 2.375 in. / 60.325 mm.
• Depth: .625 in. / 15.875 mm.
• Weight: 5.6 ounces / 159 grams (with batteries)
