The output of any SR Series receiver can be delivered in analog or digital audio formats using this adapter. The unit will work with all receiver versions to provide audio in the following formats:

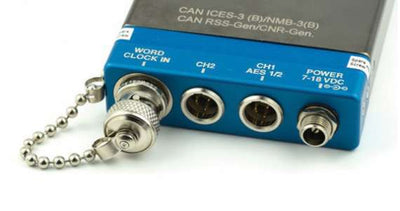

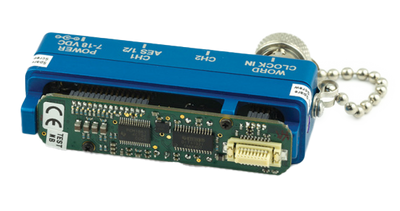

Audio Output Adapter The output of any SR Series receiver can be delivered in analog or digital audio formats using this adapter. The Output Mode Selector Switch determines audio format. The unit will work with all receiver versions to provide audio in the following formats: • AES3/EBU - AES3 digital audio at 48 kHz sampling with an internal clock The standard multi-pin interface is the same on all SR Series receiver output adapters. The housing is machined from a solid aluminum billet for ruggedness. A 75 ohm termination of the word clock connection is applied by a jumper, installed by default at the factory. 75 ohm jumper The jumper can be removed if not required by your word clock distribution system. In the AES Modes, one or two channels of digital audio are delivered from the CH1 Jack. The selected diversity and mix mode functions on the receiver will determine if the CH1 and CH2 outputs deliver the same audio signal or two separate audio signals. MCSR/5PXLR5P Audio output cable; RATPAC 5-pin to XLR5M; channel 1 and 2 signals 6 ft. long power cord; coaxial to stripped & tinned leads. Right angle coaxial plug: ID-.075”; OD-.218”; Depth.375” MCSR/5PXLR2 Audio output cable; RATPAC 5-pin to (2) XLR3M; channel 1 and 2 signals Locking LZR style plug to stripped and tinned; 12 inches long. MCSRTRS Dual TA3F to male 3.5mm TRS

Features

• AES3 digital audio at 48 kHz sampling with an internal clock
• AES3 digital audio with an external word clock at 44.1, 48 or 96 kHz sampling
• Balanced analog audio from – 50 dBu to +5 dBu in 1 dB steps
• W/WORD CLOCK - AES3 digital audio with an external word clock at 44.1, 48 or 96 kHz sampling

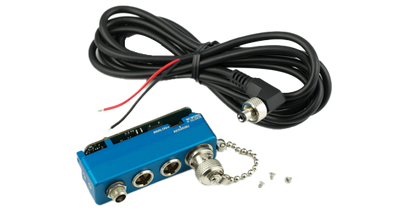

• ANALOG - Balanced analog audio from -50 dBu to +5 dBu in 1 dB steps Supplied as a kit with power cord and hardware

Optional Audio Cables

6 ft. long power cord; coaxial to stripped & tinned leads. Coaxial plug: ID-.080”; OD-.218”; Depth- .5”. .475”

Specifications

• Type: AES3/EBU
• Output Level: -11 dBFS
• Internal clock: 48 kHz
• External clock: 44.1, 48 or 96 kHz
• THD: 0.15%
• Output Connectors: TA3 male (mini XLR)
• Parameter: Standard TTL level
• Termination: 75 ohm (removable)
• Connector: BNC
• Power Requirements: 7 min. to 18 max. VDC
