This kit includes an output and power panel with two TA5 male balanced output pairs, and a locking Hirose-4 DC power jack. A USB-C jack allows for connection of the DSR to Wireless Designer ( pending ) for monitoring, channel setup, scanning, and frequency coordination. Firmware up- dates must be done with the USB Micro B connector on the top panel of the unit. Power cord not included.

Documentation

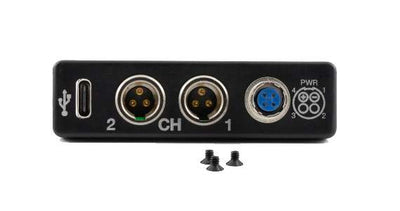

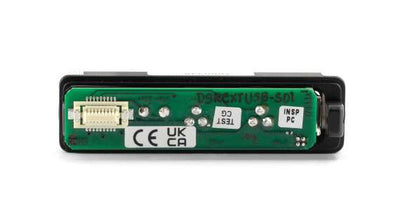

DSR Adapter for Stand-alone Use This adapter consists of 2 channels of audio output and power panel with two TA3 male balanced outputs, and a locking Hirose-4 DC power jack. The USB-C jack allows for connection of the DSR to Wireless Designer for frequency coordination, monitoring, channel setup and scanning. Power supply not included. Installing Rear Panel Adapters Panels are held in place by two Phillips head screws on the sides of the housing. Connections between the panel and the main circuit board are made via a miniature mating connector. Carefully align the mating connectors and gently slide the panel straight into the housing until the screw holes align with the housing. cannot be used for firmware updates on the receiver. For firmware updates, use the receiver USB top panel connector located under the display. adapters and sleds made for the SR Series (SRSUPER, SRHARNESS,etc.). Refer to the SR ADAPTERS technical data sheet for more information. SR ADAPTERS Thread two short screws through the recessed tabs on the adapter and slide it onto the receiver housing. Thread two short screws through the tabs on the receiver flange as shown. On the opposite side, thread two long screws through the tabs on the receiver flange, then align them with the tabs on the adapter. CH1 AUDIO GND (SHIELD) CH2 AUDIO (+) OUT (HOT) CH2 AUDIO (–) OUT (COLD) Slide the adapter up and tighten the retaining screws to secure it to the receiver flange. SRSNY Sony Camera Adapter Kit Contents Adapter kit for Sony® camera slots,* includes bezel, hardware, spare gasket and rear panel DB15 connector wired for power and audio connections. SRSNY Adapter Mounting The smaller screws thread through the adapter and into the camera body. The larger screws mount the receiver flange to the adapter. Larger screws (4) attach receiver to the adapter the receiver into the camera slot, try mounting the blue adapter plate to the camera first, then inserting the receiver. External DC Power Supply External power is required via Hirose 4 locking connector wired per the diagram. 7-18VDC; max current is 450mA @ 7V.

Features

• Documentation

SRSUPER Adapter Mounting

Adapter kit for Unislot® camera slots such as those provided on Ikegami® and Panasonic® cameras.* Includes bezel, hardware and rear panel DB25 connector wired for power and audio connections.
