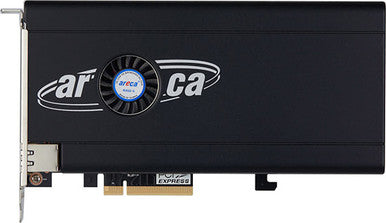

Areca ARC-1886-4N8i Slimline SAS and M.2 NVMe PCIe Gen 4.0 Hardware RAID Adapter

There are many advantages features for ARC-1886-xNxI RAID adapter uEFI support for more than one macOS version to reside on one Apple machine.

(2). Allows a new operating system to configure all applications needed, and migrate data before removing the old operating system

(4). Software developers needs to have multiple operating systems for development or testing purposes

The user would need to simply reboot the device and select the alternate option to switch from one version to others version.

• Controller-level hardware encryption and SED support for encryption capable drives
• Support up to 256 SATA or SAS devices using SAS expanders
• Firmware automatically backup from NVMe RAID to SAS/SATA RAID
• Device interface PCIe Gen4 NVMe / 6Gb/s SATA per M.2 slot
• PCIe 4.0 host interface, PCIe Gen4 x8 lanes at maximum transfer rate up to 128Gb/s
• Supports up to 4/6 x PCIe Gen 4.0 M.2 slots and 1x SFF-8654[x8] / 2 x SATA connector
• CBM module or on-board battery(CR2032) to keep on M.2 fault LED status for troubleshooting
• Hardware-based RAID solution that supports RAID levels 0, 1, 10, 3, 5, 6, Single Disk and JBOD
• Implemented 8GB 72-bit DDR4-2666 SDRAM providing hardware RAID assist engine for parity calculations
• Dynamically allocate storage 12Gb/s SAS/SATA/PCIe (NVMe) to NVMe slot1 and SATA/SAS ports on ARC-1886-6N2I
• Support off module power loss protection (PLP) saves data issued without data loss at power fail using optional CBM module
