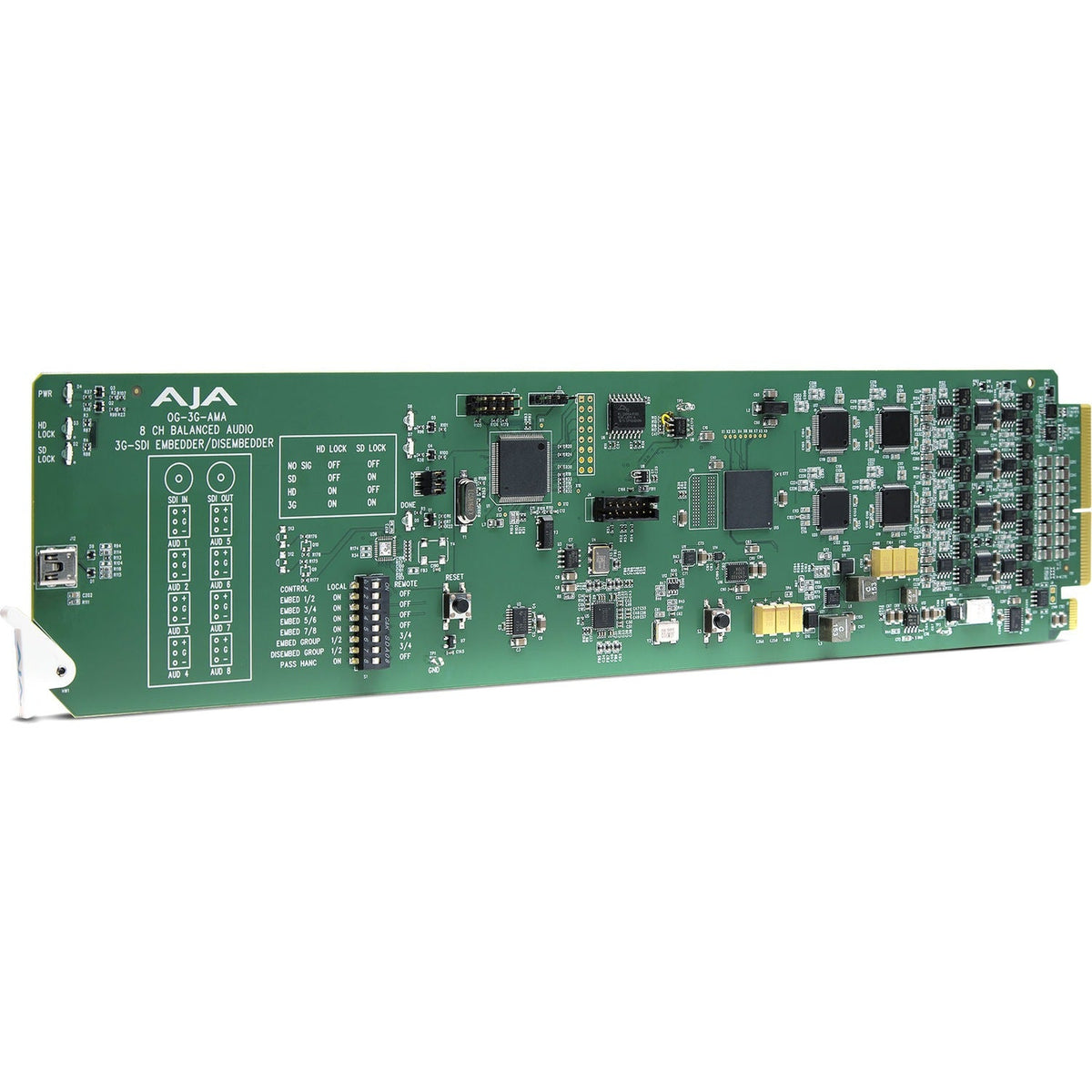

An openGear 8-Channel analog audio embedder/disembedder, OG-3G-AMA supports 3G-SDI input and output up to 1080p60, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.

Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 3G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

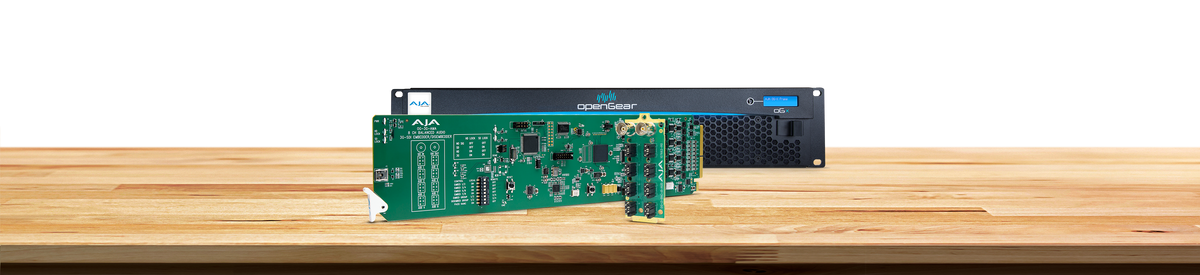

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry-standard configuration, monitoring and control options over a PC or local network.

Features

• openGear compatible card
• 3G-SDI Audio Embedder/Disembedder
• 8-Channel Balanced Analog Audio I/O
• 8x 3-Pin Terminal Block connectors (included)
• Supports HDR pass-through
• Controlled by DashBoard network control software and external DIP switch
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

HDR Pass-Through Support

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

HDR Pass-Through Support

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Video Formats: (2K) 2048x1080p; (2K) 2048x1080PsF; (HD) 1920x1080p; (HD) 1920x1080PsF; (HD) 1920x1080i; (HD) 1280x720p; (SD) 720x576i; (SD) 720x480i; RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital: 1x 3G-SDI BNC, SMPTE-259/292/424 Single Link SD/HD/2K; Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
Video Input Formats: 1x 3 Gb SDI (level A or B) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 270 Mb SDI (SD) 625i 50; (SD) 525i 59.94
Video Output Digital: 1x 3G-SDI BNC, SMPTE-259/292/424 Single Link SD/HD/2K; Single Link 3G-SDI Level A, Level B (Dual Link or Dual Stream), SMPTE 425
Video Output Formats: Video Latency, time measured between video input and video output connector: 3G level A = 3.2 usec; 3G level B = 6.1 usec; HD (1.5 Gb) = 6.3 usec; SD (270 Mb) = 17.2 usec
Audio Inputs and Outputs: Audio Connectors 8x Analog Audio Connections (4 pairs total) Each pair configurable to Inputs or Outputs; Digital Audio Converters 24-bit; Embedded Audio SMPTE 272M (SD): 20-bit, 48 kHz synchronous; SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous; Incoming embedded audio can be passed, removed, or overridden; 16x channels supported (8x can be from the analog inputs); Embed Path Audio Latency, time measured between audio input and video output connector: 1100 usec; Disembed Path Audio Latency, time measured between video input and audio output connector: 1200 usec; Analog Audio Levels Configured via Dashboard software: Pro 1: 0 dBfs = +24 dBu; Pro 2: 0 dBfs = +18 dBu; Pro 3: 0 dBfs = +15 dBu; Consumer 1: 0 dBfs = +12 dBu
User Interface: External DIP switch; openGear DashBoard network control software via Windows, macOS, or Linux
Size: openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 5.0 watts max per card
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
