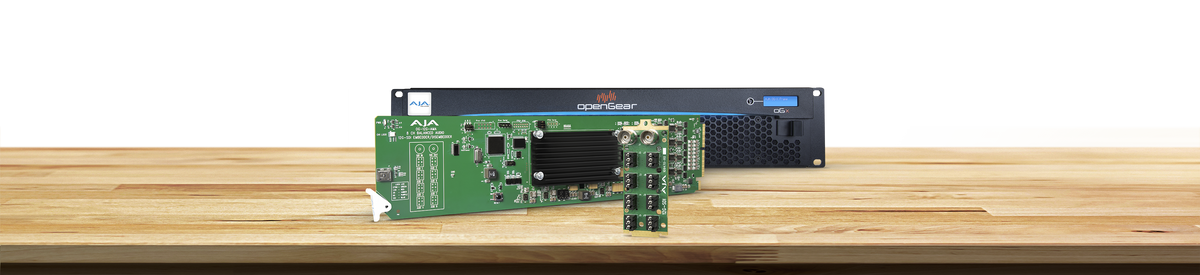

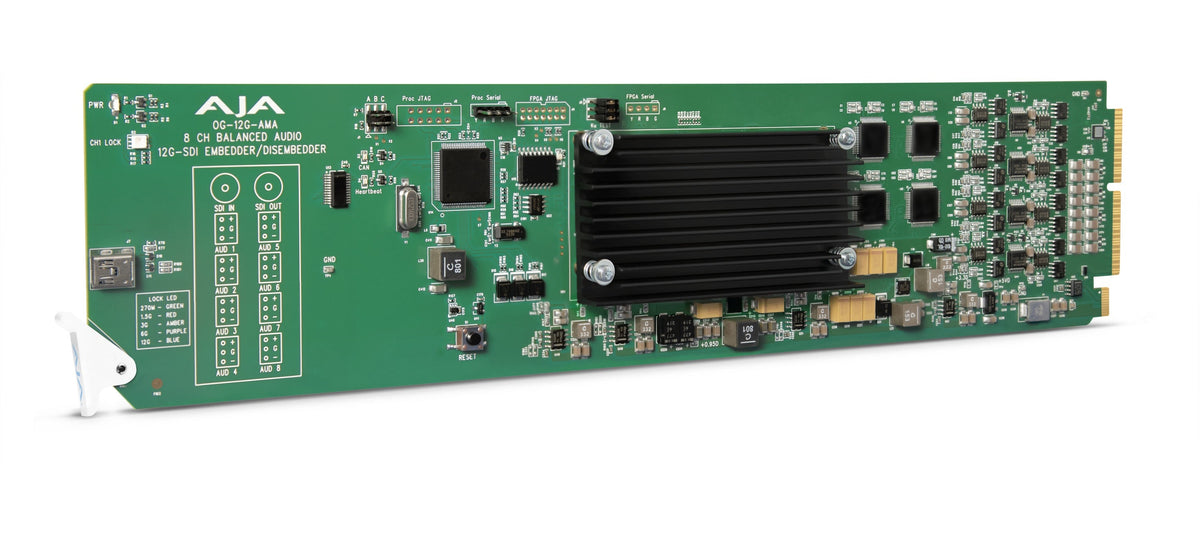

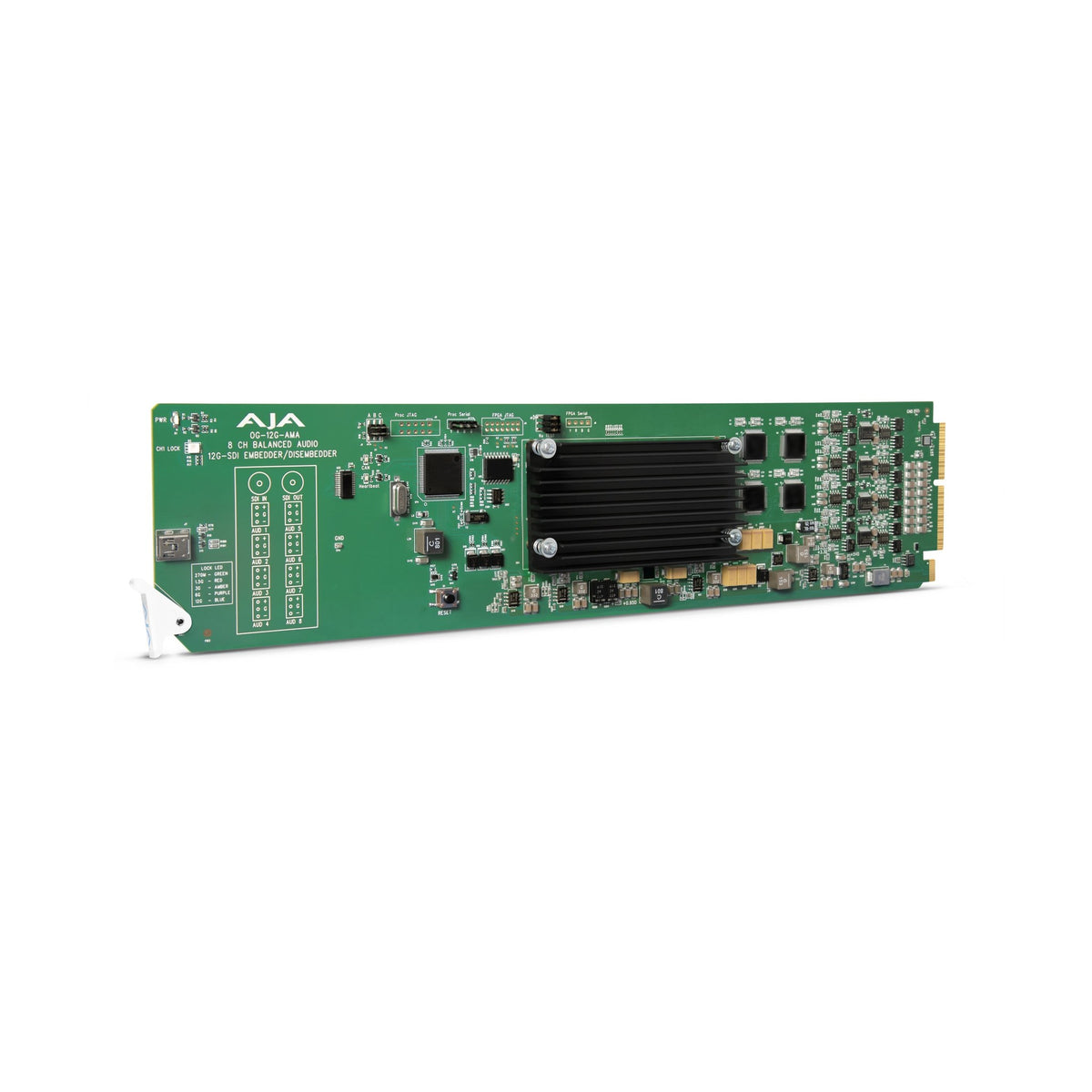

The OG-12G-AMA is an openGear 8-channel analog audio embedder/disembedder, that supports 12G-SDI input and output up to 4K/UltraHD, and automatically detects and configures to the input video standard. It uses 3-pin terminal block connectors that can be set to perform audio input or output functionality.

Analog audio levels and audio embedding/disembedding are selectable, with embedding/disembedding on a channel pair basis to pass 12G-SDI input audio or embed input analog audio from 3-pin terminal block connectors.

Designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame. Ross DashBoard Software supports Windows®, macOS®, and Linux® and provides convenient, configuration, monitoring, and control options for openGear cards and frames via a connected computer or over local network with DashBoard's web UI.

Features

• 12G-SDI analog audio embedder/disembedder
• 8-channel balanced analog audio I/O
• 8x 3-Pin Terminal Block connectors (included)
• Supports HDR pass-through
• Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
• Monitor and control with Ross DashBoard software
• 8 watts max per card
• Five year warranty

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

OG-12G-AMA Workflow
The OG-12G-AMA in this workflow diagram is receiving 4K video and embedded audio via 12G-SDI. At the same time, the OG-12G-AMA is disembedding analog audio and sending the analog audio I/O for mixing.

The output of the mixer is then embedded into the SDI stream being output via the 12G-SDI connection of the OG-12G-AMA. This 12G-SDI output is fed directly to a Ki Pro Ultra 12G to record the original 4K video with the newly embedded, mixed audio.

Download Workflow

OG-12G-AMA Workflow

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

OG-12G-AMA Workflow

Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Tech Specs:
Video Formats: (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; (SD) 625i 50; (SD) 525i 59.94; RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital: 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K; Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
Video Output Digital: 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K; Single Link 3G-SDI Level A, Level B (DL or DS), SMPTE 425
Video Path Delay: Video Latency, time measured between video input and video output connector: 12G = 4 µsec; 6G = 4 µsec; 3G level A = 4 µsec; 3G level B = 8 µsec; HD (1.5 Gb) = 8 µsec; SD (270 Mb) = 22 µsec
Audio Inputs and Outputs: Audio Connectors 8 Balanced analog audio connections (4 pairs total) Each pair configurable to Inputs or Outputs
Audio Converters (Analog-to-Digital/ Digtal-to-Analog): 24-bit
Embedded Audio: SMPTE 272M (SD): 20-bit, 48 kHz synchronous; SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous; Incoming embedded audio can be passed, removed, or overridden; Up to 16-channels supported
Path Audio Latency: Embed Path 1100 µsec; Disembed Path 1200 µsec
Analog Audio Levels: Pro 1: 0 dBfs = +24 dBu; Pro 2: 0 dBfs = +18 dBu; Pro 3: 0 dBfs = +15 dBu; Consumer 1: 0 dBfs = +12 dBu
User Interface: openGear DashBoard network control software via Windows, macOS, or Linux
Size (w x d x h): openGear standard form factor, front slot and rear card; Two slots required for each card
Weight: 0.5 lb (0.3 kg)
Power: openGear frame compatible, 8 watts max per card
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
