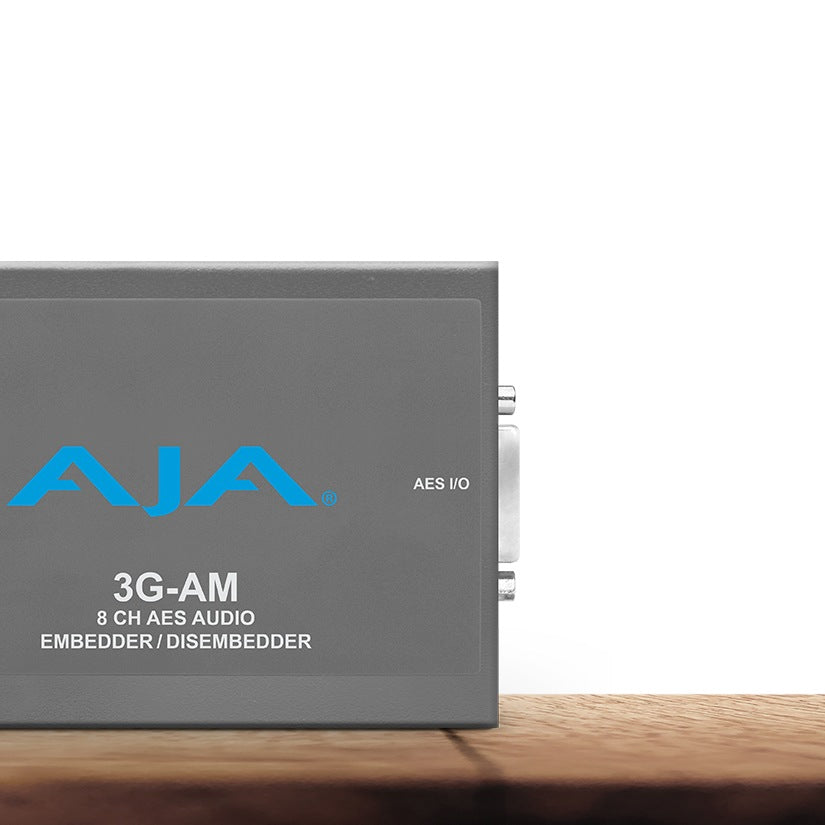

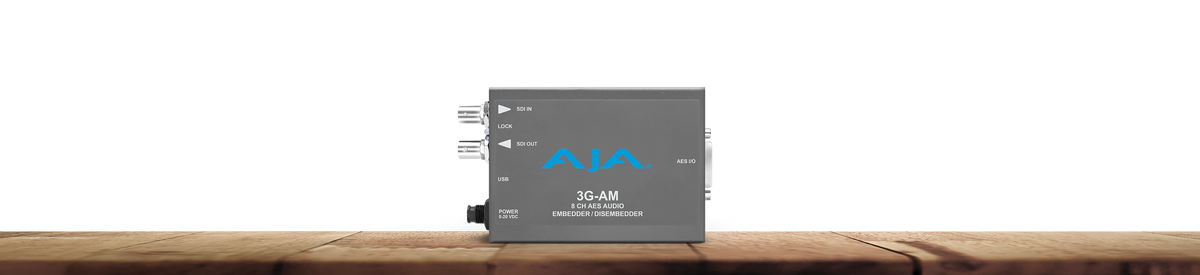

The 3G-AM is an 8-channel AES audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing 4 AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input AES audio from the breakout cable.

AES inputs are sample rate converted to a 48 KHz rate synchronous to the video input. The 3G-AM automatically detects and configures to the input video standard.

Features

• 3G-SDI embedder/disembedder
• 8-channel AES I/O
• Supplied breakout cables for balanced AES - XLR connectors
• USB connectivity via AJA Mini-Config software
• Supports HDR pass-through
• Dipswitch configuration
• +5-20VDC Power

Choice of Supplied Breakout Cable
Order 3GAM with either a XLR or BNC breakout cable.

Specify 3G-AM-XLR for XLR connectivity or 3G-AM-BNC if you prefer BNC connectors for AES audio needs.

HDR Pass-Through Support
HDR or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than SDR or Standard Dynamic Range signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

Tech Specs:
Video Input Formats: 1x 3 Gb SDI (level A or B) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 270 Mb SDI (SD) 625i; (SD) 525i; RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital: 1x 3G-SDI BNC, SMPTE-259/292/424
Video Output Digital: 1x 3G-SDI BNC, SMPTE-259/292/424
Audio Inputs and Outputs: AES PCM audio, 1x 25 pin D female connector on converter, 8-Channels in, 8-Channels out, selectable in pairs; Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors (AES3 110 ohm); 4x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats: AES3-2003; SMPTE 337M
Digital Audio Converters: 24-bit
Embedded Audio: SMPTE 272M (SD): 20-bit, 48 KHz synchronous; SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous; Incoming embedded audio can be passed, removed, or overridden; Up to 16-channels supported
Embed Path Audio Latency: 1500 usec (SRC ON); 400 usec (SRC OFF)
Disembed Path Audio Latency: 210 usec
User Interface: External DIP switch; USB port used with Mini-Config software application to configure device via PC/Mac
Size (w x d x h): 5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Weight: 0.61 lb. (0.28 kg)
Power: +5-20VDC, 5 watts power supply required, included with purchase
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
