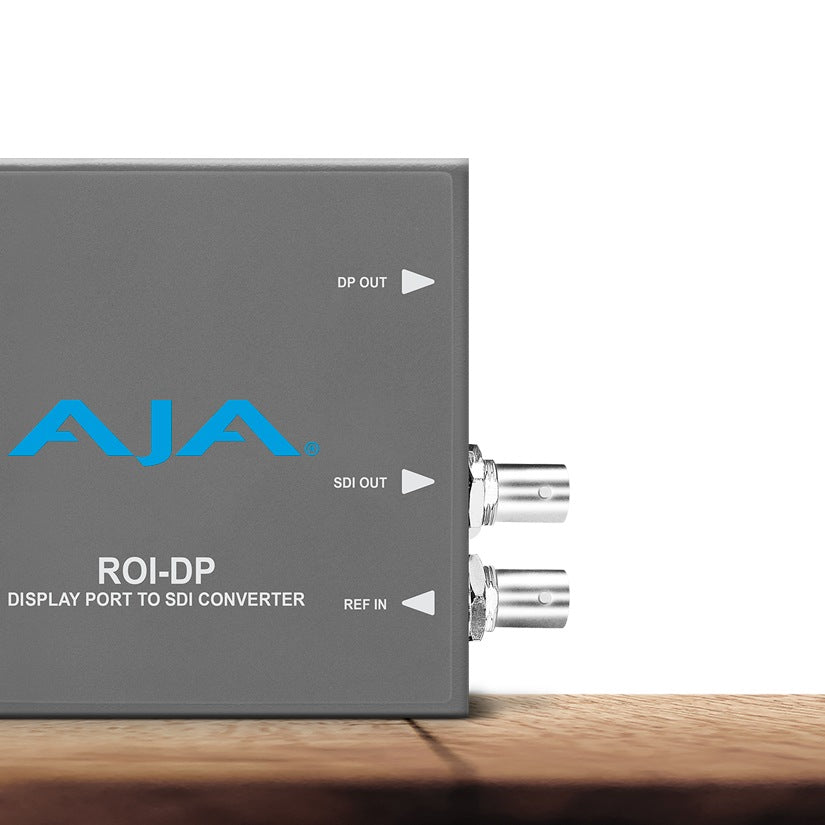

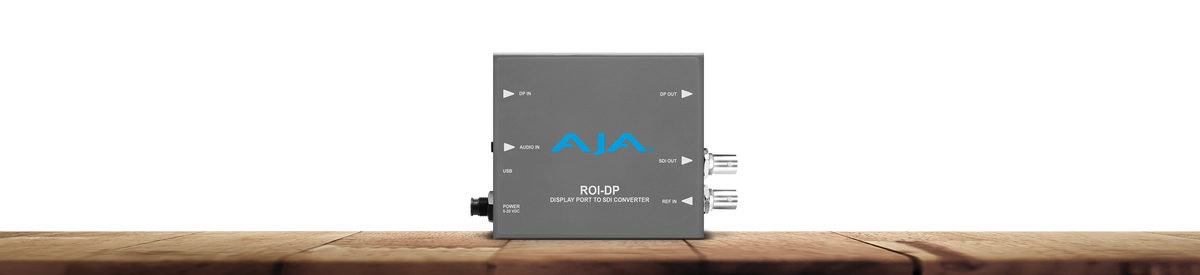

AJA’s ROI-DP Scan Converter allows exceptionally high quality conversion of computer DisplayPort outputs to baseband video over SDI at an affordable price and a very portable size. With extensive audio functionality, incredible image scaling as well as aspect and frame rate conversion, ROI fulfills the growing need to properly incorporate computer signals into the video world without sacrificing budget or space.

Features

• DisplayPort (DP) to 3G-SDI conversion with DP loop through
• Scan Converter
• EDID Emulation
• 3G-SDI output
• Supports SD, HD, and 3G formats (see Tech Specs for complete list)
• Region of Interest scaling
• Up, down, cross-conversion
• Aspect ratio conversion
• Frame rate conversion
• Image H/V flip and 90 degree rotation
• Conversion between Deinterlaced and Progressive signals
• Accepts input DP formats up to 1920 x 1200 60 Hz
• Loss of input management: Black, Freeze, or Mute
• 2-channel embedding of balanced analog audio inputs or 2-channel or 8-channel DP audio
• Genlock: Reference Input or Free Run
• Configure via USB port and supplied AJA Mini-Config software, PC/Mac
• Uses 5-20 VDC power (Universal power supply included)
• Five year warranty

Region of Interest
Eliminate extra interface clutter and menu bars and extract only the portion of the computer screen you want.

Connecting a ROI Mini-Converter via USB to a computer running the free Mini-Config application lets you interactively select a Region of Interest from the incoming computer signal and have full control over how that region is scaled to the output resolution using AJA’s high quality scaling algorithms for the cleanest picture quality possible.

AJA Quick Start: ROI Scan Converters
Watch this video to learn how to configure and control your ROI with AJA's free Mini-Config control software.

Conversion
Take full control of aspect ratio conversion with on-screen controls in the Mini-Config software that show you exactly what your source and output will look like and what formats are coming in and going out. Simple menu controls let you quickly choose the proper output for any situation.

The output will be mirrored to both the 3G-SDI and HDMI outputs for simultaneous delivery to multiple displays or continuing signal paths.

Connectivity
ROI utilizes a direct loop through, allowing it to be placed in-line so you still have a connection to an external monitor while extracting to SDI. The reference input ensures the SDI signal out of ROI is locked for use throughout a production or facility.

Audio
ROI accepts 2-channel audio from the 3.5mm analog audio input or embedded 8-channel audio from a DisplayPort input. The audio source and routing can be selected in the Mini-Config software and is embedded in the SDI output. This allows computer audio to be embedded within the SDI signal for easy, synchronized routing.

Tech Specs:
Video Input Formats: Computer Signals: WUXGA (1920 x 1200) 60 Hz max; VGA (640 x 480) minimum; Video Signals: (HD) 1920 x 1080i 50, 59.94; (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1280 x 720p 50, 59.94, 60; (SD) 625i, 525i; (SD) 580p, 480p
Video Output Formats: (HD) 1920 x 1080p 50, 59.94, 60, SMPTE 425-1 Level A mapping structure 1 (4:2:2 10-bit YCbCr); (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30; (HD) 1920 x 1080i 50, 59.94, 60; (HD) 1280 x 720p 50, 59.94, 60; (SD) 625i 25; (SD) 525i 29.97
Color Range: Full; SMPTE
Reference Input: Supported reference video inputs include: 1080i tri-level sync; 1080p tri-level sync; 720p tri-level sync; PAL 625 bi-level sync; NTSC 525 bi-level sync
Video Input: 1x DisplayPort 1.1a input connector
Video Outputs: DisplayPort 1x DisplayPort pass through connector; SDI 3G-SDI, SMPTE-259/292/424, 1 x BNC
HDCP: ROI-DP does not encode the DisplayPort output with HDCP encryption; ROI-DP does not accept HDCP input
Audio Inputs: 1x Analog 3.5mm TRS, 2-channel; DisplayPort embedded audio, 24-bit, 8-channel
Audio Outputs: SDI embedded audio, 24-bit, 2-channel or 8-channel; DisplayPort embedded audio, 24-bit, 8-channel
User Interface: USB port used with supplied cable and Mini-Config software application to configure device via Mac or Windows
Size (w x d x h): 5.77" x 4.02" x 0.9" (146.5 x 102.2 x 22.9 mm)
Weight: 0.5 lb (0.3 kg)
Power: Universal power supply included; 100-240V, 50/60 Hz Universal Input; +5 to 20V DC regulated, 7 watts max
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
