The AJA IP25-R is a next-generation IP Converter that seamlessly bridges SMPTE ST 2110 IP media networks and traditional SDI baseband and HDMI infrastructures. Just introduced, free v2.0 firmware doubles the functionality of this conversion powerhouse by now offering bi-directional conversions via the all-new Tx (Transmit) mode. Additionally, v2.0 firmware also expands the Rx (Receive) mode from 4 to 6 streams of ST 2110 IP video. Audio grouping modes have been expanded to now include 1x16, 2x8 and 4x4 streams, to ensure compatibility across various infrastructures.

Built for demanding IP production environments, the IP25-R offers powerful conversion capabilities with full SMPTE compliance, making it ideal for integration into hybrid SDI/IP facilities. De-encapsulate ST 2110 video, audio, and ancillary data and output them via baseband SDI and HDMI for confidence monitoring, playout, or routing via the Rx mode. The Tx mode supports 4 SDI inputs up to 12G-SDI and converts them to ST 2110 with frame-accurate synchronization, giving you the ultimate flexibility in a compact, robust 2110 conversion device.

Engineered for professional broadcast, production, and live event workflows, the IP25-R offers dual 10/25 GigE SFP cages, 4x 12G-SDI BNC Bi-directional ports, and 2x HDMI 2.0 outputs, delivering pristine video up to 4K DCI (4096x2160p60) with ultra-low latency. The IP25-R dual SFP28 cages provide ST 2022-7 seamless protection switching, ensuring uninterrupted signal delivery across redundant IP networks. This makes the IP25-R an ideal choice for critical applications such as network operations centers (NOCs), OB trucks and remote production, live events, stadium and in-venue AV systems, and broadcast control rooms.

Configure the IP25-R through an intuitive web browser interface, with options for both in-band control over the media network and out-of-band control via the RJ45
1 GigE port. This simplifies deployment in almost any IP infrastructure. The IP25-R also offers a host of 2110 configuration and troubleshooting tools, making it an indispensable part of your operation.

Whether you're upgrading broadcast infrastructure, or bridging the SDI and 2110 worlds, the IP25-R offers a reliable, compact, and standards-compliant solution for ST 2110 IP and baseband conversions. Perfect for facilities moving to IP workflows while maintaining SDI/HDMI compatibility.

Product Features

Features

• SMPTE ST 2110 (-10, -20, -21, -30, -40) standards compliant Video, Audio, ANC Receiver
• ST 2110-20 Video: Supports up to 6 Rx or 4 Tx with ST 2022-7 redundancy, bandwidth dependent
• 4x 12G-SDI Video with embedded audio: Set as inputs or outputs • 10-bit 4:2:2 up to 4K DCI (4096x2160 p60) resolution

• ST 2110-30 Audio: Supports up to 24 Rx or 16Tx with ST 2022-7 redundancy • Audio modes 1x16, 2x8, 4x4, up to 16-channels per stream
• 1ms and 125us timing

• ST 2110-40 Ancillary data (ANC): Supports up to 6 Rx with ST 2022-7 redundancy
• 2x HDMI 2.0 outputs
• 2x SFP28 cages support 10 GigE and 25 GigE SFPs for ST 2022-7 redundancy
• NMOS (IS-04 and IS-05) compatible
• In-Band (via SFPs): PTPv2/ST 2059-2, control via NMOS (IS-04 and IS-05), AJA REST API, and Ember+
• Out-of-Band (via 1 GigE RJ-45): control via NMOS (IS-04 and IS-05), AJA REST API, and Ember+
• PTP: ST 2059-2 (IEEE 1588 Precision Time Protocol) (PTPv2) accessed via media net SFPs
• Test Signal Generator
• Presets: save and apply based on Rx or Tx product mode
• ST 2110 configuration and diagnostic tools
• WebUI signal monitoring of selected output video channel
• WebUI for easy control and configuration
• HDR support, including HDR metadata override for both SDI VPID and HDMI InfoFrame
• BT.709 and BT.2020 colorimetry support with override
• LLDP (Link Layer Discovery Protocol)
• DNS SD (DNS Service Discovery)
• HDMI strain-relief bracket included
• Five-year warranty and technical support

Features
Collapse Section

Watch the IP25-R in Action
Learn how the IP25-R delivers low-latency, broadcast quality SMPTE ST 2110 IP-to-SDI/HDMI conversion. See real workflows, system integration examples, and more.

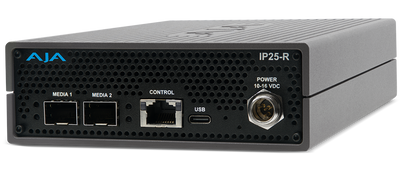

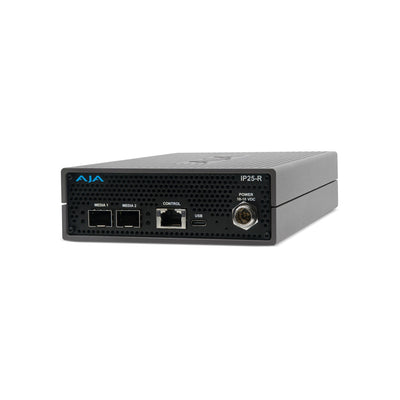

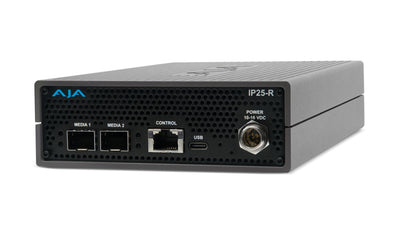

Rugged, Rack Ready Design with Flexible Configuration
The IP25-R is housed in a durable aluminum enclosure, ideal for both portable “throw-down” use and high-density rackmount installations. Up to three units can be mounted side-by-side in a single 1RU shelf—perfect for space-constrained environments. With AJA’s DRM2-Plus 3RU rackmount frame, redundant power can be provided for up to six IP25-Rs!

For fast setup, the front-facing USB-C port supports AJA’s free eMini-Setup application for easy initial network configuration. Multicast setup, internal routing, and output specific functions are accessed via the WebUI. Designed with active front-to-back cooling, the IP25-R ensures reliable, long-term performance in demanding broadcast and production locations.

Intuitive Web-Based Control
The IP25-R features a built-in web server that hosts a user-friendly, browser-based interface (WebUI) for easy configuration and control. Through the intuitive WebUI, users can quickly set up IP parameters, manage PTP synchronization, configure external control options, and monitor the video being fed to the outputs.

The interface also allows for flexible signal routing, enabling you to assign any of the six ST 2110 Rx inputs to specific SDI or HDMI outputs. You can also assign any of the 4 Tx inputs to specific 2110 streams. Additionally, users can fine-tune HDR metadata and colorimetry settings, as well as replicate output routing internally, making the IP25-R a powerful tool for IP-to-baseband monitoring and signal management.

View Larger

New Tx Mode
The IP25-R now supports SDI to ST 2110 (Tx) signal conversion. You can convert up to 4x SDI signals into ST 2110 with support up to 12G-SDI, making this device the most flexible converter on the market. To ensure the signal integrity of the baseband to IP conversion, each ST 2110 and HDMI output has an optional Frame Sync with delay capability to ensure signals arrive when they are supposed to. When the ‘Timing’ slider is enabled, Frame Sync is activated and when the ‘Timing' button is selected, the Configure tab on the right will show the status and functions. ‘Input To Output Delay’ shows the input routed to the selected output pipeline. It also shows the input timing offset, relative to PTP. This is presented as H+V time, Frame Time, and Total Time (in ms).

Audio Tools
The IP25-R is not only a standout performer when it comes to video processing and configuration but also includes powerful audio capabilities to ensure maximum flexibility in production situations.

Audio Mapping:

New in v2.0 firmware is the ability to provide multi-audio stream mapping per video channel, supporting options between 1x16, 2x8, and 4x4 for interoperability with industry standard audio configurations. Also, ‘Audio Follows Video’ is now enabled by default for ease of use.

Audio Delay:

The IP25-R provides adjustment of audio timing in ms. When video is delayed, the same delay is applied to audio and presented as 0ms. 0ms delay is in relation to the video.

SMPTE ST 2110 Configuration and Diagnostic Tools
Beyond conversions, the IP25-R includes a robust set of tools for configuring and troubleshooting SMPTE ST 2110 networks. IP25-R helps you deploy, verify, and troubleshoot ST 2110 faster — often without needing a separate probe just to answer basic setup and maintenance questions.

Test Signal Generators
Each ST 2110 output can have an individual test signal enabled and set. This provides the capability to generate up to 4 individual ST 2110 test signals (bars, flat field, black, etc) with the option to enable a 1KHz tone as well. These signal generators are important tools for setting up and checking ST 2110 signal paths. The test pattern includes an optional on-screen overlay with the device hostname, time-of-day, and RJ45 control IP address, so the video output becomes a live “label” for the unit. If the WebUI isn’t reachable, and you need to start your network setup or troubleshooting, you can double-press the reset button to toggle the test pattern on, then double-press again to return to normal output.

ST 2110 Tools
Network Validation – Ping: • Ping a target IP directly from IP25-R per interface (control, media 1, media 2). Quickly confirm reachability when discovery and control aren’t behaving as expected — especially critical in multi-network facilities.
PCAP – Packet Capture File: • PCAP provides capability to capture stream (Ethernet/IP packets) data on all network interfaces at once for troubleshooting. Once captured, the file can be downloaded to your computer and opened with Wireshark.
SDP (Session Description Protocol) File Override: • Temporarily ignore specific SDP fields to prove whether media is present and isolate where the issue is — then restore standard behavior once resolved.
NMOS Flexible Discovery Modes: • Control how IP25-R searches for and connects to NMOS services across control vs media networks. Support for DNS-SD + mDNS and static registry IP options to align with your facility configuration.
Operational Statics: • Visibility into Rx/Tx bitrate, corrupt packets, and FEC errors, with counter resets for before/after validation.

HDR Support
High Dynamic Range (HDR) dramatically improves image quality by delivering richer colors, brighter highlights, and deeper blacks compared to standard dynamic range (SDR) signals. This results in more vibrant, true-to-life visuals, ensuring your audience experiences content as it was intended.

The IP25-R supports advanced HDR metadata handling, including SDI VPID and HDMI Infoframe signaling, making it ideal for modern HDR workflows. It simplifies the complexities of HDR integration by allowing HDR passthrough with metadata override to accurately map HDR metadata to all outputs.

This functionality ensures your IP-baseband conversion meets today’s HDR delivery requirements, whether for live production, broadcast, or postproduction environments.

HD HDR SDI to ST 2110 Tx Mode
In this workflow, you see the new Tx mode whereby 4 HDR HD-SDI camera feeds are simultaneously converted to SMPTE ST 2110. The local HDMI ports can be used for confidence monitoring of the camera feeds.

Download Workflow

OB Truck SMPTE ST 2110 Camera and Switcher Monitoring Solution
In this IP-based stadium example, live camera feeds and the video switcher connect to redundant SMPTE ST 2110 network switches, which deliver synchronized IP video, audio, and metadata directly into the IP25-R's dual SFP inputs for seamless ST 2110 reception and conversion. • 2x HDMI 2.0 outputs feed directly to 2x HDMI monitors, up to 4K 4096x2160p.

• SDI 1 output feeds in the AJA ColorBox (or OG-ColorBox) for color verification. The ColorBox then distributes the signal via SDI and HDMI to monitors.
• SDI 2, 3, and 4 outputs directly to SDI monitors.
• Download Workflow

SMPTE ST 2110 to UHD SDI Incorporating HDMI Confidence Monitoring
The IP25-R enables seamless conversion of uncompressed SMPTE ST 2110 UHDp60 (3840x2160) video to your existing on-site SDI infrastructure. In this setup, the converted ST 2110 signals are routed through an AJA KUMO SDI router, allowing flexible signal distribution throughout your facility. For added assurance, the IP25-R features dual HDMI outputs, ideal for real time signal confidence monitoring in machine rooms or engineering environments. • Rx 1 routes internally to SDI 1 and HDMI 1. SDI 1 feeds into the router for wider signal distribution, and HDMI 1 is used for confidence monitoring.
• Rx 2 routes internally to SDI 2 and HDMI 2. SDI 2 feeds into the router for wider signal distribution, and HDMI 2 is used for confidence monitoring.
Download Workflow

SMPTE ST 2110 Multi-viewer Monitoring and SDI Signal Distribution
Easily display SMPTE ST 2110 UHDp60 Multiviewers through the two HDMI 2.0 outputs while routing them through your existing SDI infrastructure using the IP25-R and KUMO router. This workflow enables real time multi-viewer monitoring in your control rooms and easy SDI distribution, providing a seamless bridge from IP-based video to traditional baseband environments. • Rx 1 routes internally to HDMI 1, which then outputs to an HDMI monitor. It also routes to SDI, which feeds into the KUMO router and SDI infrastructure.
• Rx 2 routes internally to HDMI 2, which then outputs to an HDMI monitor. It also routes to SDI, which feeds into the KUMO router and SDI infrastructure.
Download Workflow

SMPTE ST 2110 HD 1080p60 to SDI Infrastructure Workflow Solution with HDMI Monitoring
Seamlessly integrate SMPTE ST 2110 HD 1080p60 IP video into your existing SDI infrastructure, with HDMI outputs for real time confidence monitoring. • 6 ST 2110 Rx internally routable to 4 SDI outputs for infrastructure delivery and 2 HDMI outputs for confidence monitoring.
​​​​​​

Download Workflow

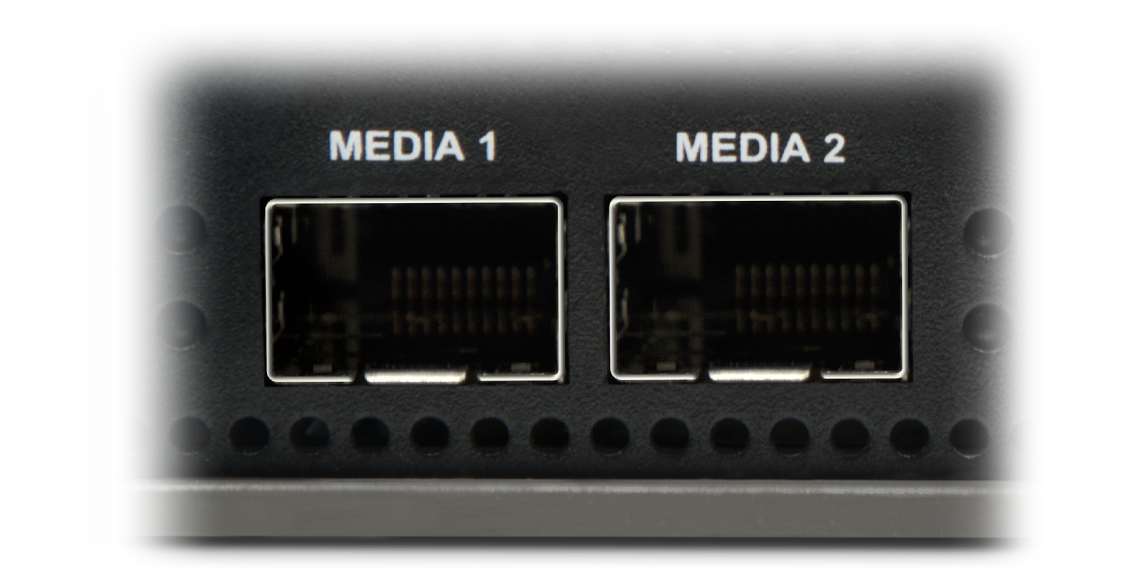

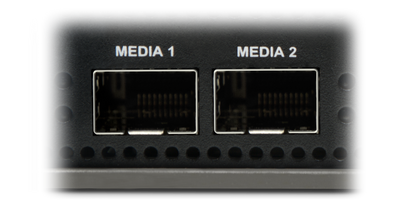

Dual SFP28 Support for 10 GigE/25 GigE and SMPTE ST 2022-7 Redundancy
The IP25-R features two SFP28 cages that are compatible with both 10 GigE and 25 GigE SFP modules, enabling high-bandwidth SMPTE ST 2110 IP video workflows. The unit supports ST 2022-7 hitless switching, ensuring seamless network redundancy for mission-critical IP workflows. (Note: SFPs are not included)

Spare Power Supply
Features • 100-240VAC, 50/60Hz Universal Input

• +12V DC Regulated Output
• 60 Watt Capacity
• The AJA-PWR-12-60W power supply is included and is also sold separately. The power supply has a latching, 4-pin mini-XLR connector with gold pins. The PSU meets the high reliability requirements of the professional video industry. If you need a spare power supply, it can be ordered from your local AJA reseller.

AJA-PWR-12-60W $120 US MSRP

Tech Specs:
Video Formats: (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (UHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720P 50, 59.94, 60
Media Transport Interfaces (In-Band): Uncompressed media (SMPTE ST 2110-20, 30, 40); PTP; Configuration & Control; 2x SFP28 Cages (redundant only)- SFPs not included; Supports 10 GigE and 25 GigE SFPs
RJ-45 1 GigE Interface (Out-of-Band): Configuration & Control
Input Uncompressed IP: SMPTE ST 2110-20 Video YCbCr 4:2:2 10-bit; 6-stream input*; Rx support for Narrow and Wide Senders; RX support for Class-A, B, C, D SMPTE ST 2022-7 redundancy; SMPTE ST 2110-30 Audio Up to 24 stream input*; 1, 2, or 4 streams per video*; Up to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous; 1ms and 125us timing; SMPTE ST 2110-40 Ancillary 6-stream input
Output Uncompressed IP : SMPTE ST 2110-20 Video YCbCr 4:2:2 10-bit; 4-stream output*; Tx support for ST 2022-7; Tx senders are Narrow Gapped; SMPTE ST 2110-30 Audio Up to 16 stream output*; 1, 2, or 4 streams per video*; Up to 16-channel audio per stream, 24-bit per channel, 48 kHz synchronous*; 1ms and 125us timing
Discovery, Registration, and Control: NMOS Tx/Rx support according to standards IS-04 v1.3 and IS-05 v1.1; DNS-SD + mDNS; LLDP; In-Band and Out-of-Band; L2, L3 with SSM; IGMP v2, v3
Video Input and Output Digital: 4x 12G-SDI Bi-directional BNC connectors (ST-292/424/2081/2082) * HDR aware with pass-through and configuration for Colorimetry and Transfer Characteristic; YCbCr 4:2:2; 10-bit; 4k/UHD/HD; 2x HDMI Standard Type A connector HDMI v2.0b; HDR aware with infoframe pass-through and configuration for Colorimetry and Transfer Characteristic; YCbCr 4:2:2 10-bit; RGB 4:4:4 8-bit; 4k/UHD/HD
Audio Output Digital: SDI embedded audio, 24-bit, 16-channel; HDMI embedded audio, 24-bit, 8-channel
IP Clock: PTP support compliant with PTP PTPv2, PTPv3 / IEEE 1588-2008; SMPTE ST 2059-1 compliant
User Interface: 1x RJ-45 1 GigE Ethernet Web and REST clients supported for remote network setup and configuration; 1x USB-C port for initial Static IP configuration using AJA eMini-Setup; Web and REST configuration is also supported in-band over media ports
Size (w x d x h): 5.0" x 8.09" x 1.65" (127 x 205.49 x 41.81 mm)
Weight: 1.92 lbs (.87 kg)
Power: Enclosure: 10-16VDC regulated, 4-pin mini-XLR, 16W typical 3G-SDI, 21W typical 12G-SDI, 25W max; AC Adapter included: 100-240VAC, 50/60 Hz, universal input, 60W
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
