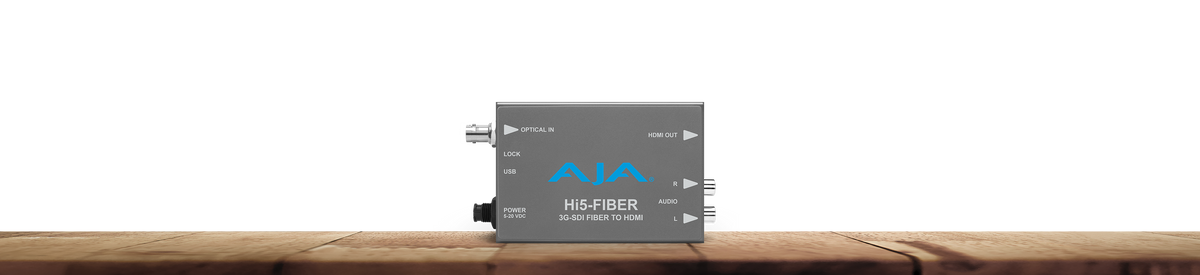

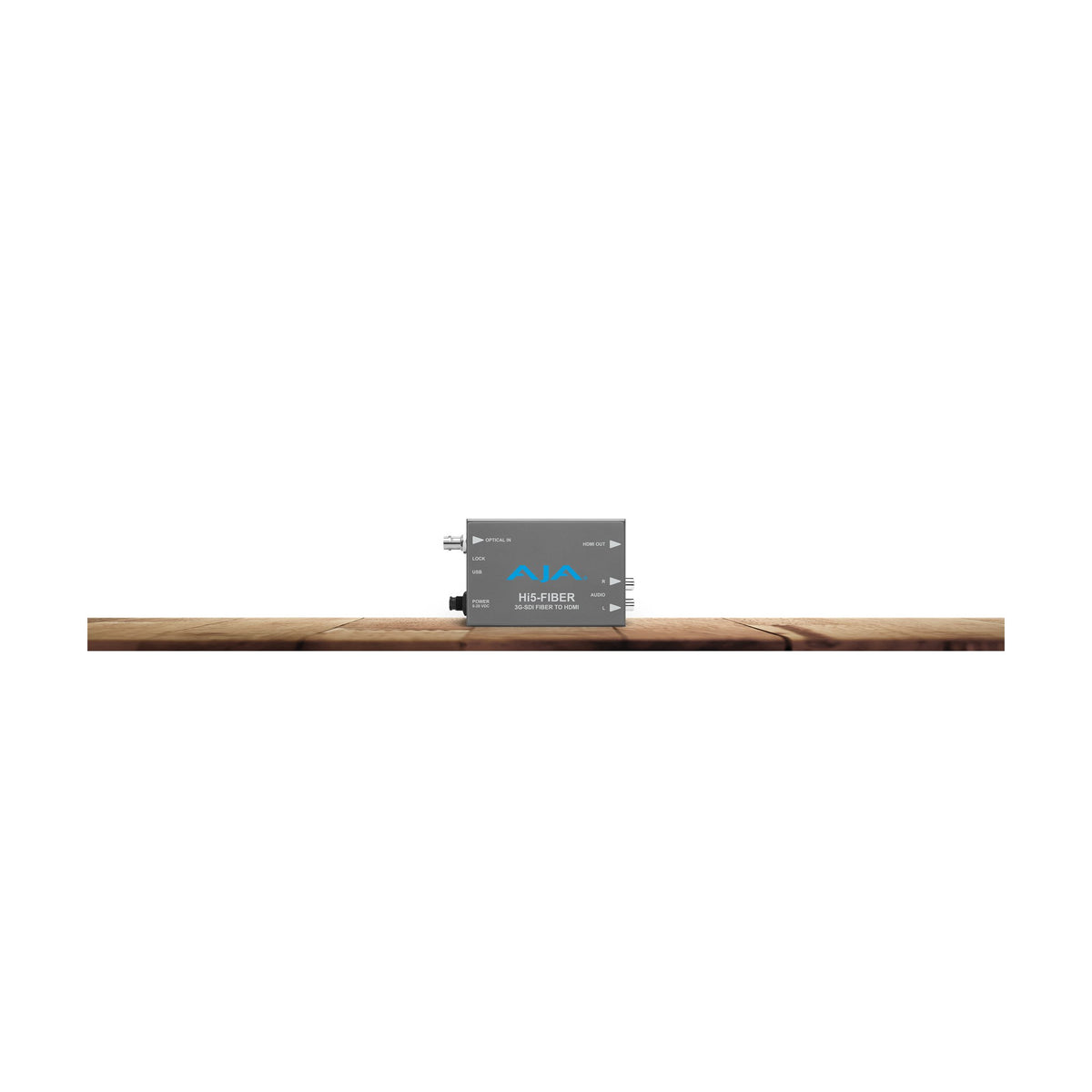

AJA Hi5-Fiber Hi5 with ST Fiber Input (3G-SDI Protocol on Fiber) for Fiber to HDMI Conversion
AJA Hi5-Fiber Hi5 with ST Fiber Input (3G-SDI Protocol on Fiber) for Fiber to HDMI Conversion

Vendor:

AJA Hi5-Fiber Hi5 with ST Fiber Input (3G-SDI Protocol on Fiber) for Fiber to HDMI Conversion

$989.00

SKU HI5-FIBER-R2

Available to order — allow extra processing and shipping time

Special order: non-cancelable, non-returnable

Full manufacturer warranties on everything we sell
Questions? Talk to a specialist — Mon–Fri 8:30–5 ET

Hi5-Fiber converts 3G-SDI over single mode 1310 nm Fiber optic cable (ST-style Fiber connector) to HDMI for driving HDMI monitors. Embedded 8-channel 3G-SDI audio is supported in the HDMI output allowing a convenient single cable audio/video connection. Hi5-Fiber provides 2-Channel RCA style audio outputs for separate audio monitoring if needed.

Features

  • Fiber optic 3G-SDI to HDMI
  • Supports single mode 1310 nm fiber optic cable with ST receiver
  • Full HDMI support including embedded audio
  • Additional 2-Channel RCA jack audio output
  • No configuration necessary
  • 1m HDMI cable included
  • Five year warranty

USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

Tech Specs:
Video Formats: (2K) 2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (2K) 2K x 1080PsF* 23.98, 24, 25, 29.97, 30; (HD) 1080i 50, 59.94, 60; (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1080PsF* 23.98, 24, 25, 29.97, 30; (HD) 720p 50, 59.94, 60; (SD) 625i; (SD) 525i
Video Input: Single mode optical fiber, ST connector supporting SMPTE-259/292/424 3G/HD/SD-SDI
Video Outputs: HDMI with embedded audio up to 8-Channels (selectable by Mini-Config) 12-bit; 10-bit YCbCr 4:2:2; 8-bit RGB 4:4:4
Audio Input: SDI embedded audio, select from 16-Channels
Audio Output: • 2-Channel RCA style (-10 dBu nominal)
Size (w x d x h): 4.6" x 2.4" x 1.0" (116.84 x 60.96 x 25.4 mm)
Weight: 0.4 lb (0.2 kg)
Power: Universal power supply included; 100-240V, 50/60 Hz universal input; +5V DC regulated, 3 watts
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F); Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
