The Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, with single cable simplicity. Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to new displays with HDMI 2.0 inputs, for cost-effective monitoring in professional workflows. The Hi5-12G can also generate HDR metadata in accordance with HDMI v2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines.

Fiber SFP equipped Hi5-12G models are available including the Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in Hi5-12G-R and Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).

Features

• Convert 12G-SDI to HDMI 2.0b at up to 4K 60p
• Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0b output
• Supports 12-bit workflows
• HDR signaling metadata pass-through and optional override
• Embedded audio support 8-channel 24-bit
• Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
• Supports up to 100 frames of audio delay
• 12G-SDI loop out
• Fiber SFP models available
• USB port used with Mini-Config software application to configure the device via PC/Mac
• Uses 5-16 VDC power (Universal power supply included)
• Five-year warranty
• 12G-SDI Source to UltraHD HDMI 2.0 Destination

12G-SDI Source with SDI Loop Through and UltraHD HDMI 2.0 Destination

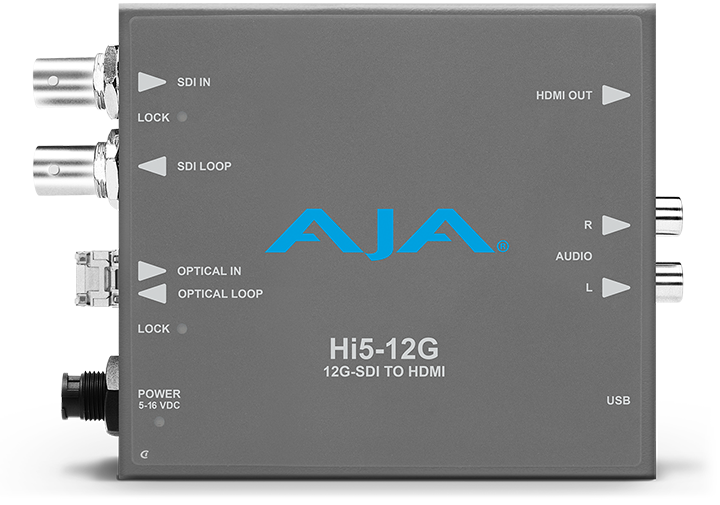

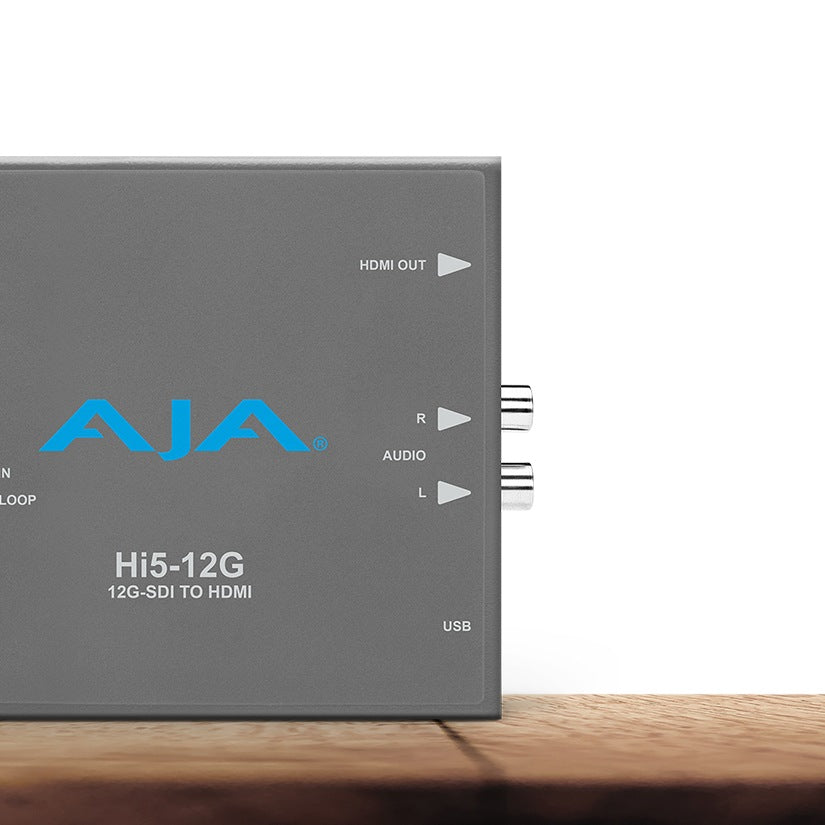

Hi5-12G-R
12G-SDI to HDMI 2.0 Conversion with LC Fiber Receiver • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable

• Supports 12-bit workflows
• Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
• Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber LC outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
• 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
• Ships with a Fiber LC single channel SFP receiver for extending 4K signals over long distances
• Uses 5-16 VDC power (Universal power supply included)
• USB port used with Mini-Config software application to configure the device via PC/Mac
• Five year warranty
• Only $1,399 US MSRP*

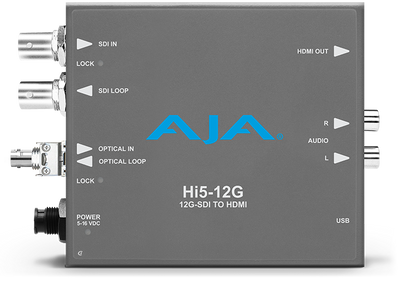

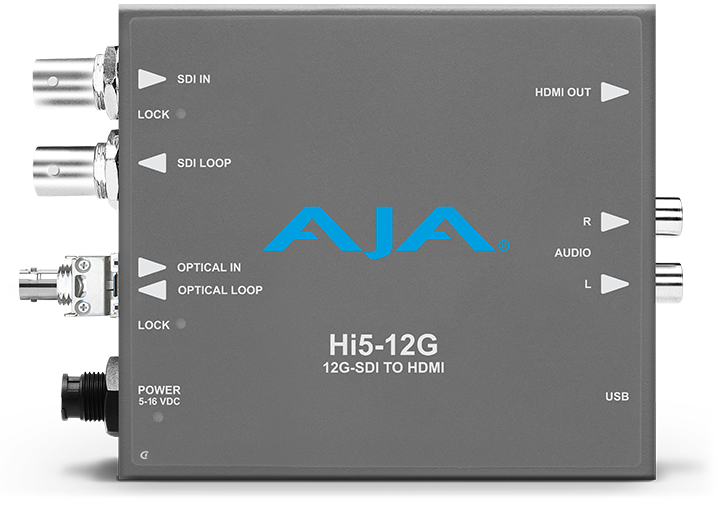

Hi5-12G-R-ST
12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable

• Supports 12-bit workflows
• Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
• Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
• 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
• Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
• Uses 5-16 VDC power (Universal power supply included)
• USB port used with Mini-Config software application to configure the device via PC/Mac
• Five year warranty
• Only $1,550 US MSRP*

12G-SDI Source with Fiber Feed to Hi5-12G and UltraHD HDMI 2.0 Destination

12G-SDI Camera Source for HDR Workflows and UltraHD HDMI 2.0 Destination

Hi5-12G-TR
12G-SDI to HDMI 2.0 Conversion with LC Fiber Transceiver • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable

• Supports 12-bit workflows
• Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
• Simple monitoring connection from professional 4K devices using 12G-SDI outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring
• Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination
• Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
• Uses 5-16 VDC power (Universal power supply included)
• USB port used with Mini-Config software application to configure the device via PC/Mac
• Five year warranty
• Only $1,680 US MSRP*

12G-SDI Camera Source for HDR Workflows and 2x UltraHD HDMI 2.0 Destinations

UltraHD HDMI 2.0 Source with Fiber Transport and 2x UltraHD HDMI 2.0 Destinations

HDR
HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

Hi5-12G provides this support for your 4K/UltraHD/HD HDR pipelines to HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0b/CTA-861-G. Hi5-12G also provides support for Hybrid Log Gamma (HLG) HDR displays over HDMI.

Explore more of our HDR Solutions here:

HDR Solutions

4K and UltraHD
Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. Hi5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

Hi5-12G also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60 fps can be fed into Hi5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

12G-SDI Support
The 12G-SDI input on Hi5-12G allows extremely high quality signal representation through to the HDMI output for use with large raster and deep color workflows where image quality is critical.

12G-SDI Solutions

Audio Integration
Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video. Two channels of analog audio output allow direct external monitoring without the need to disembed the audio separately.

USB and Mini-Config Support
AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

Tech Specs:
Video Formats: (4K) 4096x2160p; (UltraHD) 3840x2160p; (2K) 2048x1080p; (HD) 1920x1080p; (HD) 1920x1080i; (HD) 1280x720p; (SD) 720x576i; (SD) 720x480i
Video Input Digital: 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082; YCbCr 4:2:2/4:4:4; RGB 4:4:4, SMPTE or Full level; 8, 10, 12-bit; Two Sample Interleave (2SI) 4K/UltraHD source mapping; 1x 12 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; 1x 6 Gb SDI (4K) 4096x2160p 23.98, 24, 25, 29.97, 30; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30; 1x 3 Gb SDI (Level A or B Dual Link) (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p* 50, 59.94, 60; 1x 1.5 Gb SDI (2K) 2048x1080p 23.98, 24, 25, 29.97, 30; (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30; (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; 1x 270 Mb SDI (SD) 625i 50; (SD) 525i 59.94
Input Signal Selection -Hi5-12G-R and Hi5-12G-TR Only: 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082; 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max); Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps); Overload Power: -2 dBm (min)
Input Signal Selection - Hi5-12G-R-ST Only: 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082; 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max); Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps); Overload Power: -2 dBm (min)
Video Output Digital: 1x HDMI Type A connector*, HDMI v2.0b; HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic; YCbCr 4:2:2/4:4:4/4:2:0; RGB 4:4:4, SMPTE or Full level; 24, 30, or 36 Bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP); (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60; (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60; (HD) 1920x1080i 50, 59.94, 60; (HD) 1280x720p 50, 59.94, 60; (SD) 720x576i 50; (SD) 720x480i 59.94
Audio Pass-Through Formats: PCM; Dolby Digital (AC-3); Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)
Video Output Digital - Additional for Hi5-12G-TR Only: 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082 Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max); Optical Power: -5 dBm (min), 0.5 dBm (max); Extinction Ratio: 5.4 dB (min)
Audio Input Digital: SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel
Audio Output Digital: HDMI embedded audio, 24-bit, 8-channel
Audio Output Analog: 2x RCA style connector, 2-channel -10dBu (nominal)
User Interface: USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows
Size (w x d x h): 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)
Weight: 0.5 lb (0.3 kg)
Power: 5-16VDC regulated, 11 watts, power supply required included with purchase; AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment: Safe Operating Temperature: 0 to 40 C (32 to 104 F)*; Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F); Operating Relative Humidity: 10-90% noncondensing; Operating Altitude: <3,000 meters (<10,000 feet)
